CA3260E

Part # CA3260E
Description IC OPAMP GP 4MHZ 8DIP
Category IC
Availability Out of Stock
Qty 0
Qty Price
1 + $0.55000



Technical Document


DISCLAIMER: The information provided herein is solely for informational purposes. Customers must be aware of the suitability of this product for their application, and consider that variable factors such as Manufacturer, Product Category, Date Codes, Pictures and Descriptions may differ from available inventory.

1
®
CA3260, CA3260A
4MHz, BiMOS Operational Amplifier with
MOSFET Input/CMOS Output
CA3260A and CA3260 are integrated circuit operational
amplifiers that combine the advantage of both CMOS and
bipolar transistors on a monolithic chip. The CA3260 series
circuits are dual versions of the popular CA3160 series.
Gate protected P-Channel MOSFET (PMOS) transistors are
used in the input circuit to provide very high input
impedance, very low input current, and exceptional speed
performance. The use of PMOS field effect transistors in the
input stage results in common mode input voltage capability
down to 0.5V below the negative supply terminal, an
important attribute in single supply applications.
A complementary symmetry MOS (CMOS) transistor pair,
capable of swinging the output voltage to within 10mV of
either supply voltage terminal (at very high values of load
impedance), is employed as the output circuit.
The CA3260 Series circuits operate at supply voltages
ranging from 4V to 16V, or ±2V to ±8V when using split
supplies. The CA3260A offers superior input characteristics
over those of the CA3260.
Features
MOSFET Input Stage provides
- Very High Z
I
= 1.5T (1.5 x 10
12
) (Typ)
- Very Low I
I
. . . . . . . . . . . . 5pA (Typ) at 15V Operation
. . . . . . . . . . . . . . . . . . . . . . 2pA (Typ) at 5V Operation
Ideal for Single Supply Applications
Common Mode Input Voltage Range Includes
Negative Supply Rail; Input Terminals Can be Swung 0.5V
Below Negative Supply Rail
CMOS Output Stage Permits Signal Swing to Either
(Or Both) Supply Rails
Pb-Free Plus Anneal Available (RoHS Compliant)
Applications
Ground Referenced Single Supply Amplifiers
Fast Sample-Hold Amplifiers
Long Duration Timers/Monostables
Ideal Interface with Digital CMOS
High Input Impedance Wideband Amplifiers
Voltage Followers (e.g. Follower for Single Supply D/A
Converter)
Voltage Regulators (Permits Control of Output Voltage
Down to 0V)
Wien Bridge Oscillators
Voltage Controlled Oscillators
Photo Diode Sensor Amplifiers
Pinout
CA3260, CA3260A (PDIP)
TOP VIEW
Ordering Information
PART
NUMBER
PART
MARKING
TEMP.
RANGE (°C) PACKAGE
PKG.
DWG. #
CA3260E CA3260E -55
to 125 8 Ld PDIP E8.3
CA3260EZ
(Note)
CA3260EZ -55
to 125 8 Ld PDIP*
(Pb-free)
E8.3
CA3260AE CA3260AE -55
to 125 8 Ld PDIP E8.3
CA3260AEZ
(Note)
3260AEZ -55
to 125 8 Ld PDIP*
(Pb-free)
E8.3
*Pb-free PDIPs can be used for through hole wave solder processing
only. They are not intended for use in Reflow solder processing
applications.
NOTE: Intersil Pb-free plus anneal products employ special Pb-free
material sets; molding compounds/die attach materials and 100%
matte tin plate termination finish, which are RoHS compliant and
compatible with both SnPb and Pb-free soldering operations. Intersil
Pb-free products are MSL classified at Pb-free peak reflow
temperatures that meet or exceed the Pb-free requirements of
IPC/JEDEC J STD-020.
NON INV. INPUT (A)
V-
1
2
3
8
7
6
5
V+
OUTPUT (B)
INV. INPUT (B)
NON INV. INPUT (B)
OUTPUT (A)
A
4
B
+
-
+
-
INV. INPUT (A)
Data Sheet February 7, 2006 FN1266.6
CAUTION: These devices are sensitive to electrostatic discharge; follow proper IC Handling Procedures.
1-888-INTERSIL or 1-888-468-3774
| Intersil (and design) is a registered trademark of Intersil Americas Inc.
Copyright Intersil Americas Inc. 1998, 2005, 2006. All Rights Reserved
All other trademarks mentioned are the property of their respective owners.
2
FN1266.6
February 7, 2006
Absolute Maximum Ratings Thermal Information
DC Supply Voltage (V+ to V-) . . . . . . . . . . . . . . . . . . . . . . . . . . 16V
DC Input Voltage . . . . . . . . . . . . . . . . . . . . . . (V+ +8V) to (V- -0.5V)
Differential Input Voltage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8V
Input Terminal Current. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1mA
Output Short Circuit Duration (Note 1). . . . . . . . . . . . . . . . Indefinite
Operating Conditions
Temperature Range. . . . . . . . . . . . . . . . . . . . . . . . . -55°C to 125°C
Thermal Resistance (Typical, Note 2) θ
JA
(°C/W) θ
JC
(°C/W)
PDIP Package* . . . . . . . . . . . . . . . . . . 100 N/A
Maximum Junction Temperature (Plastic Package) . . . . . . . . 150°C
Maximum Storage Temperature Range . . . . . . . . . -65°C to 150°C
Maximum Lead Temperature (Soldering 10s) . . . . . . . . . . . . 300°C
*Pb-free PDIPs can be used for through hole wave solder process-
ing only. They are not intended for use in Reflow solder processing
applications.
CAUTION: Stresses above those listed in “Absolute Maximum Ratings” may cause permanent damage to the device. This is a stress only rating and operation of the
device at these or any other conditions above those indicated in the operational sections of this specification is not implied.
NOTES:
1. Short circuit may be applied to ground or to either supply.
2. θ
JA
is measured with the component mounted on an evaluation PC board in free air.
Electrical Specifications T
A
= 25°C, Typical Values Intended Only for Design Guidance
PARAMETER SYMBOL TEST CONDITIONS
TYPICAL VALUES
UNITSCA3260A CA3260
Input Resistance R
I
V
S
= ±7.5V 1.5 1.5 T
Input Capacitance C
I
f = 1MHz, V
S
= ±7.5V 4.3 4.3 pF
Unity Gain Crossover Frequency f
T
V
S
= ±7.5V 4 4 MHz
Slew Rate SR V
S
= ±7.5V 10 10 V/µs
Transient Response Rise Time t
r
C
L
= 25pF, R
L
= 2kΩ, A
V
= +1,
V
S
= ±7.5V
0.09 0.09 µs
Overshoot OS 10 10 %
Settling Time (to <0.1%, V
IN
= 4V
P-P
)t
S
C
L
= 25pF, R
L
= 2kΩ, A
V
= +1,
V
S
= ±7.5V
1.8 1.8 µs
Input Offset Voltage V
IO
V+ = 5V, V- = 0V 2 6 mV
Input Offset Current I
IO
V+ = 5V, V- = 0V 0.1 0.1 pA
Input Current I
I
V+ = 5V, V- = 0V 2 2 pA
Common Mode Rejection Ratio CMRR V+ = 5V, V- = 0V 70 60 dB
Large Signal Voltage Gain A
OL
V
O
= 4V
P-P
, R
L
= 20kΩ,
V+ = 5V, V- = 0V
100 100 kV/V
100 100 dB
Common Mode Input Voltage Range V
ICR
V+ = 5V, V- = 0V 0 to 2.5 0 to 2.5 V
Supply Current I+ V
O
= 5V, R
L
= ∞, V+ = 5V, V- = 0V 1 1 mA
V
O
= 2.5V, R
L
= ∞, V+ = 5V, V- = 0V 1.2 1.2 mA
Power Supply Rejection Ratio PSRR V
IO
/V+, V+ = 5V, V- = 0V 200 200 µV/V
Electrical Specifications For Each Amplifier at T
A
= 25°C, V+ = 15V, V- = 0V, Unless Otherwise Specified
PARAMETER SYMBOL
TEST
CONDITIONS
CA3260A CA3260
UNITSMIN TYP MAX MIN TYP MAX
Input Offset Voltage |V
IO
|V
S
= ±7.5V - 2 5 - 6 15 mV
Input Offset Current |I
IO
|V
S
= ±7.5V - 0.5 20 - 0.5 30 pA
Input Current I
I
V
S
= ±7.5V - 5 30 - 5 50 pA
Large Signal Voltage Gain A
OL
V
O
= 10V
P-P
,
R
L
= 10k
50 320 - 50 320 - kV/V
94 110 - 94 110 - dB
Common Mode Rejection Ratio CMRR 80 95 - 70 90 - dB
Common Mode Input Voltage
Range
V
lCR
0-0.5 to
12
10 0 -0.5 to
12
10 V
CA3260, CA3260A
3
All Intersil U.S. products are manufactured, assembled and tested utilizing ISO9000 quality systems.
Intersil Corporation’s quality certifications can be viewed at www.intersil.com/design/quality
Intersil products are sold by description only. Intersil Corporation reserves the right to make changes in circuit design, software and/or specifications at any time without
notice. Accordingly, the reader is cautioned to verify that data sheets are current before placing orders. Information furnished by Intersil is believed to be accurate and
reliable. However, no responsibility is assumed by Intersil or its subsidiaries for its use; nor for any infringements of patents or other rights of third parties which may result
from its use. No license is granted by implication or otherwise under any patent or patent rights of Intersil or its subsidiaries.
For information regarding Intersil Corporation and its products, see www.intersil.com
FN1266.6
February 7, 2006

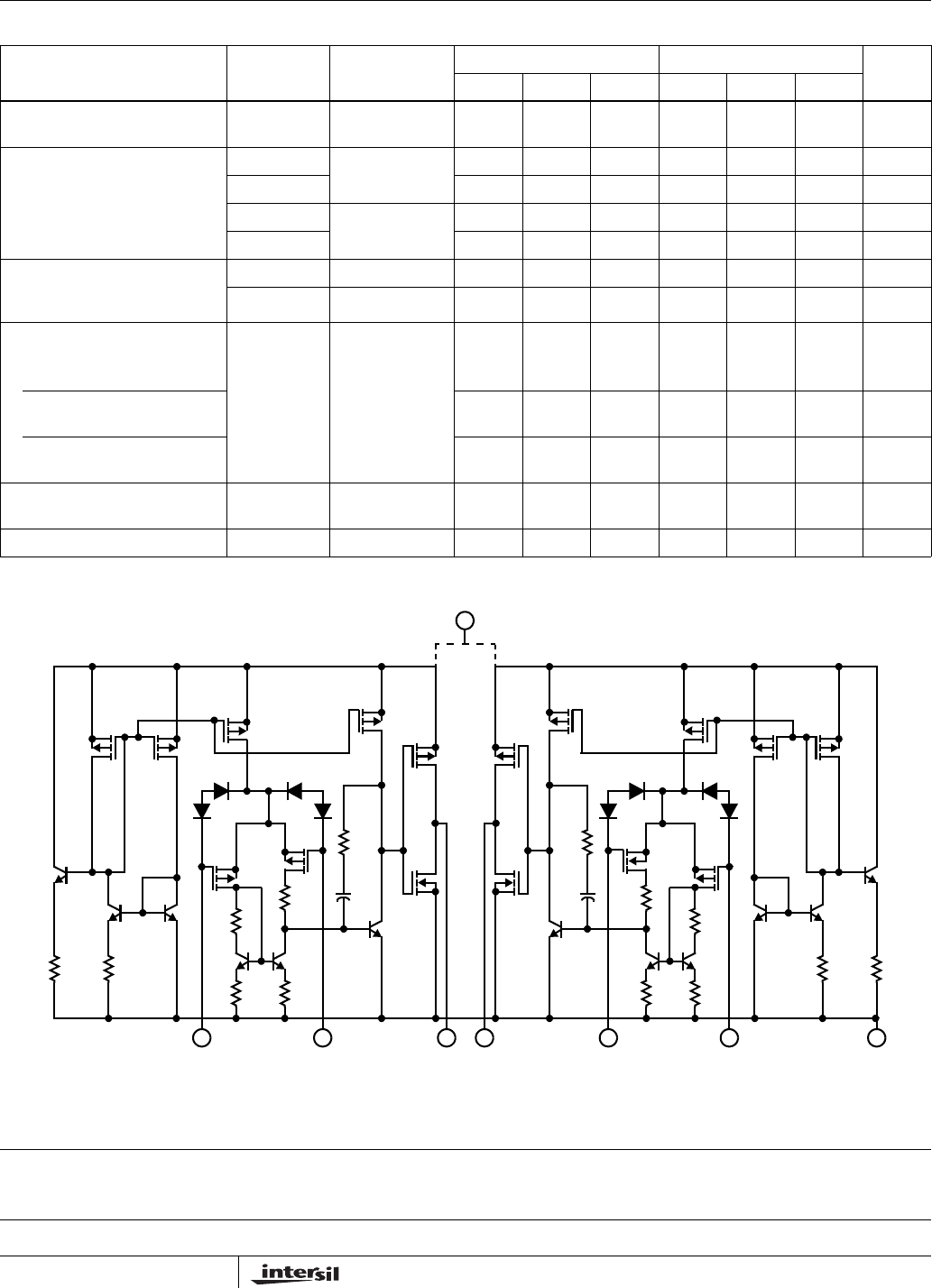

Schematic Diagram
Power Supply Rejection Ratio PSRR V
IO
/V+
V+ = 17.5V
- 32 150 - 32 320 µV/V
Maximum Output Voltage V
OM
+R
L
= 10k 11 13.3 - 11 13.3 - V
V
OM
- - 0.002 0.01 - 0.002 0.01 V
V
OM
+R
L
= 14.99 15 - 14.99 15 - V
V
OM
- - 00.01- 00.01V
Maximum Output Current I
OM
+ Source V
O
= 7.5V 12 22 45 12 22 45 mA
I
OM
- Sink 12 20 45 12 20 45 mA
Total Supply Current I+ R
L
=
V
O
(Amplifier A) = 7.5V
V
O
(Amplifier B) = 7.5V
- 9 15.5 - 9 15.5 mA
V
O
(Amplifier A) = 0V
V
O
(Amplifier B) = 0V
-1.23 -1.23mA
V
O
(Amplifier A) = 0V
V
O
(Amplifier B) = 7.5V
-58.5-58.5mA
Input Offset Voltage
Temperature Drift
V
IO
/T-6--8-µV/°C
Crosstalk f = 1kHz - 120 - - 120 - dB
Electrical Specifications For Each Amplifier at T
A
= 25°C, V+ = 15V, V- = 0V, Unless Otherwise Specified (Continued)
PARAMETER SYMBOL
TEST
CONDITIONS
CA3260A CA3260
UNITSMIN TYP MAX MIN TYP MAX
R
6
200K
R
7
300K
Q
12
Q
11
Q
10
D
2
D
3
D
4
D
1
Q
1
Q
2
Q
6
R
4
1K
R
2
1K
R
1
1K
R
3
1K
Q
13
Q
14
Q
3
Q
4
C
1
30pF
R
5
2K
Q
7
Q
9
3 2 1
Q
5
Q
8
AMPLIFIER A
R
13
200K
R
14
300
Q
26
Q
25
Q
24
D
7
D
6
D
5
D
8
Q
15
Q
16
Q
20
R
11
1K
R
9
1K
R
8
1K
R
10
1K
Q
27
Q
28
Q
17
Q
18
C
2
30pF
R
12
2K
Q
21
Q
23
567
Q
19
Q
22
AMPLIFIER B
4
8
V+
CA3260, CA3260A
