CA3240, CA3240A
Dual, 4.5MHz, BiMOS Operational Amplifier
with MOSFET Input/Bipolar Output
The CA3240A and CA3240 are dual versions of the popular
CA3140 series integrated circuit operational amplifiers. They
combine the advantages of MOS and bipolar transistors on
the same monolithic chip. The gate-protected MOSFET
(PMOS) input transistors provide high input impedance and
a wide common-mode input voltage range (typically to 0.5V
below the negative supply rail). The bipolar output
transistors allow a wide output voltage swing and provide a
high output current capability.
TheCA3240AandCA3240arecompatiblewiththeindustry
standard 1458 operational amplifiers in similar packages.The
offset null feature is available only when these types are supplied
inthe14leadPDIPpackage(E1suffix).

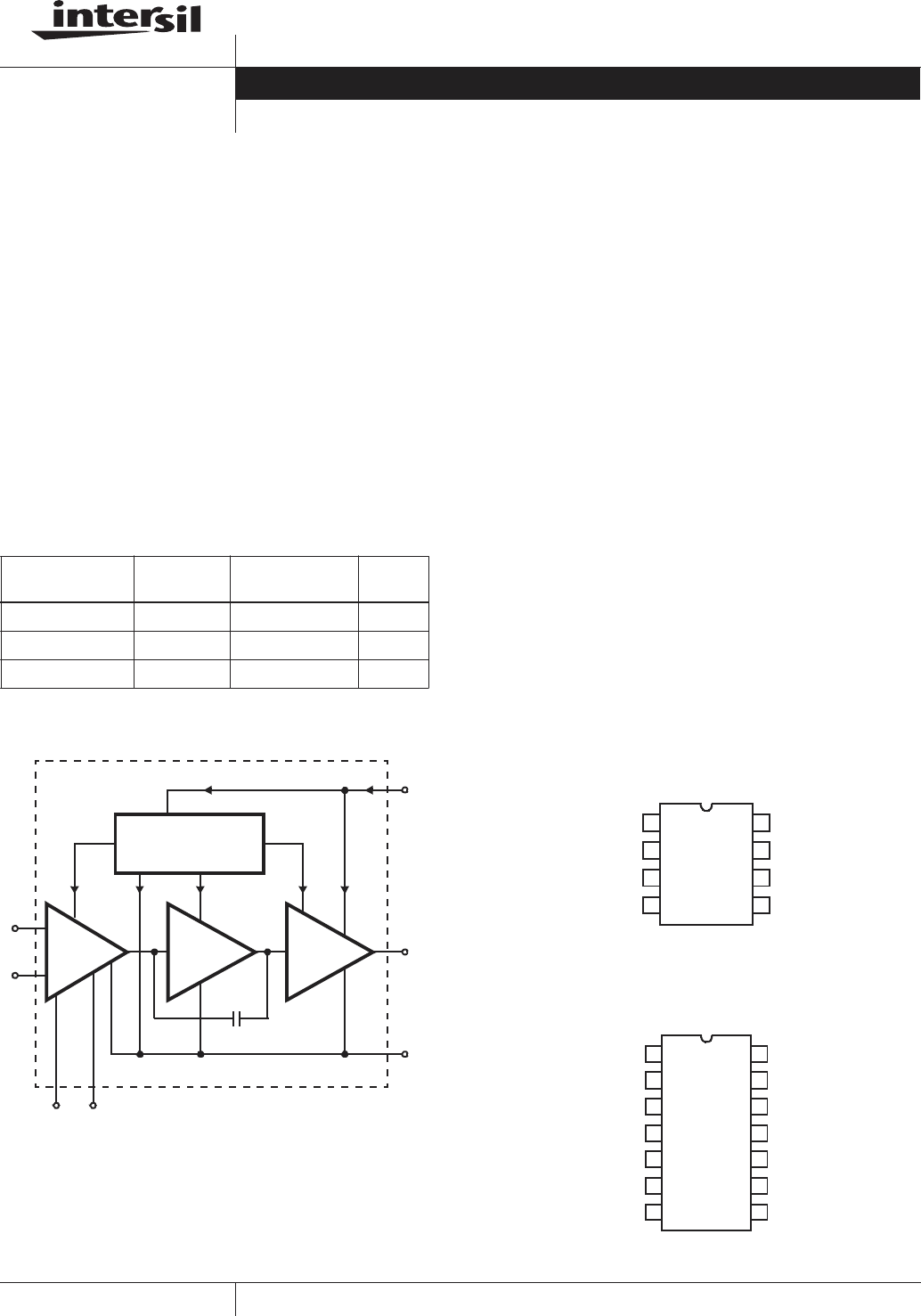

Functional Diagram
Features
Dual Version of CA3140
Internally Compensated
MOSFET Input Stage
- Very High Input Impedance (Z
IN
)1.5T (Typ)
- Very Low Input Current (I
I
) 10pA (Typ) at ±15V
- Wide Common-Mode Input Voltage Range (V
ICR
): Can
Be Swung 0.5V Below Negative Supply Voltage Rail
Directly Replaces Industry Type 741 in Most Applications
Applications
Ground Referenced Single Amplifiers in Automobile and
Portable Instrumentation
Sample and Hold Amplifiers
Long Duration Timers/Multivibrators (Microseconds-
Minutes-Hours)
Photocurrent Instrumentation
Pinouts
CA3240, CA3240A (PDIP)
TOP VIEW
CA3240A (PDIP)
TOP VIEW
Ordering Information
PART NUMBER
TEMP.
RANGE (
o
C) PACKAGE
PKG.
NO.
CA3240AE -40 to 85 8 Ld PDIP E8.3
CA3240AE1 -40to85 14LdPDIP E14.3
CA3240E -40 to 85 8 Ld PDIP E8.3
A 10,000
BIAS CIRCUIT
CURRENT SOURCES
AND REGULATOR
A 1
2mA 4mA
2mA1.6mA 2µA200µA200µA
IN-
OUT-
OFFSET NULL
C
1
12pF
V+
V-
+
-
NOTE: Only available with 14 lead DIP (E1 Suffix).
A 10
PUT
PUT
Intrusion Alarm System Active Filters
Comparators Function Generators
Instrumentation Amplifiers Power Supplies
OUTPUT (A)
INV.
INPUT (A)
NON-INV.
1
2
3
4
8
7
6
5
V+
OUTPUT
INV.
NON-INV.
INPUT (A)
V-
INPUT (B)
INPUT (B)
INV.
NON-INV.
OFFSET
V-
OFFSET
NON - INV.
INV.
OFFSET
V+
OUTPUT (A)
NC
OUTPUT (B)
V+
OFFSET
1
2
3
4
5
6
7
14
13
12
11
10
9
8
INPUT (A)
INPUT (A)
NULL (A)
NULL (B)
INPUT (B)
INPUT (B)
NULL (A)
NULL (B)
Pins 9 and 13 internally connected through approximately 3.
Data Sheet August 2001 File Number 1050.5
CAUTION: These devices are sensitive to electrostatic discharge; follow proper IC Handling Procedures.
1-888-INTERSIL or 321-724-7143
| Intersil and Design is a trademark of Intersil Americas Inc. | Copyright © Intersil Americas Inc. 2001
2
Absolute Maximum Ratings Thermal Information
SupplyVoltage(BetweenV+andV-)..................... 36V
DifferentialInputVoltage............................... 8V
InputVoltage......................... (V++8V)to(V--0.5V)
InputCurrent.......................................1mA
OutputShortCircuitDuration(Note1)................ Indefinite
Operating Conditions
TemperatureRange..........................-40
o
Cto85
o
C
VoltageRange..................... 4Vto36Vor±2V to ±18V
Thermal Resistance (Typical, Note 2)
θ
JA
(
o
C/W)
8LeadPDIPPackage....................... 100
14LeadPDIPPackage...................... 100
Maximum Junction Temperature (Plastic Package) . . . . . . . 150
o
C
MaximumStorageTemperatureRange.......... -65
o
Cto150
o
C
Maximum Lead Temperature (Soldering 10s) . . . . . . . . . . . . 300
o
C
CAUTION: Stresses above those listed in “Absolute Maximum Ratings” may cause permanent damage to the device. This is a stress only rating and operationofthe
device at these or any other conditions above those indicated in the operational sections of this specification is not implied.
NOTES:
1. Short circuit may be applied to ground or to either supply. Temperatures and/or supply voltages must be limited to keep dissipation within max-
imum rating.
2. θ
JA
is measured with the component mounted on an evaluation PC board in free air.
Electrical Specifications For Equipment Design, V
SUPPLY
= ±15V, T
A
=25
o
C, Unless Otherwise Specified
PARAMETER SYMBOL
CA3240 CA3240A
UNITSMIN TYP MAX MIN TYP MAX
Input Offset Voltage V
IO
-515- 2 5mV
Input Offset Current I
IO
- 0.5 30 - 0.5 20 pA
Input Current I
I
- 10 50 - 10 40 pA
Large-Signal Voltage Gain
(See Figures 13, 28) (Note 3)
A
OL
20 100 - 20 100 - kV/V
86 100 - 86 100 - dB
Common Mode Rejection
Ratio(SeeFigure18)
CMRR - 32 320 - 32 320 µV/V
70 90 - 70 90 - dB
Common Mode Input Voltage Range
(See Figure 25)
V
ICR
-15 -15.5 to
+12.5
11 -15 -15.5 to
+12.5
12 V
Power Supply Rejection Ratio
(See Figure 20)
PSRR
(V
IO
/V±)
- 100 150 - 100 150 µV/V
76 80 - 76 80 - dB
Maximum Output Voltage (Note 4)
(See Figures 24, 25)
V
OM
+ 12 13 - 12 13 - V
V
OM
- -14 -14.4 - -14 -14.4 - V
Maximum Output Voltage (Note 5) V
OM-
0.4 0.13 - 0.4 0.13 - V
Total Supply Current
(See Figure 16) For Both Amps
I+ - 8 12 - 8 12 mA
Total Device Dissipation P
D
- 240 360 - 240 360 mW
NOTES:
3. At V
O
=26V
P-P
, +12V, -14V and R
L
=2k.
4. At R
L
=2k.
5. At V+ = 5V, V- = GND, I
SINK
=200µA.
Electrical Specifications For Equipment Design, V
SUPPLY
= ±15V, T
A
=25
o
C, Unless Otherwise Specified
PARAMETER SYMBOL TEST CONDITIONS
TYPICAL VALUES
UNITSCA3240A CA3240
Input Offset Voltage Adjustment Resistor (E1
Package Only)
Typical Value of Resistor Between Terminals 4 and 3(5)
or Between 4 and 14(8) to Adjust Maximum V
IO
18 4.7 k
Input Resistance R
I
1.5 1.5 T
Input Capacitance C
I
44pF
Output Resistance R
O
60 60
Equivalent Wideband Input Noise Voltage
(See Figure 2)
e
N
BW = 140kHz, R
S
=1M 48 48 µV
CA3240, CA3240A
3
Equivalent Input Noise Voltage
(See Figure 19)
e
N
f=1kHz,R
S
=100 40 40 nV/Hz
f=10kHz,R
S
=100 12 12 nV/Hz
Short-Circuit Current to Opposite Supply I
OM
+Source 40 40 mA
I
OM
-Sink 11 11 mA
Gain Bandwidth Product (See Figures 14, 28) f
T
4.5 4.5 MHz
Slew Rate (See Figure 15) SR 9 9 V/µs
Transient Response (See Figure 1) t
r
R
L
=2k,C
L
= 100pF Rise Time 0.08 0.08 µs
OS R
L
=2k,C
L
= 100pF Overshoot 10 10 %
Settling Time at 10V
P-P
(See Figure 26) t
S
A
V
=+1,R
L
=2k,C
L
= 100pF,
Voltage Follower
To 1mV 4.5 4.5 µs
To 10mV 1.4 1.4 µs
Crosstalk (See Figure 23) f = 1kHz 120 120 dB
Electrical Specifications For Equipment Design, V
SUPPLY
= ±15V, T
A
=25
o
C, Unless Otherwise Specified (Continued)
PARAMETER SYMBOL TEST CONDITIONS
TYPICAL VALUES
UNITSCA3240A CA3240
Electrical Specifications For Equipment Design, at V
SUPPLY
= ±15V, T
A
= -40 to 85
o
C, Unless Otherwise Specified
PARAMETER SYMBOL
TYPICAL VALUES
UNITSCA3240A CA3240
Input Offset Voltage |V
IO
|3 10mV
Input Offset Current (Note 8) |I
IO
|32 32pA
Input Current (Note 8) I
I
640 640 pA
Large Signal Voltage Gain (See Figures 13, 28), (Note 6) A
OL
63 63 kV/V
96 96 dB
Common Mode Rejection Ratio (See Figure 18) CMRR 32 32 µV/V
90 90 dB
Common Mode Input Voltage Range (See Figure 25) V
ICR
-15to+12.3 -15to+12.3 V
Power Supply Rejection Ratio (See Figure 20) PSRR
(V
IO
/V±)
150 150 µV/V
76 76 dB
Maximum Output Voltage (Note 7) (See Figures 24, 25) V
OM
+12.4 12.4 V
V
OM
- -14.2 -14.2 V
Supply Current (See Figure 16) Total For Both Amps I+ 8.4 8.4 mA
Total Device Dissipation P
D
252 252 mW
Temperature Coefficient of Input Offset Voltage V
IO
/T15 15µV/
o
C
NOTES:
6. At V
O
=26V
P-P
, +12V, -14V and R
L
=2k.
7. At R
L
=2k.
8. At T
A
=85
o
C.
Electrical Specifications For Equipment Design, at V+ = 5V, V- = 0V, T
A
=25
o
C, Unless Otherwise Specified
PARAMETER SYMBOL
TYPICAL VALUES
UNITSCA3240A CA3240
Input Offset Voltage |V
IO
|2 5mV
Input Offset Current |I
IO
|0.1 0.1pA
Input Current I
I
22pA
Input Resistance R
IN
11T
Large Signal Voltage Gain (See Figures 13, 28) A
OL
100 100 kV/V
100 100 dB
CA3240, CA3240A
