C8051F040/1/2/3/4/5/6/7
Rev. 1.5 103
Table 7.2. ADC2 Electrical Characteristics
V
DD
= 3.0 V, AV+ = 3.0 V, V
REF2
= 2.40 V (REFBE = 0), PGA2 = 1, –40 to +85 °C unless otherwise specified.
Parameter Conditions Min Typ Max Units
DC Accuracy
Resolution 8bits
Integral Nonlinearity ——±1LSB
Differential Nonlinearity Guaranteed Monotonic ——±1LSB
Offset Error 0.5±0.3 LSB
Full Scale Error Differential mode –1±0.2 LSB
Dynamic Performance (10 kHz sine-wave input, 0 to 1 dB below Full Scale, 500 ksps)
Signal-to-Noise Plus Distortion 45 47 dB
Total Harmonic Distortion
Up to the 5
th
harmonic
—–51— dB
Spurious-Free Dynamic Range —52— dB
Conversion Rate
SAR Conversion Clock
Frequency
—— 6MHz
Conversion Time in SAR Clocks 8 clocks
Track/Hold Acquisition Time 300 ns
Throughput Rate ——500ksps
Analog Inputs
Input Voltage Range Single-ended 0 VREF V
Common Mode Range 0—AV+V
Input Capacitance —5—pF
Power Specifications
Power Supply Current
(AV+ supplied to ADC2)
Operating Mode, 500 ksps
—420900 µA
Power Supply Rejection —±0.3— mV/V
C8051F040/1/2/3/4/5/6/7
104 Rev. 1.5
C8051F040/1/2/3/4/5/6/7
Rev. 1.5 105
8. DACs, 12-Bit Voltage Mode (C8051F040/1/2/3 Only)
Each C8051F040/1/2/3 devices include two on-chip 12-bit voltage-mode Digital-to-Analog Converters
(DACs). Each DAC has an output swing of 0 V to (VREF – 1 LSB) for a corresponding input code range of
0x000 to 0xFFF. The DACs may be enabled/disabled via their corresponding control registers, DAC0CN
and DAC1CN. While disabled, the DAC output is maintained in a high-impedance state, and the DAC sup-
ply current falls to 1 µA or less. The voltage reference for each DAC is supplied at the VREFD pin
(C8051F040/2 devices) or the VREF pin (C8051F041/3 devices). Note that the VREF pin on C8051F041/3
devices may be driven by the internal voltage reference or an external source. If the internal voltage refer-
ence is used it must be enabled in order for the DAC outputs to be valid. See Section “9. Voltage Refer-
ence (C8051F040/2/4/6)” on page 113 or Section “10. Voltage Reference (C8051F041/3/5/7)” on
page 117 for more information on configuring the voltage reference for the DACs.

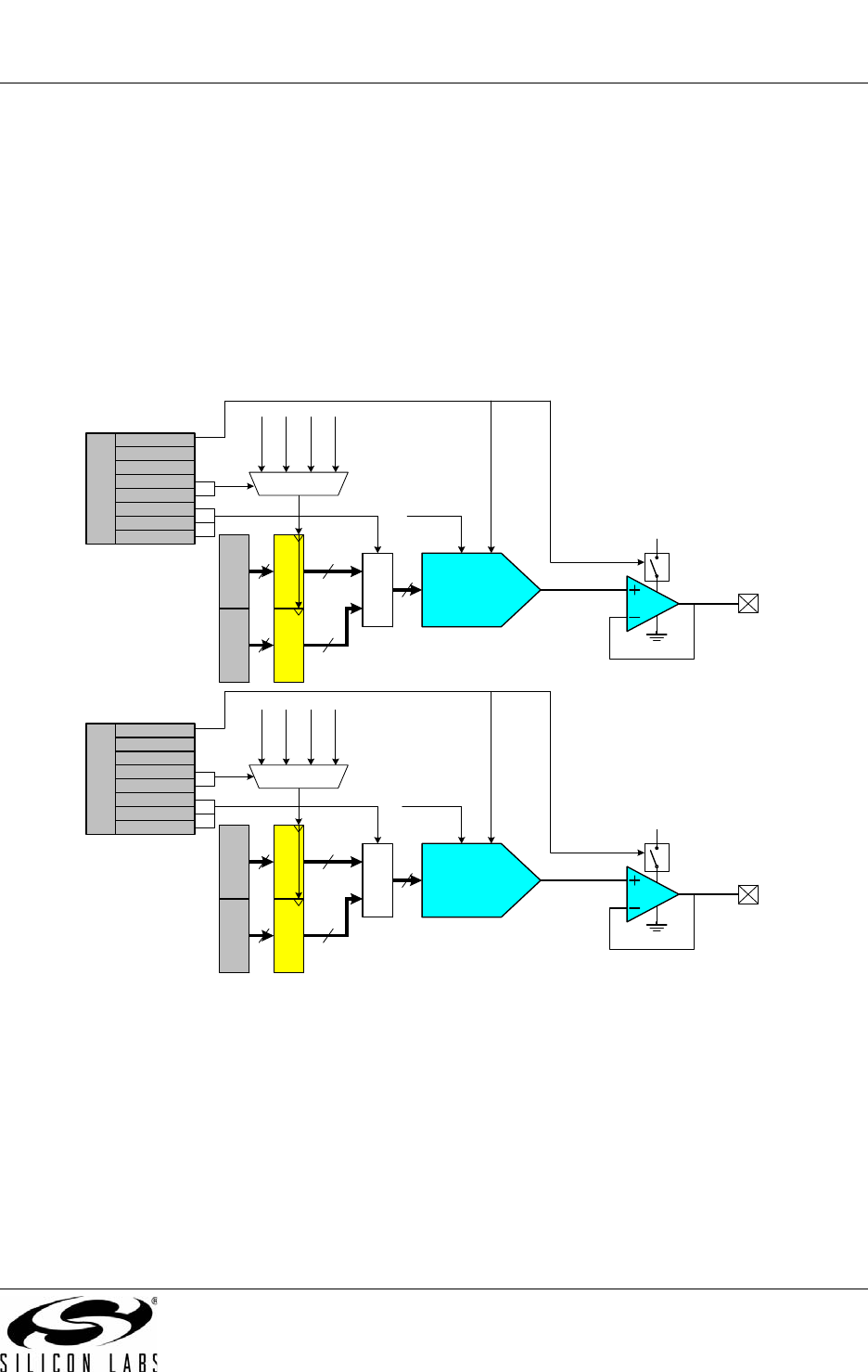

Figure 8.1. DAC Functional Block Diagram
DAC0
AV+
12
AGND
8
8
REF
DAC0
DAC0CN
DAC0EN
DAC0MD1
DAC0MD0
DAC0DF2
DAC0DF1
DAC0DF0
DAC0HDAC0L
Dig. MUX
Latch Latch
8
8
DAC1
AV+
12
AGND
8
8
REF
DAC1
DAC1CN
DAC1EN
DAC1MD1
DAC1MD0
DAC1DF2
DAC1DF1
DAC1DF0
DAC1HDAC1L
Dig. MUX
Latch Latch
8
8
DAC0H
Timer 3
Timer 4
Timer 2
DAC1H
Timer 3
Timer 4
Timer 2
