5.4. ADC0 Programmable Window Detector
The ADC0 Programmable Window Detector continuously compares the ADC0 output to user-programmed
limits, and notifies the system when an out-of-bound condition is detected. This is especially effective in an
interrupt-driven system, saving code space and CPU bandwidth while delivering faster system response
times. The window detector interrupt flag (AD0WINT in ADC0CN) can also be used in polled mode. The
high and low bytes of the reference words are loaded into the ADC0 Greater-Than and ADC0 Less-Than

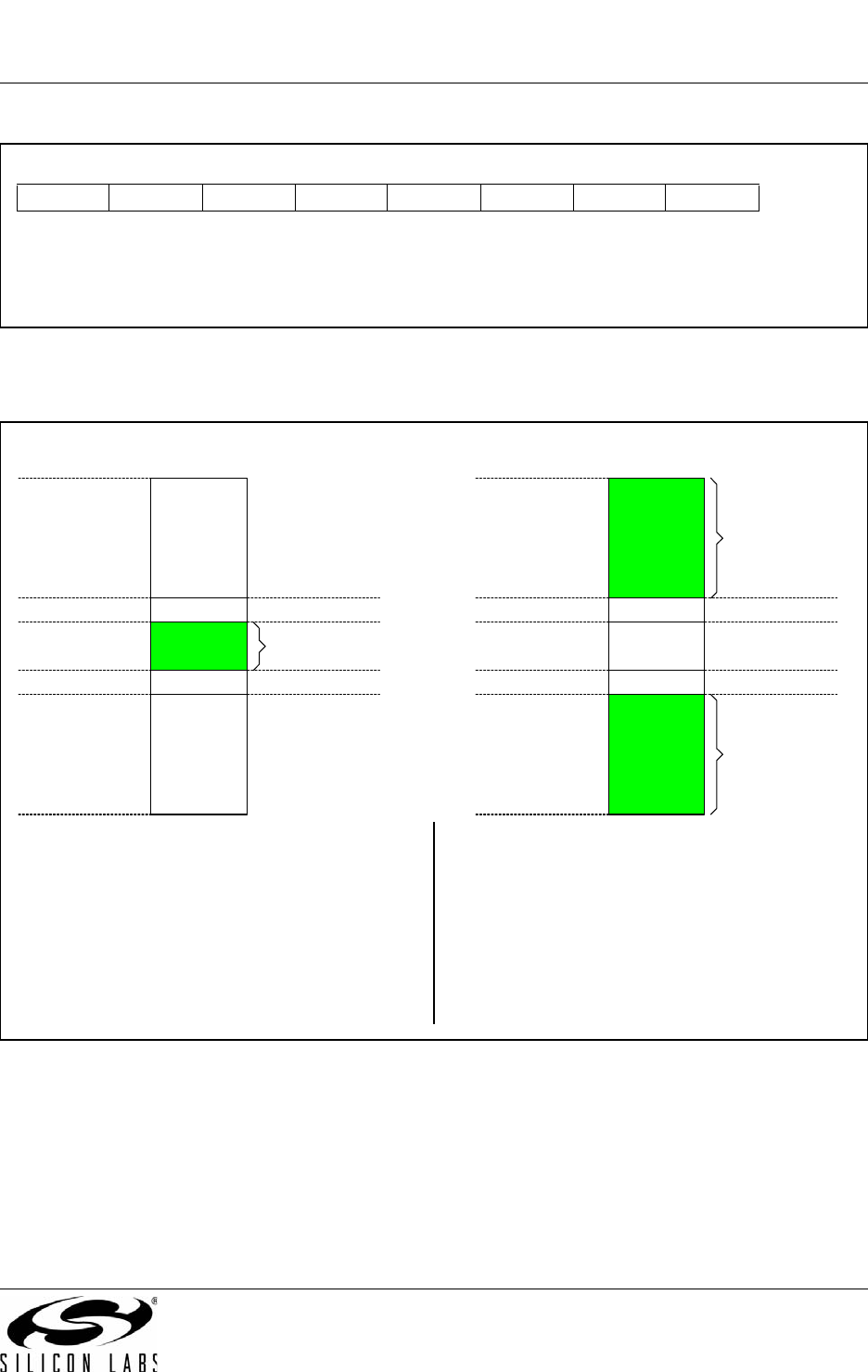

registers (ADC0GTH, ADC0GTL, ADC0LTH, and ADC0LTL). Reference comparisons are shown starting
on page 63. Notice that the window detector flag can be asserted when the measured data is inside or out-
side the user-programmed limits, depending on the programming of the ADC0GTx and ADC0LTx regis-
ters.
SFR Definition 5.9. ADC0GTH: ADC0 Greater-Than Data High Byte
SFR Definition 5.10. ADC0GTL: ADC0 Greater-Than Data Low Byte
SFR Definition 5.11. ADC0LTH: ADC0 Less-Than Data High Byte
Bits7-0: High byte of ADC0 Greater-Than Data Word.
R/W R/W R/W R/W R/W R/W R/W R/W Reset Value
11111111
Bit7 Bit6 Bit5 Bit4 Bit3 Bit2 Bit1 Bit0
SFR Address:
SFR Page:
0xC5
0
Bits7-0: Low byte of ADC0 Greater-Than Data Word.
R/W R/W R/W R/W R/W R/W R/W R/W Reset Value
11111111
Bit7 Bit6 Bit5 Bit4 Bit3 Bit2 Bit1 Bit0
SFR Address:
SFR Page:
0xC4
0
Bits7-0: High byte of ADC0 Less-Than Data Word.
R/W R/W R/W R/W R/W R/W R/W R/W Reset Value
00000000
Bit7 Bit6 Bit5 Bit4 Bit3 Bit2 Bit1 Bit0
SFR Address:
SFR Page:
0xC7
0
