TL/F/9890
11C06 750 MHz D-Type Flip-Flop
Not Intended For New Designs
August 1992
11C06
750 MHz D-Type Flip-Flop
General Description
The 11C06 is a high-speed ECL D-Type Master-Slave Flip-
Flop capable of toggle rates over 750 MHz. Designed pri-
marily for high-speed prescaling, it can also be used in any
application which does not require preset inputs. The circuit
is voltage-compensated, which makes input thresholds and
output levels insensitive to V
EE
variations. Complementary
Q and Q
outputs are provided, as are two Data inputs, Clock
and Clock Enable inputs. The 11C06 is pin-compatible with
the Motorola MC1690L but is a higher-frequency replace-
ment.
Logic Symbol Connection Diagrams
TL/F/98903
16-Pin DIP
TL/F/98901
16-Pin Flatpak
TL/F/98902
Pin Names Description
D
n
Data Input
CP Clock Input
CE
Clock Enable (Active LOW)
Q, Q
Outputs
Truth Table
CE CP D Q
n
LLXQ
n
b
1
LHXQ
n
b
1
LLLL
LLHH
HXXQ
n
b
1
H
e
HIGH Voltage Level
L
e
LOW Voltage Level
X
e
Don’t Care
L
e
LOW to HIGH Transition
Q
n
b
1
e
Previous State
C
1995 National Semiconductor Corporation RRD-B30M115/Printed in U. S. A.
Absolute Maximum Ratings
Above which the useful life may be impaired
If Military/Aerospace specified devices are required,
please contact the National Semiconductor Sales
Office/Distributors for availability and specifications.
Storage Temperature
b
65
§
Cto
a
150
§
C
Maximum Junction Temperature (T
J
)
a
150
§
C
Supply Voltage Range
b
7.0V to GND
Input Voltage (DC) V
EE
to GND
Output Current (DC Output HIGH)
b
50 mA
Operating Range
b
5.7V to
b
4.7V
Lead Temperature (Soldering, 10 sec.) 300
§
C
Recommended Operating
Conditions
Min Typ Max
Supply Voltage (V
EE
)
b
5.7V
b
5.2V
b
4.7V
Ambient Temperature (T
A
)0
§
C
a
75
§
C
DC Electrical Characteristics
V
EE
eb
5.2V, V
CC
e
GND
Symbol Parameter Min Typ Max Units T
A
Conditions
V
OH
Output Voltage HIGH
b
1000
b
840 mV 0
§
CV
IN
e
V
IH (Max)
or V
IL (Min)
per Truth
b
960
b
810 mV
a
25
§
C Table Loading 50X to
b
2V
b
900
b
720 mV
a
75
§
C
V
OL
Output Voltage LOW
b
1870
b
1635 mV 0
§
C
b
1850
b
1620 mV
a
25
§
C
b
1830
b
1595 mV
a
75
§
C
V
OHC
Output Voltage HIGH
b
1020 mV 0
§
CV
IN
e
V
IH (Min)
or V
IL (Max)
for D
n
Inputs
b
980 mV
a
25
§
C Loading 50X to
b
2V
b
920 mV
a
75
§
C
V
OLC
Output Voltage LOW
b
1615 mV 0
§
C
b
1600 mV
a
25
§
C
b
1575 mV
a
75
§
C
V
IH
Input Voltage HIGH
b
1135
b
840 mV 0
§
C Guaranteed Input Voltage HIGH
b
1095
b
810 mV
a
25
§
C for All Inputs
b
1035
b
720 mV
a
75
§
C
V
IL
Input Voltage LOW
b
1870
b
1500 mV 0
§
C Guaranteed Input Voltage LOW
b
1850
b
1485 mV
a
25
§
C for All Inputs
b
1830
b
1460 mV
a
75
§
C
I
IH
Input Current HIGH V
IN
e
V
IH (Max)
Clock Input 250 mA
a
25
§
C
Data Input 270 mA
a
25
§
C
I
IL
Input Current LOW 0.5 mA
a
25
§
CV
IN
e
V
IH (Min)
I
EE
Power Supply Current
b
59
b
40 mA
a
25
§
C All Inputs Open
AC Electrical Characteristics
V
EE
eb
5.2V, V
CC
e
GND, T
A
ea
25
§
C
Symbol Parameter Min Typ Max Units Conditions
t
PHL
Propagation Delay (CP-Q) 0.7 1.0 1.2 ns
t
PLH
Propagation Delay (CP-Q) 0.7 1.0 1.2 ns
t
TLH
Transition Time 20% to 80% 0.5 0.8 1.0 ns
See
Figure 1
t
THL
Transition Time 80% to 20% 0.5 0.8 1.0 ns
t
S
Set-up Time 0.2 ns
t
H
Hold Time 0.2 ns
f
TOG (MAX)
Toggle Frequency (CP) 650 750 MHz See
Figure 2
, Note
Note: The device is guaranteed for f
TOG
(CP)
t
600 MHz, f
TOG
(CE)
t
550 MHz over the 0
§
Cto
a
75
§
C temperature range.
2
Functional Description
While the clock is LOW, the slave is held steady and the
information on the D input is permitted to enter the master.
The next transition from LOW to HIGH locks the master in
its present state making it insensitive to the D input. This
transition simultaneously connects the slave to the master
causing the new information to appear on the outputs. Mas-
ter and slave clock thresholds are internally offset in oppo-
site directions to avoid race conditions or simultaneous
master-slave changes when the clock has slow rise or fall
times.
The CP and CE
inputs are logically identical, but physical
constraints associated with the Dual-In-Line package make
the CE
input slower at the upper end of the toggle range. To
prevent new data from entering the master on the next CP
LOW cycle, CE
should go HIGH while CP is still HIGH.

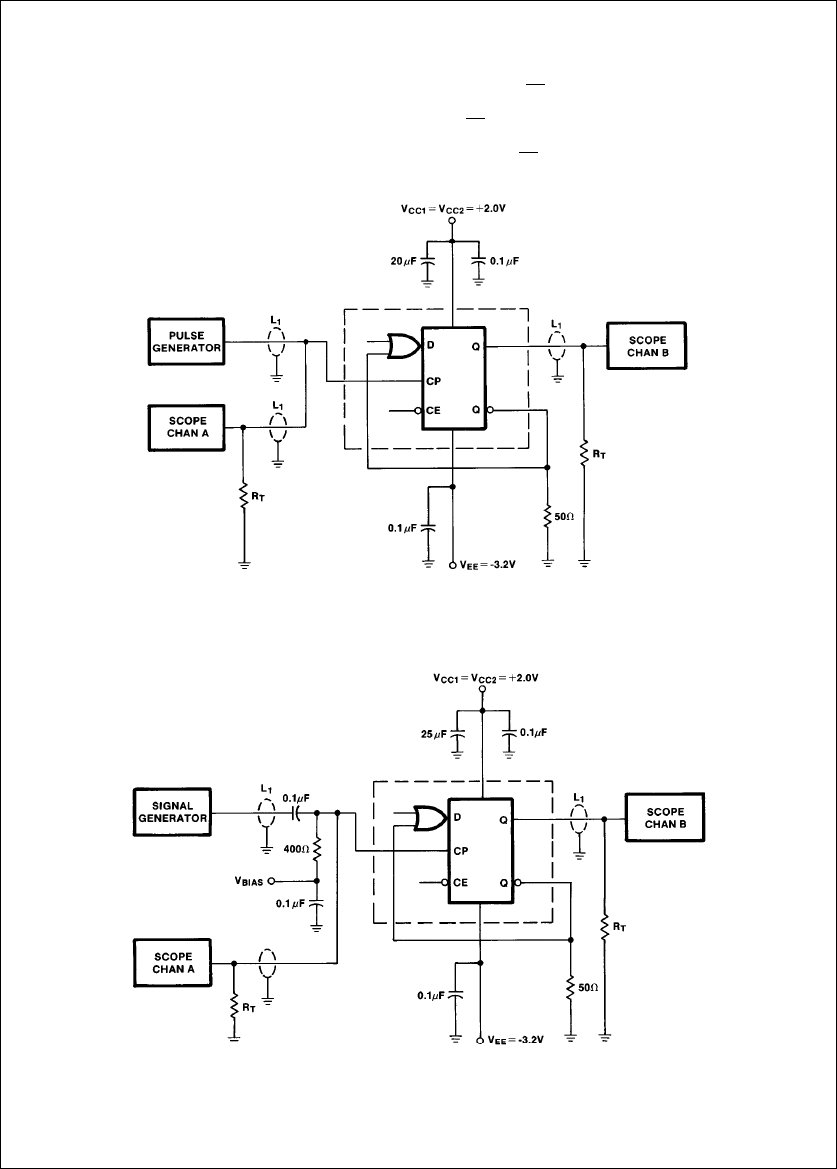

TL/F/98904
R
T
e
50X termination of scope
L
1
e
50X impedance lines
All input transition times are 2.0 ns
g
0.2 ns
FIGURE 1. Propagation Delay (CP to Q)
TL/F/98905
R
T
e
50X termination of scope
L
1
e
50X impedance lines
Adjust V
BIAS
for
a
0.7V baseline of
800 mV peak-to-peak sinewave input.
All input transition times are 2.0 ns
g
0.2 ns
FIGURE 2. Toggle Frequency Test Circuit
3
