DATA SHEET

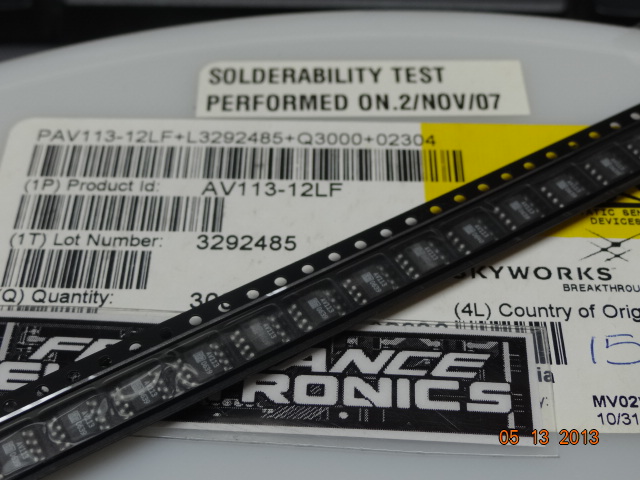

AV113-12, AV113-12LF: HIP3™ Variable Attenuator
2.1–2.3 GHz
Features
●
Low Loss 1.4 dB typical
●
Attenuation 18 dB typical
●
Good VSWR <1.5:1 typical
●
Small SOIC-8 package
●
For IMT-2000 applications
●
Available lead (Pb)-free and RoHS-compliant MSL-1 @ 260 °C
per JEDEC J-STD-020
Description
The AV113-12 is a current controlled, variable attenuator from
Skyworks series of HIP3™ components. It is designed to meet
the wide dynamic range required in IMT-2000 applications. A
monolithic quadrature hybrid is teamed with a silicon PIN diode
pair in a plastic surface mount package, reducing size and
assuring consistency from part to part. AV113-12LF is packaged
in a lead (Pb)-free, fully RoHS-compliant SOIC-8 package and is
electrically identical to AV113-12.
Skyworks offers lead (Pb)-free, RoHS (Restriction of
Hazardous Substances)-compliant packaging.
NEW
Control
Current
Control
C
urrent
RF Out
RF In
Connection Diagram
