AD711

REV. A

–4–

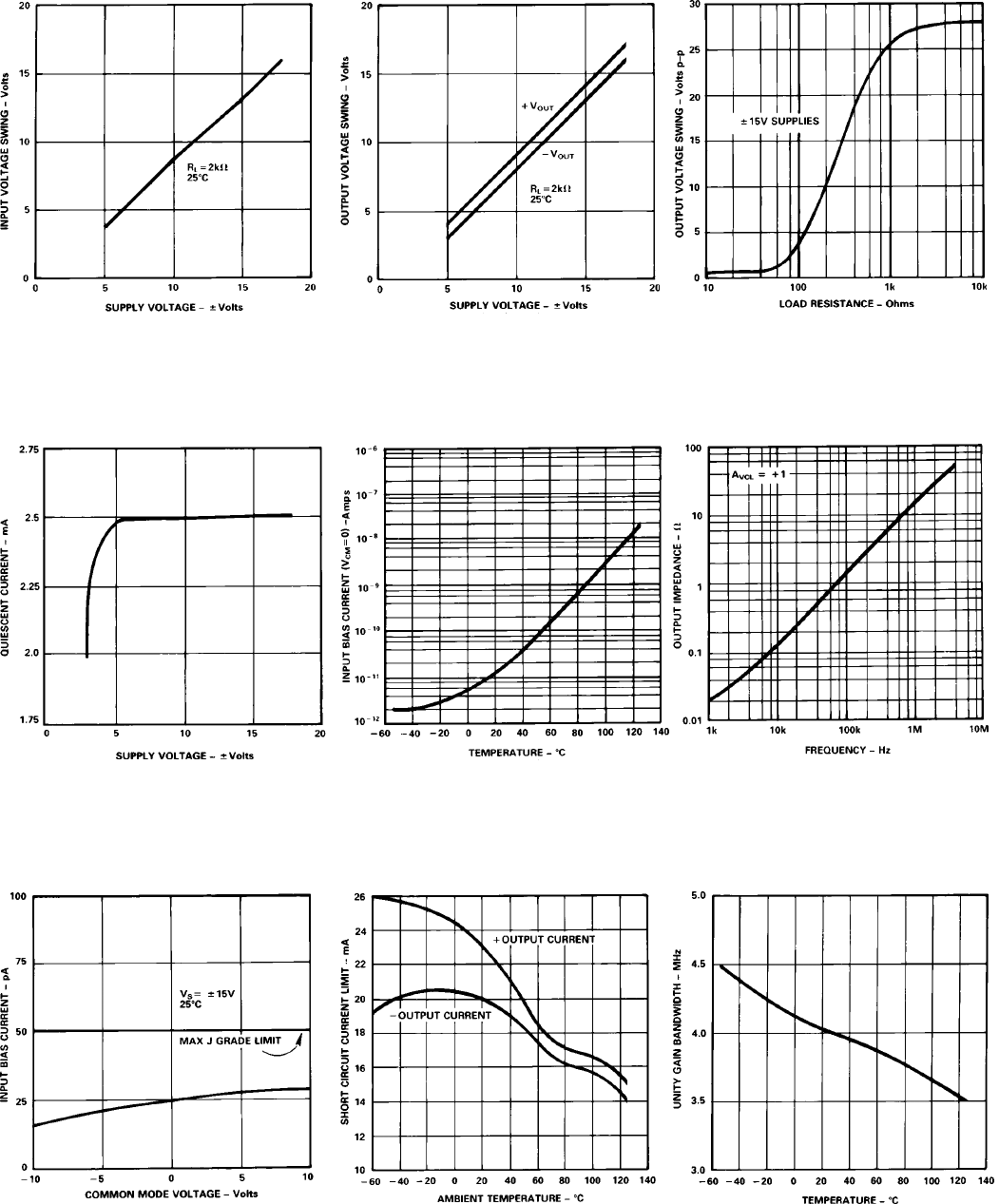

–Typical Characteristics

Figure 2. Output Voltage Swing vs.

Supply Voltage

Figure 5. Input Bias Current vs.

Temperature

Figure 8. Short Circuit Current

Limit vs. Temperature

Figure 1. Input Voltage Swing vs.

Supply Voltage

Figure 4. Quiescent Current vs.

Supply Voltage

Figure 7. Input Bias Current vs.

Common Mode Voltage

Figure 3. Output Voltage Swing

vs. Load Resistance

Figure 6. Output Impedance vs.

Frequency

Figure 9. Unity Gain Bandwidth vs.

Temperature

AD711

REV. A

–5–

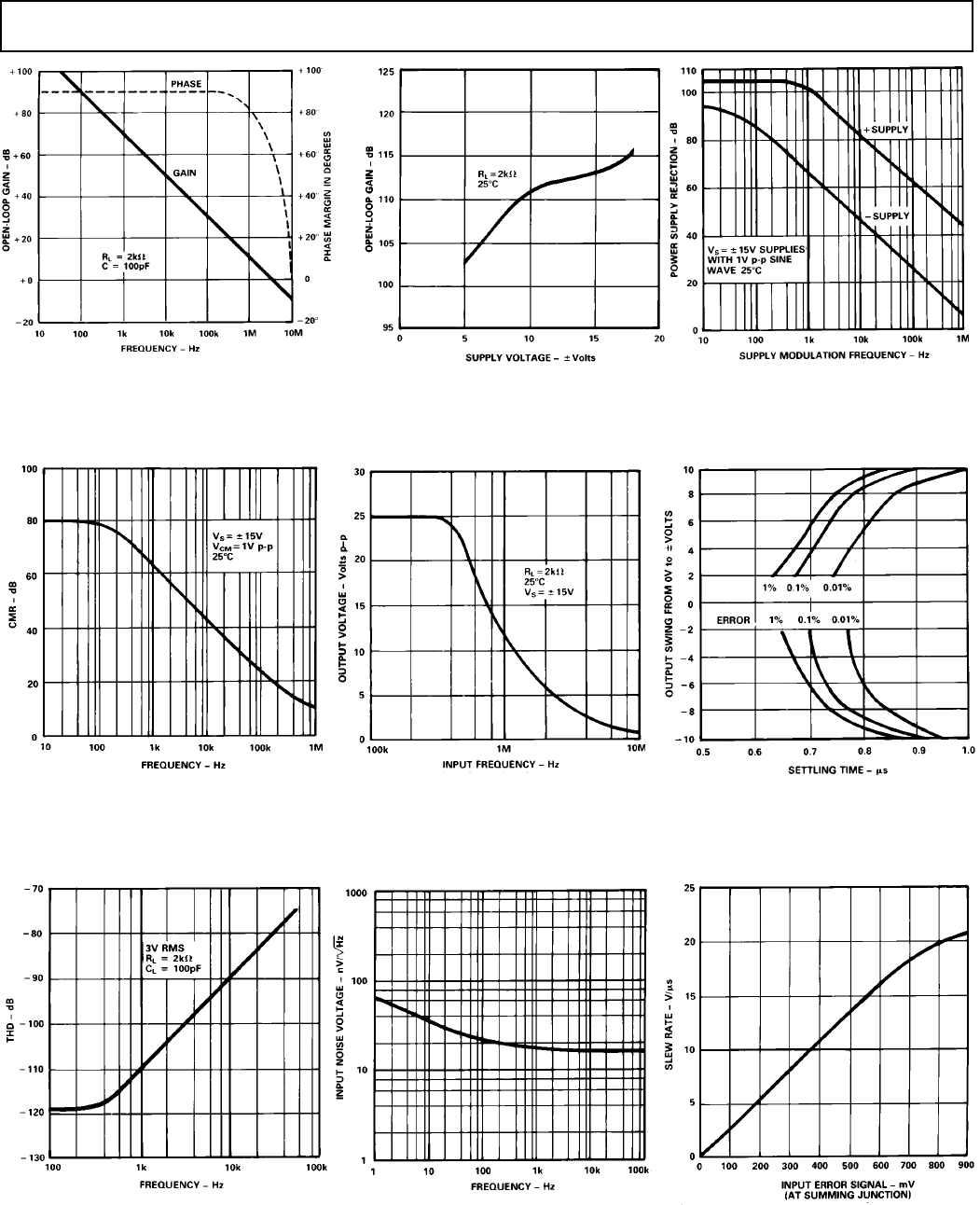

Figure 12. Power Supply Rejection

vs. Frequency

Figure 15. Output Swing and Error

vs. Settling Time

Figure 18. Slew Rate vs. Input

Error Signal

Figure 11. Open-Loop Gain vs.

Supply Voltage

Figure 14. Large Signal Frequency

Response

Figure 17. Input Noise Voltage

Spectral Density

Figure 10. Open-Loop Gain and Phase

Margin vs. Frequency

Figure 13. Common Mode Rejection

vs. Frequency

Figure 16. Total Harmonic Distortion

vs. Frequency

AD711

REV. A

–6–

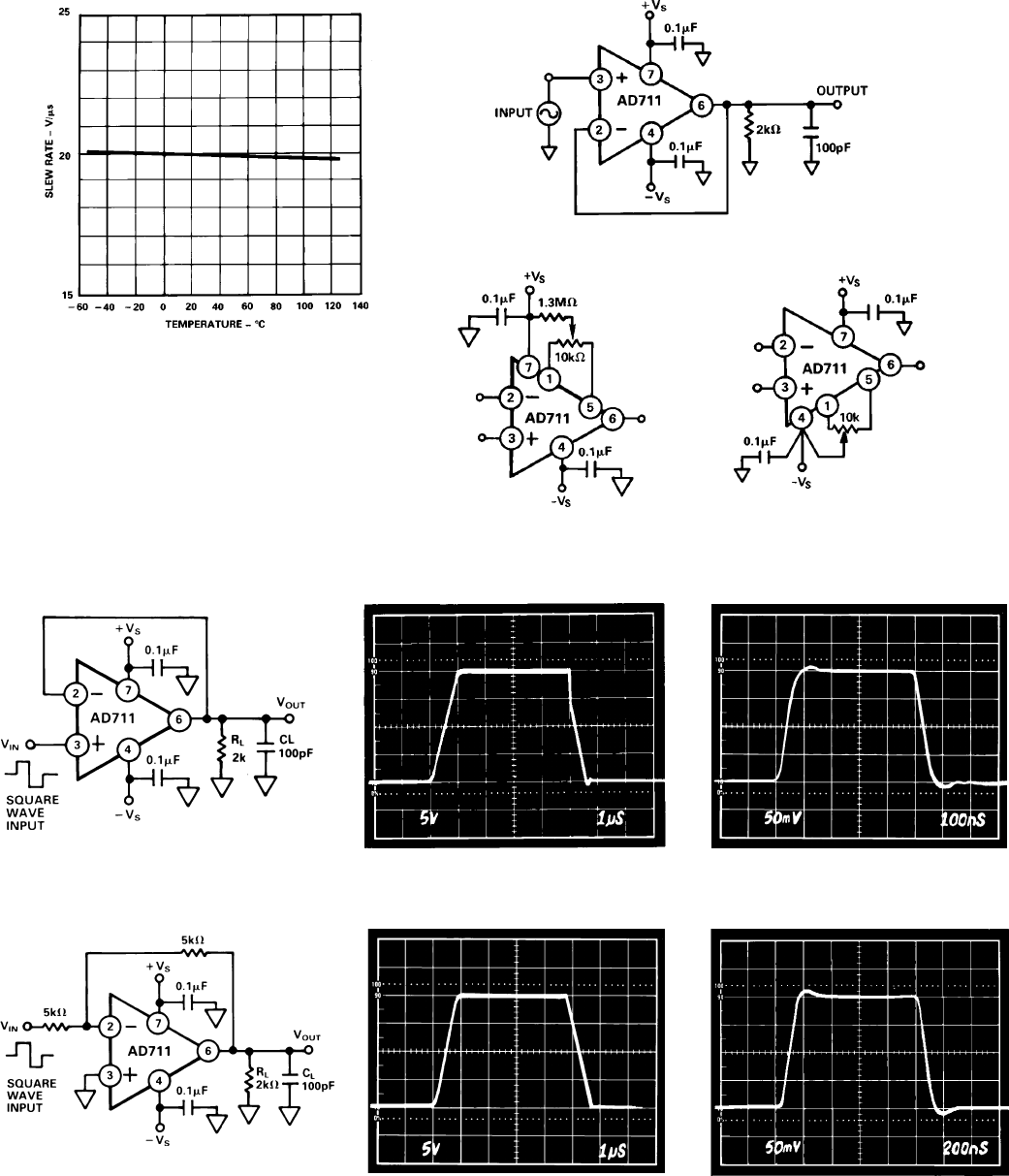

Figure 22b. Unity Gain Follower

Pulse Response (Large Signal)

Figure 23b. Unity Gain Inverter

Pulse Response (Large Signal)

Figure 22c. Unity Gain Follower

Pulse Response (Small Signal)

Figure 23c. Unity Gain Inverter

Pulse Response (Small Signal)

Figure 22a. Unity Gain Follower

Figure 23a. Unity Gain Inverter

Figure 21. Offset Null Configurations

Figure 20. T.H.D. Test Circuit

Figure 19. Slew Rate vs. Temperature
