a
AD711
One Technology Way, P.O. Box 9106, Norwood, MA 02062-9106, U.S.A.
Tel: 617/329-4700 Fax: 617/326-8703
FEATURES
Enhanced Replacements for LF411 and TL081
AC PERFORMANCE
Settles to 60.01% in 1.0 ms
16 V/ms min Slew Rate (AD711J)
3 MHz min Unity Gain Bandwidth (AD711J)
DC PERFORMANCE
0.25 mV max Offset Voltage: (AD711C)
3 mV/8C max Drift: (AD711C)
200 V/mV min Open-Loop Gain (AD711K)
4 mV p-p max Noise, 0.1 Hz to 10 Hz (AD711C)
Available in Plastic Mini-DIP, Plastic SO, Hermetic
Cerdip, and Hermetic Metal Can Packages
MIL-STD-883B Parts Available
Available in Tape and Reel in Accordance with
EIA-481A Standard
Surface Mount (SOIC)
Dual Version: AD712
Quad Version: AD713
Precision, Low Cost,
High Speed, BiFET Op Amp
PRODUCT DESCRIPTION
The AD711 is a high speed, precision monolithic operational
amplifier offering high performance at very modest prices. Its
very low offset voltage and offset voltage drift are the results of
advanced laser wafer trimming technology. These performance
benefits allow the user to easily upgrade existing designs that use
older precision BiFETs and, in many cases, bipolar op amps.
The superior ac and dc performance of this op amp makes it
suitable for active filter applications. With a slew rate of 16 V/µs
and a settling time of 1 µs to ± 0.01%, the AD711 is ideal as a
buffer for 12-bit D/A and A/D Converters and as a high-speed
integrator. The settling time is unmatched by any similar IC
amplifier.
The combination of excellent noise performance and low input
current also make the AD711 useful for photo diode preamps.
Common-mode rejection of 88 dB and open loop gain of
400 V/mV ensure 12-bit performance even in high-speed unity
gain buffer circuits.
The AD711 is pinned out in a standard op amp configuration
and is available in seven performance grades. The AD711J and
AD711K are rated over the commercial temperature range of
0°C to +70°C. The AD711A, AD711B and AD711C are rated
over the industrial temperature range of –40°C to +85°C. The
AD711S and AD711T are rated over the military temperature
range of –40°C to +125°C and are available processed to MIL-
STD-883B, Rev. C.
Extended reliability PLUS screening is available, specified over
the commercial and industrial temperature ranges. PLUS
screening includes 168-hour burn-in, as well as other environ-
mental and physical tests.
The AD711 is available in an 8-pin plastic mini-DIP, small out-
line, cerdip, TO-99 metal can, or in chip form.
PRODUCT HIGHLIGHTS
1. The AD711 offers excellent overall performance at very
competitive prices.
2. Analog Devices’ advanced processing technology and with
100% testing guarantees a low input offset voltage (0.25 mV
max, C grade, 2 mV max, J grade). Input offset voltage is
specified in the warmed-up condition. Analog Devices’ laser
wafer drift trimming process reduces input offset voltage
drifts to 3 µV/°C max on the AD711C.
3. Along with precision dc performance, the AD711 offers
excellent dynamic response. It settles to ±0.01% in 1 µs and
has a 100% tested minimum slew rate of 16 V/µs. Thus this
device is ideal for applications such as DAC and ADC
buffers which require a combination of superior ac and dc
performance.
4. The AD711 has a guaranteed and tested maximum voltage
noise of 4 µV p-p, 0.1 to 10 Hz (AD711C).
5. Analog Devices’ well-matched, ion-implanted JFETs ensure
a guaranteed input bias current (at either input) of 25 pA
max (AD711C) and an input offset current of 10 pA max
(AD711C). Both input bias current and input offset current
are guaranteed in the warmed-up condition.
CONNECTION DIAGRAMS
TO-99 Plastic Mini-DIP (N) Package
(H) Package Plastic Small Outline (R)
and
Cerdip (Q) Package
J/A/S K/B/T C
Parameter Min Typ Max Min Typ Max Min Typ Max Units
INPUT OFFSET VOLTAGE
1
Initial Offset 0.3 2/1/1 0.2 0.5 0.10 0.25 mV
T
MIN
to T
MAX
3/2/2 1.0 0.45 mV
vs. Temp 7 20/20/20 5 10 2 5 µV/°C
vs. Supply 76 95 80 100 86 110 dB
T
MIN
to T
MAX
76/76/76 80 86 dB
Long-Term Stability 15 15 15 µV/Month
INPUT BIAS CURRENT
2
V
CM
= 0 V 15 50 15 50 15 25 pA
V
CM
= 0 V @ T
MAX
1.1/3.2/51 1.1/3.2/51 1.6 nA
V
CM
= ±10 V 20 100 20 100 20 50 pA
INPUT OFFSET CURRENT
V
CM
= 0 V 10 25 5 25 5 10 pA
V
CM
= 0 V @ T
MAX
0.6/1.6/26 0.6/1.6/26 0.65 nA
FREQUENCY RESPONSE
Small Signal Bandwidth 3.0 4.0 3.4 4.0 3.4 4.0 MHz
Full Power Response 200 200 200 kHz
Slew Rate 16 20 18 20 18 20 V/µs
Settling Time to 0.01% 1.0 1.2 1.0 1.2 1.0 1.2 µs
Total Harmonic Distortion 0.0003 0.0003 0.0003 %
INPUT IMPEDANCE
Differential 3 × 10
12
i5.5 3 × 10
12
i5.5 3 × 10
12
i5.5 ipF
Common Mode 3 × 10
12
i5.5 3 × 10
12
i5.5 3 × 10
12
i5.5 ipF
INPUT VOLTAGE RANGE
Differential
3
±20 ±20 ±20 V
Common-Mode Voltage
4
+14.5, –11.5 +14.5, –11.5 +14.5, –11.5
T
MIN
to T
MAX
–V
S
+ 4 +V
S
– 2 –V
S
+ 4 +V
S
– 2 –V
S
+ 4 +V
S
– 2 V
Common-Mode
Rejection Ratio
V
CM
= ±10 V 76 88 80 88 86 94 dB
T
MIN
to T
MAX
76/76/76 84 80 84 86 90 dB
V
CM
= ±11 V 70 84 76 84 76 90 dB
T
MIN
to T
MAX
70/70/70 80 74 80 74 84 dB
INPUT VOLTAGE NOISE 2 2 2 4 µV p-p
45 45 45 nV/
Hz
22 22 22 nV/
Hz
18 18 18 nV/
Hz
16 16 16 nV/Hz
INPUT CURRENT NOISE 0.01 0.01 0.01 pA/Hz
OPEN-LOOP GAIN 150 400 200 400 200 400 V/mV
100/100/100 100 100 V/mV
OUTPUT CHARACTERISTICS
Voltage +13, –12.5 +13.9, –13.3 +13, –12.5 +13.9, –13.3 +13, –12.5 +13.9, –13.3 V
±12/±12/612 +13.8, –13.1 612 +13.8, –13.1 612 +13.8, –13.1 V
Current 25 25 25 mA
POWER SUPPLY
Rated Performance ±15 ±15 ±15 V
Operating Range 64.5 618 64.5 618 64.5 618 V
Quiescent Current 2.5 3.4 2.5 3.0 2.5 2.8 mA
NOTES
1
Input Offset Voltage specifications are guaranteed after 5 minutes of operation at T
A
= +25°C.
2
Bias Current specifications are guaranteed maximum at either input after 5 minutes of operation at T
A
= +25°C. For higher temperatures, the current doubles every 10°C.
3
Defined as voltage between inputs, such that neither exceeds ±10 V from ground.
4
Typically exceeding –14.1 V negative common-mode voltage on either input results in an output phase reversal.
Specifications subject to change without notice.
AD711–SPECIFICATIONS
ELECTRICAL CHARACTERISTICS
(V
S
= 615 V @ T
A
= +258C unless otherwise noted)
REV. A
–2–
AD711
REV. A
–3–
ABSOLUTE MAXIMUM RATINGS
1
Supply Voltage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ±18 V
Internal Power Dissipation
2
. . . . . . . . . . . . . . . . . . . . .500 mW
Input Voltage
3
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ±18 V
Output Short Circuit Duration . . . . . . . . . . . . . . . . . Indefinite
Differential Input Voltage . . . . . . . . . . . . . . . . . . +V
S
and –V
S
Storage Temperature Range (Q, H) . . . . . . . .–65°C to +150°C
Storage Temperature Range (N) . . . . . . . . . .–65°C to +125°C
Operating Temperature Range
AD711J/K . . . . . . . . . . . . . . . . . . . . . . . . . . . 0°C to +70°C
AD711A/B/C . . . . . . . . . . . . . . . . . . . . . . . .–40°C to +85°C
AD711S/T . . . . . . . . . . . . . . . . . . . . . . . . .–55°C to +125°C
Lead Temperature Range (Soldering 60 sec) . . . . . . . . +300°C
NOTES
1
Stresses above those listed under “Absolute Maximum Ratings” may cause
permanent damage to the device. This is a stress rating only and functional
operation of the device at these or any other conditions above those indicated in the
operational section of this specification is not implied. Exposure to absolute
maximum rating conditions for extended periods may affect device reliability.
2
Thermal Characteristics:
8-Pin Plastic Package: θ
JC
= 33°C/Watt; θ
JA
= 100°C/Watt
8-Pin Cerdip Package: θ
JC
= 22°C/Watt; θ
JA
= 110°C/Watt
8-Pin Metal Can Package: θ
JC
= 65°C/Watt; θ
JA
= 150°C/Watt
3
For supply voltages less than ±18 V, the absolute maximum input voltage is equal
to the supply voltage.
ORDERING GUIDE
Temperature Package Package
Model Range Description Option*
AD711AH –40°C to +85°C 8-Pin Metal Can H-08A
AD711AQ –40°C to +85°C 8-Pin Ceramic DIP Q-8
AD711BH –40°C to +85°C 8-Pin Metal Can H-08A
AD711BQ –40°C to +85°C 8-Pin Ceramic DIP Q-8
AD711CH –40°C to +85°C 8-Pin Metal Can H-08A
AD711CQ –40°C to +85°C 8-Pin Ceramic DIP Q-8
AD711JN 0°C to +70°C 8-Pin Plastic DIP N-8
AD711JR 0°C to +70°C 8-Pin Plastic SOIC R-8
AD711JR-REEL 0°C to +70°C 8-Pin Plastic SOIC R-8
AD711JR-REEL7 0°C to +70°C 8-Pin Plastic SOIC R-8
AD711KN 0°C to +70°C 8-Pin Plastic DIP N-8
AD711KR 0°C to +70°C 8-Pin Plastic SOIC R-8
AD711KR-REEL 0°C to +70°C 8-Pin Plastic SOIC R-8
AD711KR-REEL7 0°C to +70°C 8-Pin Plastic SOIC R-8
AD711SCHIPS –55°C to +125°C Bare Die
AD711SQ/883B –55°C to +125°C 8-Pin Ceramic DIP Q-8
AD711TQ/883B –55°C to +125°C 8-Pin Ceramic DIP Q-8

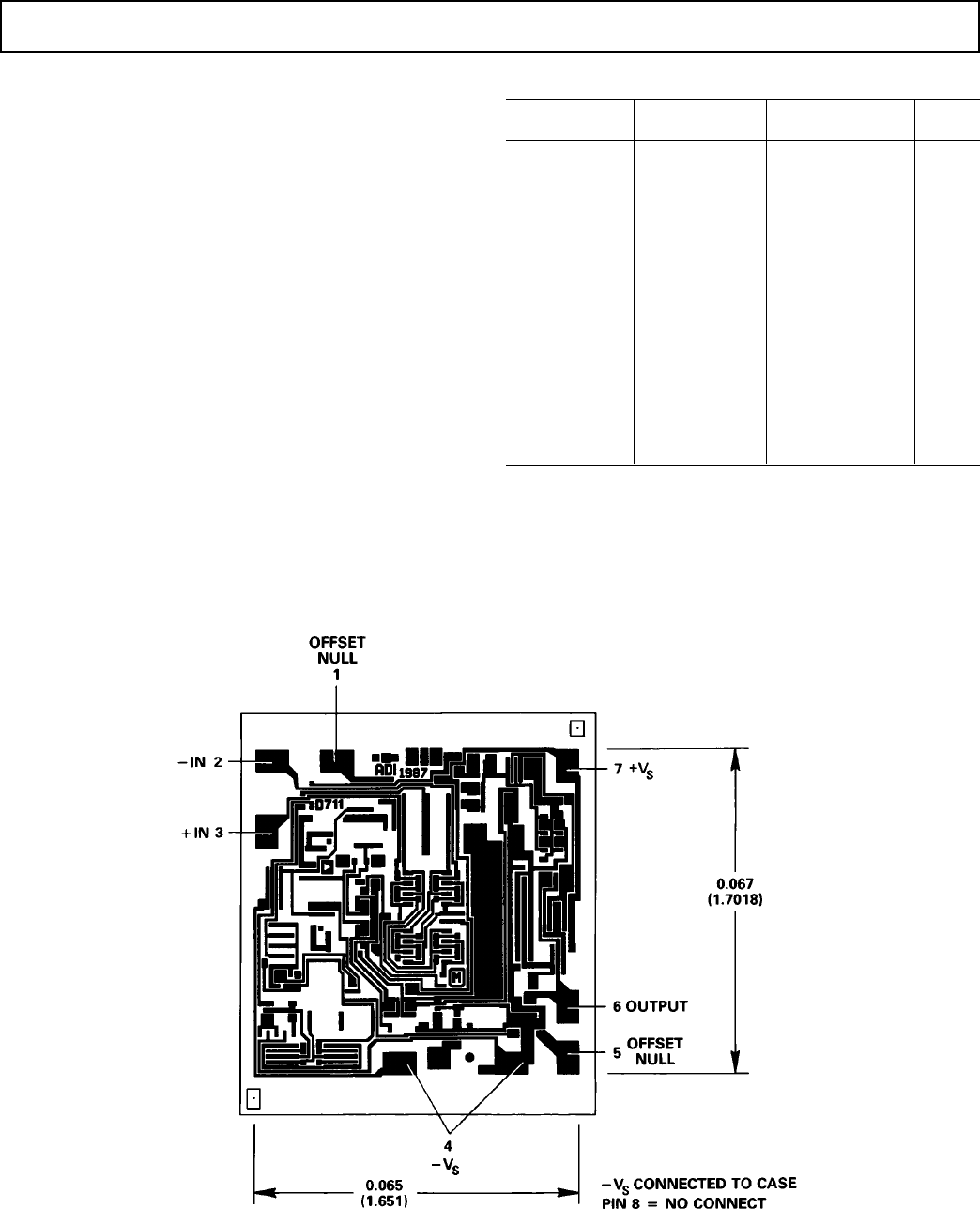

METALLIZATION PHOTOGRAPH
Dimensions shown in inches and (mm)
Contact factory for latest dimensions.
