SKYWORKS AA264-87LF

Cross Number:

Item Description: RF Attenuator, Digital, 0.5 -z4-bit, 2 dB LSB, TSSOP-16

Qty Price
1 - 110 $2.24400
111 - 280 $1.75100
281 - 650 $1.53000
651 - 1,050 $1.42800
1,051 + $1.32600



Other Cross Reference

Manufacturer Date Code Qty Available Qty
SKYWORKS 0600
  • Freelance Stock: 64754
    Ships Immediately





Technical Document


DISCLAIMER: The information provided herein is solely for informational purposes. Customers must be aware of the suitability of this product for their application, and consider that variable factors such as Manufacturer, Product Category, Date Codes, Pictures and Descriptions may differ from available inventory.

Skyworks Solutions, Inc. • Phone [781] 376-3000 • Fax [781] 376-3100 • sales@skyworksinc.com • www.skyworksinc.com
200214 Rev. A • Skyworks Proprietary Information • Products and Product Information are Subject to Change Without Notice. • December 1, 2005 1

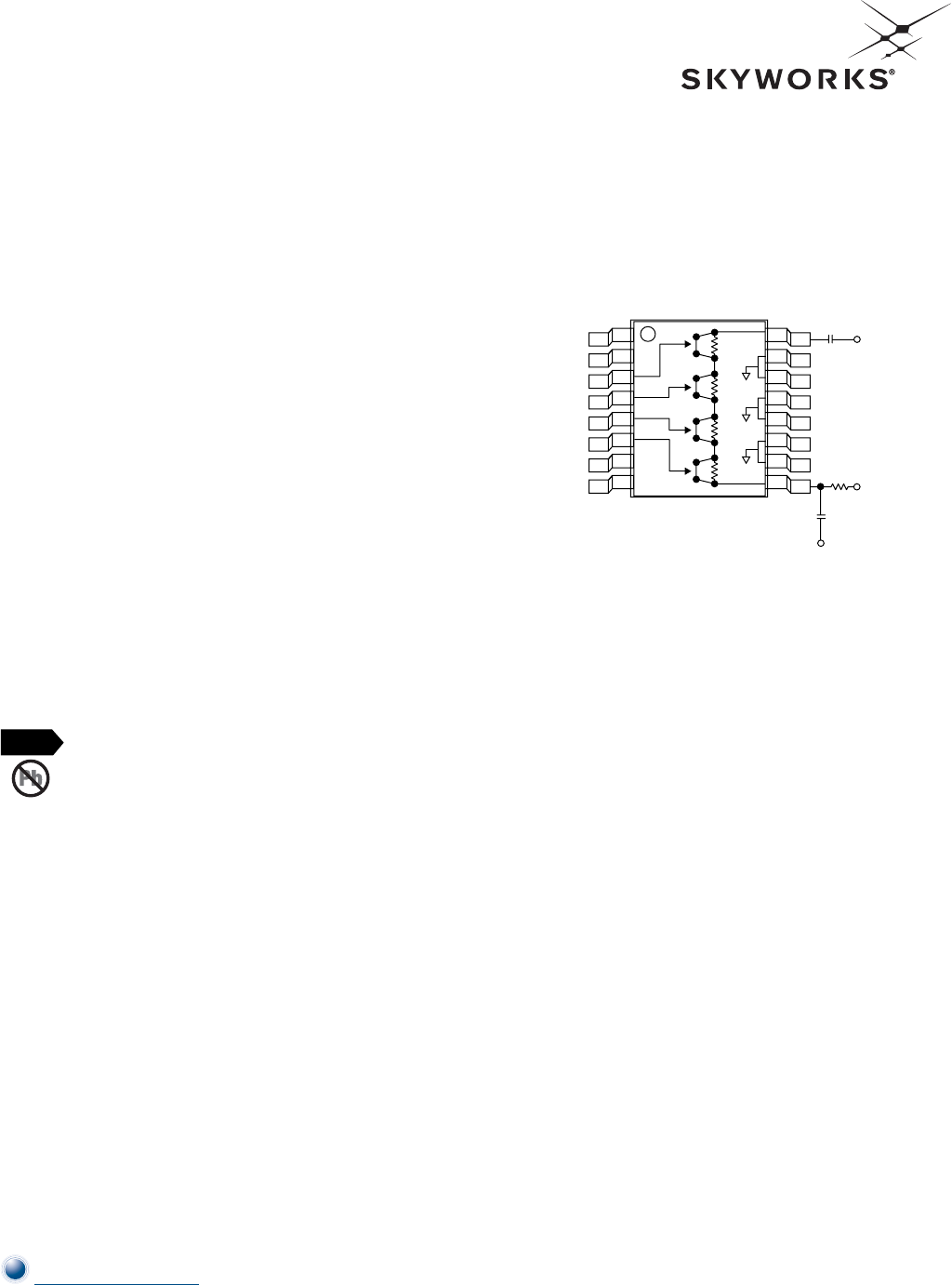

AA264-87, AA264-87LF: GaAs IC 4-Bit Digital Attenuator
2 dB LSB Positive Control 0.5–2 GHz
DATA SHEET
Features
Attenuation 2 dB steps to 30 dB with high accuracy
Single positive control for each bit
Low DC Power consumption
Small, low-cost TSSOP-16 plastic package
Available lead (Pb)-free and RoHS-compliant MSL-1 @ 260 °C
per JEDEC J-STD-020
Description
The AA264-87 is a 4-bit, single positive control GaAs IC FET dig-
ital attenuator in a low-cost TSSOP-16 package. The attenuator
requires external DC blocking capacitors, positive supply voltage
(V
S
) and four individual positive control voltages (V
1
–V
4
). The
AA264-87 is particularly suited where high attenuation accuracy,
low insertion loss and low intermodulation products are required.
Typical applications include base station, wireless data and wire-
less local loop gain control circuits.
123456 8
16 15 14 13 12 11 9
7
10
16 dB
8 dB
4 dB
2 dB
GND
V
4
V
3
V
2
J
1
GND
GND
GND
GND
GND
GND
GND
GND
GND
V
1
J
2
C
BL
C
BL
V
S
10 k
Pin Out
DC blocking capacitors (C
BL
) and biasing resistor must be supplied externally for positive
voltage operation.
C
BL
= 47 pF for operation >500 MHz.
Skyworks offers lead (Pb)-free, RoHS (Restriction of
Hazardous Substances)-compliant packaging.
NEW
Innovation to Go
TM
Now available for purchase online.
BUY
NOW
BUY
NOW
Skyworks Solutions, Inc. • Phone [781] 376-3000 • Fax [781] 376-3100 • sales@skyworksinc.com • www.skyworksinc.com
December 1, 2005 • Skyworks Proprietary Information • Products and Product Information are Subject to Change Without Notice. • 200214 Rev. A
DATA SHEET • AA264-87, AA264-87LF
2
Parameter
(1)
Condition Frequency Min. Typ. Max. Unit
Insertion loss 0.5–1.0 GHz 1.6 2.0 dB
0.5–2.0 GHz 1.8 2.4 dB
Attenuation range 30 dB
Attenuation accuracy
(2)
0.5–1.0 GHz ± (0.2 + 3% of attenuation
setting in dB) dB
0.5–2.0 GHz ± (0.3 + 5% of 2–24 dB setting) dB
0.5–2.0 GHz ± (0.3 + 6% of 26–30 dB setting) dB
VSWR (I/O)
(3)
0.5–0.8 GHz 1.8:1 2.2:1
0.8–2.0 GHz 1.5:1 2.0:1
Switching characteristics
Rise, fall 10/90% or 90/10% RF 150 ns
On, off 50% CTL to 90/10% RF 300 ns
Video feedthru T
RISE
= 1 ns, BW = 500 MHz 70 mV
Input power for 1 dB compression V
S
= 3 V 0.5–2.0 GHz 15 21 dBm
V
S
= 5 V 0.5–2.0 GHz 21 27 dBm
Intermodulation intercept point (IP3) For two-tone input power 5 dBm
V
S
= 3 V 0.5–2.0 GHz 36 44 dBm
V
S
= 5 V 0.5–2.0 GHz 37 45 dBm
Control coltages V
LOW
= 0 to 0.2 V @ 20 µA max.
V
HIGH
= 3 V @ 100 µA max. to 5 V @ 200 µA max.
V
S
= V
HIGH
± 0.2 V
Electrical Specifications at -40 °C to +85 °C (0, 5 V)
1. All measurements made in a 50 system, unless otherwise specified.
2. Attenuation referenced to insertion loss.
3. Input/output.
DATA SHEET • AA264-87, AA264-87LF
Skyworks Solutions, Inc. • Phone [781] 376-3000 • Fax [781] 376-3100 • sales@skyworksinc.com • www.skyworksinc.com
200214 Rev. A • Skyworks Proprietary Information • Products and Product Information are Subject to Change Without Notice. • December 1, 2005 3

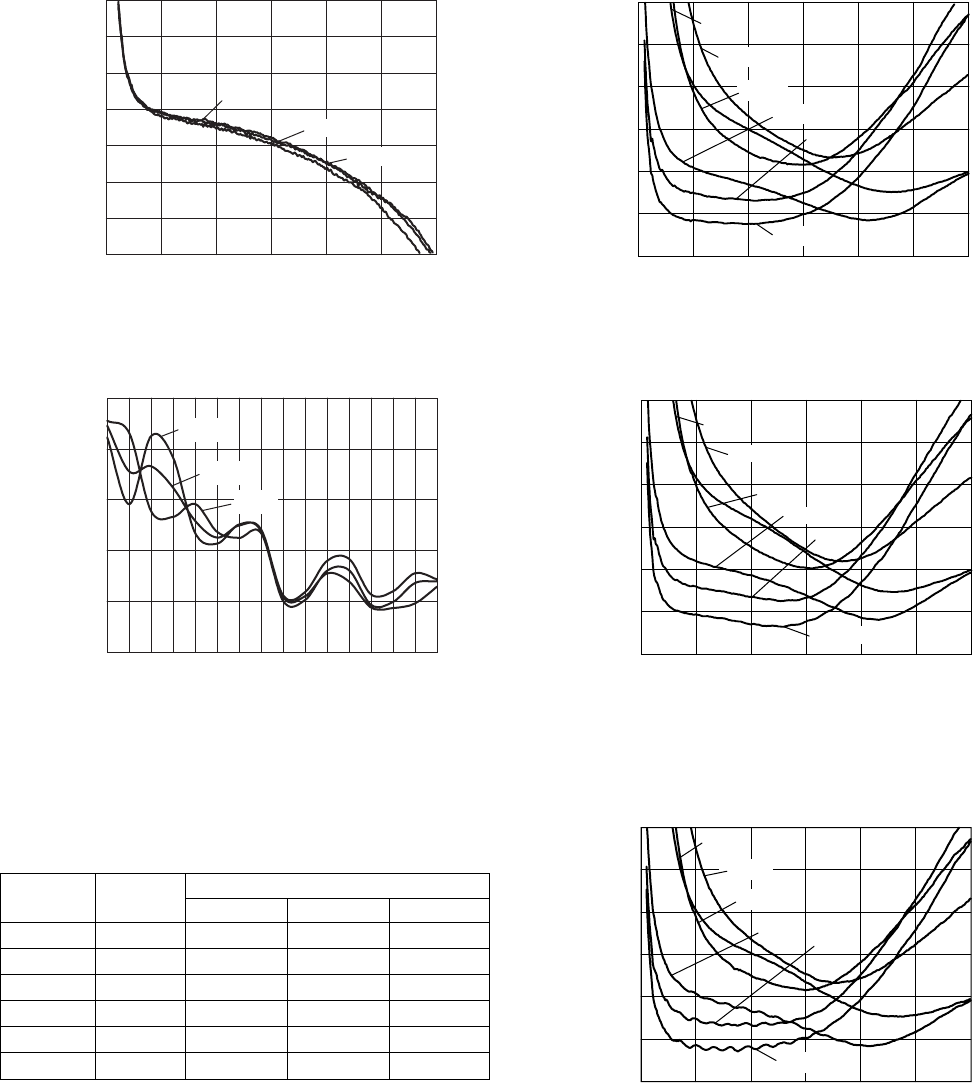

Insertion Loss (dB)
Frequency (GHz)
Insertion Loss vs. Frequency
-3.5
-3.0
-2.5
-2.0
-1.5
-1.0
-0.5
0
0 0.5 1.0 1.5 2.0 2.5 3.0
25 °C
85 °C
-40 °C
IP3 (dBm)
Attenuation (dB)
IP3 vs. Attenuation and
Temperature (500 MHz)
35
40
45
50
55
60
0 2 4 6 8 10 12 14 16 18 20 22 24 26 28 30
25 °C
85 °C
-40 °C
VSWR vs. Frequency (25 ˚C)
VSWR
0 0.5 1.0 1.5 2.0 2.5 3.0
Frequency (GHz)
1.0
1.2
1.4
1.6
1.8
2.0
2.2
Ins. Loss
2 dB
4 dB
8 dB
16 dB
30 dB
Ins. Loss
2 dB
4 dB
8 dB
16 dB
30 dB
VSWR vs. Frequency (85 ˚C)
VSWR
0 0.5 1.0 1.5 2.0 2.5 3.0
Frequency (GHz)
1.0
1.2
1.4
1.6
1.8
2.0
2.2
VSWR
Frequency (GHz)
VSWR vs. Frequency (-40 ˚C)
0 0.5 1.0 1.5 2.0 2.5 3.0
1.0
1.2
1.4
1.6
1.8
2.0
2.2
Ins. Loss
2 dB
4 dB
8 dB
16 dB
30 dB
Typical Performance Data (0, 5 V)
Compression Point vs. Attenuation, Voltage,
and Temperature
Attenuation Control
Input Power @ 1 dB Compression
State Voltage (V) 25 °C (dBm) 85 °C (dBm) -40 °C (dBm)
Ins. Loss 5 29 28.9 29
2 dB 5 28.3 28.1 28.1
4 dB 5 35.2 34.7 35
8 dB 5 25.8 25.3 25.4
16 dB 5 21.7 21.3 21.6
30 dB 5 24.4 23.2 27.2
