A625308A Series
Preliminary 32K X 8 BIT CMOS SRAM
PRELIMINARY (July, 2002, Version 0.2) AMIC Technology, Inc.
Document Title
32K X 8 BIT CMOS SRAM
Revision History
Rev. No. History Issue Date Remark
0.0 Initial issue February 2, 2001 Preliminary
0.1 Add ultra temp grade and 28-pin DIP package type November 7, 2001
0.2 Add SI grade July 17, 2002
A625308A Series
Preliminary 32K X 8 BIT CMOS SRAM
PRELIMINARY (July, 2002, Version 0.2) 1 AMIC Technology, Inc.
Features
n Power Supply Range: 4.5V to 5.5V
n Access times: 70 ns
A625308A-S series: Operating: 35mA (max.)
Standby: 10µA (max.)
A625308A-SI/SU series: Operating: 35mA (max.)
Standby: 15µA (max.)
n Extended operating temperature range: 0°C to 70°C
for -S series, -25°C to 85°C for -SI series, -40°C to
85°C for -SU series.
n Full static operation, no clock or refreshing required
n All inputs and outputs are directly TTL-compatible
n Common I/O using three-state output
n Data retention voltage: 2.0V (min.)
n Available in 28-pin, DIP/SOP and TSOP
General Description
The A625308A is a low operating current 262,144-bit
static random access memory organized as 32,768
words by 8 bits and operates on a voltage from 4.5V to
5.5V.
Inputs and three-state outputs are TTL compatible and
allow for direct interfacing with common system bus
structures.
Minimum standby power is drawn by this device when
CE is at a high level, independent of the other input
levels.
Data retention is guaranteed at a power supply voltage
as low as 2.0V.

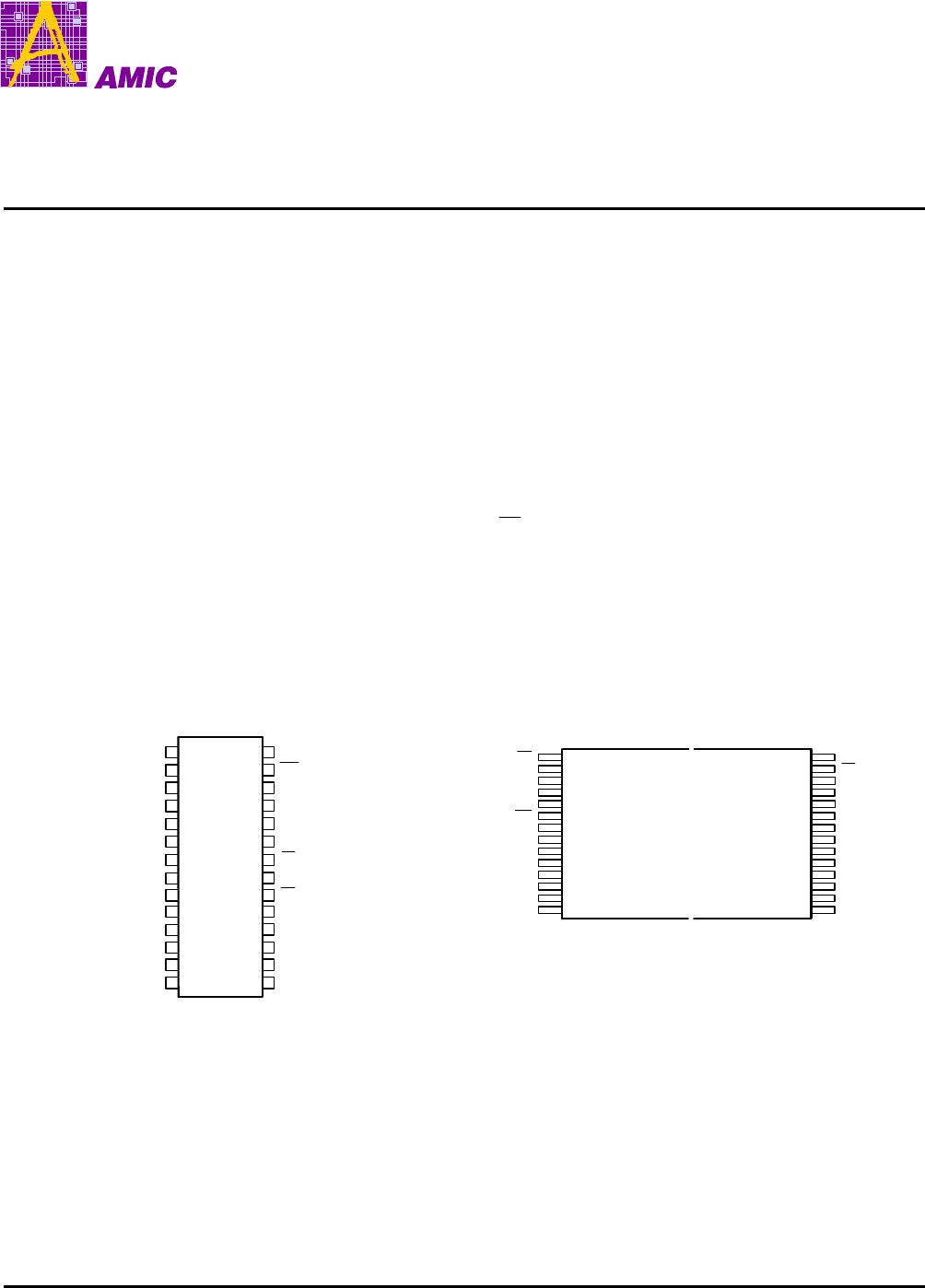

Pin Configurations
n DIP / SOP n TSOP
A14
A12
A7
A6
A5
A4
A3
A2
A1
A0
I/O0
I/O1
I/O
2
GND
I/O
3
I/O4
I/O5
I/O6
I/O7
CE
OE
A11
A9
A8
A13
WE
VCC
A10
A625308A(M)
1
2
3
4
5
6
7
8
9
10
11
12
13
14 15
16
17
18
19
20
21
22
23
24
25
26
27
28
A625308AV
1
9
28
20
A11
2
3
4
5
6
7
8
10
11
12
13
14
A9
A8
A13
A14
A12
A7
A6
A5
A4
A3
27
26
25
24
23
22
21
19
18
17
16
15
I/O6
I/O5
I/O4
I/O3
VSS
I/O
2
I/O
1
I/O
0
A0
A1
A2
A10
VCC
I/O7
OE
WE
CE
~
~
~
~
A625308A Series
PRELIMINARY (July, 2002, Version 0.2) 2 AMIC Technology, Inc.

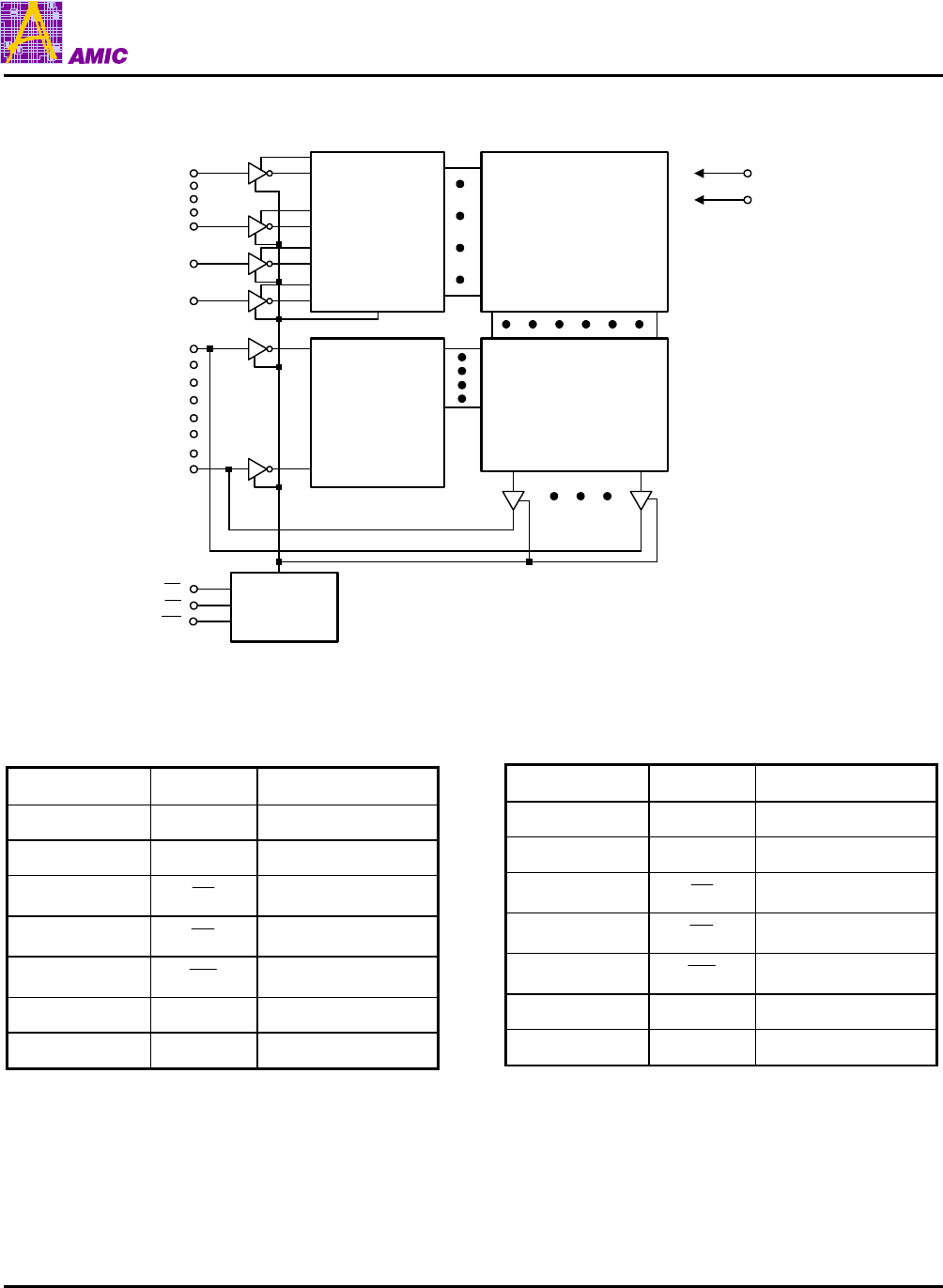

Block Diagram
ROW
DECODER
512 X 512
MEMORY ARRAY
INPUT DATA
CIRCUIT
COLUMN I/O
CONTROL
CIRCUIT
CE
WE
I/O7
I/O0
A14
A13
A12
A0
VCC
GND
OE
Pin Descriptions – DIP / SOP
Pin No. Symbol Description
1-10, 21, 23-26 A0 - A14 Address Input
11-13, 15-19 I/O0 - I/O7 Data Input/Output
20
CE
Chip Enable
22
OE
Output Enable
27
WE
Write Enable
28 VCC Power Supply
14 GND Ground
Pin Description-TSOP
Pin No. Symbol Description
2-5, 8-17, 28 A0 - A14 Address Input
18-20, 22-26 I/O0 - I/O7 Data Input/Output
27
CE
Chip Enable
1
OE
Output Enable
6
WE
Write Enable
7 VCC Power Supply
21 GND Ground
