1-717-217-2299 www.lumberg-automationusa.com88

e2c 67

Backplanes, PlugBoxes, BusHeads

0941 UNC...

0941 DNC...

0941 PNC...

0941 INC 201

0940 DSL 001 | 0940 PSL 001 | 0940 ISL 001

Part No.

0941 UNC 010

0941 UNC 020

0941 UNC 030

Part No.

0941 DNC 101

0941 DNC 301

Part No.

0941 PNC 101

0941 PNC 103

0941 PNC 201

Part No.

0941 INC 201

Part No.

0940 DSL 001

0940 PSL 001

0940 ISL 001

Backplanes

e2c 67 Backplane Bus Connections for 4-, 6 and

8-Port I/O Modules

PlugBox-DeviceNet

0941 DNC 101: M12, 5-Pole Male (In) and Female

(Out) Bus Connection with 7/8”, 4-Pole Male for

Auxillary Power.

0941 DNC 301: 7/8”, 5-Pole Male (In) and Female

(Out) Bus Connection with 7/8”, 4-Pole Male for

Auxillary Power.

PlugBox-Proﬁbus

0941 PNC 101: M12, 5-Pole Male (In) and Female

(Out) Bus Connection with 7/8”, 5-Pole Male for

Auxillary Power.

0941 PNC 103: M12, 5-Pole Male (In) and Female

(Out) Bus Connection with M23, 6-Pole Male for

Auxillary Power.

0941 PNC 201: M23, 12-Pole Female (In) and Female

(Out) Bus Connection with M23, 6-Pole Male for

Auxillary Power.

PlugBox-Interbus

e2c 67 PlugBox for Interbus, M23, 9-Pole Male (In)

and Female (Out) Bus Connection with M23, 6-Pole

Male for Auxillary Power.

BusHead

0940 DSL 001: DeviceNet-Slave

0940 PSL 001: Proﬁbus-Slave

0940 ISL 001: Interbus-Slave

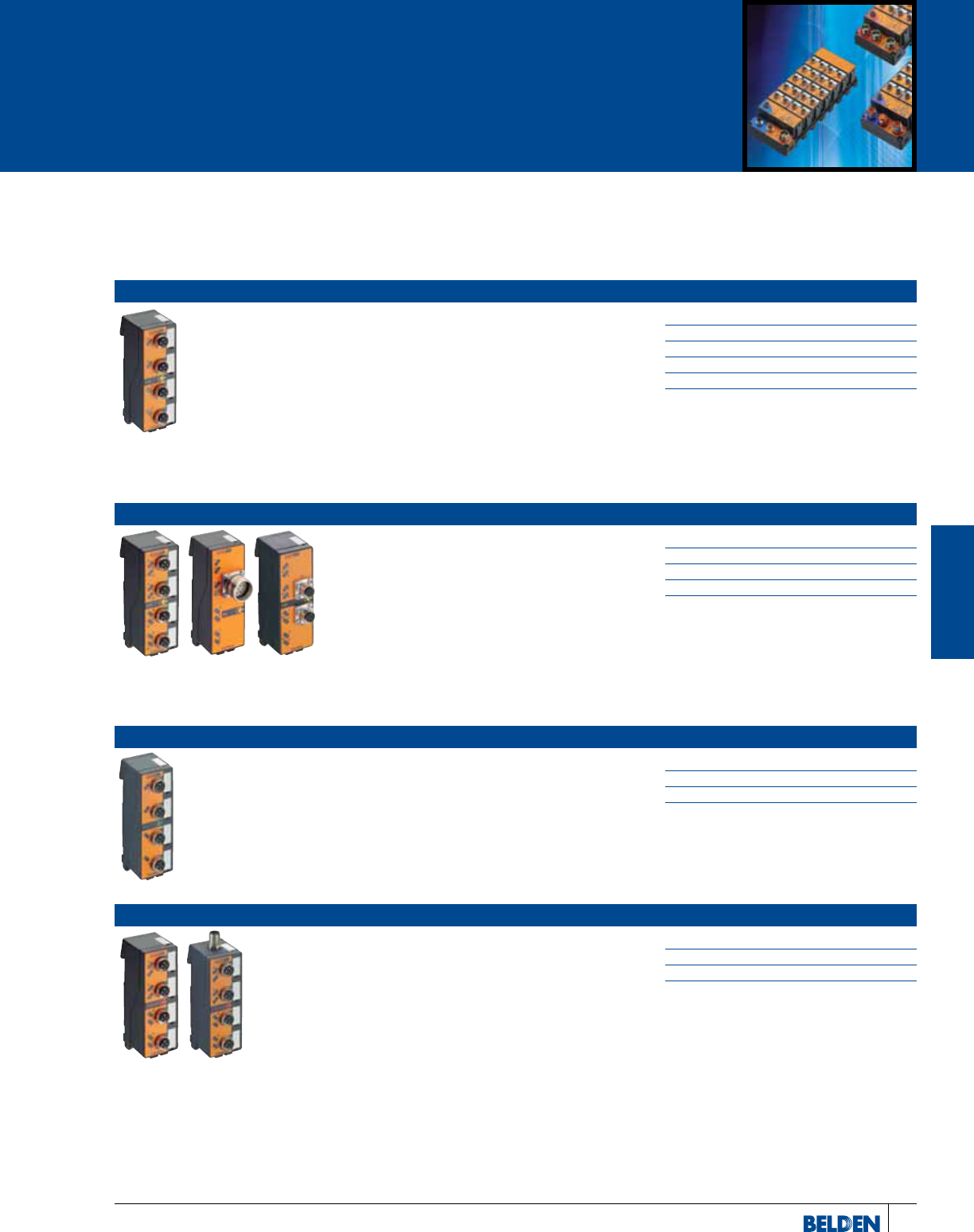

www.lumberg-automationusa.com 1-717-217-2299 89

e2c 67

I/O Modules

0942 UEM 011 | 0942 UEM 101 | 0942 UEM 102 | 0942 UEM 013

0942 UEM 032 | 0942 UEM 034

0942 UEM 021 | 0942 UEM 026

0942 UEM 012 | 0942 UEM 014 | 0942 UEM 019

Part No.

0942 UEM 011

0942 UEM 101

0942 UEM 102

0942 UEM 013

Part No.

0942 UEM 032

0942 UEM 034

Part No.

0942 UEM 021

0942 UEM 026

Part No.

0942 UEM 012

0942 UEM 014

0942 UEM 019

4 IN digital

0942 UEM 011: Group Diagnostic

M12 Sensor Connection

0942 UEM 101: Counter Module

M12 Sensor Connection

0942 UEM 102: Single-Channel Diagnostic

M12 Sensor Connection

0942 UEM 013: P/N Single-Channel Diagnostic

M12 Sensor Connection

4 IN analog

0942 UEM 032: Single-Channel Diagnostic

Free Parameterizing

0942 UEM 034: To Connect RTD Resistance

Thermometers with Galvanic Isolation, Single-

Channel Diagnostic, M12 Sensor Connection

4 OUT digital

0942 UEM 021: 2 A Per Channel, Single-Channel

Diagnostic, M12 Actuator Connection

0942 UEM 026: Single-Channel Diagnostic, M12

Actuator Connection, External Power Supply

8 IN digital

0942 UEM 012: Group Diagnostic

M12 Sensor Connection

0942 UEM 014: Group Diagnostic, Coupling from

Actuator/Sensor Distribution Boxes via M23 Female

Connector, 12-Poles

0942 UEM 019: Group Diagnostic, Coupling from

M8 Distribution Box SBS 4/LED 3 via M12 Female

Connector, 8-Poles

e2c 67

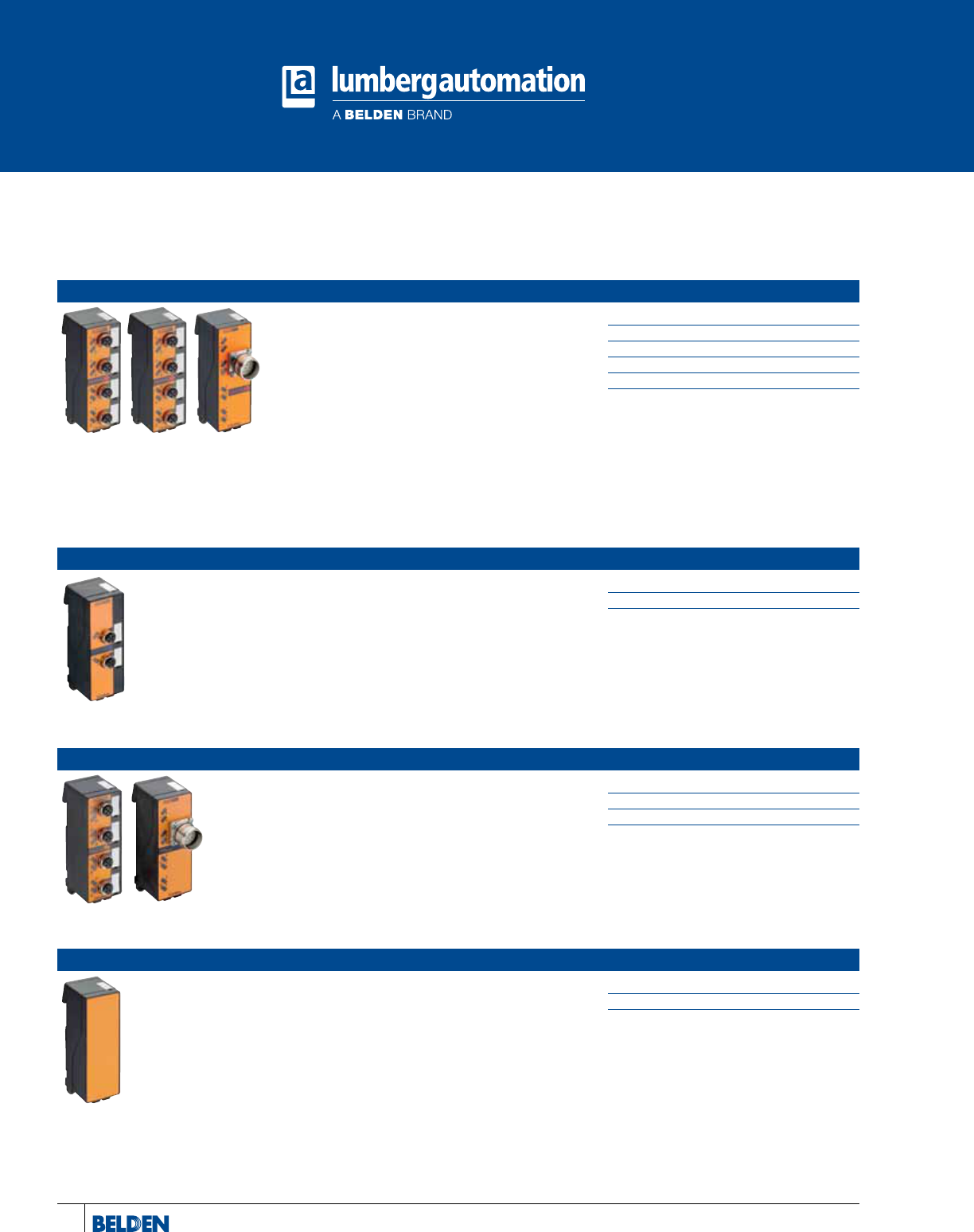

1-717-217-2299 www.lumberg-automationusa.com90

e2c 67

I/O Modules

0942 UEM 022 | 0942 UEM 201 | 0942 UEM 205 | 0942 UEM 027

0942 UEM 203

0942 UEM 040 | 0942 UEM 041

0941 UNC 100

Part No.

0942 UEM 022

0942 UEM 201

0942 UEM 205

0942 UEM 027

Part No.

0942 UEM 203

Part No.

0942 UEM 040

0942 UEM 041

Part No.

0941 UEM 100

8 OUT digital

0942 UEM 022: , 0.5 A Per Channel, Group Diagnostic

with Broken Wire Detection (150 mA), M12 Actuator

Connection

0942 UEM 201: 0.5 A Per Channel, Group Diagnostic,

M12 Actuator Connection

0942 UEM 205: 0.5 A Per Channel, Group Diagnostic,

M12 Actuator Connection, External Power Supply

0942 UEM 027: Group Diagnostic, Coupling from

Actuator/Sensor Distribution Boxes via M23 Female

Connector, 12-Poles.

16 OUT digital

e2c 67 I/O Module with 16 Digital outputs,0.1 A Per

Channel, Single Channel Diagnostic, M23 Actuator

Connection, 19-Poles.

2 OUT analog

0942 UEM 040: Single Channel Diagnostic, Output

Range ±10 V, Parameterizing, M12 Actuator

Connection.

0942 UEM 041: Single Channel Diagnostic, Output

Range ±20 ma / 4-20mA, Parameterizing, M12

Actuator Connection.

Cover Box

e2c 67 Cover Box for Un-used Slots on the

Backplane.
