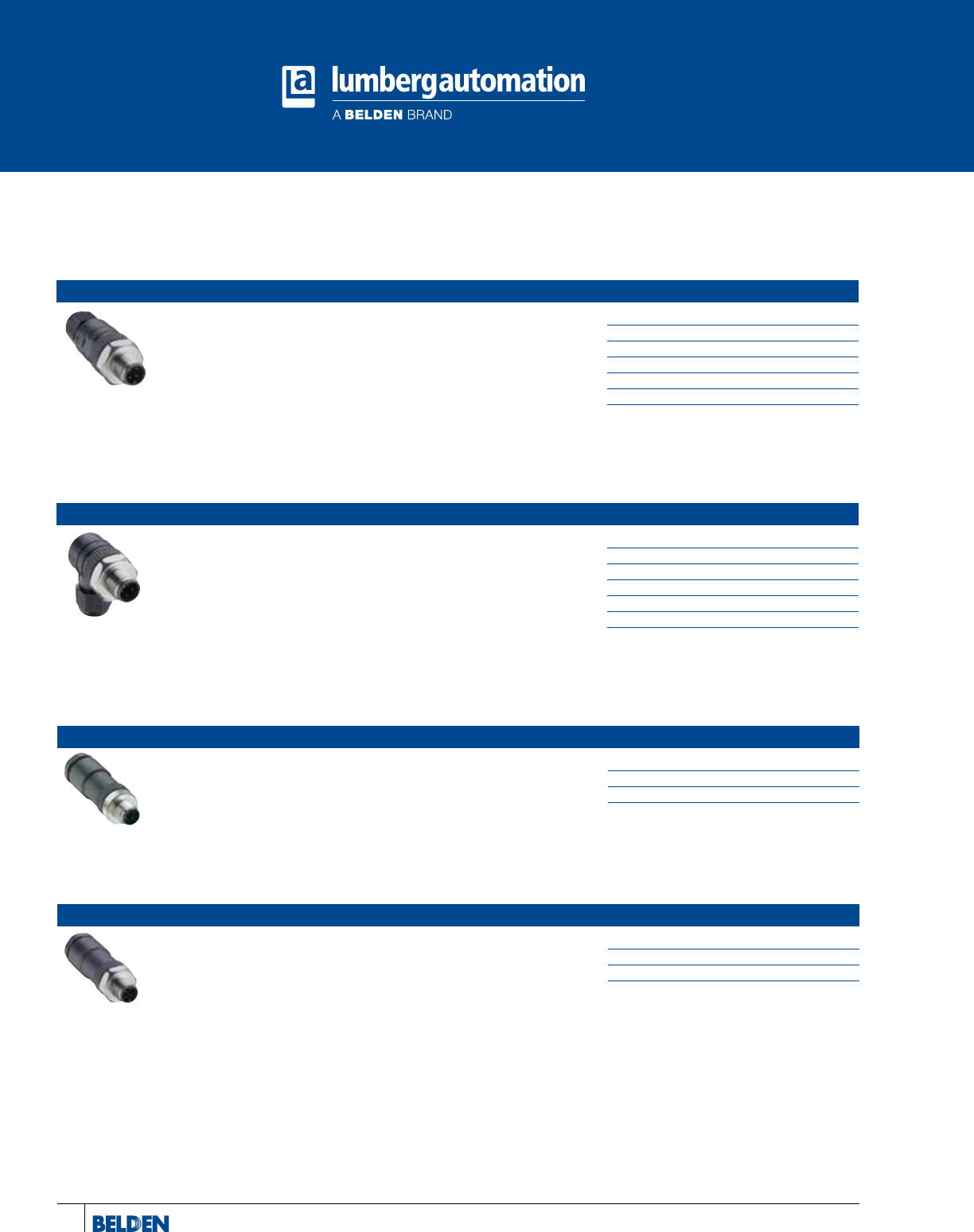

1-717-217-2299 www.lumberg-automationusa.com70

M12-Round Connectors In Accordance with IEC 61076-2-101

M12-Field Attachable Connectors

RSCN

RSCWN

Part No.

RSCN 4/7

RSCN 4/9

RSCN 5/7

RSCN 5/9

RSCN 8/9

Part No.

RSCWN 4/7

RSCWN 4/9

RSCWN 5/7

RSCWN 5/9

RSCWN 8/9

M12 Field Attachable, Male Straight

Field Attachable Connector, M12 Male Straight, 4- 5-

and 8-Poles, Stainless Steel Hexagon Threaded Joint,

Assembling with Screw Terminals. IP 67 Rated.

Screw Joints for Cables

4/7: Ø 3,0-6,5 mm

4/9: Ø 4,0-8,0 mm

5/7: Ø 3,0-6,5 mm

5/9: Ø 4,0-8,0 mm

8/9: Ø 4,0-8,0 mm

– especially designed for use in Food

Processing equipment –

M12 Field Attachable, Male 90˚

Field Attachable Connector, M12 Male 90˚, 4- 5- and

8-Poles, Stainless Steel Hexagon Threaded Joint,

Assembling with Screw Terminals. IP 67 Rated.

Screw Joints for Cables

4/7: Ø 3,0-6,5 mm

4/9: Ø 4,0-8,0 mm

5/7: Ø 3,0-6,5 mm

5/9: Ø 4,0-8,0 mm

8/9: Ø 4,0-8,0 mm

– especially designed for use in Food

Processing equipment –

RSC...DUO

RSCN...DUO

M12 Field Attachable, Male Straight DUO

Field Attachable Connector, M12 Male Straight Duo

Connector, 3- and 4-Poles with Threaded Joint,

Assembling with Screw Terminals. IP 67 Rated.

Screw Joints for Cables

4 Poles: 2 x 3 mm / 2 x 5 mm

5 Poles: 2 x 3 mm / 2 x 5 mm

Part No.

RSC 4/DUO

RSC 5/DUO

Part No.

RSCN 4/DUO

RSCN 5/DUO

M12 Field Attachable, Male Straight DUO

Field Attachable Connector, M12 Male Straight Duo

Connector, 3- and 4-Poles Stainless Steel Hexagon

Threaded Joint, Assembling with Screw Terminals. IP

67 Rated.

Screw Joints for Cables

4 Poles: 2 x 3 mm / 2 x 5 mm

5 Poles: 2 x 3 mm / 2 x 5 mm

– especially designed for use in Food

Processing equipment –

www.lumberg-automationusa.com 1-717-217-2299 71

M12-Round Connectors In Accordance with IEC 61076-2-101

M12-Field Attachable Connectors

RSCS | 0976 PMC 101

RSCQS | 0976 PMC 102 | 0986 EMC 102

Part No.

RSCS 4/9

RSCS 5/9

RSCS 8/9

0976 PMC 101

Part No.

RSCQS 3/9

RSCQS 4/9

0976 PMC 102

0986 EMC 102

M12 Field Attachable, Male Straight

Field Attachable Connector, M12 Male Straight, 4-,

5- and 8-Poles with Threaded Joint, Shieldable,

Assembling with Screw Terminals. IP 67 Rated.

0976 PMC 101: 5-Poles (only), B Coding, especially

suitable for Proﬁbus Signal Cable: 0975 254 000/...M

Screw Joints for Cables

All: Ø 4,0-9.0 mm

M12 Field Attachable, Male Straight

Field Attachable Connector, M12 Male Straight, 3-,

4- and 5-Poles with Threaded Joint, Shieldable,

Assembling with Spring-Type Terminals. IP 67 Rated.

0976 PMC 102: 5-Poles (only), B Coding, especially

suitable for Proﬁbus Signal Cable: 0975 254 000/...M

0986 EMC 102: 4-Poles (only), D Coding,

especially designed for Industrial Ethernet and

Proﬁnet data cable 0985 342 00/...M

Screw Joints for Cables

All: Ø 4,0-9.0 mm

RKC

RKCW

M12 Field Attachable, Female Straight

Field Attachable Connector, M12 Female Straight 3-,

4-, 5- and 8-Poles with Threaded Joint, Assembling

with Screw Terminals. IP 67 Rated.

Screw Joints for Cables

3/7: Ø 3,5-6,5 mm

3/9: Ø 4,0-8,0 mm

4/7: Ø 3,0-6,5 mm

4/9: Ø 4,0-8,0 mm

5/7: Ø 3,5-6,5 mm

5/9: Ø 4,0-8,0 mm

8/9: Ø 4,0-8,0 mm

M12 Field Attachable, Female 90˚

Field Attachable Connector, M12 Female 90˚ 3-, 4-,

5- and 8-Poles with Threaded Joint, Assembling with

Screw Terminals. IP 67 Rated.

Screw Joints for Cables

3/7: Ø 3,5-6,5 mm

3/9: Ø 4,0-8,0 mm

4/7: Ø 3,0-6,5 mm

4/9: Ø 4,0-8,0 mm

5/7: Ø 3,5-6,5 mm

5/9: Ø 4,0-8,0 mm

8/9: Ø 4,0-8,0 mm

Part No.

RKC 4/3/7

RKC 4/3/9

RKC 4 /7

RKC 4 /9

RKC 5/7

RKC 5/9

RKC 8/9

Part No.

RKCW 4/3/7

RKCW 4/3/9

RKCW 4 /7

RKCW 4 /9

RKCW 5/7

RKCW 5/9

RKCW 8/9

Field Attachable

Connectors

Field Attachable

Connectors

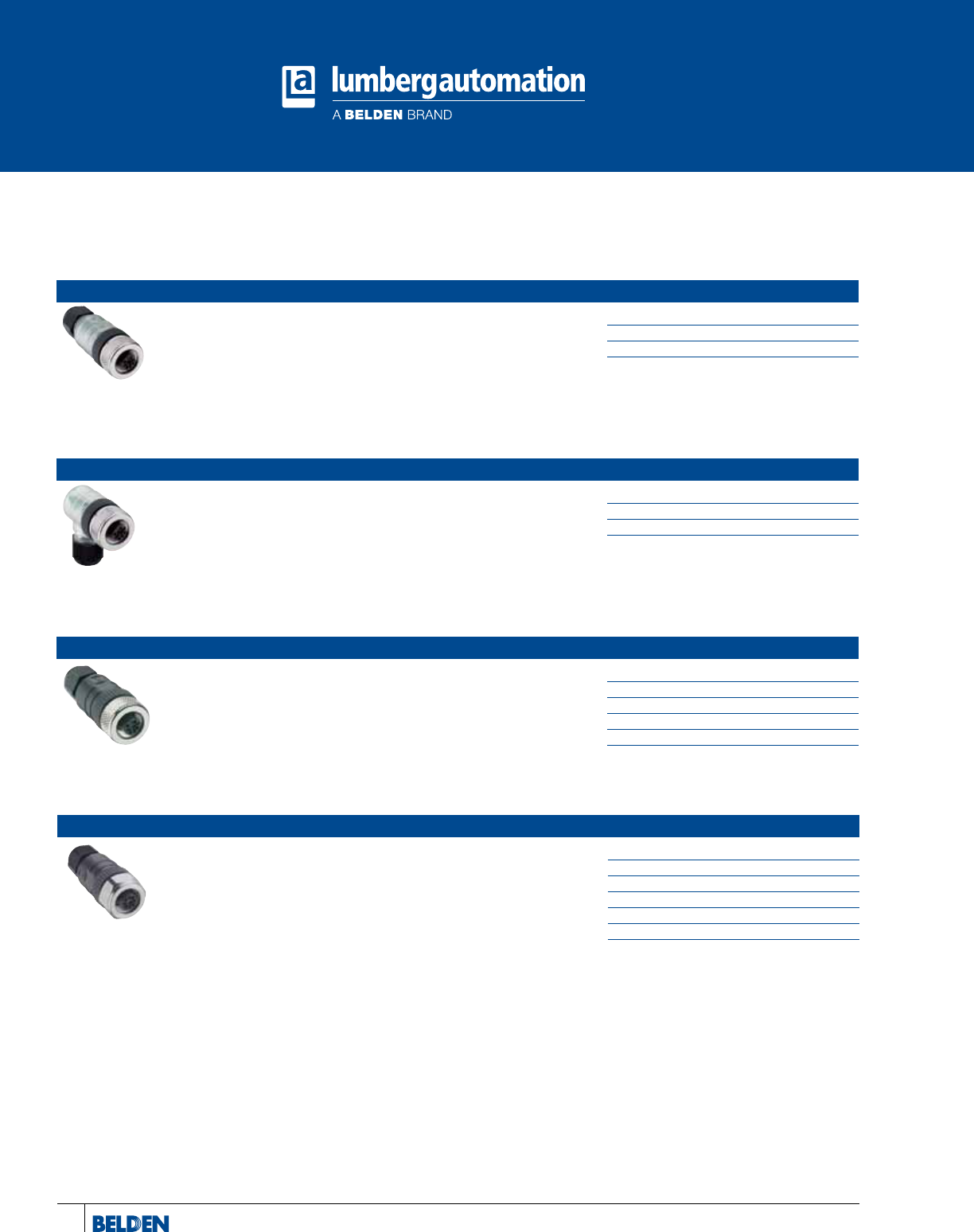

1-717-217-2299 www.lumberg-automationusa.com72

M12-Round Connectors In Accordance with IEC 61076-2-101

M12-Field Attachable Connectors

RKC/LED

RKCW/LED

M12 Field Attachable, Female Straight LED

Field Attachable Connector, M12 Female Straight

4-Poles with Threaded Joint and LED Operation and

Function Indicator, Assembling with Screw Terminals

(Printed Circuit Board Included). IP 67 Rated.

Screw Joints for Cables

4/7: Ø 3,0-6,5 mm

4/9: Ø 4,0-8,0 mm

M12 Field Attachable, Female 90˚ LED

Field Attachable Connector, M12 Female 90˚ 4-Poles

with Threaded Joint and LED Operation and Function

Indicator, Assembling with Screw Terminals (Printed

Circuit Board Included). IP 67 Rated.

Screw Joints for Cables

4/7: Ø 3,0-6,5 mm

4/9: Ø 4,0-8,0 mm

Part No.

RKC/LED 4/7

RKC/LED 4/9

Part No.

RKCW/LED 4/7

RKCW/LED 4/9

RKCQ

Part No.

RKCQ 4/3/7

RKCQ 4/3/9

RKCQ 4/7

RKCQ 4/9

M12 Field Attachable, Female Straight

Field Attachable Connector, M12 Female Straight,

3- and 4-Poles with Threaded Joint, Assembling with

Spring-Type Terminals. IP 67 Rated.

Screw Joints for Cables

3/7: Ø 3,5-6,5 mm

3/9: Ø 4,0-8,0 mm

4/7: Ø 3,0-6,5 mm

4/9: Ø 4,0-8,0 mm

RKCN

Part No.

RKCN 4/7

RKCN 4/9

RKCN 5/7

RKCN 5/9

RKCN 8/9

M12 Field Attachable, Female Straight

Field Attachable Connector, M12 Female Straight,

4- 5- and 8-Poles, Stainless Steel Hexagon Threaded

Joint, Assembling with Screw Terminals. IP 67 Rated.

Screw Joints for Cables

4/7: Ø 3,0-6,5 mm

4/9: Ø 4,0-8,0 mm

5/7: Ø 3,0-6,5 mm

5/9: Ø 4,0-8,0 mm

8/9: Ø 4,0-8,0 mm

– especially designed for use in Food

Processing equipment –
