www.lumberg-automationusa.com 1-717-217-2299 67

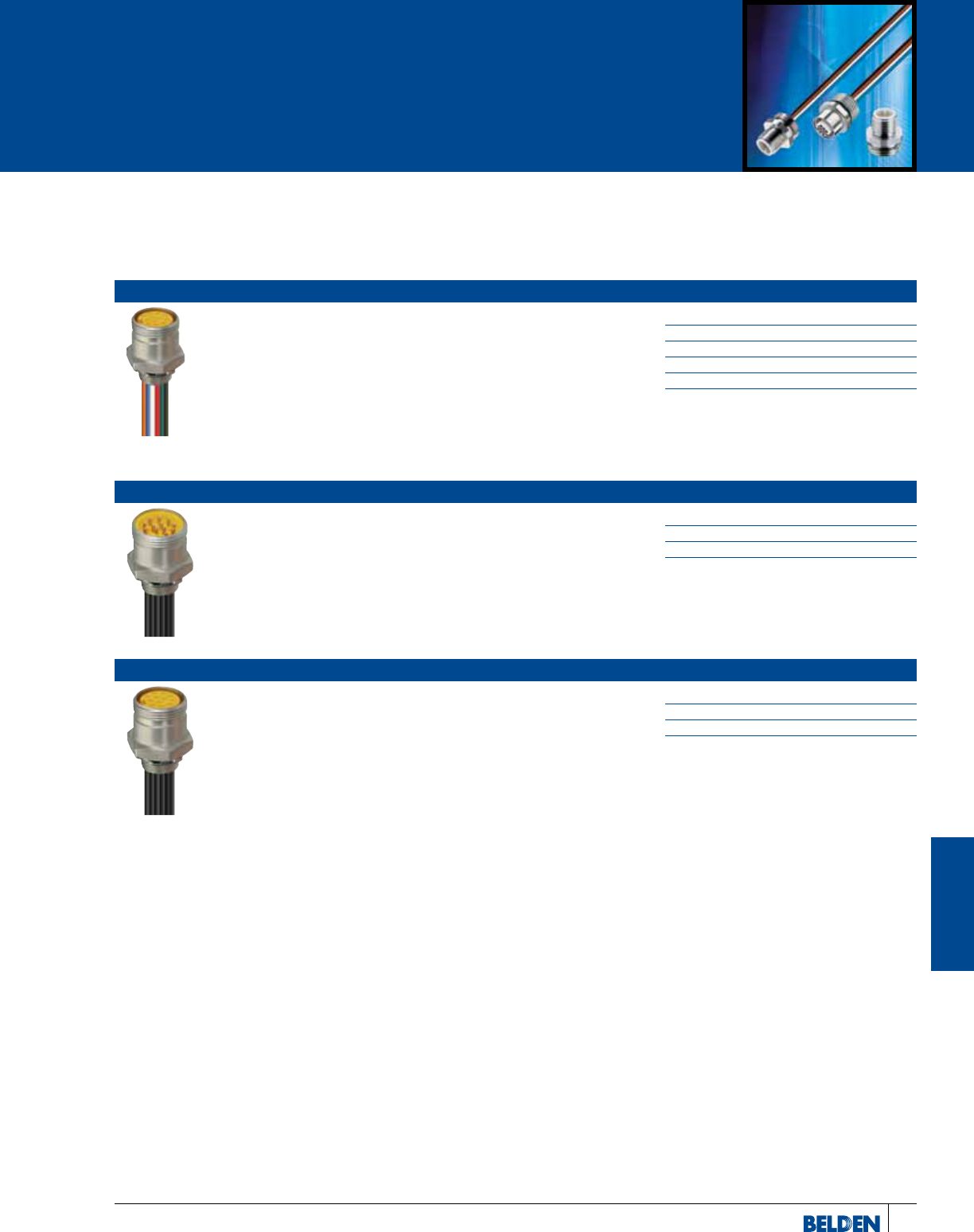

Mini Receptacle Connectors, Front-Mount

1 1/8”-C Body Receptacles

Receptacle Connector, 1 1/8”- C Body, Male, 12- and

19-Poles, For Front Mounting, Assembled Stranded

Wire, Potted with Epoxy, Chassis Side Thread 1/2”

NPT Screw Connection, IP 67 Rated.

Numeric Color Code

Stranded Wire: 676 | 669

Receptacle Connector, 1 1/8”- C Body, Female,

12- and 19-Poles, For Front Mounting, Assembled

Stranded Wire, Potted with Epoxy, Chassis Side

Thread 1/2” NPT Screw Connection, IP 67 Rated.

Numeric Color Code

Stranded Wire: 676 | 669

Receptacle Connector, 1 1/8”- C Body, Female, 9-,

10- and 12-Poles, For Front Mounting, Assembled

Stranded Wire, Potted with Epoxy, Chassis Side

Thread 1/2” NPT Screw Connection, IP 67 Rated.

U.S. Color Code

Stranded Wire: 623 | 699 | 624

IEC Color Code

Stranded Wire: 630 (11 Conductors)

RSF 120M...190M

RKF 1201M...1901M

RKF 1001M...1201M

Part No.

RSF 120M-676/1 F

RSF 190M-669/1 F

Part No.

RKF 1201M-676/1 F

RKF 1901M-669/1 F

Part No.

RSF 901M-623/1 F

RKF 1001M-699/1 F

RKF 1201M-624/1 F

RKF 1201M-630/0.3 M

Receptacles

1-717-217-2299 www.lumberg-automationusa.com68

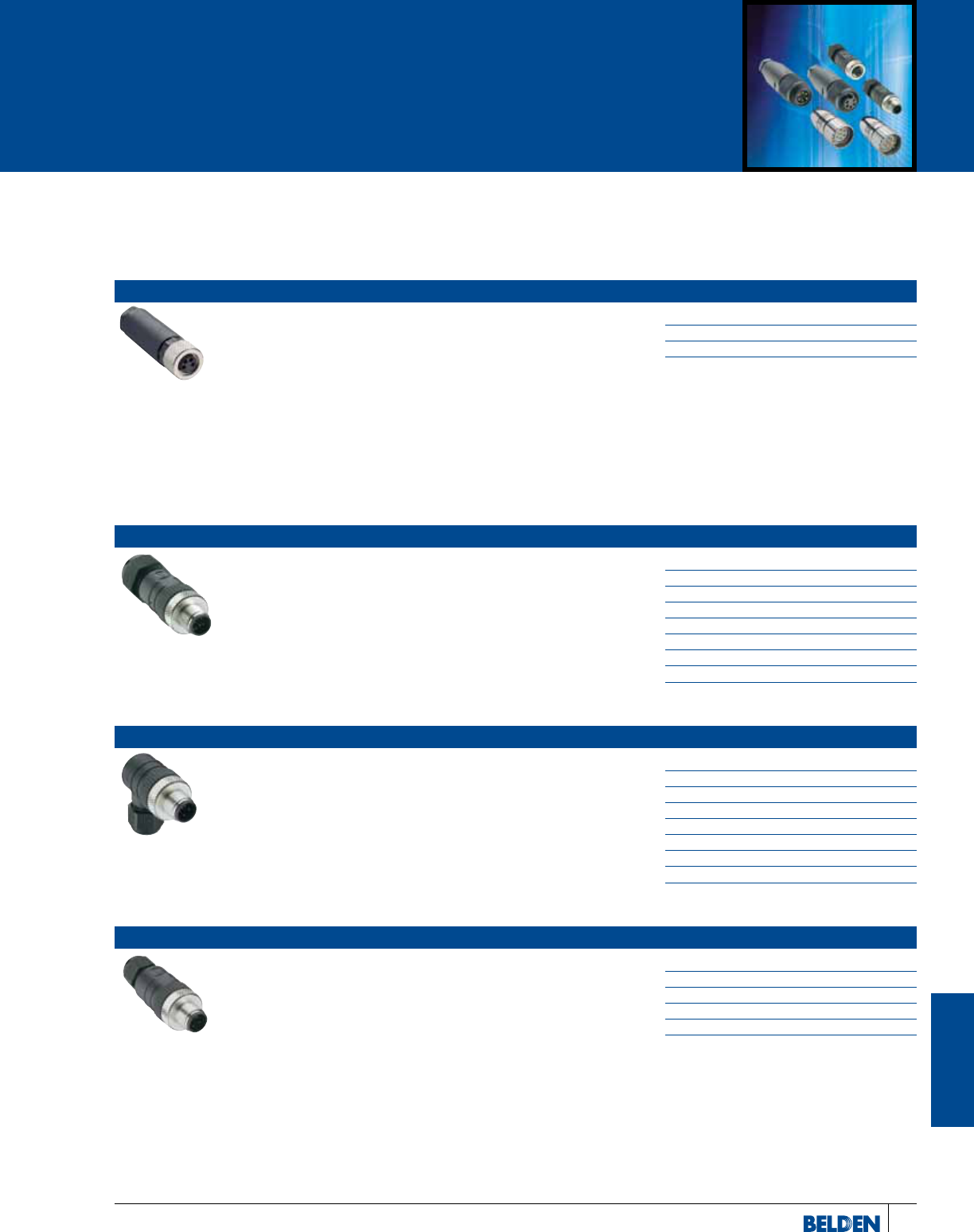

M8-Round Connectors In Accordance with IEC 61076-2-104

M8-Field Attachable Connectors

RSMC

RSMCW

Part No.

RSMC 3

RSMC 4

Part No.

RSMCW 3

RSMCW 4

M8 Field Attachable, Male Straight

Field Attachable Connector, M8 Male Straight, 3- and

4-Poles with Threaded Joint, Assembling with Solder

Connections. IP 67 Rated.

Screw Joints for Cables

3-Pole: Ø 3,5-5,0 mm

4-Pole: Ø 3,5-5,0 mm

M8 Field Attachable, Male 90˚

Field Attachable Connector, M8 Male 90˚, 3- and

4-Poles with Threaded Joint, Assembling with Solder

Connections. IP 67 Rated.

Screw Joints for Cables

3-Pole: Ø 3,5-5,0 mm

4-Pole: Ø 3,5-5,0 mm

RSMCK

RKMC

RKMCW

Part No.

RSMCK 3

RSMCK 4

Part No.

RKMC 3

RKMC 4

Part No.

RKMCW 3

RKMCW 4

M8-Field Attachable, Male Straight

Field Attachable Connector, M8 Male Straight, 3- and

4-Poles with Threaded Joint, Assembling with Screw

Terminals. IP 67 Rated.

Screw Joints for Cables

3-Pole: Ø 3,5-5,0 mm

4-Pole: Ø 3,5-5,0 mm

M8 Field Attachable, Female Straight

Field Attachable Connector, M8 Female Straight,

3- and 4-Poles with Threaded Joint, Assembling with

Solder Connections. IP 67 Rated.

Screw Joints for Cables

3-Pole: Ø 3,5-5,0 mm

4-Pole: Ø 3,5-5,0 mm

M8 Field Attachable, Female 90˚

Field Attachable Connector, M8 Female 90˚, 3- and

4-Poles with Threaded Joint, Assembling with Solder

Connections. IP 67 Rated.

Screw Joints for Cables

3-Pole: Ø 3,5-5,0 mm

4-Pole: Ø 3,5-5,0 mm

www.lumberg-automationusa.com 1-717-217-2299 69

M8-Round Connectors In Accordance with IEC 61076-2-104

M8-Field Attachable Connectors

M12-Round Connectors In Accordance with IEC 61076-2-101

M12-Field Attachable Connectors

RKMCK

RSC

Part No.

RKMCK 3

RKMCK 4

Part No.

RSC 3/7

RSC 3/9

RSC 4/7

RSC 4/9

RSC 5/7

RSC 5/9

RSC 8/9

M8 Field Attachable, Female Straight

Field Attachable Connector, M8 Female Straight,

3- and 4-Poles with Threaded Joint, Assembling with

Screw Terminals. IP 67 Rated.

Screw Joints for Cables

3-Pole: Ø 3,5-5,0 mm

4-Pole: Ø 3,5-5,0 mm

M12 Field Attachable, Male Straight

Field Attachable Connector, M12 Male Straight, 3-, 4-,

5- and 8-Poles with Threaded Joint, Assembling with

Screw Terminals. IP 67 Rated.

Screw Joints for Cables

3/7: Ø 3,5-6,5 mm

3/9: Ø 4,0-8,0 mm

4/7: Ø 3,0-6,5 mm

4/9: Ø 4,0-8,0 mm

5/7: Ø 3,5-6,5 mm

5/9: Ø 4,0-8,0 mm

8/9: Ø 4,0-8,0 mm

RSCW

RSCQ

Part No.

RSCW 3/7

RSCW 3/9

RSCW 4/7

RSCW 4/9

RSCW 5/7

RSCW 5/9

RSCW 8/9

Part No.

RSCQ 3/7

RSCQ 3/9

RSCQ 4/7

RSCQ 4/9

M12 Field Attachable, Male 90˚

Field Attachable Connector, M12 Male 90˚, 3-, 4-,

5- and 8-Poles with Threaded Joint, Assembling with

Screw Terminals. IP 67 Rated.

Screw Joints for Cables

3/7: Ø 3,5-6,5 mm

3/9: Ø 4,0-8,0 mm

4/7: Ø 3,0-6,5 mm

4/9: Ø 4,0-8,0 mm

5/7: Ø 3,5-6,5 mm

5/9: Ø 4,0-8,0 mm

8/9: Ø 4,0-8,0 mm

M12 Field Attachable, Male Straight

Field Attachable Connector, M12 Male Straight, 3-

and 4-Poles with Threaded Joint, Assembling with

Spring-Type Terminals. IP 67 Rated.

Screw Joints for Cables

3/7: Ø 3,5-6,5 mm

3/9: Ø 4,0-8,0 mm

4/7: Ø 3,0-6,5 mm

4/9: Ø 4,0-8,0 mm

Field Attachable

Connectors

Field Attachable

Connectors
