www.lumberg-automationusa.com 1-717-217-2299 7

Table of Contents

About Belden® Industrial Solutions ......................................................................................................3

Industries and Applications .................................................................................................................. 4-5

About Our Solutions ............................................................................................................................. 6-7

Enclosure~less Connectivity Solutions at a Glance ............................................................................... 8-9

Connectivity Solutions 10-87

Passive Actuator/Sensor Connectivity Products, M8 / M12 Micro / 1/2”-20 Micro / Mini 7/8”, 1”, 1 1/8” / M23 /

DIN Valve Connectors, From IP 65 to IP 69K Ratings / NEMA 6P Rated.

Distribution Boxes ................................................................................................................................. 10-15

Single Ended Cordsets .......................................................................................................................... 16-33

Double Ended Cordsets ......................................................................................................................... 33-51

Splitters ................................................................................................................................................52-56

Receptacles ..........................................................................................................................................57-67

Field Attachable Connectors ..................................................................................................................68-78

PowerCINCH - On-Machine Power Distribution Connection System ....................................................... 79-82

Accessories ..........................................................................................................................................83-87

Fieldbus Solutions for Centralized I/O Applications 88-99

Lumberg Automation IP 67- Systems for Centralized Field Wiring. Supported Protocols: DeviceNet, CANopen,

Proﬁbus-DP and PROFInet.

e2c 67 for Field Level Centralized I/O Wiring System .............................................................................88-91

LioN-Link for Field Level Distributed I/O - Ideal for System Expansion ................................................... 92-99

Fieldbus Solutions for Decentralized I/O Applications 100-135

Lumberg Automation IP 67- I/O Modules and Related Connectors for AS-Interface, DeviceNet, CANopen,

and Proﬁbus-DP

AS-Interface ....................................................................................................................................... 100-104

DeviceNet ........................................................................................................................................... 105-118

Proﬁbus-DP ........................................................................................................................................ 119-128

CANopen ............................................................................................................................................ 129-132

Interbus .............................................................................................................................................. 133-135

Industrial Ethernet Solutions 136-142

Modbus/TCP (4-Pair), Ethernet/IP (2-Pair, D-Coded), and ProﬁNet (2-Pair B-Coded), M12 and RJ45 Conﬁgurations, From IP 20

to IP67 Ratings

Switches (Unmannaged) ......................................................................................................................136

Panel Mount Feed-Throughs ................................................................................................................136

UTP Media Cordsets.............................................................................................................................136-141

Field Attachable Connectors .................................................................................................................142

Receptacles .........................................................................................................................................142

References 143-176

Glossary of Terms ................................................................................................................................143-148

Cable Index / Connector Key/Pin Conﬁgurations ...................................................................................149-157

Part Number Index ...............................................................................................................................158-176

1-717-217-2299 www.lumberg-automationusa.com8

Enclosure~less Wiring Solution for On-Machine Applications

Legend

1. Passive Distribution Boxes

Many styles to choose from. 4-, 6-, or 8-ports, top or side entry, with on-board, homerun

cable, or quick-disconnect connector.

2. Cordsets

Single- and Double-Ended Cordsets provide connection between ﬁeld devices and the

ports of a distribution box or may be used to hardwire a device to a control panel or

distribution box.

3. Receptacles

Receptacles are connectors that mount in a ﬁxed location (sensor or panel) and mate with

a molded cable.

4. Field Attachable Connectors

Used to complete the assembly of a single-ended cordset. Field attachables are available in

a variety of thread sizes and number of poles, straight and right-angle or to make cordset

repairs in the ﬁeld.

5. DIN Valve Connectors

Are mainly used with solenoid valves in hydraulic and pneumatic applications. In addition,

these connectors are also used in electrical applications for pressure switches, ﬁlter

switches, limit switches and special sensors.

6. Splitters

Devices that provide the means of bringing two different sensor/actuator signals into a

single port of an ASB distribution box, thereby doubling the capacity of the box.

7. Fieldbus I/O Blocks

Have embedded communications protocol, e.g., DeviceNet, Proﬁbus...) that allows them to

actively communicate with the network interface at the PLC.

8. Fieldbus I/O Modular Bus Systems

Are systems with bus-neutral I/O modules and communications adapters that allow the

designer to mix and match ﬁeld bus and I/O hardware components as needed for the

application.

9. Bus Taps and Tees

Connect drop lines to the main trunk line or combine power and signal using a

hybrid cable.

10. Drop and Trunk Cordsets

When connecting multiple devices to a single communications trunk, the trunk is split with

a T-connector. The cable that connects the device to the main trunk is referred to as a

drop cable.

11. Terminating Resistors

Are placed at the end of a transmission line or daisy chain bus (such as in Devicenet),

designed to match impedance and hence minimize signal reﬂections.

Active/Passive Application Diagram

www.lumberg-automationusa.com 1-717-217-2299 9

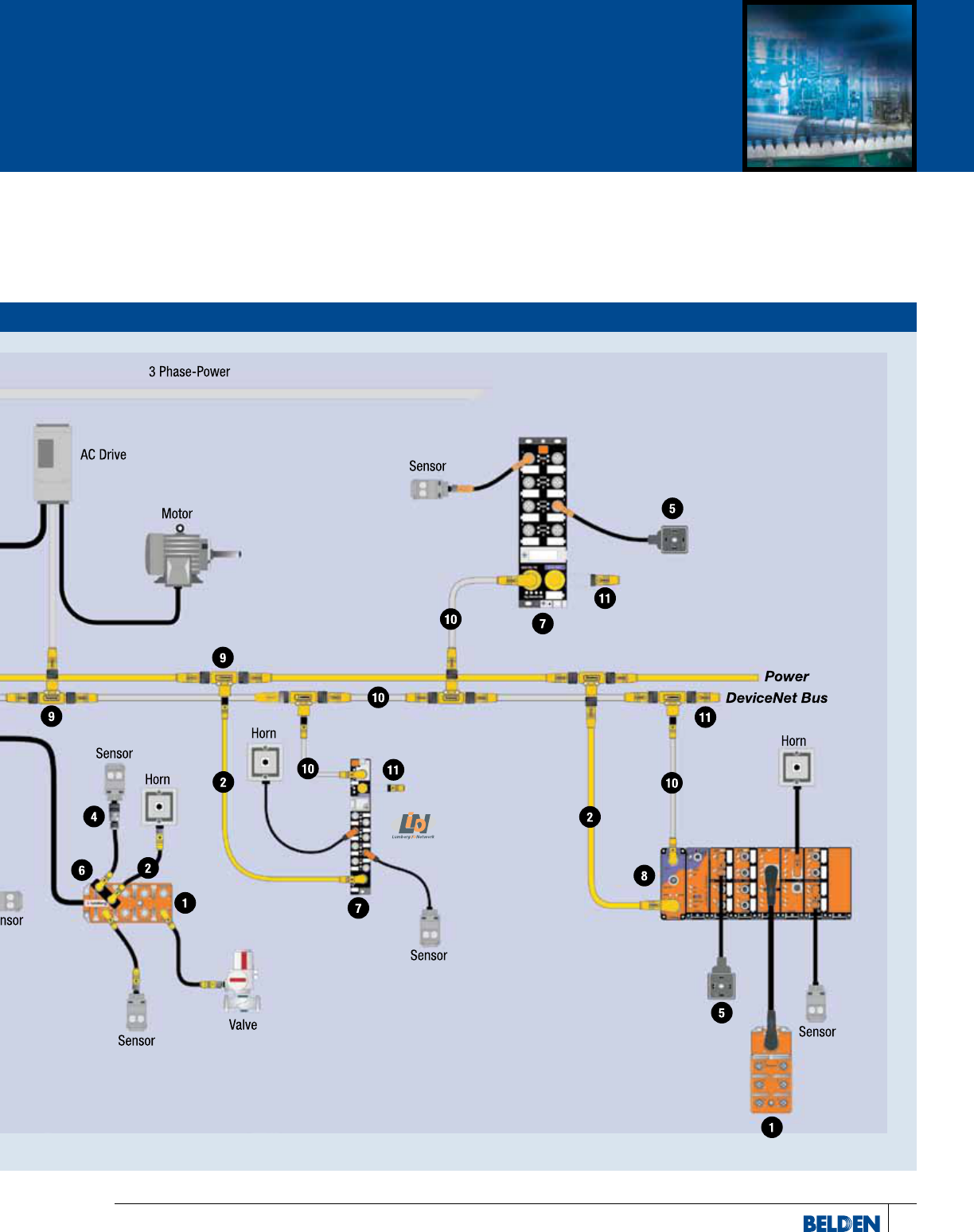

Active/Passive Application Diagram
