Splitters and

Adapters

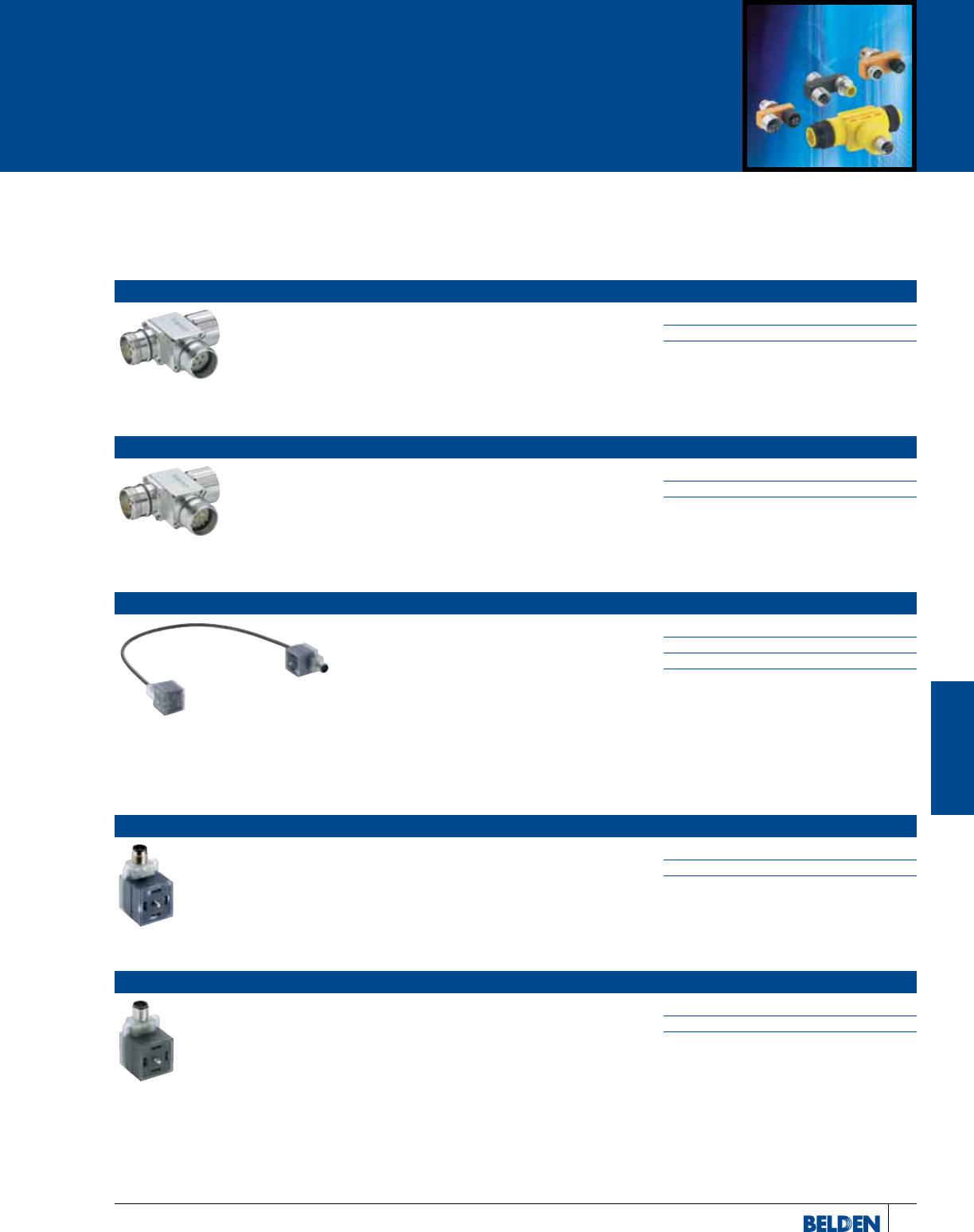

T-Splitters and Adapters

M23-T-Distributor, Double Solenoid Valve Adapter, M12 and M8 Valve Adapters

M23-Female - 2xM23 Male/Female

T-Splitter, 6-Poles with One M23 Female, One M23

Female and One M23 Male Connector, IP 67 Rated.

– especially suitable for the e2c 67 system to drag

the power supply –

M23-Male - 2xM23 Male/Female

T-Splitter, 9-Poles with One M23 Female, One M23

Female and One M23 Male Connector, IP 67 Rated.

– especially suitable for Interbus installations remote

bus modules –

Double Solenoid Valve Adapter (Valve Adapter

with Integrated M12 Male Receptacle Connector),

According to DIN EN 175301-803, Form A, with LED

Function Indicator and Varistor for Voltage Protection,

IP 67 Rated.

Cable Types:

226 = PUR, halogen-free, black

241 = PUR, halogen-free, welding

spark proof, orange

Connector for Pressure Switches According to DIN

EN 175301-803, Form A, with LED Operation and

Function Indicator and M12, 5-Pole Male Receptacle

Connector, IP 67 Rated.

Valve Adapter According to DIN EN 175301-803,

Form A with LED Function Indicator, Varistor Voltage

Protection, Connected Protective Earth with M12,

5-Pole Male Receptacle Connector, IP 67 Rated.

0906 UTP 203

0906 UTP 204

VAD 3C-4-1-M12-5

VAD 1A...M12

VAD M12 1A-VAD 1A-1-3

Part No.

0906 UTP 203

Part No.

0906 UTP 204

Part No.

VAD 3C-4-1-M12-5

Part No.

VAD 1A-1-3-M12-5

Part No.

VAD M12 1A-VAD 1A-1-3-226/0,4 M

VAD M12 1A-VAD 1A-1-3-241/0,4 M

Splitters and Adapters

1-717-217-2299 www.lumberg-automationusa.com56

Adapters

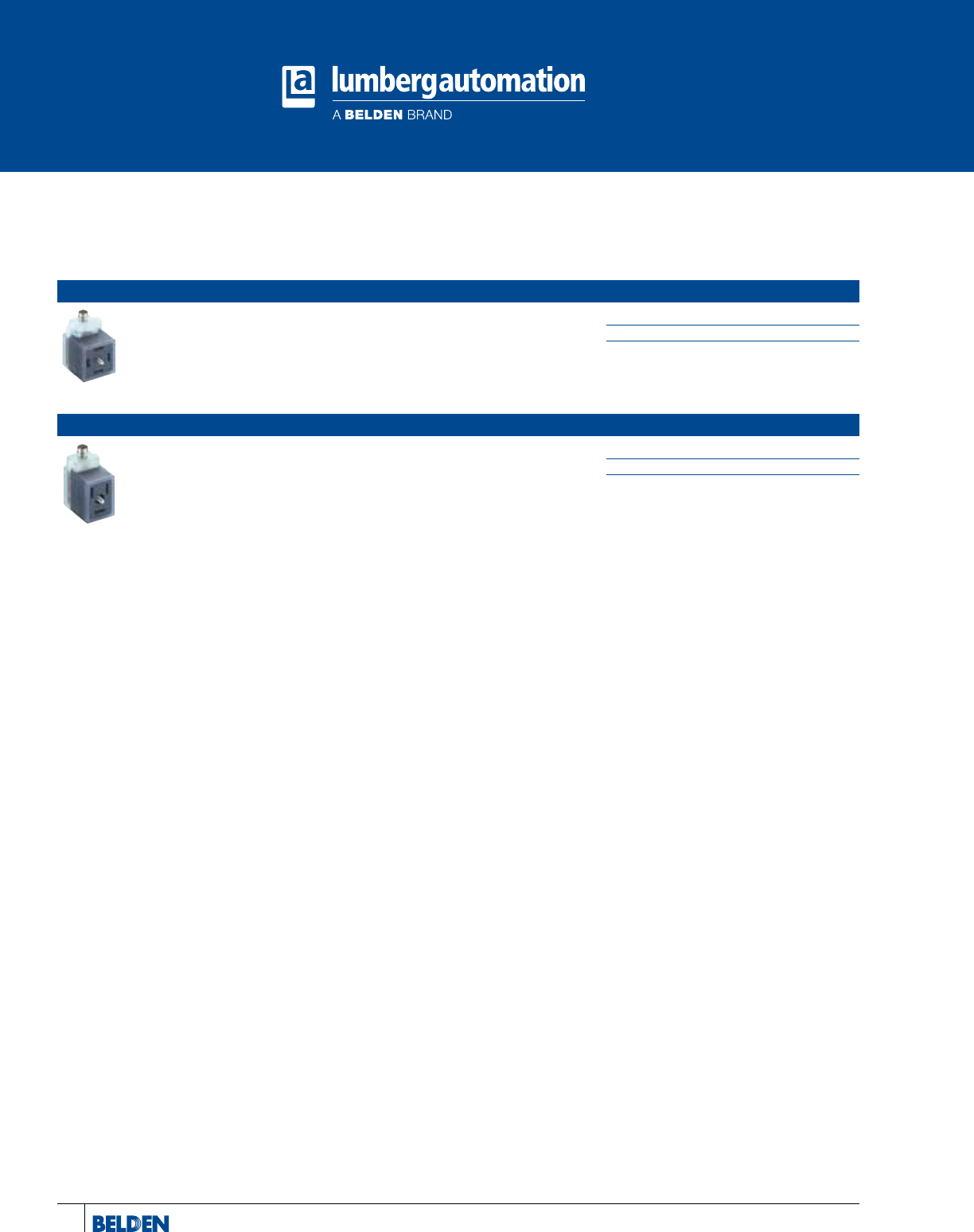

M12 and M8 Valve Adapters

Valve Adapter According to DIN EN 175301-803,

Form A with LED Function Indicator, Varistor Voltage

Protection, Connected Protective Earth with M8,

3-Pole Male Receptacle Connector, IP 67 Rated.

Valve Adapter According to DIN EN 175301-803,

Form B with LED Function Indicator, Varistor Voltage

Protection, Connected Protective Earth with M8,

3-Pole Male Receptacle Connector, IP 67 Rated.

VAD 1A...M8

VB 1A...M8

Part No.

VAD 1A-1-3-M8-3

Part No.

VB 1A-1-2-M8-3

www.lumberg-automationusa.com 1-717-217-2299 57

Receptacle Connectors In Accordance With IEC 61076-2-104

M8-Receptacles

Receptacle Connector, M8 Male for Rear Mounting,

Printed Contacts, Chassis Side Thread M10 x 1 (Panel

Nut Included), IP 67 Rated.

Receptacle Connector, M8 Female for Rear Mounting,

Printed Contacts, Chassis Side Thread M10 x 1 (Panel

Nut Included), IP 67 Rated.

Receptacle Connector, M8 Male, 3-, 4- and 8-Pole

for Front Mounting, Assembled Standard Wire, Solder

Contacts Potted with Epoxy, Chassis Side Thread

M8 x 0.5 (Panel Nut RSKF 8), IP 67 Rated.

Receptacle Connector, M8 Female, 3- and 4-Pole for

Front Mounting, Assembled Standard Wire, Solder

Contacts Potted with Epoxy, Chassis Side Thread

M8 x 0.5 (Panel Nut RSKF 8), IP 67 Rated.

RSMHL.../S 5,5

RKMHL.../S 5,5

RSMF.../0,5 M

RKMF.../0,5 M

Part No.

RSMHL 3/ S 5,5

RSMHL 4/S 5,5

Part No.

RKMHL 3/ S 5,5

RKMHL 4/S 5,5

Part No.

RSMF 3/0,5 M

RSMF 4/0,5 M

RSMF 8/0,5 M

Part No.

RKMF 3/0,5 M

RKMF 4/0,5 M

Receptacles

Receptacle Connector, M8 Male, 3- and 4-Pole for

Sensors with Short Solder Contacts, Solid Contacts

on Solder Side, RSMEK...L: with Ventilation Hole 1.1

mm Ø.

Receptacle Connector, M8 Male, 8-Pole for Sensors

with Long Solder Contacts, Solid Contacts on Solder

Side.

RSME

RSMEK

RSEM

Part No.

RSME 3

Part No.

RSMEK 3 L

RSMEK 4

Part No.

RSEM 8

Receptacle Connector, M8 Male, 3-Pole for Sensors

with Short Solder Contacts, Solid Contacts on Solder

Side, RSMEK...L: with Ventilation Hole 1.1 mm Ø.

Receptacles
