1-717-217-2299 www.lumberg-automationusa.com40

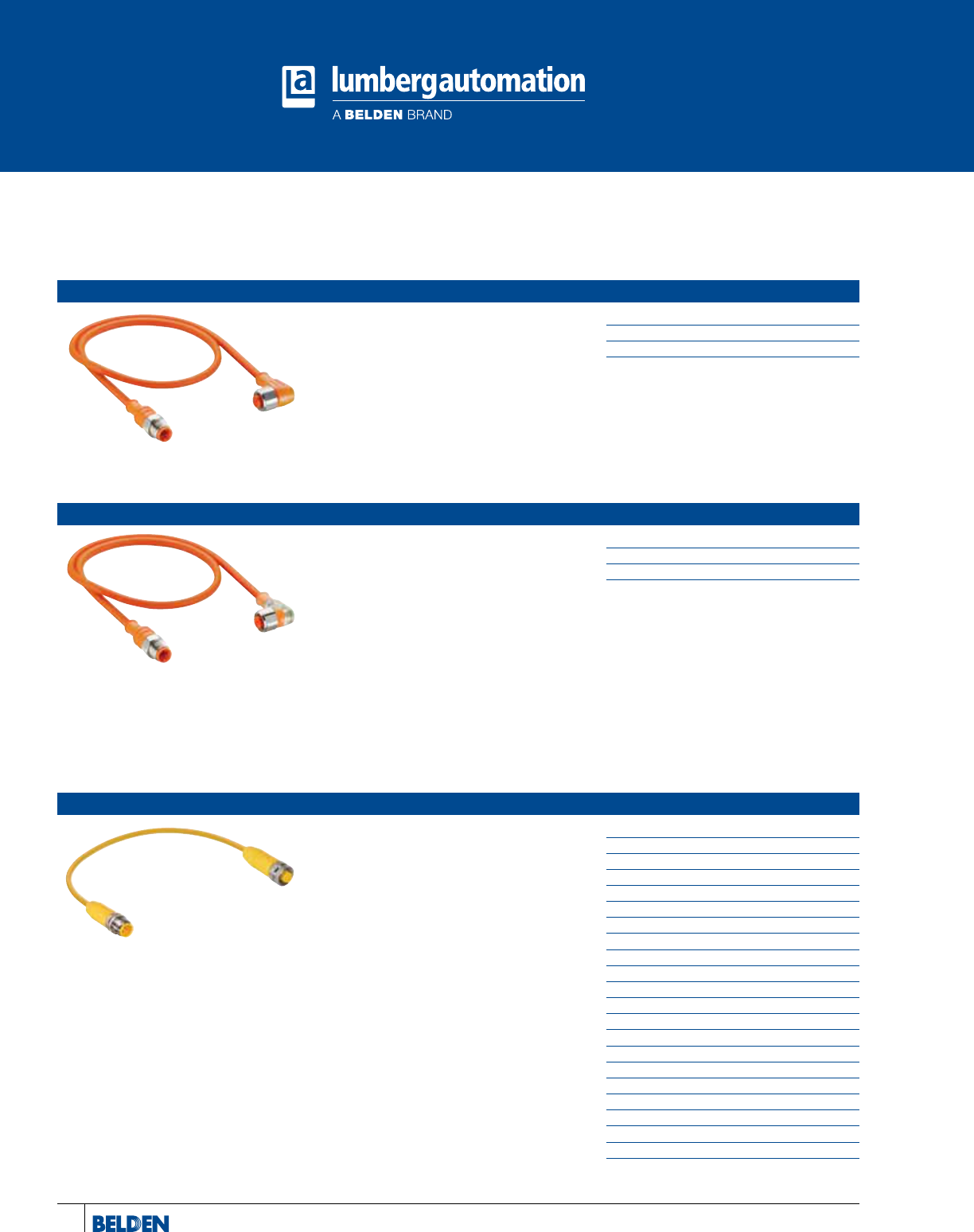

M12 Double-Ended Cordsets for Actuators, Sensors and Distribution Boxes

Connector Types: M12-M12, High-Grade Stainless Steel

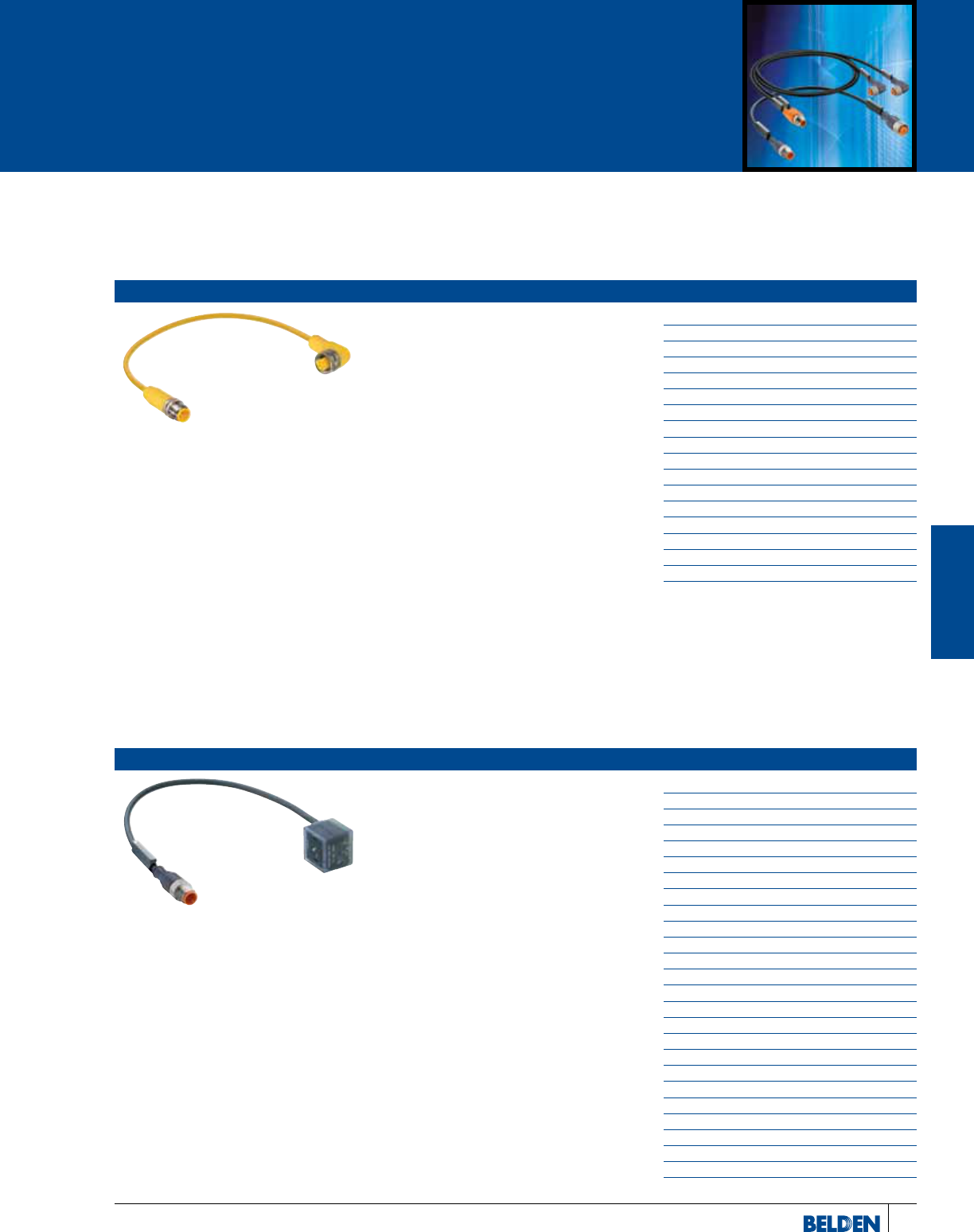

1/2”-20 Double-Ended Cordsets for Actuators, Sensors and Distribution Boxes

Connector Types: 1/2”-20-1/2”-20

M12 Male Straight – M12 Female 90˚

M12 Cordsets, Double Ended, Male Straight to

Female 90˚ with Stainless Steel Threaded Connector

and Nut, 4-Poles with Molded Cable.

IP 69 K Rated.

– especially designed for use in

Food Processing equipment –

Cable Types:

07 = PVC, orange

1/2”-20 Male – 1/2”-20 Female Straight

1/2”-20 Cordsets, Double Ended, Male to Female

Straight, 3-, 4- and 5-Poles with Molded Cable.

IP 67 Rated.

Color Code: Automotive

Cable Types: 18 AWG

688 | 689 = PVC, yellow

755 = TPE, yellow

Cable Types: 22 AWG

618 | 674 | 673 = PVC, yellow

664 = PUR, yellow

Color Code: U.S.

Cable Types: 18 AWG

619 = CPE, yellow

M12 Male Straight – M12 Female 90˚

M12 Cordsets, Double Ended, Male Straight to

Female 90˚ with LED and Stainless Steel Threaded

Connector and Nut, 4-Poles with Molded Cable.

IP 69 K Rated.

– especially designed for use in

Food Processing equipment –

Cable Types:

07 = PVC, orange

PRST-PRKWT

RST 3U - RKT 3U | RST 4U - RKT 4U | RST 5U - RKT 5U

PRST-PRKWT/LED

Part No.

PRST 4-PRKWT 4-07/2 M

PRST 4-PRKWT 4-07/5 M

Part No.

RST 3U-RKT 3 U-688/3 F RST 5U-RKT 5 U-755/3F

RST 3U-RKT 3 U-688/6 F RST 5U-RKT 5 U-755/6F

RST 3U-RKT 3 U-688/12 F RST 5U-RKT 5 U-755/12F

RST 3U-RKT 3 U-618/3 F RST 5U-RKT 5 U-755/15F

RST 3U-RKT 3 U-618/6 F RST 5U-RKT 5 U-673/3F

RST 3U-RKT 3 U-618/12 F RST 5U-RKT 5 U-673/6F

RST 3U-RKT 3 U-664/3 F RST 5U-RKT 5 U-673/12F

RST 3U-RKT 3 U-664/6 F RST 5U-RKT 5 U-673/15F

RST 3U-RKT 3 U-664/12 F

RST 3U-RKT 3 U-619/3 F

RST 3U-RKT 3 U-619/6 F

RST 3U-RKT 3 U-619/12 F

RST 4U-RKT 4 U-689/3 F

RST 4U-RKT 4 U-689/6 F

RST 4U-RKT 4 U-689/12 F

RST 4U-RKT 4 U-689/15 F

RST 4U-RKT 4 U-674/3 F

RST 4U-RKT 4 U-674/6 F

RST 4U-RKT 4 U-674/12 F

RST 4U-RKT 4 U-674/15 F

Part No.

PRST 4-PRKWT/LED P 4-07/2 M

PRST 4-PRKWT/LED P 4-07/5 M

www.lumberg-automationusa.com 1-717-217-2299 41

1/2”-20 Double-Ended Cordsets for Actuators, Sensors and Distribution Boxes

Connector Types: 1/2”-20-1/2”-20

1/2”-20 Male Straight – 1/2”-20 Female 90˚

1/2”-20 Cordsets, Double Ended, Male Straight to

Female 90˚, 3-, 4- and 5-Poles with Molded Cable.

IP 67 Rated.

Color Code: Automotive

Cable Types: 18 AWG

688 | 689 = PVC, yellow

755 = TPE, yellow

Cable Types: 22 AWG

618 | 674 | 673 = PVC, yellow

664 = PUR, yellow

Color Code: U.S.

Cable Types: 18 AWG

619 = CPE, yellow

RST 5U - RKWT 5U

Part No.

RST 3U-RKWT 3 U-688/3 F RST 4U-RKWT 4 U-689/3 F

RST 3U-RKWT 3 U-688/6 F RST 4U-RKWT 4 U-689/6 F

RST 3U-RKWT 3 U-688/12 F RST 4U-RKWT 4 U-689/12 F

RST 3U-RKWT 3 U-688/15 F RST 4U-RKWT 4 U-689/15 F

RST 3U-RKWT 3 U-618/3 F RST 4U-RKWT 4 U-674/3 F

RST 3U-RKWT 3 U-618/6 F RST 4U-RKWT 4 U-674/6 F

RST 3U-RKWT 3 U-618/12 F RST 4U-RKWT 4 U-674/12 F

RST 3U-RKWT 3 U-618/15 F RST 4U-RKWT 4 U-674/15 F

RST 3U-RKWT 3 U-664/3 F RST 5U-RKWT 5 U-755/3F

RST 3U-RKWT 3 U-664/6 F RST 5U-RKWT 5 U-755/6F

RST 3U-RKWT 3 U-664/12 F RST 5U-RKWT 5 U-755/12F

RST 3U-RKWT 3 U-664/15 F RST 5U-RKWT 5 U-755/15F

RST 3U-RKWT 3 U-619/3 F RST 5U-RKWT 5 U-673/3F

RST 3U-RKWT 3 U-619/6 F RST 5U-RKWT 5 U-673/6F

RST 3U-RKWT 3 U-619/12 F RST 5U-RKWT 5 U-673/12F

RST 3U-RKWT 3 U-619/15 F RST 5U-RKWT 5 U-673/15F

M12 Male Straight – Valve Connector

M12 Cordsets, Double Ended, Male Straight

Connector with Self-Locking Threded Joint to Valve

Connector According to DIN EN 175301-803, Form A.

VAD 1A: Varistor

VAD 1F: Neutral Diode

Cable Types:

226 = PUR, halogen-free, black

241 = PUR, halogen-free,

welding spark proof

RST-VAD 1A | RST-VAD 1F

M12 Double-Ended Cordsets for Actuators, Sensors and Distribution Boxes

Connector Types: M12-Valve Connector

Part No.

RST 5-3-VAD 1A-1-3-226/0,3 M

RST 5-3-VAD 1A-1-3-226/0,6 M

RST 5-3-VAD 1A-1-3-226/1 M

RST 5-3-VAD 1A-1-3-226/1,5 M

RST 5-3-VAD 1A-1-3-226/2 M

RST 5-3-VAD 1A-1-3-226/5 M

RST 5-3-VAD 1A-1-3-241/0,3 M

RST 5-3-VAD 1A-1-3-241/0,6 M

RST 5-3-VAD 1A-1-3-241/1 M

RST 5-3-VAD 1A-1-3-241/1,5 M

RST 5-3-VAD 1A-1-3-241/2 M

RST 5-3-VAD 1A-1-3-241/5 M

RST 5-3-VAD 1F-4-3-226/0,3 M

RST 5-3-VAD 1F-4-3-226/0,6 M

RST 5-3-VAD 1F-4-3-226/1 M

RST 5-3-VAD 1F-4-3-226/1,5 M

RST 5-3-VAD 1F-4-3-226/2 M

RST 5-3-VAD 1F-4-3-226/5 M

RST 5-3-VAD 1F-4-3-241/0,3 M

RST 5-3-VAD 1F-4-3-241/0,6 M

RST 5-3-VAD 1F-4-3-241/1 M

RST 5-3-VAD 1F-4-3-241/1,5 M

RST 5-3-VAD 1F-4-3-241/2 M

RST 5-3-VAD 1F-4-3-241/5 M

Cordsets

Double-Ended

Cordsets, Double-Ended

1-717-217-2299 www.lumberg-automationusa.com42

M12 Male Straight – Valve Connector

M12 Cordsets, Double Ended, Male Straight

Connector with Self-Locking Threaded Joint to Valve

Connector for Pressure Switches According to DIN EN

175301-803, Form A.

VAD 3C 4-1: Cable Gland 0˚

VAD 3C 4-2: Cable Gland 180˚

Cable Types:

228 = PUR, halogen-free, black

259 = PUR, halogen-free,

welding spark proof

RST-VAD 3C | RST-VAD 3C 4-2

Part No.

RST 5-VAD 3C-4-1-228/0,3 M

RST 5-VAD 3C-4-1-228/0,6 M

RST 5-VAD 3C-4-1-228/1 M

RST 5-VAD 3C-4-1-228/1,5 M

RST 5-VAD 3C-4-1-228/2 M

RST 5-VAD 3C-4-1-228/5 M

RST 5-VAD 3C-4-1-259/0,3 M

RST 5-VAD 3C-4-1-259/0,6 M

RST 5-VAD 3C-4-1-259/1 M

RST 5-VAD 3C-4-1-259/1,5 M

RST 5-VAD 3C-4-1-259/2 M

RST 5-VAD 3C-4-1-259/5 M

RST 5-VAD 3C-4-2-228/0,3 M

RST 5-VAD 3C-4-2-228/0,6 M

RST 5-VAD 3C-4-2-228/1 M

RST 5-VAD 3C-4-2-228/1,5 M

RST 5-VAD 3C-4-2-228/2 M

RST 5-VAD 3C-4-2-228/5 M

RST 5-VAD 3C-4-2-259/0,3 M

RST 5-VAD 3C-4-2-259/0,6 M

RST 5-VAD 3C-4-2-259/1 M

RST 5-VAD 3C-4-2-259/1,5 M

RST 5-VAD 3C-4-2-259/5 M

M12 Male Straight – Valve Connector

M12 Cordsets, Double Ended, Male Straight

Connector with Self-Locking Threaded Joint to Valve

Connector According to DIN EN 175301-803, Form B.

VAD 1A 1-1: Cable Gland 0˚

VAD 1A 1-2: Cable Gland 180˚

Cable Types:

226 = PUR, halogen-free, black

241 = PUR, halogen-free,

welding spark proof

RST-VBD 1A 1-1 | RST-VBD 1A 1-2

M12 Double-Ended Cordsets for Actuators, Sensors and Distribution Boxes

Connector Types: M12-Valve Connector

Part No.

RST 5-3-VBD 1A-1-1-226/0,3 M

RST 5-3-VBD 1A-1-1-226/0,6 M

RST 5-3-VBD 1A-1-1-226/1 M

RST 5-3-VBD 1A-1-1-226/1,5 M

RST 5-3-VBD 1A-1-1-226/2 M

RST 5-3-VBD 1A-1-1-226/5 M

RST 5-3-VBD 1A-1-1-241/0,3 M

RST 5-3-VBD 1A-1-1-241/0,6 M

RST 5-3-VBD 1A-1-1-241/1 M

RST 5-3-VBD 1A-1-1-241/1,5 M

RST 5-3-VBD 1A-1-1-241/2 M

RST 5-3-VBD 1A-1-1-241/5 M

RST 5-3-VBD 1A-1-2-226/0,3 M

RST 5-3-VBD 1A-1-2-226/0,6 M

RST 5-3-VBD 1A-1-2-226/1 M

RST 5-3-VBD 1A-1-2-226/1,5 M

RST 5-3-VBD 1A-1-2-226/2 M

RST 5-3-VBD 1A-1-2-226/5 M

RST 5-3-VBD 1A-1-2-241/0,3 M

RST 5-3-VBD 1A-1-2-241/0,6 M

RST 5-3-VBD 1A-1-2-241/1 M

RST 5-3-VBD 1A-1-2-241/1,5 M

RST 5-3-VBD 1A-1-2-241/2 M

RST 5-3-VBD 1A-1-2-241/5 M
