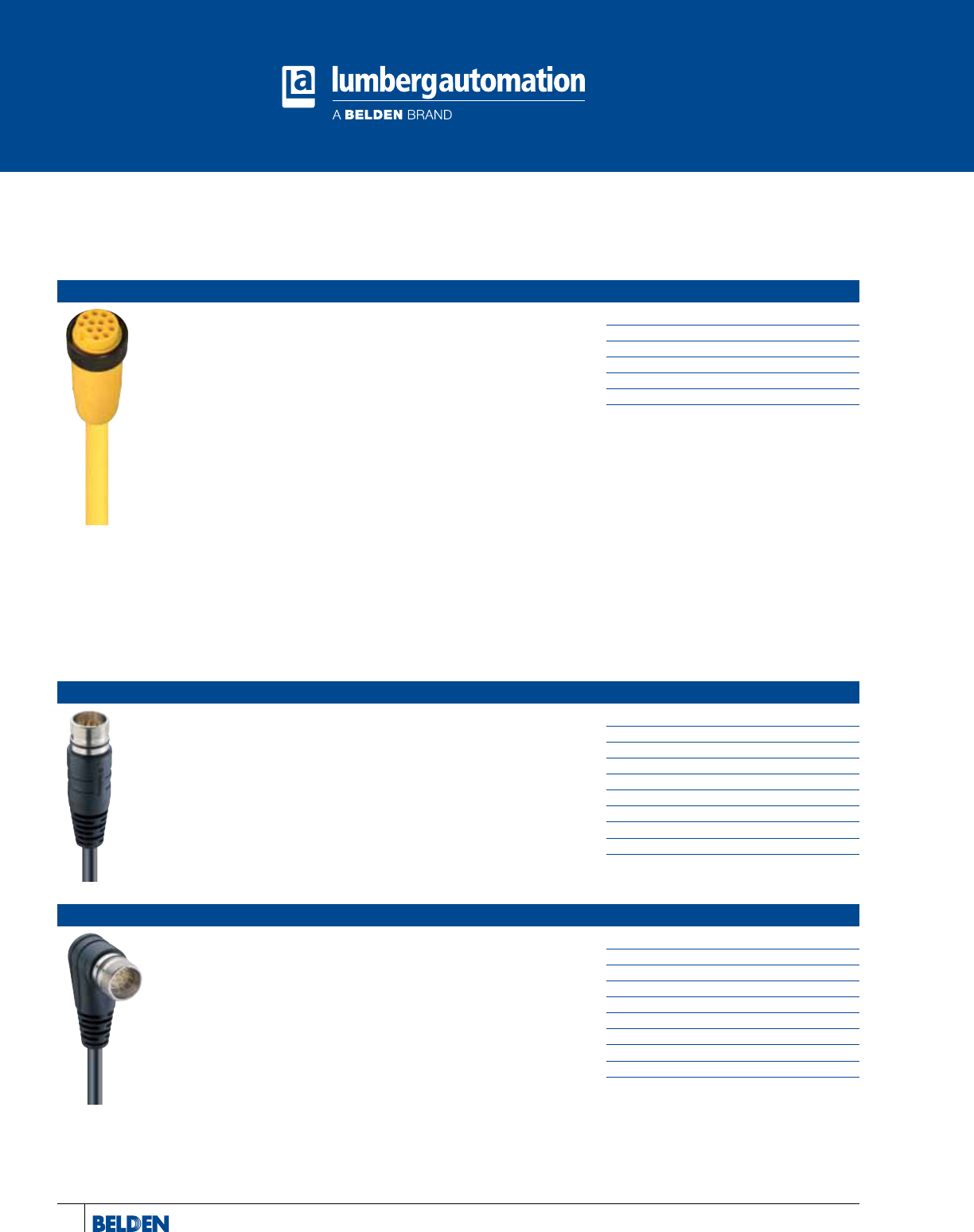

1 1/8” C Body-Male Straight

Mini Cordsets, Single Ended, 1 1/8”” Male Straight

Connector, 9-, 10- and 12-Poles with Internal Threads

and Molded Cable. IP 67 Rated.

Color Code: U.S.

Cable Types: 16 AWG

623 | 699 = PVC, yellow

724 = TPE, yellow

Cable Types: 18 AWG

651 | 652 | 651 | 654 = PUR, yellow

1 1/8” C Body-Female Straight

Mini Cordsets, Single Ended, 1 1/8”” Female Straight

Connector, 9-, 10-, 12- and 19-Poles with Internal

Threads and Molded Cable. IP 67 Rated.

Color Code: U.S.

Cable Types: 16 AWG

623 | 699 = PVC, yellow

724 = TPE, yellow

Cable Types: 18 AWG

651 | 652 | 654 = PUR, yellow

Color Code: Numeric

Cable Types: 18 AWG

676 | 669 = PUR, yellow

RS 901M...1201M

RK 90M...190M

Part No. Part No.

RS 901M-623/6 F RS 1001M-652/6 F

RS 901M-623/12 F RS 1001M-652/12 F

RS 901M-623/15 F RS 1001M-652/15 F

RS 901M-623/20 F RS 1001M-652/20 F

RS 901M-623/30 F RS 1001M-652/30 F

RS 901M-651/6 F RS 1201M-724/6 F

RS 901M-651/12 F RS 1201M-724/12 F

RS 901M-651/15 F RS 1201M-724/15 F

RS 901M-651/20 F RS 1201M-724/20 F

RS 901M-651/30 F RS 1201M-724/30 F

RS 1001M-699/6 F RS 1201M-654/6 F

RS 1001M-699/12 F RS 1201M-654/12 F

RS 1001M-699/15 F RS 1201M-654/15 F

RS 1001M-699/20 F RS 1201M-654/20 F

RS 1001M-699/30 F RS 1201M-654/30 F

Part No. Part No.

RK 90M-623/6 F RK 100M-652/30 F

RK 90M-623/12 F RK 120M-724/6 F

RK 90M-623/15 F RK 120M-724/12 F

RK 90M-623/20 F RK 120M-724/15 F

RK 90M-623/30 F RK 120M-724/20 F

RK 90M-651/6 F RK 120M-724/30 F

RK 90M-651/12 F RK 120M-654/6 F

RK 90M-651/15 F RK 120M-654/12 F

RK 90M-651/20 F RK 120M-654/15 F

RK 90M-651/30 F RK 120M-654/20 F

RK 100M-699/6 F RK 120M-654/30 F

RK 100M-699/12 F RK 120M-676/2 M

RK 100M-699/15 F RK 120M-676/5 M

RK 100M-699/20 F RK 120M-676/10 M

RK 100M-699/30 F RK 120M-676/15 M

RK 100M-652/6 F RK 190M-669/2 M

RK 100M-652/12 F RK 190M-669/5 M

RK 100M-652/15 F RK 190M-669/10 M

RK 100M-652/20 F RK 190M-669/15 M

1 1/8” C Body-Male Straight

Mini Cordsets, Single Ended, 1 1/8”” Male Straight

Connector, 12-Poles (11 Conductors) with External

Threads and Molded Cable. IP 67 Rated.

Color Code: IEC

Cable Types: 18 AWG

728 = TPE, yellow

RS 120 (External Threads)

Part No.

RS 120-728/6 F

RS 120-728/12 F

RS 120-728/15 F

RS 120-728/20 F

RS 120-728/30 F

Cordsets

Single-Ended

Cordsets, Single-Ended

Mini 1 1/8” -Round-Plug Connector

1 1/8”-Single-Ended Cordsets, C Body Style

1-717-217-2299 www.lumberg-automationusa.com32

1 1/8” C Body-Female Straight

Mini Cordsets, Single Ended, 1 1/8”” Female Straight

Connector, 12-Poles (11 Conductors) with Internal

Threads and Molded Cable. IP 67 Rated.

Color Code: IEC

Cable Types: 18 AWG

728 = TPE, yellow

RK 120

Part No.

RK 120-728/6 F

RK 120-728/12 F

RK 120-728/15 F

RK 120-728/20 F

RK 120-728/30 F

M23 Male Straight

M23 Cordsets, Single Ended, Male Straight Connector,

12- and 19-Poles with Threaded Joint, External

Threads and Molded Cable. IP 67 Rated.

Cable Types:

242 | 256 = PUR, halogen-free, black

M23 Male 90˚

M23 Cordsets, Single Ended, Male 90˚ Connector, 12-

and 19-Poles with Threaded Joint, External Threads

and Molded Cable. IP 67 Rated.

Cable Types:

242 | 256 = PUR, halogen-free, black

RSUF

RSWUF

Part No.

RSUF 12-256/5 M

RSUF 12-256/10 M

RSUF 12-256/15 M

RSUF 12-256/20 M

RSUF 19-242/5 M

RSUF 19-242/10 M

RSUF 19-242/15 M

RSUF 19-242/20 M

Part No.

RSWUF 12-256/5 M

RSWUF 12-256/10 M

RSWUF 12-256/15 M

RSWUF 12-256/20 M

RSWUF 19-242/5 M

RSWUF 19-242/10 M

RSWUF 19-242/15 M

RSWUF 19-242/20 M

Mini 1 1/8” -Round-Plug Connector

1 1/8”-Single-Ended Cordsets, C Body Style

M23 -Round-Plug Connector Actuators, Sensors and Distribution Boxes

M23-Single-Ended Cordsets

www.lumberg-automationusa.com 1-717-217-2299 33

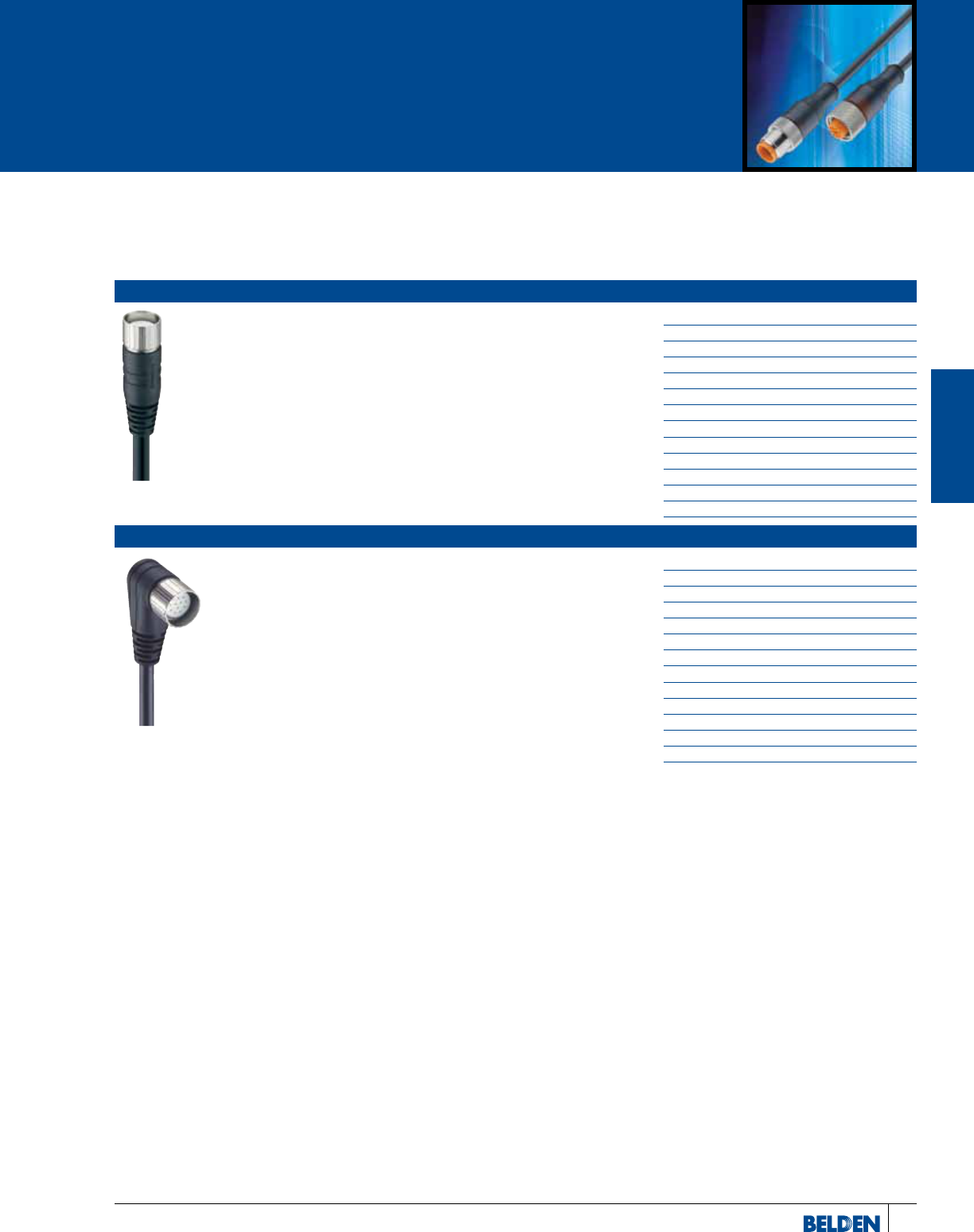

M23 Female Straight

M23 Cordsets, Single Ended, Female Straight

Connector, 12- and 19-Poles with Threaded Joint

(RKUE with connected protective ground), and Molded

Cable. IP 67 Rated.

– Used to connect to pluggable actuator/sensor

distribution boxes –

Cable Types:

242 | 256 = PUR, halogen-free, black

M23 Female 90˚

M23 Cordsets, Single Ended, Female 90˚ Connector,

12- and 19-Poles with Threaded Joint (RKUE with

connected protective ground), and Molded Cable.

IP 67 Rated.

– Used to connect to pluggable actuator/sensor

distribution boxes –

Cable Types:

242 | 256 = PUR, halogen-free, black

RKU | RKUE

RKWU | RKWUE

Part No.

RKU 12-256/5 M

RKU 12-256/10 M

RKU 12-256/15 M

RKU 12-256/20 M

RKU 19-242/5 M

RKU 19-242/10 M

RKU 19-242/15 M

RKU 19-242/20 M

RKUE 19-242/5 M

RKUE 19-242/10 M

RKUE 19-242/15 M

RKUE 19-242/20 M

Part No.

RKWU 12-256/5 M

RKWU 12-256/10 M

RKWU 12-256/15 M

RKWU 12-256/20 M

RKWU 19-242/5 M

RKWU 19-242/10 M

RKWU 19-242/15 M

RKWU 19-242/20 M

RKWUE 19-242/5 M

RKWUE 19-242/10 M

RKWUE 19-242/15 M

RKWUE 19-242/20 M

Cordsets

Single-Ended

Cordsets, Single-Ended

M23 -Round-Plug Connector Actuators, Sensors and Distribution Boxes

M23-Single-Ended Cordsets
