HOTTECH CHIP CERAMIC CAPACITORS

GUANGDONG HOTTECH INDUSTRIAL CO,. LTD.

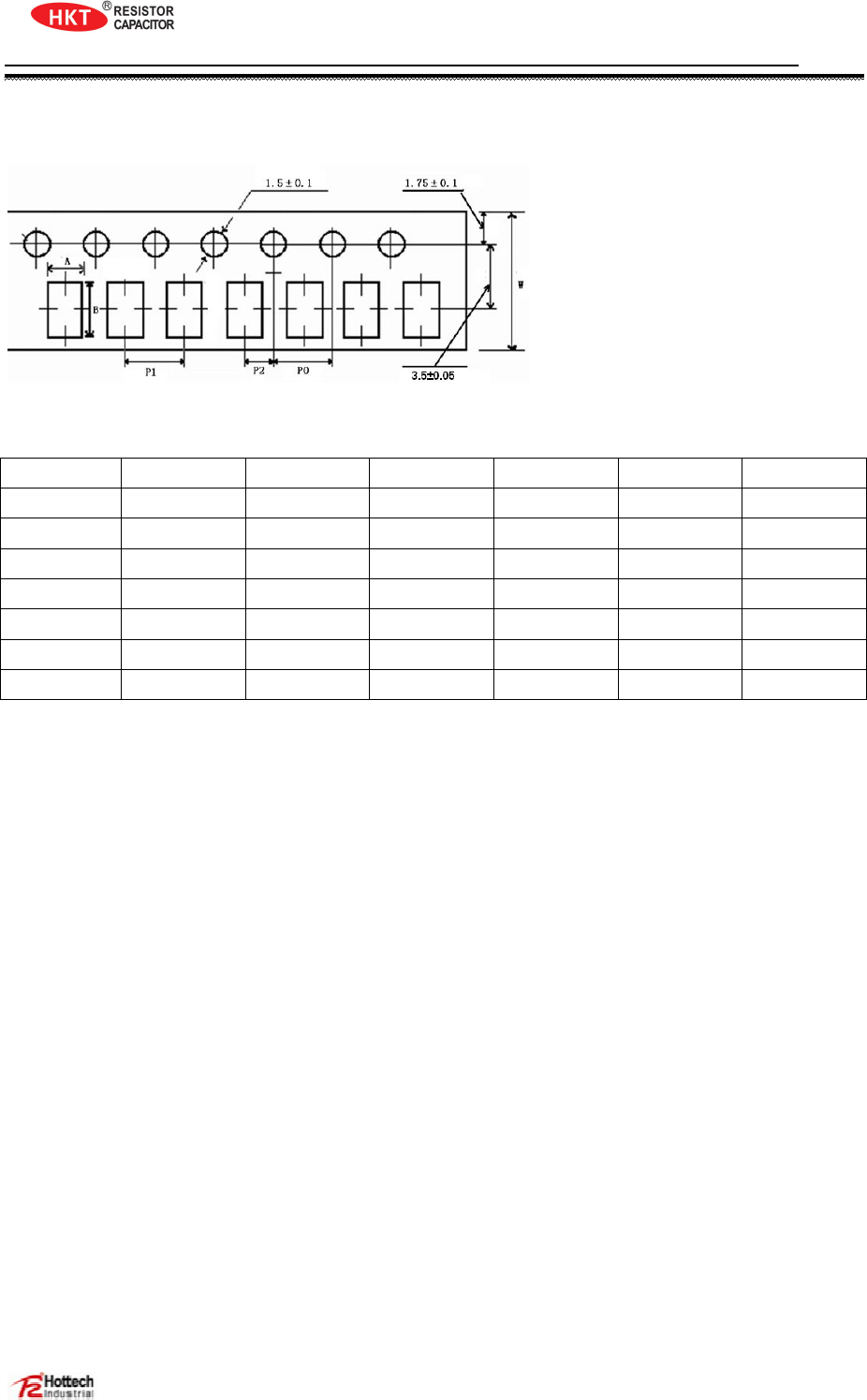

Tape

Unit: mm

TYPE A B W P0 P1 P2

0201

0.38±0.05 0.68±0.05 8.00±0.20 4.00±0.10 2.00±0.10 2.00±0.05

0402

0.65±0.10 1.15±0.10 8.00±0.20 4.00±0.10 2.00±0.10 2.00±0.05

0603

1.10±0.10 1.90±0.10 8.00±0.20 4.00±0.10 4.00±0.10 2.00±0.05

0805

1.65±0.20 2.40±0.20 8.00±0.20 4.00±0.10 4.00±0.10 2.00±0.05

1206

2.00±0.20 3.60±0.20 8.00±0.20 4.00±0.10 4.00±0.10 2.00±0.05

1210

2.80±0.10 3.50±0.10 8.00±0.20 4.00±0.10 4.00±0.10 2.00±0.05

1812

3.60±0.20 4.90±0.20 12.00±0.10 4.00±0.10 4.00±0.10 2.00±0.05

Page:P11-P11

HOTTECH CHIP CERAMIC CAPACITORS

GUANGDONG HOTTECH INDUSTRIAL CO,. LTD.

8.WELDING TEMPERATURE

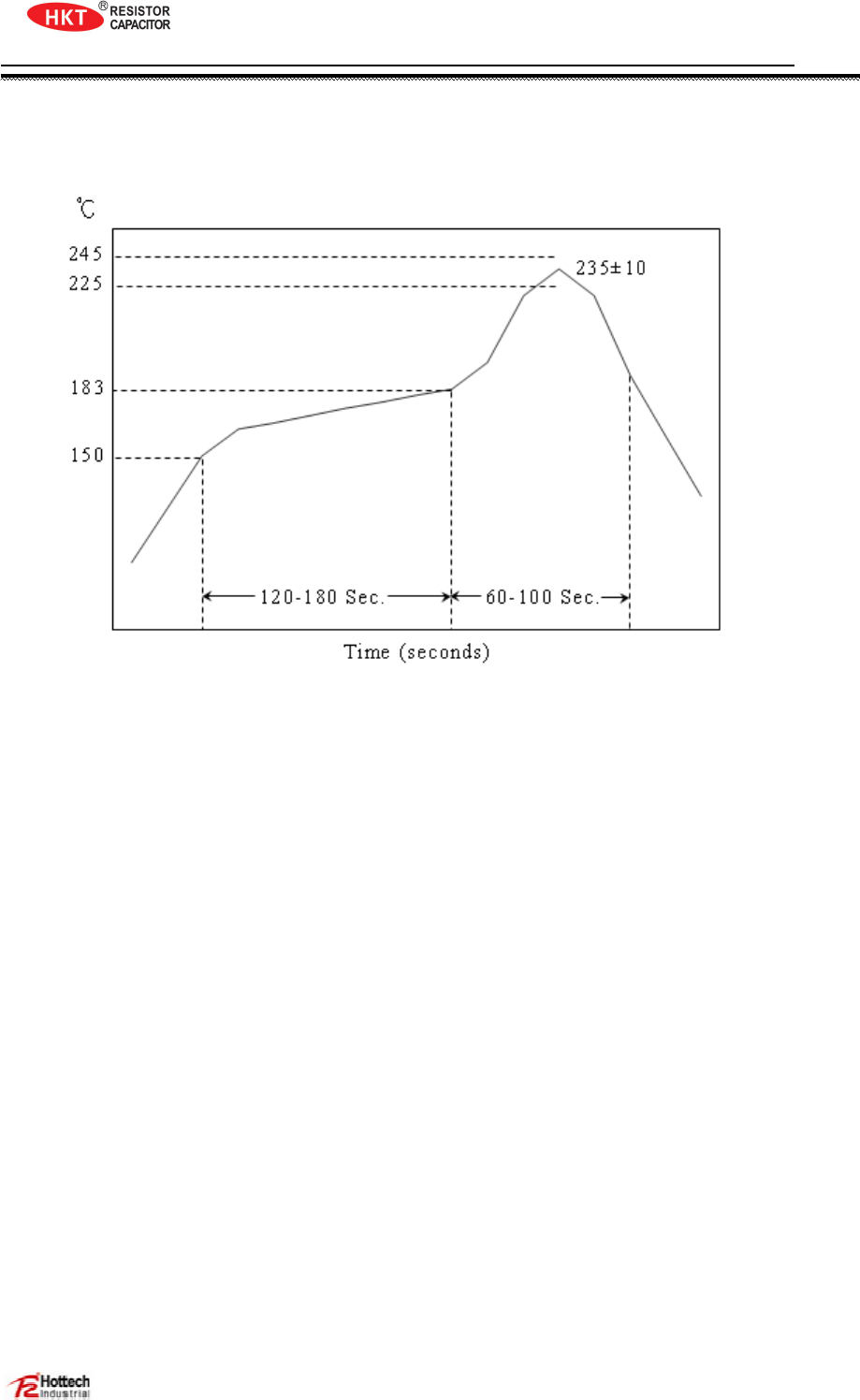

Suitable reflow temperature

1-2℃/Sec ramp

Preheat 150-183℃：2-3 minutes

Time above 183℃：60-100 seconds

Peak Temperature：230±10℃

Module should only be in oven for 5.5-6 minute
