Technical Document

DISCLAIMER: The information provided herein is solely for informational purposes. Customers must be aware of the suitability of this product for their application, and consider that variable factors such as Manufacturer, Product Category, Date Codes, Pictures and Descriptions may differ from available inventory.

Page:P11-P4

HOTTECH CHIP CERAMIC CAPACITORS

GUANGDONG HOTTECH INDUSTRIAL CO,. LTD.

Humidity and

Moisture

Resistance

Dielectric COG/NPO X7R/X5R Y5V/Z5U Permanent Moisture

T=40±2℃

T=21D

Relative Humidity: 93+2~3%

Resume Time: 1-2h

△C/C ≤2% ≤10% ≤20%

DF 0.03 0.05 0.07

IR RXC＞25S RXC＞25S RXC＞25S

No damage after test

T.C.

characteristics

dielectric △C/C T.C.

COG/NPO ±30PPM

+20℃ -55℃ +20℃ +125℃

X7R/X5R

±15℃ +20℃ -55℃ +20℃ +125℃

Z5U ±22%~56%

+20℃ +10℃ +20℃ +85℃

Y5V ±22%~82%

+20℃ -25℃ +20℃ +85℃

Vibration No damage after test

f=10-500Hz

0.75MM/2S

Bump No damage after test 4000 times

Life test

dielectric COG/NPO X7R/X5R Y5V/Z5U

Temperature: +125℃ NPO/X7R

+85℃ Y5V/Z5U

T=100 h

Resume time: 24h

△C/C ≤2% ≤±12.5% ≤±30%

DF 0.003 0.003 0. 05

IR RXC＞25S RXC＞25S RXC＞25S

Page:P11-P5

HOTTECH CHIP CERAMIC CAPACITORS

GUANGDONG HOTTECH INDUSTRIAL CO,. LTD.

5. T.C.CHARACTERISTICS

Dielectric NPO(COG) X7R(X5R) Y5V

Operating Temperature -55~125℃ -55~125(85)℃ -30~85℃

T.C.Characteristics ±30PPM/℃ ±15% -20~+80%

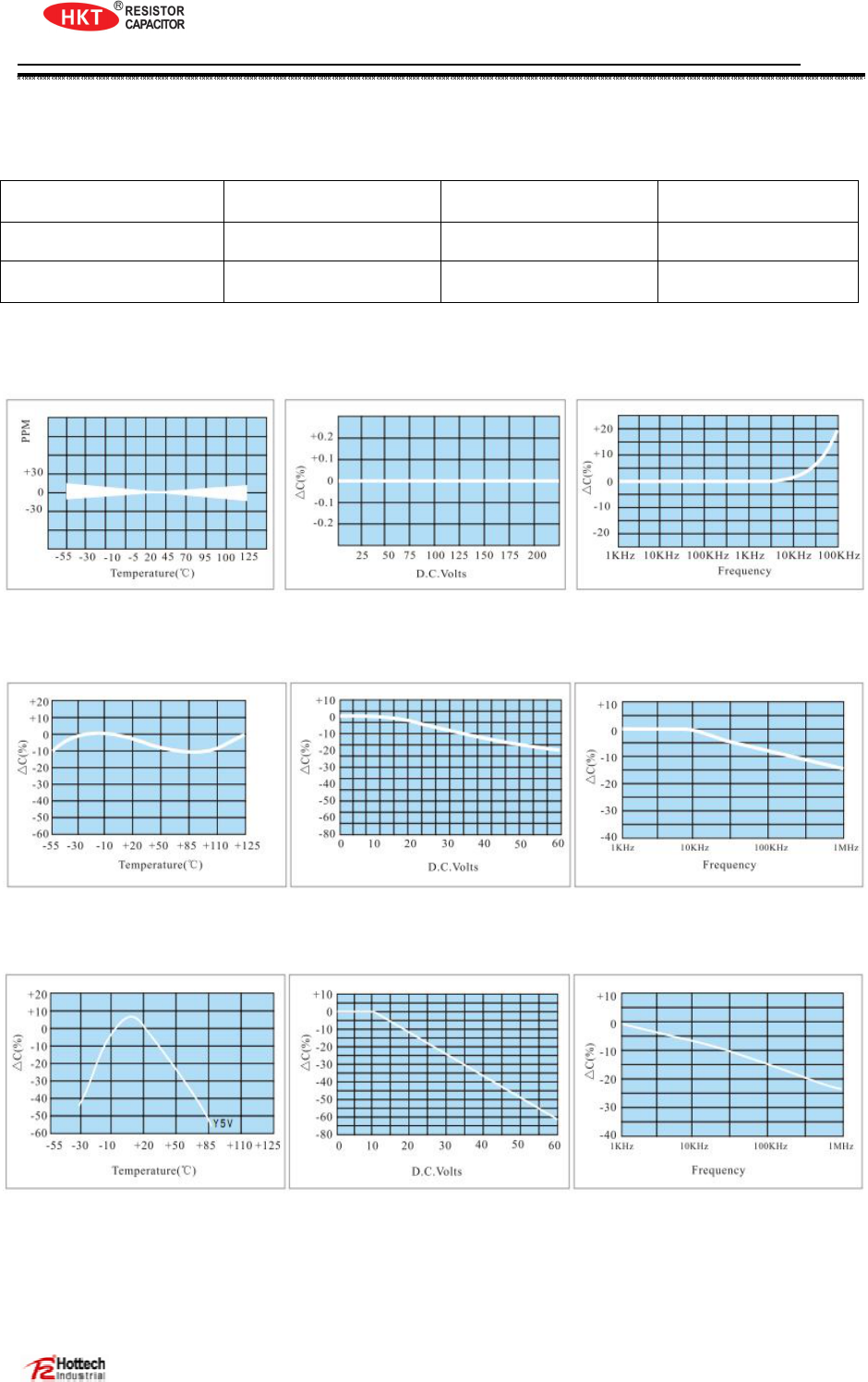

COG8/NPO Typical Characteristics

X7R/X5R Typical Characteristics

Y5V Typical Characteristics

Page:P11-P6

HOTTECH CHIP CERAMIC CAPACITORS

GUANGDONG HOTTECH INDUSTRIAL CO,. LTD.

6. VOLTAGE AND CAPACITANCE

( COG/NPO)

Size Voltage Capacitance

0201

25V 0.5 PF -1000PF

50V 0.5 PF -680PF

0402

25V 0.5 PF -2200PF

50V 0.5 PF -2200PF

0603

25V 0.5 PF -10000PF

50V 0.5 PF -10000PF

0805

25V 0.5 PF -68000PF

50V 0.5 PF -47000PF

1206

16V 0.5 PF -100000PF

25V 0.5 PF -100000PF

50V 0.5 PF -68000PF

1210

25V 470 PF -47000PF

50V 560 PF -56000PF

1812

25V 1000 PF -100000PF

50V 1000 PF -47000PF
