Page:P11-P1
HOTTECH CHIP CERAMIC CAPACITORS
GUANGDONG HOTTECH INDUSTRIAL CO,. LTD.

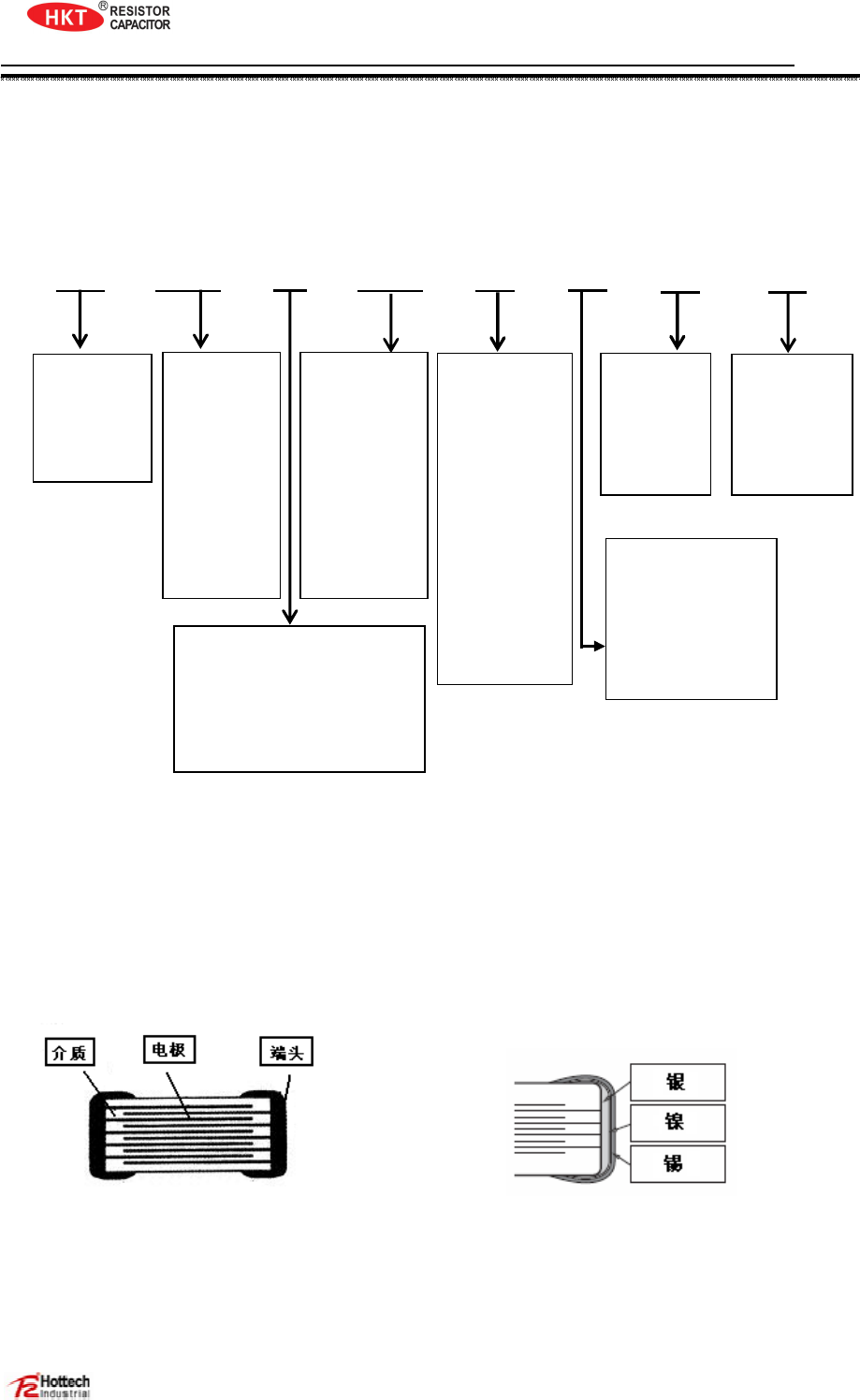

1PART NUMBER
e.g.: C2012N680J101NT
C 2012 N 680 J 101 N T
2STRUCTURE
介质:Dielectric 电极:Electrode 端头:Terminal 银:Silver 镍:Nickel 锡:Tin
Inner Structure Three Electrode layers
Code:
MLCC
Size:
06030201
10050402
16080603
20120805
32161206
32251210
45321812
Dielectric:
N=COG/NPO
B=X7R A=X5R
F=Y5V E=Z5U
Capacitance:
0R5=0.5pF
100=10 pF
680=68 pF
104=100nF
106=10uF
Tolerance
B=±0.1pF
C=±0.25PF
D=±0. 5PF
F=±1%
G=±2%
J =±5%
K=±10%
M=±20%
Z=-20%-
+80%
Terminal:
S: in silver
N: Three
Layers
Packing:
T: in Tape
B: in Box
Rated Voltage:
100=10V
250=25V
101=100V
102=1000V
Page:P11-P2
HOTTECH CHIP CERAMIC CAPACITORS
GUANGDONG HOTTECH INDUSTRIAL CO,. LTD.

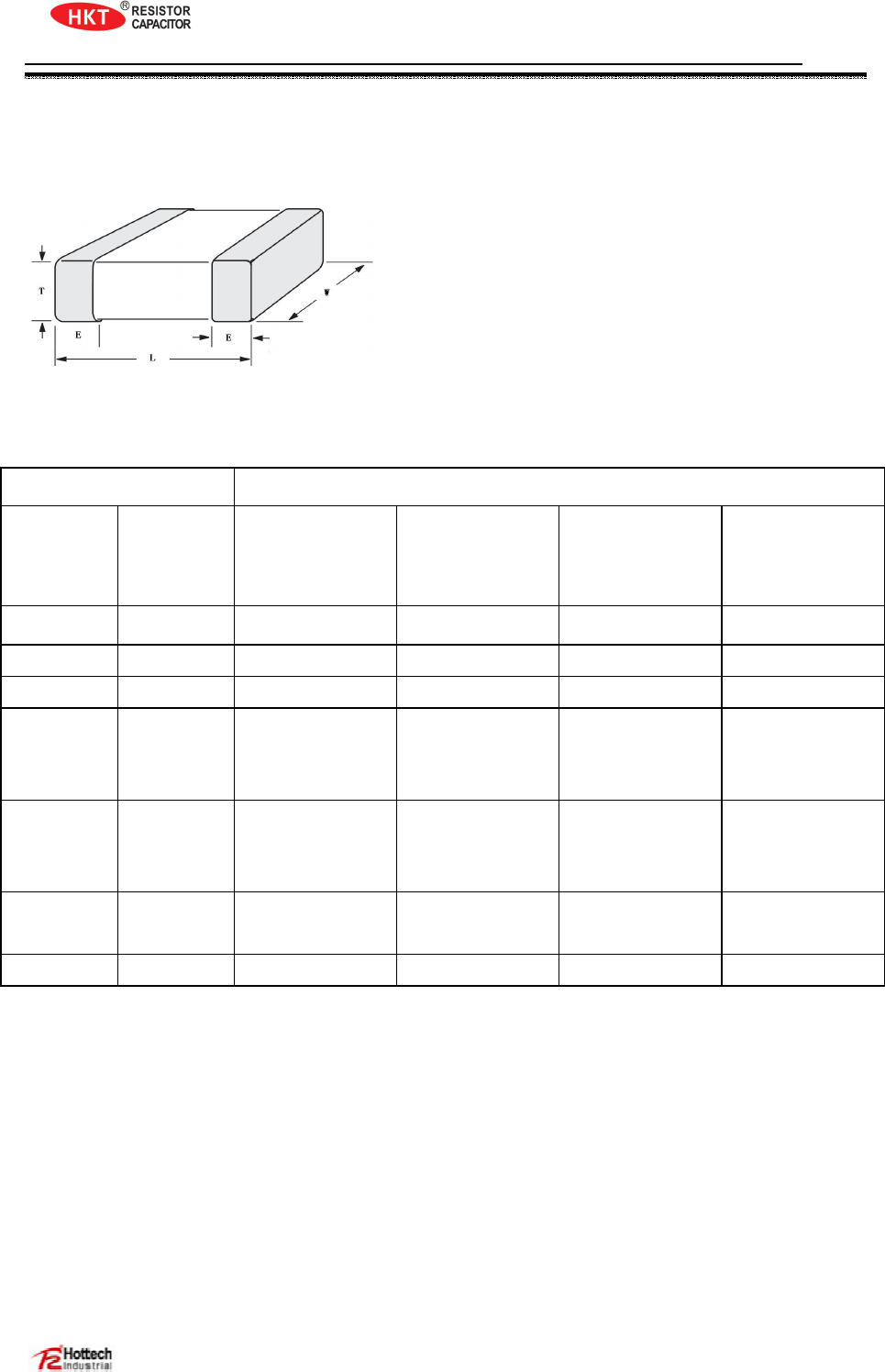

3SIZE AND ELECTRICAL PARAMETERS
SIZE (mm)
DIMENSION (mm)
INCH
METRIC
L
W
T
E
0201 0603
0.6±0.03 0.3±0.03 0.3±0.03 0.15±0.05
0402 1005 1.00±0.05 0.50±0.05 0.50±0.05 0.25±0.10
0603 1608 1.60±0.10 0.80±0.10 0.80±0.10 0.30±0.10
0805
2012
2.00±0.20
1.25±0.20
0.70±0.20
1.00±0.20
1.25±0.20
0.50±0.20
1206
3216
3.20±0.30
1.60±0.2
0.70±0.20
1.00±0.20
1.25±0.20
0.50±0.25
1210
3225
3.20±0.30
2.50±0.30
1.25±0.30
1.50±0.30
0.75±0.25
1812 4532
4.50±0.40 3.20±0.30 2.5 0.75±0.20
Page:P11-P3
HOTTECH CHIP CERAMIC CAPACITORS
GUANGDONG HOTTECH INDUSTRIAL CO,. LTD.
4. DIELECTRIC CHARACTERISTIC INTRODUCTION AND TEST METHOD
ITEM STANDARD TEST METHOD
Capacitance 0.5PF-47uF
COG
C1000PF 1MHz±10%
1.0±0.2Vrms
C1000PF1KHz±10%
1.0±0.2Vrms
X7R/X5R
1KHz±10% 1.0±0.2Vrms
Y5V/Z5U
1KHz±10% 1.0±0.2Vrms 10uF
120Hz 0.5±0.2Vrms 10uF
Tolerance
B=±0.1PF C=±0.25PF D=±0.5.PF
F=±1% G=±2% J=±5%
K=±10% M=±20%
Rated Voltage 16255010020050010002000 V(DC)
Dissipation
Factor
COG/NPO DF0.15%
X7R/X5R DF 2.5%( 50V) , 3.0%(25V) ,
3.5%(16V)
Y5V/Z5U DF 7%(C 100nF) .
3.5%(C<100nF)
Insulation
ResistanceIR
COG/NPO C10NF IR50000MΩ;
C10NF IR5000ΩF
Test voltage: rated
Time: 1 minute
Temperature: 18-25
Humidity: <80%
X7R/X5R C25NF IR10000MΩ;
C25NF RXC100ΩF
Y5V/Z5U C25NF IR4000MΩ;
C25NF RXC100ΩF
Dielectric
withstanding
voltage
No damage after test
Apply 2.5x rated voltage to both terminations
for 5 seconds, charge and discharge current are
less than 50mA. (This test doesn’t apply to
high-voltage MLCC)
Termination
Adhesion
No damage after test Test Condition: 5N 10±1S
Bending
Strength
No damage after test and capacitance tolerance shall not be
more than 10%
After soldering capacitor on the PCB, 1mm per
1 second of bending for this PCB shall be
applied.
Solderability
Temperature 235±5
Completely immerse the capacitor in the
molthen rosin for 2s and then put it in the
10mm molthen solder with a temperature of
235±5℃(265±5℃)for 2(5)s. after that
pick it up, clean the solvent and inspect it
under 10x or more microscope.
Time 1±1S
Cover 95
Resistance to
soldering Heat
Tempertaure 265±5
Time 1±1S
Cover 95
C/C 0.5% or 0.5PF
Temperature
Cycling
Dielectric COG/NPO X7R/X5R Y5V/Z5U
Temperature: -55 ± 3 ~125 ± 3
COG/X7R
-25±3~85±3 Y5V
-10±3~85±3 Z5U
Cycle times: 5 times per 30s
Resume time: 24h
C/C 1% ≤±10% ≤±30%
No damage after test
