Power Ring Film Capacitors
TM
At the Leading Edge of Film Capacitor Technology®
SBE Part 700A15899-509
SBE reserves the right to amend design data

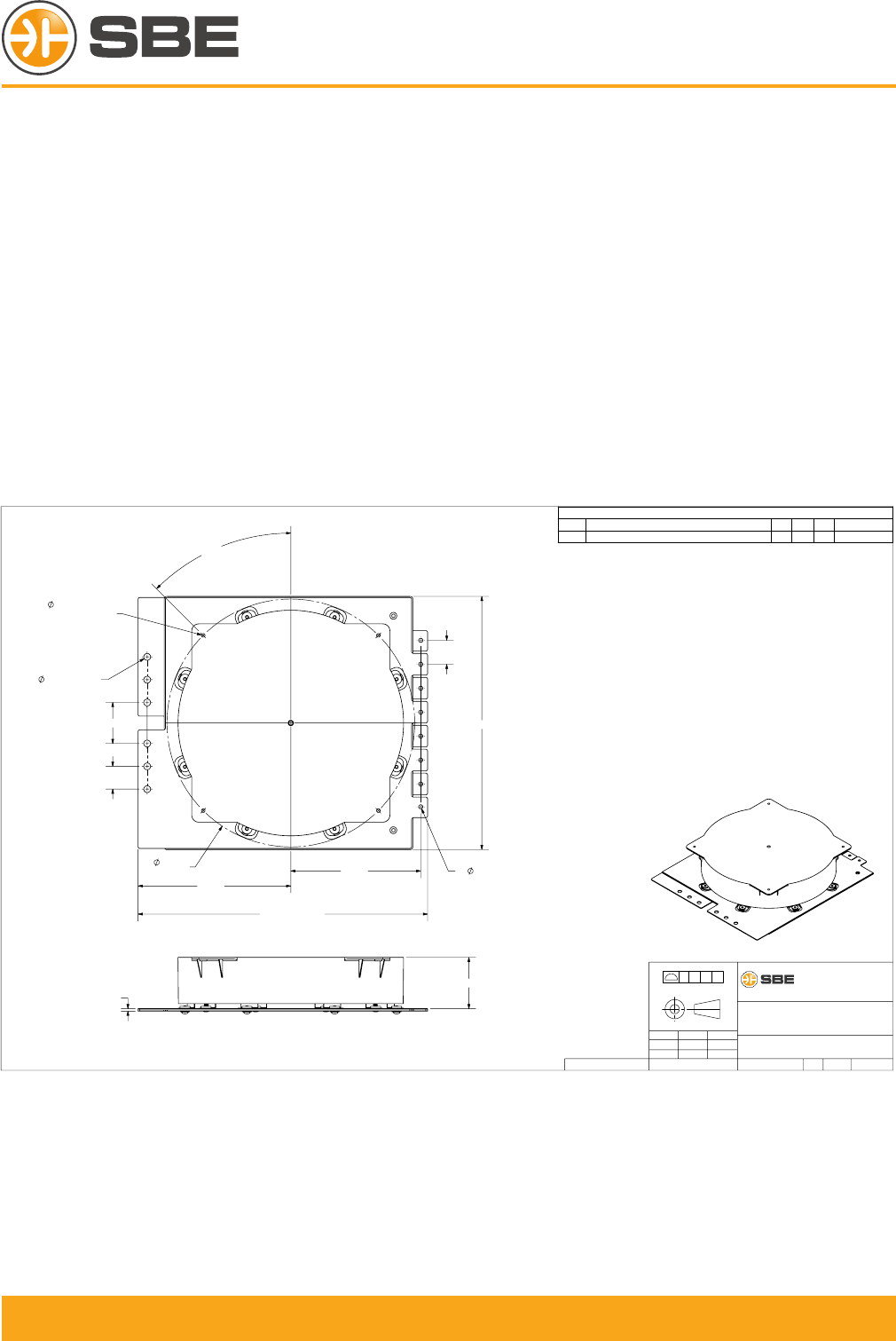

Power Ring Film Capacitor™
1500 µF, 900 Vdc
The 700A15899-509 Power Ring is a 900Vdc,
1500 µF DC Link Capacitor on a laminated
bus with an ESR of 150 micro-Ohms at 20kHz
and an ESL of less than 15nH.
Electrical Specications
SBE Part #: 700A15899-509
Capacitance/Tolerance:
1,500 µF ±10%
DC Voltage Rang: 900 Vdc
Dielectric/Construcon: Metallizedpolypropylenelm.
Singlesecondesignintegrated
withalaminarbus.
Dielectric Withstand: Units 100% tested at DC
potenalof1,125Voltsfor
2minutesat25°C
ESL at Output Tabs:
Lessthan15nHforunitas
shown(valuedoesnotinclude
eectsfromaddional
hardware,busadaptor,etc.)
Typical ESR vs. Frequency:
Thermal Resistance: 0.77°C/W(casesidecooling
only)and0.36°C/W(caseand
bussidecoolingonly)
Operang Temperature: -40°C to +85°C hotspot
temperatureatfullDCvoltage
rang
Voltage, Temperature De-rate voltage linearly to
De-rang: 600Vdcfrom+85°C to +105°C,
with respect to hotspot
temperature
System Fault Current 10,000Ampsmaximum
Rang: (externaltothecapacitor)
RMS Current Rang:
0
100
200
300
400
500
25 30 35 40 45 50 55 60 65 70 75
Maximum Ripple Current (Arms)
Case Temperature (
o
C)
75C Hotspot 50FIT (1 x Rated V)
440Arms at 50C Case Temperature
0
0.1
0.2
0.3
0.4
0.5
0.6
0.01 0.1 1 10 100
Typical 700D509 ESR vs Frequency
