NTC Thermistor
DHT Type
Glass Axial Type for Temperature Sensing/Compensation
THINKING ELECTRONIC INDUSTRIAL Co., LTD.
1
www.thinking.com.tw
2010.06
All specifications are subject to change without notice
Features
1. RoHS compliant
2. Body size ψ2mm X 4mm
3. Axial lead glass-sealed
4. -40 ~ +200 operating temperature range
5. Agency recognition: UL /cUL
Recommended Applications
1. Home appliances (air conditioner, refrigerator,
electric fan, electric cooker, washing machine,
microwave oven, drinking machine, CTV, radio.)
2. Automotive electronics
3. Heaters
Part Number Code
1 2 3 4 5 6 7 8 9 10
11
12
13
14
15
16
Structure and Dimensions
0.7-
0.9
2max
28±1
4max
Unit:mm
28±1
0.5±0.02
ChipGlass
CP Wire
(Sn-Plated)
Product Type
DHT
Thinking
NTC thermistor
DHT type
Size
0
ψ2
×L4max
Definition of
B Value
A B
25/85
B B
25/50
Zero Power
Resistance
at 25 (R
25
)
102
1KΩ
103
10KΩ
473
47KΩ
Tolerance of
R
25
F
±1%
G
±2%
H
±3%
J
±5%
K
±10%
B Value
First
Two Digits
31
32
40
41
30
31
32
40
41
B Value
Last
Two Digits
0
A
1
B
2
H
8
J
9
K
00
05
10
15
20
75
80
85
90
95
Tolerance of
B Value
2 ±2%
3 ±3%
Optional Suffix
Y
RoHS
compliant
Appearance
S Sn-plated CP wire
NTC Thermistor
DHT Type
Glass Axial Type for Temperature Sensing/Compensation
THINKING ELECTRONIC INDUSTRIAL Co., LTD.
2
www.thinking.com.tw
2010.06
All specifications are subject to change without notice
Electrical Characteristics
Zero Power
Resistance
at 25°C
Tolerance
of
R
25
B
25/85
Value
Tolerance
of
B Value
Max.
Power
Dissipation
at 25
Dissipation
Factor
Thermal
Time
Constant
Operating
Temperature
Range
Safety
Approvals
Part No.
R
25
(K) ( ±%) (K) (±%) P
max
(mW)
δ(mW/°C)
τ(Sec.) T
L
~T
U
C) UL
cUL
DHT0A502355*
5 25/85
3550
DHT0B103355*
10 25/50
3550
DHT0A10334D*
10 25/85
3435
DHT0A103347*
10 25/85
3470
DHT0A10339H*
10 25/85
3975
DHT0B203395*
20 25/50
3950
DHT0B303395*
30 25/50
3950
DHT0B473395*
47 25/50
3950
DHT0B503395*
50 25/50
3950
DHT0B104400*
100 25/50
4000
DHT0A10439H*
100 25/85
3975
DHT0A104430*
100 25/85
4300
DHT0B204395*
200 25/50
3950
DHT0A204400*
200 25/85
4000
DHT0B204435*
200
123
510
25/50
4350
23 120 2 10
-40+200
Note 1:
= Tolerance of R
25
Note 2: * = Tolerance of B value
Note3: UL/
cUL
File No E138827

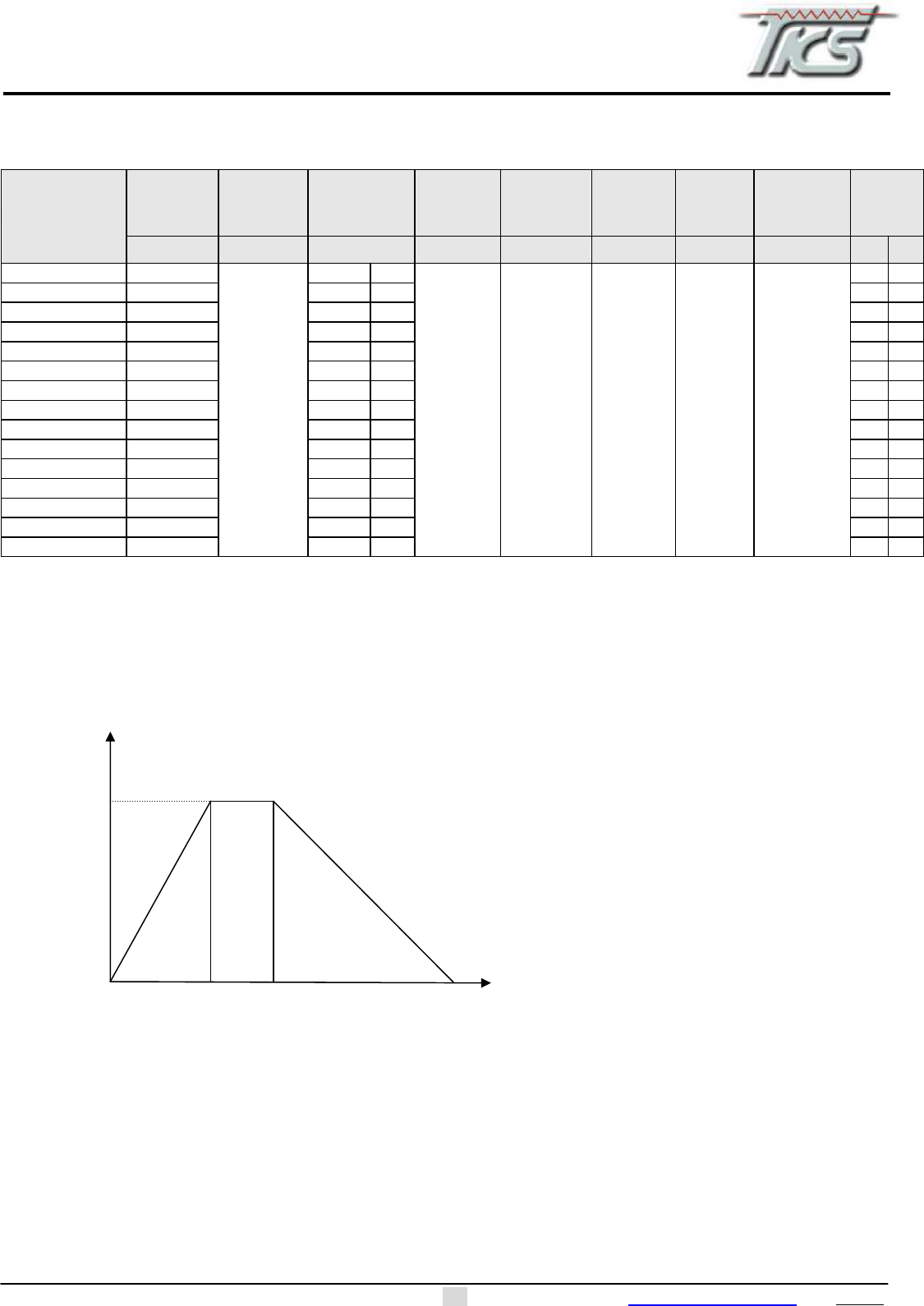

Max. Power Dissipation Derating Curve
100%
0 25
T
U
0%
T
L
Ambient temperature ( )
T
U
Maximum operating temperature ()
T
L
Minimum operating temperature ()
For exampleAmbient temperature(Ta)=55
Maximum operating temperature(T
U
)200
P
Ta
=(T
U
-Ta)/(T
U
-25)×Pmax 83% Pmax
P
Ta
/P
max
NTC Thermistor
DHT Type
Glass Axial Type for Temperature Sensing/Compensation
THINKING ELECTRONIC INDUSTRIAL Co., LTD.
3
www.thinking.com.tw
2010.06
All specifications are subject to change without notice

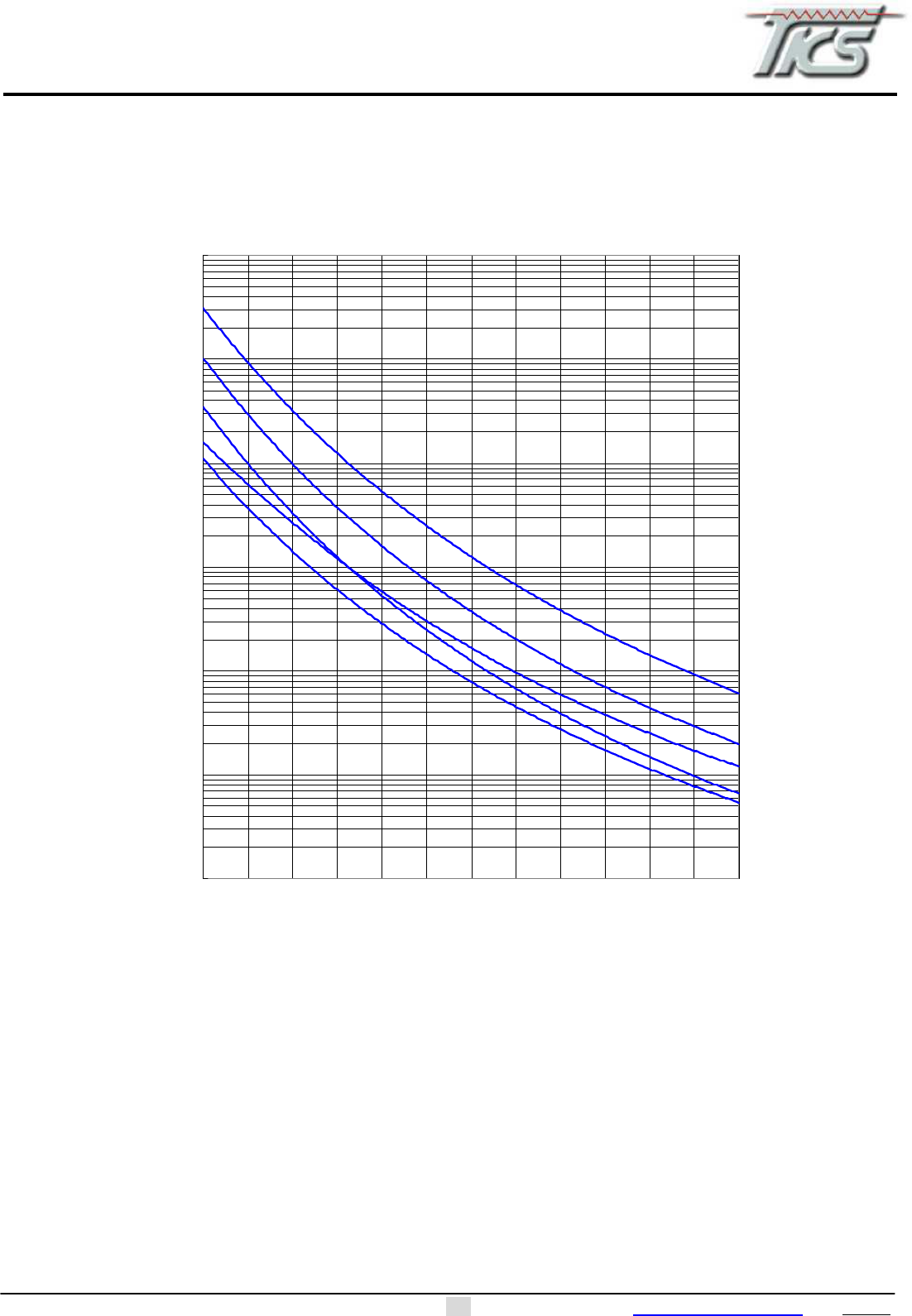

R-T Characteristic Curves
0
0
1
10
100
1,000
10,000
-40 -20 0 20 40 60 80 100 120 140 160 180 200
Temperature (
)
Resistance(K)
DHT0A104_39H_SY
DHT0B303_395_SY
DHT0A103_34D_SY
DHT0A103_39H_SY
DHT0A502_355_SY
12NEXT
