FN2929.3
HS-26CT31RH
Radiation Hardened Quad Differential Line
Driver
The Intersil HS-26CT31RH is a quad differential line driver
designed for digital data transmission over balanced lines
and meets the requirements of EIA standard RS-422.
Radiation hardened CMOS processing assures low power
consumption, high speed, and reliable operation in the most
severe radiation environments.
The HS-26CT31RH accepts TTL signal levels and converts
them to RS-422 compatible outputs. This circuit uses special
outputs that enable the drivers to power down without
loading down the bus. Enable and disable pins allow several
devices to be connected to the same data source and
addressed independently.
Specifications
Specifications for Rad Hard QML devices are controlled by
the Defense Supply Center in Columbus (DSCC). The SMD
numbers listed here must be used when ordering.
Detailed Electrical Specifications for these devices are
contained in SMD 5962-95632. A “hot-link” is provided
on our homepage for downloading.
www.intersil.com/military/
Features
• Electronically Screened to SMD #5962-95632
• QML Qualified Per MIL-PRF-38535 Requirements
• 1.2 Micron Radiation Hardened CMOS
• Total Dose Up to 300kRAD(Si)
• Latchup Free
• EIA RS-422 Compatible Outputs (Except for IOS)
• Operation with TTL Based on V
IH
= V
DD
/2
• High Impedance Outputs when Disabled or Powered
Down
• Low Power Dissipation 2.75mW Standby (Max)
• Single 5V Supply
• Low Output Impedance 10Ω or Less
• Full -55°C to +125°C Military Temperature Range
Applications
• Line Transmitter for MIL-STD-1553 Serial Data Bus
• Line Transmitter for RS422
Ordering Information
ORDERING
NUMBER
INTERNAL
MKT. NUMBER PART MARKING
TEMP. RANGE
(°C) PACKAGE
PKG.
DWG. #
5962F9563201QEC HS1-26CT31RH-8 Q 5962F95 63201QEC -55 to +125 16 LD SBDIP D16.3
5962F9563201QXC HS9-26CT31RH-8 Q 5962F95 63201QXC -55 to +125 16 LD FLATPACK K16.A
5962F9563201VEC HS1-26CT31RH-Q Q 5962F95 63201VEC -55 to +125 16 LD SBDIP D16.3

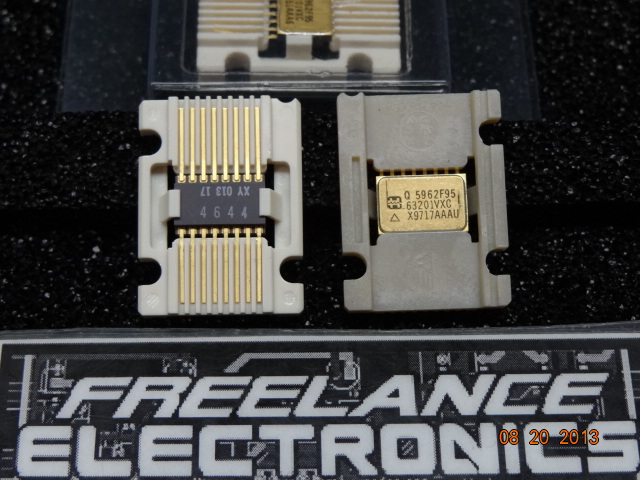

5962F9563201VXC HS9-26CT31RH-Q Q 5962F95 63201VXC -55 to +125 16 LD FLATPACK K16.A
HS1-26CT31RH/PROTO HS1-26CT31RH/PROTO HS1 - 26CT31RH/PROTO -55 to +125 16 LD SBDIP D16.3
HS9-26CT31RH/PROTO HS9-26CT31RH/PROTO HS9 - 26CT31RH/PROTO -55 to +125 16 LD FLATPACK K16.A
5962F9563201V9A HS0-26CT31RH-Q -55 to +125
Data Sheet August 25, 2008
