HS-1840ARH, HS-1840BRH
Rad-Hard 16 Channel CMOS Analog Multiplexer
with High-Z Analog Input Protection
HS-1840ARH, HS-1840BRH
The HS-1840ARH, HS-1840BRH are radiation hardened,
monolithic 16 channel multiplexers constructed with the
Intersil Rad-Hard Silicon Gate, bonded wafer, Dielectric
Isolation process. They are designed to provide a high input
impedance to the analog source if device power fails
(open), or the analog signal voltage inadvertently exceeds
the supply by up to ±35V, regardless of whether the device
is powered on or off. Excellent for use in redundant
applications, since the secondary device can be operated in
a standby unpowered mode affording no additional power
drain. More significantly, a very high impedance exists
between the active and inactive devices preventing any
interaction. One of sixteen channel selections is controlled
by a 4-bit binary address plus an Enable-Inhibit input which
conveniently controls the ON/OFF operation of several
multiplexers in a system. All inputs have electrostatic
discharge protection. The HS-1840ARH, HS-1840BRH are
processed and screened in full compliance with
MIL-PRF-38535 and QML standards. The devices are
available in a 28 Ld SBDIP and a 28 Ld Ceramic Flatpack.
Specifications for Rad Hard QML devices are
controlled by the Defense Supply Center in
Columbus (DSCC). The SMD numbers listed here
must be used when ordering.
Detailed Electrical Specifications for these devices
are contained in SMD 5962-95630. A “hot-link” is
provided on our homepage for downloading.
http://www.intersil.com/spacedefense/space.htm
Features
• Electrically Screened to SMD # 5962-95630
• QML Qualified per MIL-PRF-38535 Requirements
• Pin-to-Pin for Intersil’s HS-1840RH and HS-1840/883S
• Improved Radiation Performance
- Gamma Dose (γ) 3x10
5
RAD(Si)
•Improved r
DS(ON)
Linearity
• Improved Access Time 1.5µs (Max) Over Temp and
Post Rad
• High Analog Input Impedance 500MΩ During Power
Loss (Open)
• ±35V Input Overvoltage Protection (Power On or Off)
• Dielectrically Isolated Device Islands
• Excellent in Hi-Rel Redundant Systems
• Break-Before-Make Switching
•No Latch-Up
Ordering Information
ORDERING
NUMBER
INTERNAL
MKT. NUMBER
TEMP. RANGE
(°C)
PART
MARKING NO. PACKAGE
5962F9563002QXC HS1-1840ARH-8 -55 to +125 Q 5962F95 63002QXC 28 Ld SBDIP

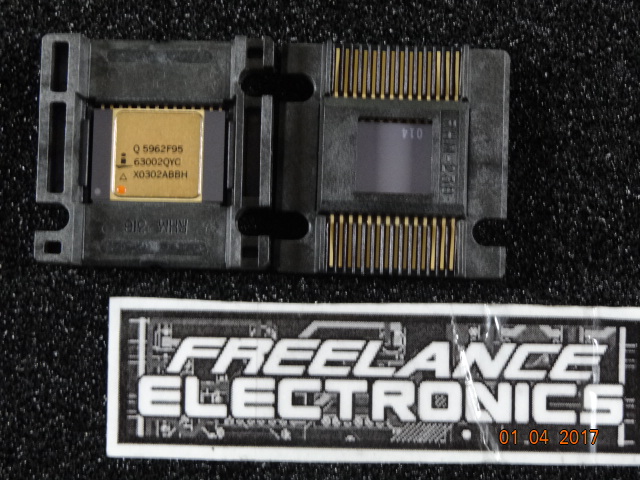

5962F9563002QYC HS9-1840ARH-8 -55 to +125 Q 5962F95 63002QYC 28 Ld Flatpack
5962F9563002VXC HS1-1840ARH-Q -55 to +125 Q 5962F95 63002VXC 28 Ld SBDIP
5962F9563002VYC HS9-1840ARH-Q -55 to +125 Q 5962F95 63002VYC 28 Ld Flatpack
HS1-1840ARH/PROTO HS1-1840ARH/PROTO -55 to +125 HS1- 1840ARH /PROTO 28 Ld SBDIP
HS9-1840ARH/PROTO HS9-1840ARH/PROTO -55 to +125 HS9- 1840ARH /PROTO 28 Ld Flatpack
HS1-1840ARH-T HS1-1840ARH-T -55 to +125 Q 5962R95 63002TXC 28 Ld SBDIP
5962F9563002V9A HS0-1840ARH-Q -55 to +125
5962F9563003QXC HS1-1840BRH-8 -55 to +125 Q 5962F95 63003QXC 28 Ld SBDIP
CAUTION: These devices are sensitive to electrostatic discharge; follow proper IC Handling Procedures.
1-888-INTERSIL or 1-888-468-3774
| Intersil (and design) is a registered trademark of Intersil Americas Inc.
Copyright Intersil Americas Inc. 2002, 2009, 2010. All Rights Reserved
All other trademarks mentioned are the property of their respective owners.
September 14, 2010
FN4355.3
