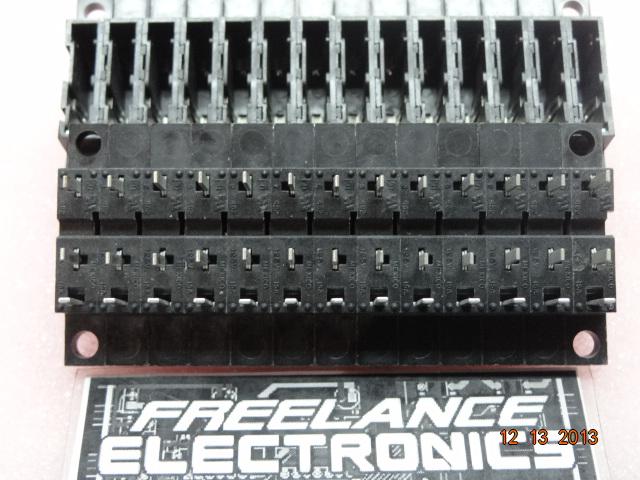

04820014ZXP

Part # 04820014ZXP
Description FUSE HLDR BLADE 125V 15A PNLMNT
Category HARDWARE
Availability In Stock
Qty 245
Qty Price
1 - 12 $20.38502
13 - 30 $16.21536
31 - 65 $15.28877
66 - 140 $14.20774
141 + $12.66342
Manufacturer Available Qty
Littelfuse
  • Shipping Freelance Stock: 45
    Ships Immediately
Littelfuse
  • Shipping Freelance Stock: 120
    Ships Immediately
Littelfuse
  • Shipping Freelance Stock: 45
    Ships Immediately
Littelfuse
  • Shipping Freelance Stock: 20
    Ships Immediately
Littelfuse
  • Shipping Freelance Stock: 15
    Ships Immediately

Related Items

04820008ZXB
Littelfuse
HARDWARE
04820008ZXB
$11.90798
04820010ZXP
Littelfuse
HARDWARE
04820010ZXP
$13.64378
04820005ZXP
Littelfuse
FUSE
04820005ZXP
$8.41474
04820007ZXB
Littelfuse
FUSE
04820007ZXB
$9.07157
04820010ZXPF
Littelfuse
CONNECTOR
04820010ZXPF
$13.43536
0482019063
MOLEX
CONNECTOR
0482019063
$1.72920


Technical Document


DISCLAIMER: The information provided herein is solely for informational purposes. Customers must be aware of the suitability of this product for their application, and consider that variable factors such as Manufacturer, Product Category, Date Codes, Pictures and Descriptions may differ from available inventory.

347
© 2009 Littelfuse, Inc.
Specications are subject to change without notice.
Special Application Fuses
Alarm Indicating Fuseholder 482 Series
482 Series Alarm Indicating Fuse Holder
Please refer to www.littelfuse.com/series/482.html for current information.
482 Series
482 Series Fuseholders
Description
Ideal for telecommunications and control panel circuits,
the 482 Series fuseholder series is designed for use
with Littelfuse 481 Alarm Indicating Fuses. Each holder
is designed to accept other manufacturer’s replacement
fuses as well.
The fuseholder is available in three versions:
PCB Mount - 15A: Can be soldered directly to a printed
circuit board. Rated up to 15 amperes. Available in single
pole or gangable up to 20 poles. Fuseholder is keyed to
prevent insertion of 20 ampere fuse.
Panel Mount - 20A: Available in a single pole version rated
up to 20 amperes. Large leads for wire attachment.
Panel Mount - 15A: 15 ampere gangable version of
fuseholder is keyed to prevent insertion of 20 ampere fuse.
Agency Approvals
Agency Agency File Number
E14721 (20A Panel Mount Only)
7316
482 Fuseholder Series 15A PCB Mount and Panel Mount 20A Panel Mount
Electrical Rating Rated at 15 amperes up to 125 VAC/ VDC Rated at 20 amperes up to 125 VAC/ VDC
Body Material Thermoplastic (UL 94V-0) Black Phenolic (UL 94V-0)
Fuse Terminal Material Tin-plated Beryllium Copper Tin-plated Copper Alloy
Alarm Terminal Material Tin-plated Brass Tin-plated Copper Alloy
Operating Temperature –55
O
C to +125
O
C. –40
O
C to +85
O
C.
Thermal Shock Withstands 5 cycles of – 55
O
C to 125
O
C Withstands 5 cycles of – 55
O
C to 125
O
C
Vibration Per MIL-STD-202F Per MIL-STD-202F
Insulation Resistance
(After Opening)
Greater than 10,000 ohms. Greater than 10,000 ohms.
Product Characteristics
Revised: December 31, 2010
Introduction to Circuit Protection
Introduction to Circuit Protection
Transientology
348
© 2009 Littelfuse, Inc.
Specications are subject to change without notice.
Special Application Fuses
Alarm Indicating Fuseholder 482 Series
482 Series Alarm Indicating Fuse Holder
Please refer to www.littelfuse.com/series/482.html for current information.
15A PCB Mount and Panel Mount Fuseholders
Ordering Information
Type Holder Assembly Length* 15A PCB Mount 15A PCB Mount - Flush 15A Panel Mount 15A Panel Mount - Flush
1 Pole 6.40mm (25”) 0482 0001ZXB 0482 0001ZXBF 0482 0001ZXP 0482 0001ZXPF
2 Pole 12.80mm (.50”) 0482 0002ZXB 0482 0002ZXBF 0482 0002ZXP 0482 0002ZXPF
3 Pole 19.05mm (.75”) 0482 0003ZXB 0482 0003ZXBF 0482 0003ZXP 0482 0003ZXPF
4 Pole 25.04mm (1.0”) 0482 0004ZXB 0482 0004ZXBF 0482 0004ZXP 0482 0004ZXPF
5 Pole 31.75mm (1.25”) 0482 0005ZXB 0482 0005ZXBF 0482 0005ZXP 0482 0005ZXPF
6 Pole 38.10mm (1.50”) 0482 0006ZXB 0482 0006ZXBF 0482 0006ZXP 0482 0006ZXPF
7 Pole 44.45mm (1.75”) 0482 0007ZXB 0482 0007ZXBF 0482 0007ZXP 0482 0007ZXPF
8 Pole 5.80mm (2.00”) 0482 0008ZXB 0482 0008ZXBF 0482 0008ZXP 0482 0008ZXPF
9 Pole 57.15 (2.25”) 0482 0009ZXB 0482 0009ZXBF 0482 0009ZXP 0482 0009ZXPF
10 Pole 63.50mm (2.75”) 0482 0010ZXB 0482 0010ZXBF 0482 0010ZXP 0482 0010ZXPF
11 Pole 69.85mm (2.75”) 0482 0011ZXB 0482 0011ZXBF 0482 0011ZXP 0482 0011ZXPF
12 Pole 76.20mm (3.00”) 0482 0012ZXB 0482 0012ZXBF 0482 0012ZXP 0482 0012ZXPF
13 Pole 82.55mm (3.25”) 0482 0013ZXB 0482 0013ZXBF 0482 0013ZXP 0482 0013ZXPF
14 Pole 88.90mm (3.50”) 0482 0014ZXB 0482 0014ZXBF 0482 0014ZXP 0482 0014ZXPF
15 Pole 95.25mm (3.75”) 0482 0015ZXB 0482 0015ZXBF 0482 0015ZXP 0482 0015ZXPF
16 Pole 101.60mm (4.00”) 0482 0016ZXB 0482 0016ZXBF 0482 0016ZXP 0482 0016ZXPF
17 Pole 107.95mm (4.25”) 0482 0017ZXB 0482 0017ZXBF 0482 0017ZXP 0482 0017ZXPF
18 Pole 114.30mm (4.50”) 0482 0018ZXB 0482 0018ZXBF 0482 0018ZXP 0482 0018ZXPF
19 Pole 120.65mm (4.75”) 0482 0019ZXB 0482 0019ZXBF 0482 0019ZXP 0482 0019ZXPF
20 Pole 127.00mm (5.00”) 0482 0020ZXB 0482 0020ZXBF 0482 0020ZXP 0482 0020ZXPF
20A Panel Mount Fuseholder
Flush Side Options
Available for PCB and
Panel Mount Version
5 POLE HOLDER ASSEMBLY
WITH FLUSH OPTION
Type Holder Length * 20A Panel Mount
1 Pole 6.40mm (25”) 0482 2001ZXPF
* NOTE: 15 ampere gangable version of PCB Mount and Panel Mount fuseholders are keyed to prevent insertion of 20 ampere fuse.
Please refer to “A” dimension of diagrams on following page. For additional terminal lengths, please contact Littelfuse.
* NOTE: 20 ampere version of 482 Series Panel Mount fuseholders come standard as a single pole unit with ush edges on
both sides (no “keys” typical with 15A units). Please refer to the diagrams on the following page for additional information.
349
© 2009 Littelfuse, Inc.
Specications are subject to change without notice.
Special Application Fuses
Alarm Indicating Fuseholder 482 Series
482 Series Alarm Indicating Fuse Holder
Please refer to www.littelfuse.com/series/482.html for current information.
482 Series
Dimensions
FEMALE LATCHING & FLUSH SIDE
WITHOUT TABS
21.3mm
(.84")
TYP
6.4mm
(.25")
TYP
18.5mm
(.73")
12.4mm
(.49")
1.6mm
(.062")
TYP
4.1mm
(.16")
TYP
19.8mm
(.78" )
TYP
.03
6.4mm
(.250")
.005
10.7mm
(.420")
.005
6.4mm
(.250")
.005
Ø 2.3mm HOLE
S
(.090")
(3 HOLES)
RECOMMENDED P. C. BOARD
MOUNTING HOLES
Alarm Terminal
TYPICAL HOLDER ASSEMBLY
A
FEMALE & MALE LATCHING
WITH TABS
FEMALE & MALE LATCHING
WITH TABS AND NO MOUNTING HOLES
FEMALE LATCHING & FLUSH SIDE
WITH TABS
37.1mm
(1.46")
6.4mm
(.25")
A
0.6mm
(.025")
TYP
1.6mm
(.062")
TYP
15.7mm
(.62")
9.0mm (.355")
18.5mm
(
.73"
)
.010
12.4mm
(.49" )
.010
24.9mm
(.98" )
.03
21.3mm
(.84")
30.9mm (1.215")
30.7mm (1.210")
TYPICAL HOLDER ASSEMBLY
21.8mm
(.86" )
.005
6.9mm
(.27" )
.005
30.9mm (1.215")
30.7mm (1.210")
Ø 4.1mm
(.160")
MOUNTING HOLE
(2 HOLES)
TYPICAL CUT-OUT IN
PANEL OR CHASSIS
6.4mm
(.25")
21.8mm
(.86" )
.005
6.9mm
(.27" )
.005
6.4mm
(.25")
RECOMMENDED PANEL
MOUNTING HOLES
30.9mm (1.215")
30.7mm (1.210")
30.9mm
(1.212")
Ø 4.1mm
(.160")
MOUNTING HOLE
(2 HOLES)
TYPICAL CUT-OUT IN
PANEL OR CHASSIS
.150''
DIA,
(2 Holes)
21.34mm (.84")
(1.47")
37.34mm
0.6mm
(.025")
TYP
1.6mm
(.062")
TYP
15.7m
m
(.62")
9.0mm (.355")
18.5mm
(.73" )
.010
12.4mm
(.49" )
.010
24.9mm
(.98" )
.03
21.3mm
(.84")
6.4mm
(.25")
NOTE: The 20 ampere single pole holder is designed to
accept all fuse ratings up to 20 amperes.
20 ampere fuseholders should be spaced 12.7mm
(0.50) apart when loaded to maximum capacity, center
to center to insure proper heat dissipation under normal
operation.
Heatsinking may be required for operation in higher
ambient temperatures or alternate congurations.
15A PCB Mount Series:
15A Panel Mount Series:
20A Panel Mount Series:
