0429003.WRM

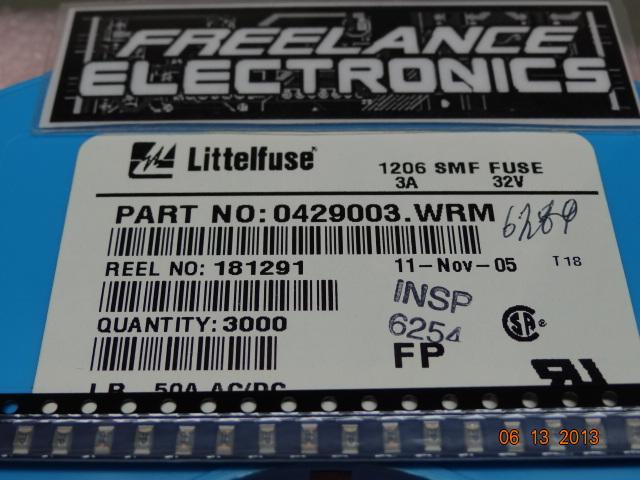

Part # 0429003.WRM
Description FUSE BOARD MNT 3A 32VAC/VDC 1206
Category FUSE
Availability In Stock
Qty 111800
Qty Price
1 - 171 $1.45492
172 - 432 $1.15732
433 - 916 $1.09119
917 - 1,972 $1.01403
1,973 + $0.90381
Manufacturer Available Qty
Littelfuse
Date Code: 0629
  • Shipping Freelance Stock: 2800
    Ships Immediately
Littelfuse
Date Code: 0500
  • Shipping Freelance Stock: 106000
    Ships Immediately
Littelfuse
Date Code: 0604
  • Shipping Freelance Stock: 3000
    Ships Immediately



Technical Document


DISCLAIMER: The information provided herein is solely for informational purposes. Customers must be aware of the suitability of this product for their application, and consider that variable factors such as Manufacturer, Product Category, Date Codes, Pictures and Descriptions may differ from available inventory.

Thin-Film Surface Mount
364
Surface Mount Fuses
1206 Very Fast-Acting Fuse 429 Series
www.littelfuse.com
Nominal Nominal
Catalog Ampere Marking Voltage Resistance Melting I
2
t
Number Rating Code Rating Cold Ohms
1
(A
2
Sec.)
2
429.125 0.125 FB 125 2.30000 0.00020
429.200 0.200 FC 125 0.93800 0.00055
429.250 0.250 FD 125 0.62500 0.00100
429.375 0.375 FE 125 0.37500 0.00280
429.500 0.500 FF 63 0.24050 0.0060
429.750 0.75 FG 63 0.13700 0.0170
429 001 1.00 FH 63 0.09950 0.035
429 1.25 1.25 FJ 63 0.07475 0.065
429 01.5 1.50 FK 63 0.06250 0.125
429 1.75 1.75 FL 63 0.05000 0.150
429 002 2.0 FN 63 0.03975 0.230
429 02.5 2.5 FO 32 0.03065 0.500
429 003 3.0 FP 32 0.02625 0.700
429 004 4.0 FS 24 0.01926 1.50
429 005 5.0 FT 24 0.01375 2.70
429 007 7.0 FU 24 0.00925 3.60
1
Measured at 10% of rated current, 25°C.
2
Measured at rated voltage.
For new designs please consult the 433 or 466 Series on pages 258-260.
ELECTRICAL CHARACTERISTICS:
% of Ampere Opening
Rating Time at 25°C
100% 4 hours, Minimum
200% 5 seconds, Maximum
300% 0.2 seconds, Maximum
AGENCY APPROVALS: Recognized under the Components Program
of Underwriters Laboratories and Certified by CSA.
AGENCY FILE NUMBERS: UL E10480, CSA LR 29862.
INTERRUPTING RATINGS:
0.125 3A 50 amperes at rated voltage, VAC/VDC
4 7A 35 amperes at rated voltage, VAC/VDC
ENVIRONMENTAL SPECIFICATIONS:
Operating Temperature:
55°C to 90°C. Consult temperature rerat-
ing chart on page 4. For operation above 90°C contact Littelfuse.
Vibration: Withstands 1055 Hz per MIL-STD-202F,
Method 201A and 10-2000 Hz at 20 Gs per MIL-STD-202F, Method
204D, Condition D.
Insulation Resistance (After Opening): Greater than 10 KOhm.
Resistance to Soldering Heat: Withstands 60 seconds above
200°C up to 260°C, maximum.
Thermal Shock: Withstands 5 cycles of 55° to 125°C.
PHYSICAL SPECIFICATIONS:
Materials:
Body: Epoxy Substrate
Terminations: Copper/Nickel/Tin-Lead (95/5)
Cover Coat: Conformal Coating
Soldering Parameters:
Reflow Solder 260°C, 30 seconds maximum
PACKAGING SPECIFICATIONS: 8mm Tape and Reel per
EIA-RS481-1 (IEC 286, part 3); 3,000 per reel, add packaging suffix, WR.
PATENTED
ORDERING INFORMATION:
.2A
.25A
.375A
.5A
.75A
1A
1.25A
1.5A
1.75A
2A
2.5A
3A
4A
5A
7A
TIME IN SECONDS
CURRENT IN AMPERES
0.01
0.1
0.1
1
1
10
100
10 100
.125A
0.001
Average Time Current Curves
REFLOW SOLDER
RECOMMENDED PAD LAYOUTS
3.81
(.150")
1.52
(.060")
2.03
(.080")
.635
(.025")
1.14
(.045")
2.49 (.098")
REF.
1.52
(.060")
3.18
(.125")
1.14
(.045")
1.12
(.044")
REF.
®
®
For New Designs Use 433 or 466 Series.
