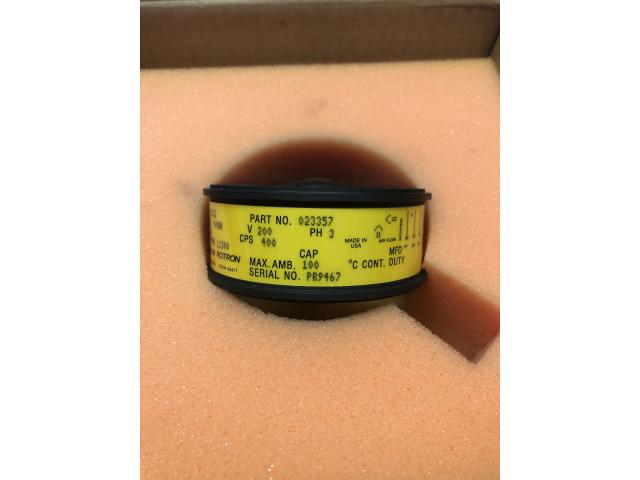

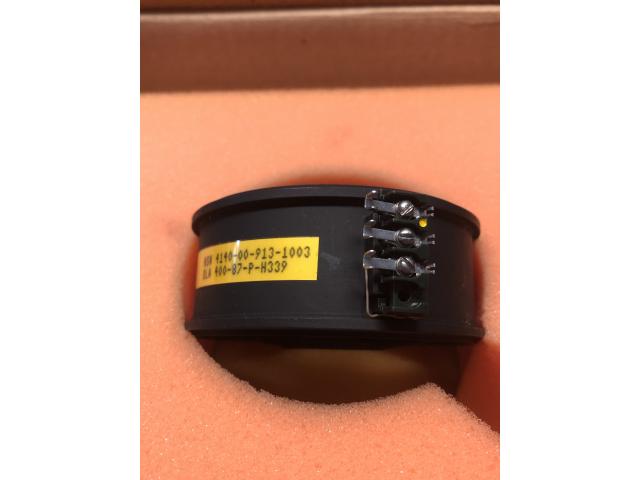

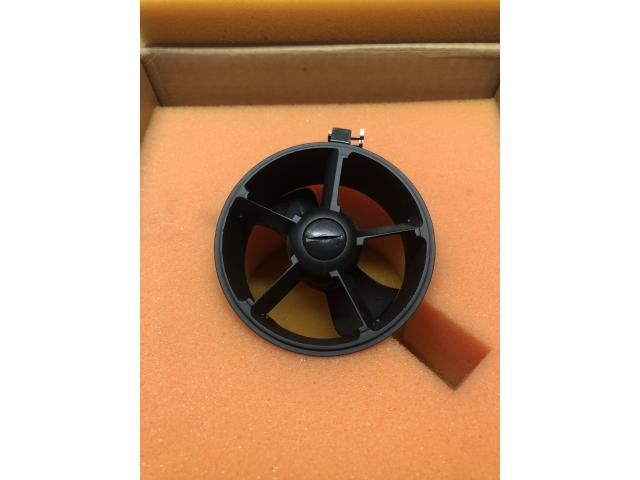

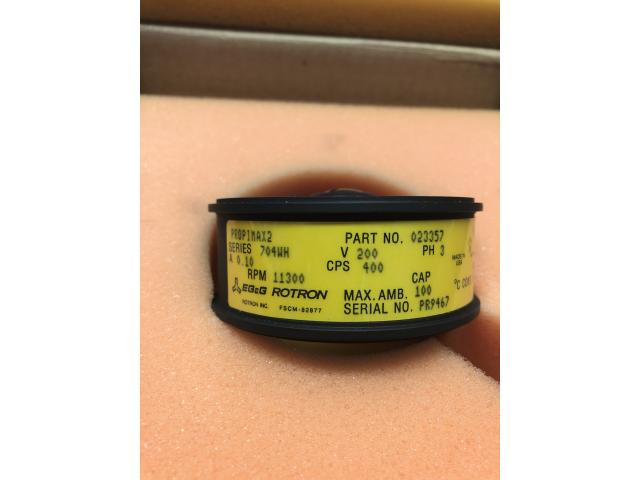

EG&G ROTRON 023357

Cross Number:

Item Description:

Qty Price
1 + $400.00000



Other Cross Reference

Manufacturer Date Code Qty Available Qty
EG&G ROTRON
  • Freelance Stock: 2
    Ships Immediately





Technical Document


DISCLAIMER: The information provided herein is solely for informational purposes. Customers must be aware of the suitability of this product for their application, and consider that variable factors such as Manufacturer, Product Category, Date Codes, Pictures and Descriptions may differ from available inventory.

Performance Specifications
Two Channel Pump Combiner (1480)
Features
Low Insertion Loss
High Stability & Reliability
Wide Operating
Temperature Range
Applications
Double Pumping
DCPC Series
Oplink’s 1480 nm two-channel pump combiner aremanufactured using the proven
fused biconical taper technology and Oplink’s stringent quality procedures. With low
insertion loss, this device is ideal for combining two pump sources near 1480 nm in
optical fiber amplifiers.
Oplink can provide customized designs to meet specialized feature applications. Also,
Oplink offers modular assemblies that integrate other components to form a full
function module or subsystem.
Oplink Communications, Inc.
R1.20070727
TWO-CHANNEL PUMP COMBINER
DCPC Series 2 x 1 Unit
Configuration
Wavelength Range 1400 - 1500 nm
Channel Spacing 10 ~ 30 nm
Maximum Insertion Loss @ Central Wavelength ±1nm < 0.6 dB
Polarization Dependent Loss < 0.2 dB
Directivity > 55 dB
Maximum Power Handling 500 mW
Return Loss > 55 dB
Operating Temperature -10 to +70 °C
Storage Temperature -40 to +85 °C
Package Dimension *
P1: 250 µm SMF-28 bare fiber
mm
P2: 900 µm loose tube
P3: 3mm cable
(L)96 x (W) 12 x (H) 6.4
*
The mechanical tolerance should be +/-0.2 mm on all package dimensions unless otherwise custom specified.
(ø) 4.0 x (L) 75
(ø) 4.0 x (L) 80
L
Ø
Port In
Port Out 1
Port Out 2
Ordering Information
Two Channel Pump Combiner (1480)
DCPC Series
Oplink can provide a remarkable range of customized optical solutions. For detail, please contact Oplink's OEM design team
or account manager for your requirements and ordering information (510) 933-7200.
R1.20070727
46335 Landing Parkway Fremont, CA 94538-6407 Tel: (510 933-7200 Fax: (510) 933-7300 Email: Sales@Oplink.com
Product Lines
Mux/Demux Switching/Routing Coupling/Splitting Monitoring/Conditioning InterconnectAmplification RGB Laser Modules
2
Connector
Type
None= 1
FC/PC= 2
FC/SPC= 3
FC/APC= 4
SC/PC= 5
SC/SPC= 6
SC/APC= 7
ST= 8
LC= 9
MU= A
RoHS:
1) Add “G” to the end of the above PN for RoHS 6.
DCPC
Package & Fiber Type
P1+ 250µm bare fiber = 11
P2+ 900µm loose tube = 22
P3+ 3mm cable = 33
Fiber Length
1.0 meter = 1
1.5 meter = 5
2.0 meter = 2
Configuration
2 x 1=2
Shorter Wavelength
1460nm = 1460
etc.
Channel Spacing
10nm = 10
20nm = 20
30nm = 30
