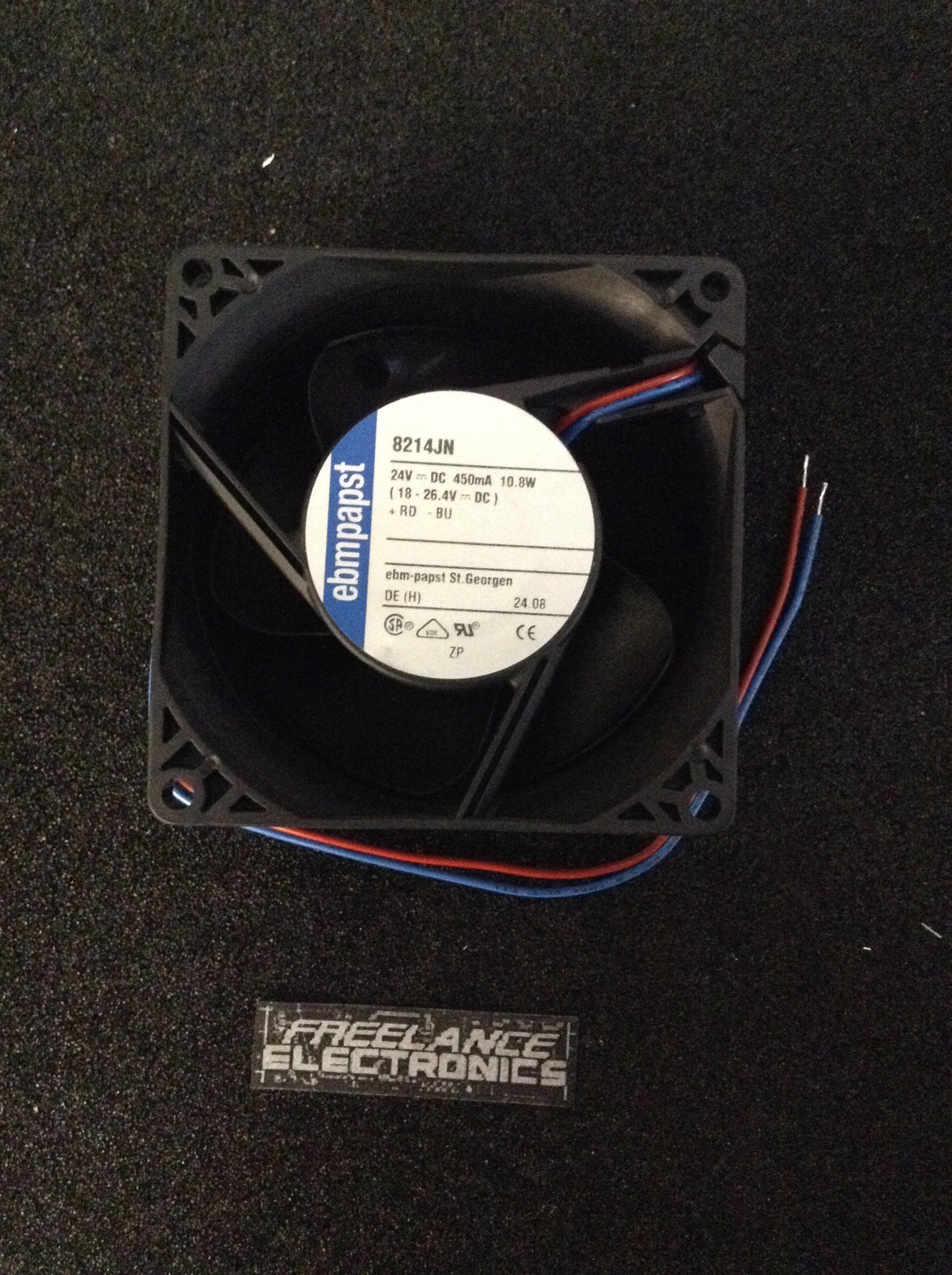

DC axial compact fan
8214 JN
Technical features
Dimensions 80 x 80 x 38 mm
General description Particular design features:
Rigid compression curve for high air flow at high counterpressure.
Innovative impeller with winglets for low noise.
Optional Vario-Pro: Highly flexible software configuration for the fan ensures an easily customisable
solution to meet the individual requirements of your application.
General features:
Material: fibreglass-reinforced plastic. Impeller PA, housing PBT.
Electronic commutation completely integrated.
Protected against reverse polarity and locking.
Connection via single strands AWG 24 (H3 and H4: AWG 22), TR 64, bared and tin-plated.
Air exhaust over bars. Direction of rotation counter-clockwise seen on rotor.
Mass: 160 g (H3 and H4: 200 g).
Connection line Single strands AWG 24, TR 64, bared and tin-plated.
Locked-rotor protection With electronic blocking and overload protection
Direction of rotation Left, looking at rotor
Direction of air flow Air exhaust over bars
Bearing Ball bearings
Lifetime L10 at 40 °C 62500 h
Lifetime L10 at maximum
temperature
32500 h
Mass 0.160 kg
Housing material Fiberglass-reinforced PBT plastic
Material of impeller Fiberglass-reinforced PA plastic
Motor protection Protected against reverse polarity and locking.
Approval CE
