Microsemi Corp JANS1N5822

Cross Number:

Item Description: Diode Schottky 40V 3A 2-Pin Case B - Waffle Pack
Additional Information:

Qty Price
1 - 2 $63.36000
3 - 5 $50.40000
6 - 11 $47.52000
12 - 17 $44.16000
18 + $39.36000





Related Items



























Manufacturer Date Code Qty Available Qty
SEE NOTES 9612
  • Freelance Stock: 2
    Ships Immediately


Microsemi Corp 9612
  • Freelance Stock: 20
    Ships Immediately







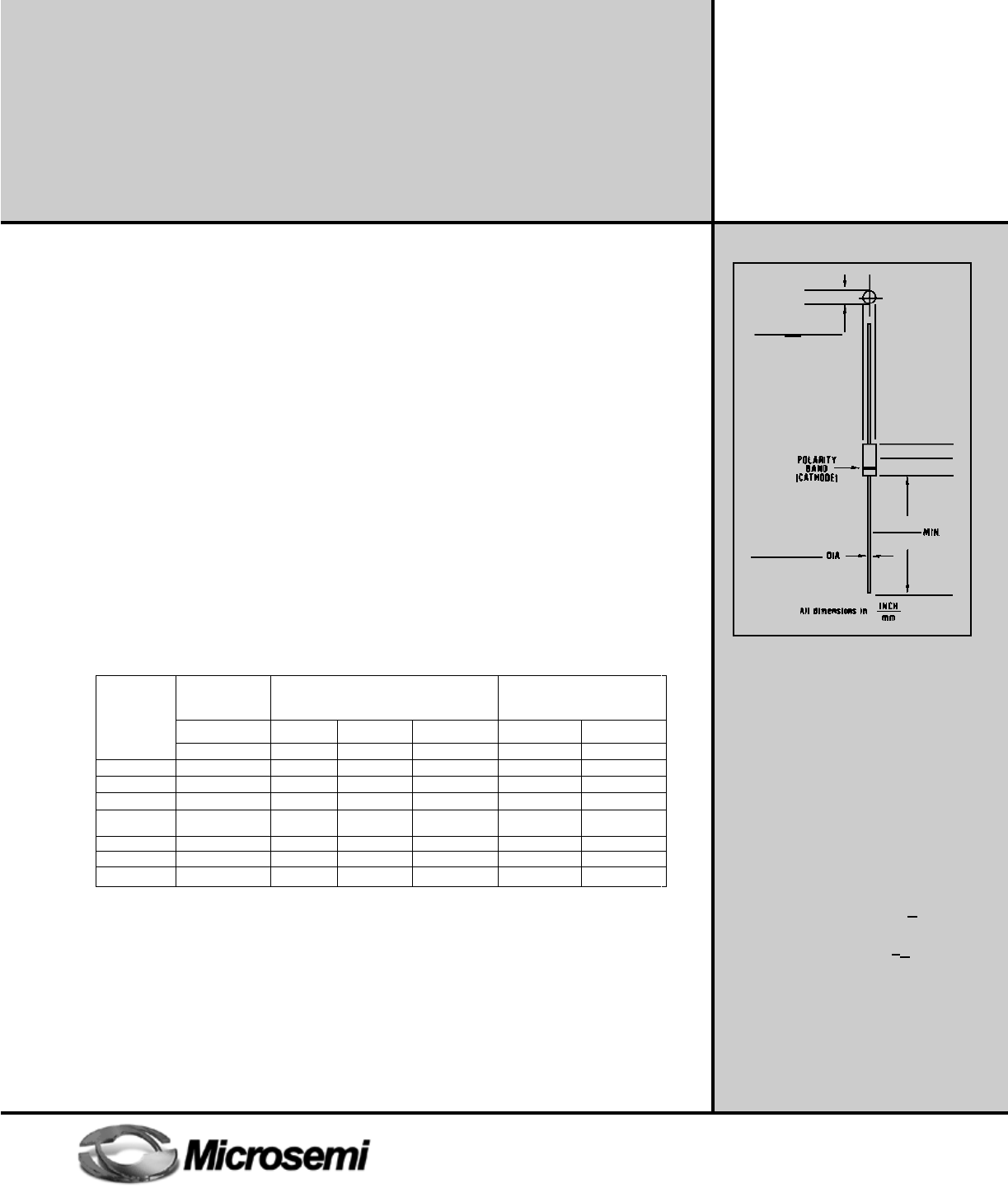

Technical Document


DISCLAIMER: The information provided herein is solely for informational purposes. Customers must be aware of the suitability of this product for their application, and consider that variable factors such as Manufacturer, Product Category, Date Codes, Pictures and Descriptions may differ from available inventory.

6 LAKE STREET, LAWRENCE, MASSACHUSETTS 01841
PHONE (978) 620-2600 FAX (978) 689-0803
WEBSITE: http://www.microsemi.com
67
CDI WORKING PEAK MAXIMUM REVERSE
TYPE REVERSE MAXIMUM FORWARD VOLTAGE LEAKAGE CURRENT
NUMBER VOLTAGE AT RATED VOLTAGE
V
RWM
V
F
@ 1.0 A V
F
@ 3.0 A V
F
@ 9.4A I
R
@ +25°C I
R
@ +100°C
VOLTS VOLTS VOLTS VOLTS mA mA
DSB5820 20 0.40 0.50 0.70 0.10 12.5
DSB5821 30 0.40 0.50 0.70 0.10 12.5
DSB5822 40 0.40 0.50 0.70 0.10 12.5
J,JX,JV & JS 40 0.40 0.50 0.70 0.10 12.5
5822
DSB3A20 20 0.40 0.50 0.70 0.10 12.5
DSB3A30 30 0.40 0.50 0.70 0.10 12.5
DSB3A40 40 0.40 0.50 0.70 0.10 12.5
MAXIMUM RATINGS
Operating Temperature: -65°C to +125°C
Storage Temperature: -65°C to +150°C
Average Rectified Forward Current: 3.0 AMP @ T
L
= +55°C, L = 3/8”
Derating: 43 mA / °C above T
L
= +55°C, L = 3/8”
ELECTRICAL CHARACTERISTICS @ 25°C, unless otherwise specified.
FIGURE 1
DESIGN DATA
CASE: Hermetically sealed, “B” Body
per MIL-PRF-19500/620. D-5B
LEAD MATERIAL: Copper clad steel
LEAD FINISH: Tin / Lead
THERMAL RESISTANCE: (R
OJEC
): 30
°C/W maximum at L = .375 inch
THERMAL IMPEDANCE: (Z
OJX
): 3
°C/W maximum
POLARITY: Cathode end is banded.
MOUNTING POSITION: Any
1N5822
and
DSB5820 thru DSB5822
and
DSB3A20 thru DSB3A40
• 1N5822 AVAILABLE IN JAN, JANTX, JANTXV AND JANS
PER MIL-PRF-19500/620
• 3 AMP SCHOTTKY BARRIER RECTIFIERS
• HERMETICALLY SEALED
• METALLURGICALLY BONDED
0.115/0.145
2.92/3.68
0.130/0.195
3.30/4.95
0.036/0.042
0.91/1.07
0.900
22.86
68

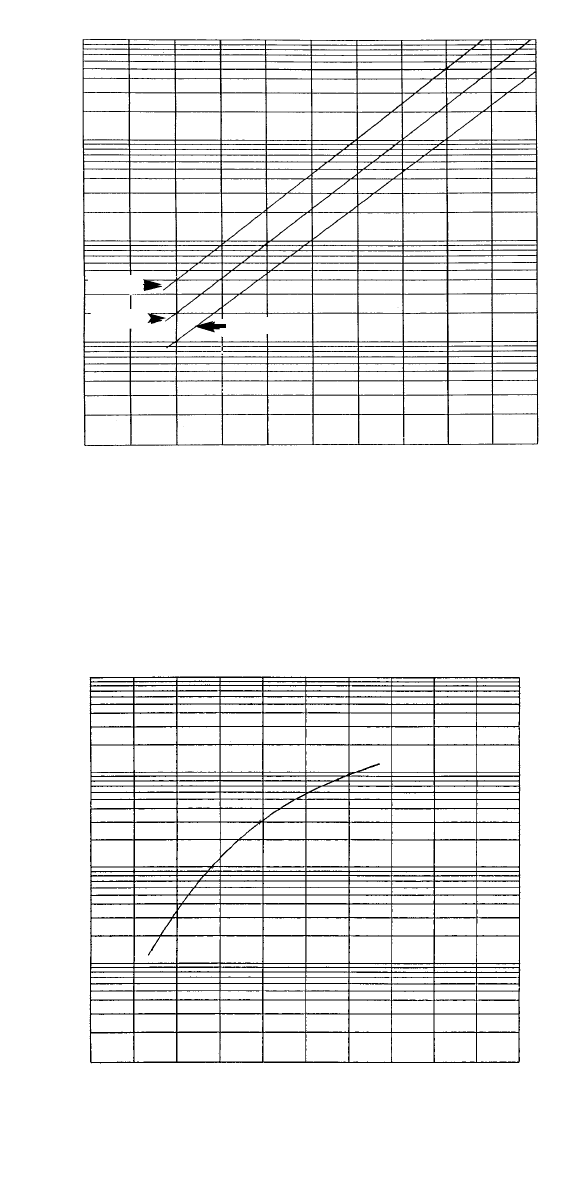

IR, REVERSE CURRENT (mA)
+25 +50 +75 +100 +125
T
J
, JUNCTION TEMPERATURE (°C)
FIGURE 1
TYPICAL FORWARD VOLTAGE
I
F
, FORWARD CURRENT, INSTANTANEOUS (AMPS)
0.1 0.2 0.3 0.4 0.5 0.6 0.7 0.8 0.9 1.0 1.1
V
F
, FORWARD VOLTAGE, INSTANTANEOUS (VOLTS)
FIGURE 2
100.0
10.0
1.0
0.1
0.01
10.0
1.0
0.1
0.01
0.001
TYPICAL REVERSE LEAKAGE CURRENT AT RATED PIV (PULSED)
1N5822 and DSB5820 thru DSB5822
and
DSB3A20 thru DSB3A40
DSB5821
DSB5822
DSB5820
