ABRACON AB38T-32.768KHZ

Cross Number:

Item Description: CRYSTAL, CYLINDRICAL 32.768KHZ, 12.5F, 20PPM, 3 X 8 - Bulk

Qty Price
1 - 230 $0.17816
231 - 470 $0.13902
471 - 710 $0.12147
711 - 950 $0.11337
951 + $0.10528



Other Cross Reference

Manufacturer Date Code Qty Available Qty
ABRACON
  • Freelance Stock: 1000
    Ships Immediately


ABRACON
  • Freelance Stock: 140
    Ships Immediately





Technical Document


DISCLAIMER: The information provided herein is solely for informational purposes. Customers must be aware of the suitability of this product for their application, and consider that variable factors such as Manufacturer, Product Category, Date Codes, Pictures and Descriptions may differ from available inventory.

||||||||||||| | |
AB38T
APPLICATIONS:
FEATURES:
30332
Esperanza, Rancho Santa Margarita, California
92688
tel 949-546-8000 | fax 949-546-8001| www.abracon.com
STANDARD SPECIFICATIONS:
• Commercial grade 32.768kHz crystal
• Real time clock
• Measuring instruments.
• Clock source for communication or A/V equipment.
OPTIONS & PART IDENTIFICATION:
(Left blank if standard)
Revised: 08.08.11-I
Visit www.abracon.com for Terms & Conditions of Sale
32.768kHz WATCH CRYSTAL, 8.3 x ø3.2MM CYLINDER PACKAGE
Pb
RoHS
Compliant
8.3 x ø3.2mm
ABRACON IS
CERTIFIED
ABRACON IS
ISO9001:2008
CERTIFIED
Parameters Minimum Typical Maximum Units Notes
Center Frequency ----- 32.768 ----- kHz
Operating Temperature -10 ----- +60 ºC See options
Turnover Temperature +20 +25 +30 ºC
Storage Temperature -40 ----- +85 ºC
Frequency Tolerance @+25°C -20 ----- +20 ppm See options
Frequency Coefficient (ß) -0.040 -0.034 -0.028 ppm/T
2
Equivalent series resistance (R1) ----- ----- 30 kΩ
Shunt capacitance (C0) ----- 1.60 ----- pF
Motional capacitance (C1) ----- 0.0035 ----- pF
Capacitance ratio (C0/C1) ----- 4,600 ----- -----
Load capacitance (CL) ----- 12.5 ----- pF See options
Drive Level ----- ----- 1 µW
Quality Factor ----- 90,000 -----
Aging @25°C±3°C (First year)
-3 ----- +3
ppm
32.768kHz
-5 ----- +5 Other frequencies
Insulation Resistance 500 ----- ----- M @ 100Vdc ± 15V
AB38T-32.768kHz - - -
Operating Temperature
E: 0
to +70 ºC
B: -20
to +70 ºC
Freq. Tolerance
1: ± 10 ppm *
7: ± 15 ppm
Load Capacitance (pF)
Blank: 12.5pF
Please specify custom
load cap. in pF
(ex. 6 for 6pF)
* Please contact Abracon for availability
||||||||||||||| |
AB38T
30332
Esperanza, Rancho Santa Margarita, California
92688
tel 949-546-8000 | fax 949-546-8001| www.abracon.com
Revised: 08.08.11-I
Visit www.abracon.com for Terms & Conditions of Sale
Pb
RoHS
Compliant
8.3 x ø3.2mm
ABRACON IS
CERTIFIED
ABRACON IS
ISO9001:2008
CERTIFIED
32.768kHz WATCH CRYSTAL, 8.3 x ø3.2MM CYLINDER PACKAGE

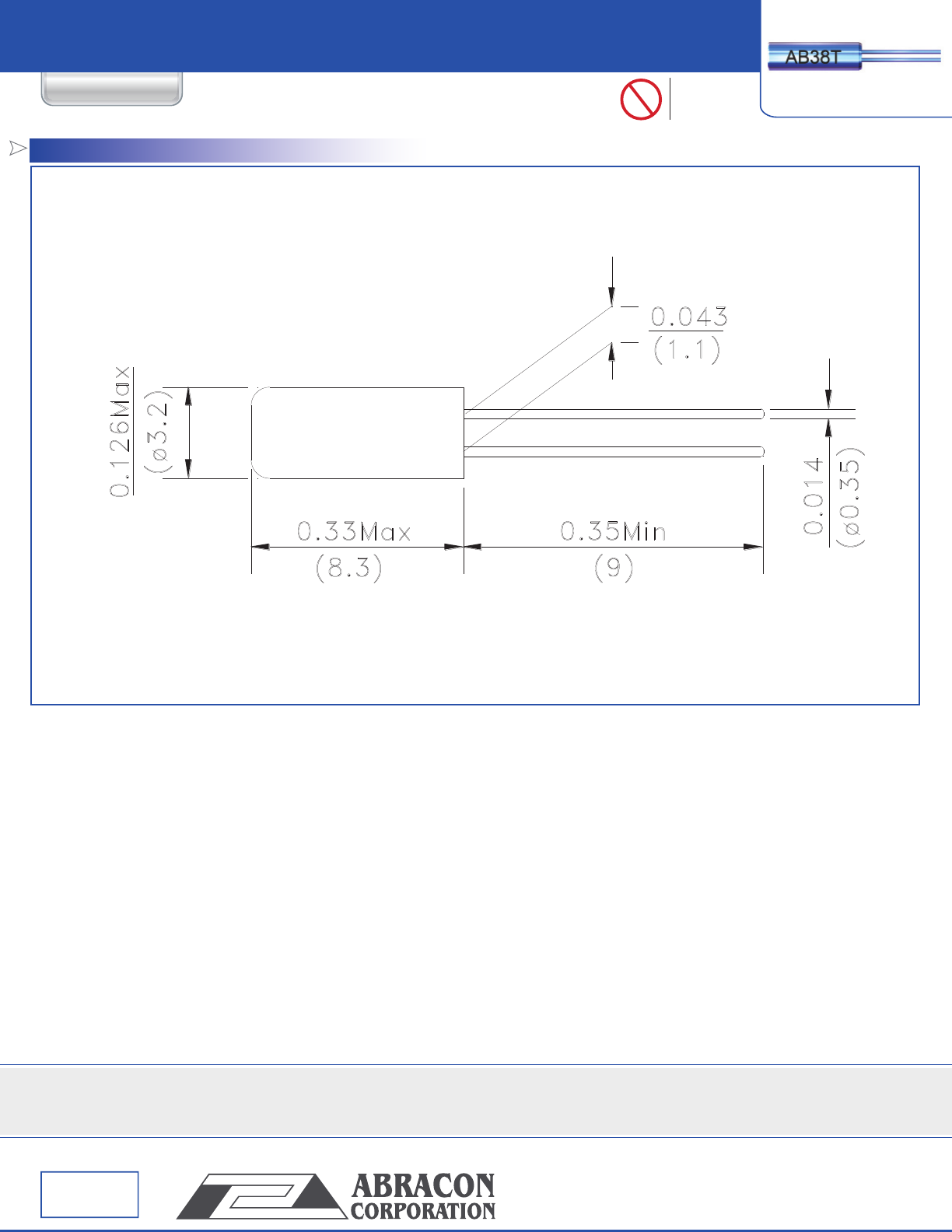

OUTLINE DRAWING:
Dimensions: Inches (mm)
