Combo D® - Coaxial/50 Ohm
Straight Receptacle for PCB Mounting
Straight Plug for PCB Mounting (Board Thickness up to .125 [3.18])

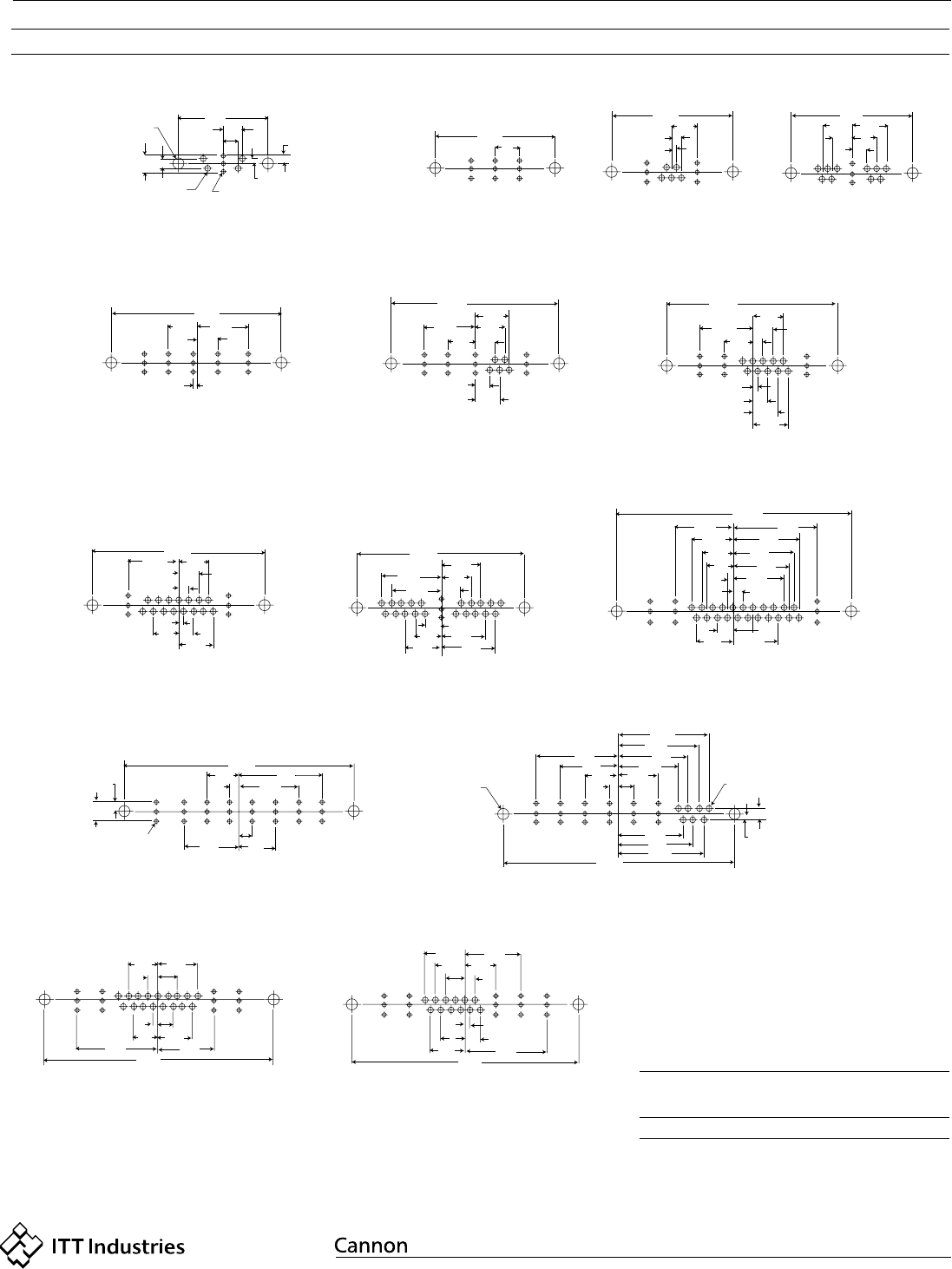

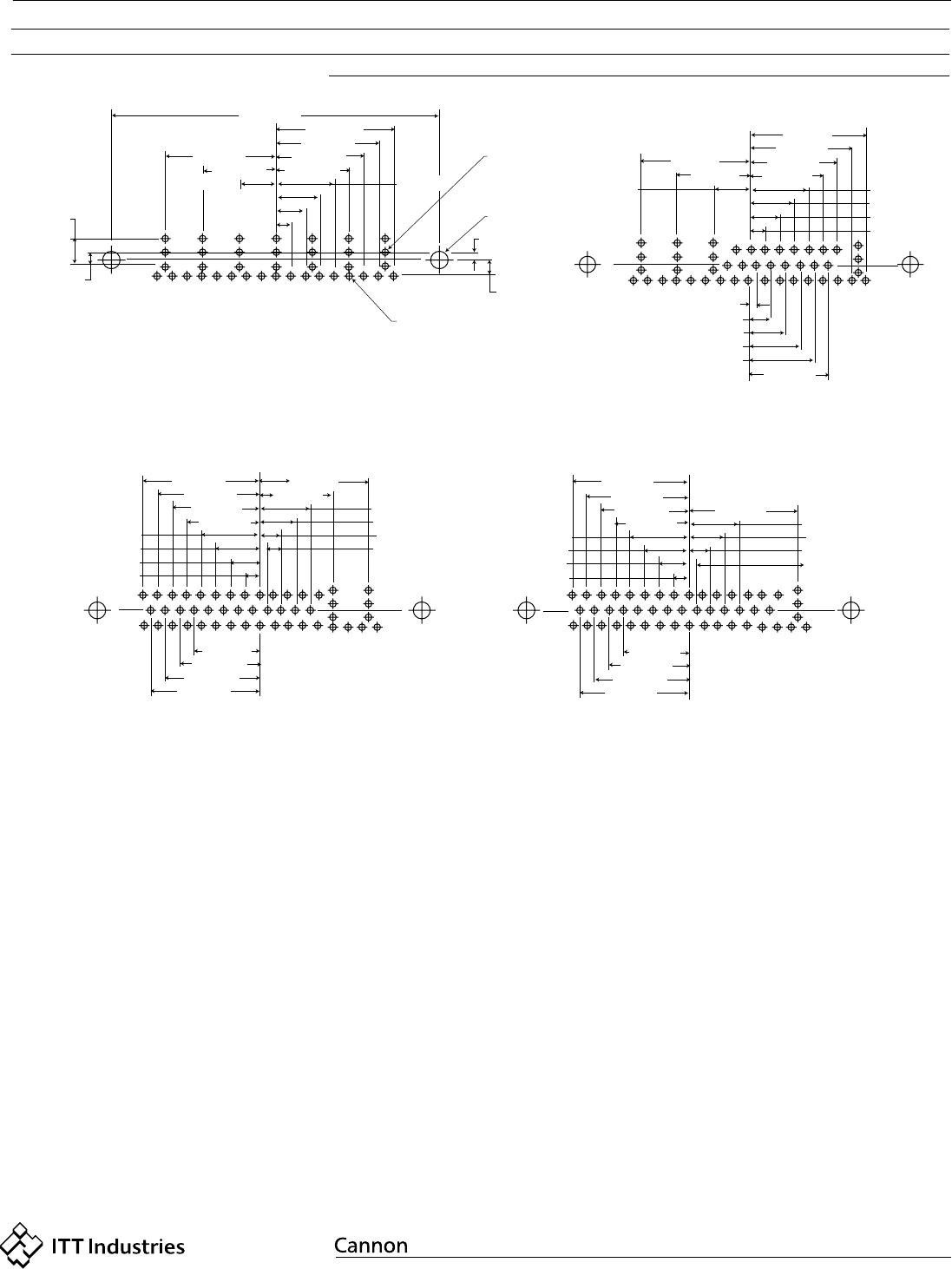

PCB Hole Patterns - Pages 354-355
Part numbers come complete with fixed, female,
signal and coaxial contacts.
PCB Hole Patterns - Pages 354-355
Part numbers come complete with fixed, male,
signal and coaxial contacts.
Dimensions
.030 +_ .003
(0.76 +_ 0.08)
DIA.
.131
(3.33)
MIN.
See Commerical D Subminiature catalog for additional Combo D options, including 75 ohm Coax.
Layout Military Non-Magnetic
NM
DE-5W1
DA-7W2
DA-11W1
DA-3W3
DB-5W5
DB-9W4
DB-13W3
DB-17W2
DB-21W1
DC-8W8
DC-13W6
DC-17W5
DC-21WA4
DC-25W3
DD-24W7
DC-27W2
DD-24W7
DD-36W4
DD-43W2
DD-47W1
DEMM5X1SM
DAMM7X2SM
DAMM11X1SM
DAMM3X3SM
DBMM5X5SM
DBMM9X4SM
DBMM13X3SM
DBMM17X2SM
DBMM21X1SM
DCMM8X8SM
DCMM13X6SM
DCMM17X5SM
DCMM21XA4SM
DCMM25X3SM
DCMM24X7SM
DCMM27X2SM
DDMM24X7SM
DDMM36X4SM
DDMM43X2SM
DDMM47X1SM
DEM5X1SM-NM-K52
DAM7X2SM-NM-K52
DAM11X1SM-NM-K52
DAM3X3SM-NM-K52
DBM5X5SM-NM-K52
DBM9X4SM-NM-K52
DBM13X3SM-NM-K52
DBM17X2SM-NM-K52
DBM21X1SM-NM-K52
DCM8X8SM-NM-K52
DCM13X6SM-NM-K52
DCM17X5SM-NM-K52
DCM21XA4SM-NM-K52
DCM25X3SM-NM-K52
DCM24X7SM-NM-K52
DCM27X2SM-NM-K52
DDM24X7SM-NM-K52
DDM36X4SM-NM-K52
DDM43X2SM-NM-K52
DDMC47X1SM-NM-K52
Layout Military Non-Magnetic
NM
DE-5W1
DA-7W2
DA-11W1
DA-3W3
DB-5W5
DB-9W4
DB-13W3
DB-17W2
DB-21W1
DC-8W8
DC-13W6
DC-17W5
DC-21WA4
DC-25W3
DC-27W2
DD-24W7
DD-36W4
DD-43W2
DD-47W1
DEMM5X1PM
DAMM7X2PM
DAMM11X1PM
DAMM3X3PM
DBMM5X5PM
DBMM9X4PM
DBMM13X3PM
DBMM17X2PM
DBMM21X1PM
DCMM8X8PM
DCMM13X6PM
DCMM17X5PM
DCMM21XA4PM
DCMM25X3PM
DCMM27X2PM
DDMM24X7PM
DDMM36X4PM
DDMM43X2PM
DDMM47X1PM
DEM5X1PM-NM-K52
DAM7X2PM-NM-K52
DAM11X1PM-NM-K52
DAM3X3PM-NM-K52
DBM5X5PM-NM-K52
DBM9X4PM-NM-K52
DBM13X3PM-NM-K52
DBM17X2PM-NM-K52
DBM21X1PM-NM-K52
DCM8X8PM-NM-K52
DCM13X6PM-NM-K52
DCM17X5PM-NM-K52
DCM21XA4PM-NM-K52
DCM25X3PM-NM-K52
DCM27X2PM-NM-K52
DDM24X7PM-NM-K52
DDM36X4PM-NM-K52
DDM43X2PM-NM-K52
DDM47X1PM-NM-K52
