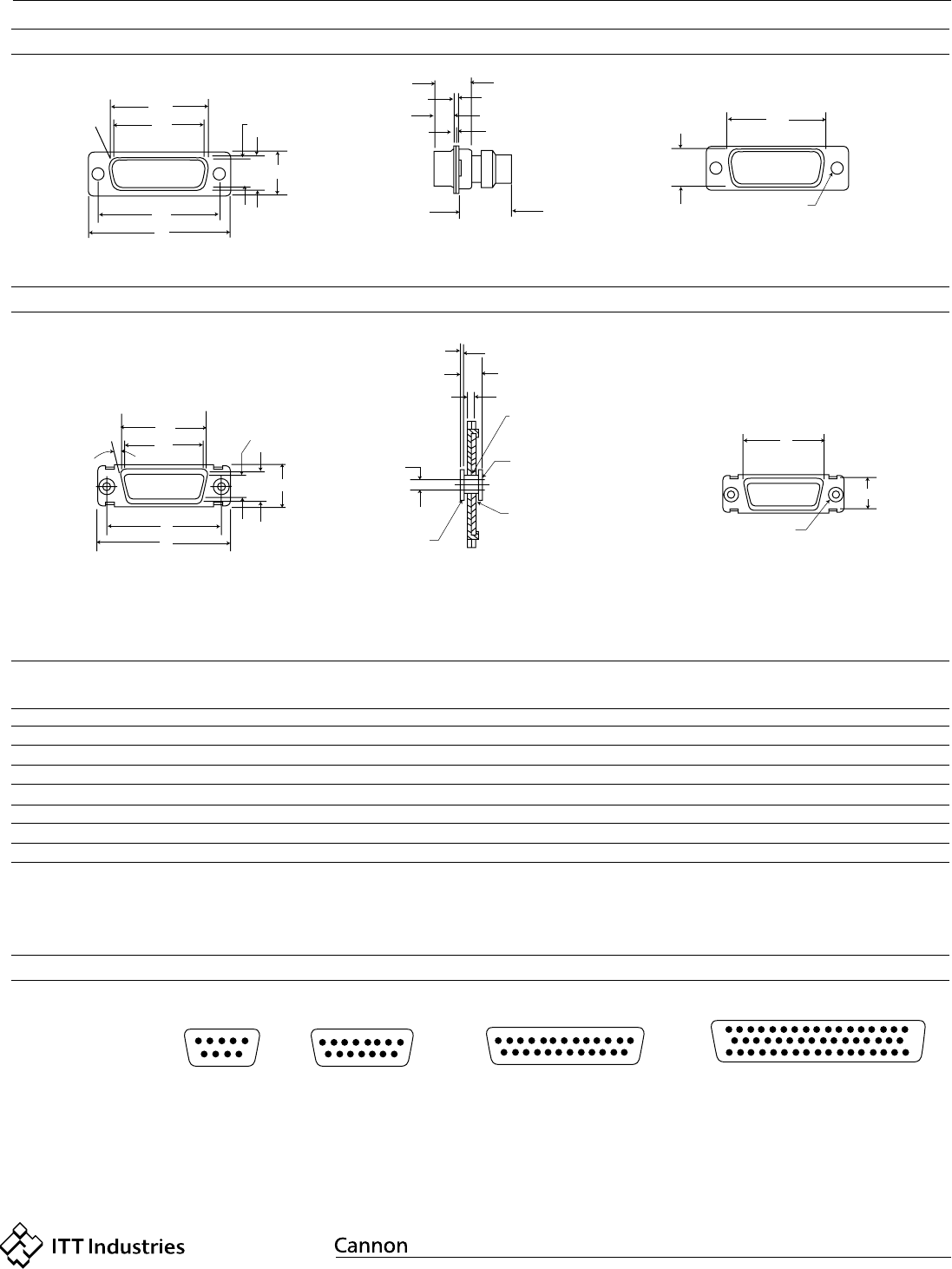

Dimensions are shown in inches (millimeters).
Dimensions subject to change.
Grommet D GD*
Test Data
Design Features
Printed Circuit Applications
CLOSED ENTRY
SOCKET
Test
Description
Moisture Resistant
Fluid Immersion
Immersion
MIL-STD-1344
Method 1002.1 Type II
1. No deterioration of performance.
2. Insulation resistance greater than 100 megohms
3. No evidence of flashover or breakdown during 1000 VAC
DWV testing.
1. No detrimental damage.
2. Able to meet requirements of mating and unmating
forces test.
While still immersed, the mated connectors exceeded 100
megohm insulator resistance and exhibited no evidence of
breakdown or flashover during 1000 VAC (RMS) DWV
testing.
20 hours immersion in hydraulic fluid per MIL-H-5606
and lubricating fluid per MIL-L-23699
Two hour Immersion tap water at a dept of 36.00
(914.40) in mated condition, per MIL-STD-810
Method 512, Procedure 1.
• Resilient silicone grommets for wire sealing
• Interfacial seals
• Closed-entry socket contacts
• Bonded components to prevent moisture
• Optional sealing plugs
• Uses M39029 type contacts and termination
tooling
• Intermateable with most M24308 type
connectors
• Rear-release crimp contacts
• LITTLE CAESAR® contact retention assembly
Test
Method Results
BONDING
BONDING
BONDING
SEALING PLUG
(OPTIONAL)
SEALING PLUG
(OPTIONAL)
SHELL
FRONT
SHELL
FRONT
PIN
CONTACT
PIN
CONTACT
INTERFACIAL
SEAL
INTERFACIAL
SEAL
EPOXY
.159 (4.04)
.136 (3.45)
.032 (0.81)
.028 (0.71)
DIA. TYP.
INSULATOR
INSULATOR
CONTACT
RETAINING
CLIP
CONTACT
RETAINING
CLIP
SHELL
REAR
SHELL
REAR
GROMMET
GROMMET
Socket Connector
Pin Connector
GD* pin connectors are available wit pre-loaded,
non-removable contacts for P.C. board termination.
Typical Part No. GDB-25PB. Environmental sealing
is accomplished by application of epoxy to each
contact cavity, interfacial seals, and bonded con-
nector components.
GD* connectors meet all applicable requirements of MIL-C-24308. The following are excerpts form
ITT Cannon Test Report C82-78 applicable to environmental D subminiature GD* series connectors. Refer
to MIL-C-24308 Test Extracts on page 385.
