www.ittcannon.com 362

Dimensions are shown in inches (millimeters).

Dimensions subject to change.

Environmental D D*D

Mounting Dimensions

Panel Cutouts

With both connectors rear mounted, ues #4-40

flat head screws flush with the panel (Fig. 1).

With both connectors front mounted, use #4-40

binder or pan head screws (Fig. 2).

With both connectors rear mounted (float rivets

on plug assembly side); use #4-40 flat head

scerws, flush with the panel (Fig. 3).

With both connecotrs front mounted (plug as-

sembly has float mounting screw), use #4-40

binder or pan head screws for receptacle as-

sembly (Fig. 4)

With plug assembly front mounted and recepta-

cle assembly rear mounted, use hardware from

Figures 5 and 6.

With plug assembly front mounted and recepta-

cle assembly rear mounted (plug assembly has

float mounting screw), use hardware fron figure

1 for receptacle assembly.

* Dimensions between panels represent the rec-

ommended limit to be used in the design of the

connector mounting method.

With plug assembly rear mounted and receptaccle

assembly front mounted, use hardware from

Figures 1 and 2.

With plug assembly rear mounted (float rivets)

and receptacle assembly front mounted, use

hardware from Figures 2 and 3.

Electrical contact engagement when mounted

per Figure 1 is .046 (1.17) min./.070(1.78) max.

.189 +_ .015˚

(4.80 +_ 0.38)

.292 +_ .010˚

(7.42 +_ 0.25)

.133 +_ .010˚

(3.38 +_ .025)

.324 +_ .010˚

(8.23 +_ 0.25)

.194 +_ .008˚

(4.94 +_ 0.19)

.230 +_ .013˚

(5.85 +_ 0.32)

.280 +_ .013˚

(7.11 +_ 0.32)

.230 +_ .013˚

(5.85 +_ 0.32)

4-40 NC2A THREAD

REAR

FRONT

PLUG

RECEPT

Figure 1 Figure 2

PLUG

RECEPT

Figure 3 Figure 4

PLUG

RECEPT

Figure 7

USE .120(3.05) DIA. HOLE OR 4-40 TAP (CUSTOMER PREFERENCE) FOR FRONT MOUNTING.

FOR REAR MOUNTING USE .120(3.05) DIA. HOLE COUNTERSUNK FOR FLATHEAD SCREW.

.083(2.11) R. MAX.

TYPICAL

Add .032 (0.81) to dimensions C and E for float mounting.

Note: Panel cutout does not allow for potting cup clearance.

Shell Size

DED-9

DAD-15

DBD-25

DCD-37

DDD-50

1.442 (36.63)

1.755 (44.58)

2.295 (58.29)

2.937 (74.60)

2.859 (72.62)

.839 (21.31)

1.157 (29.39)

1.697 (43.10)

2.357 (59.87)

2.265 (57.53)

.614 (15.60)

.735 (18.67)

.497 (12.62)

.610 (15.49)

1.125 (28.58)

1.437 (36.50)

1.993 (50.62)

2.625 (66.68)

2.531 (64.29)

+_ .010 (0.25)

+_ .006 (0.15)

Min.

Figure 8

PLUG

RECEPT

Figure 5

Figure 6

NOTE: Max panel thickness is .125 (3.17) for

non-floating rear panel mounting.

NOTE: Float rivets are for rear mounting only and

float screw for front mounting only. (Specify when

ordering.)

www.ittcannon.com 363

Dimensions are shown in inches (millimeters).

Dimensions subject to change.

Environmental D D*D

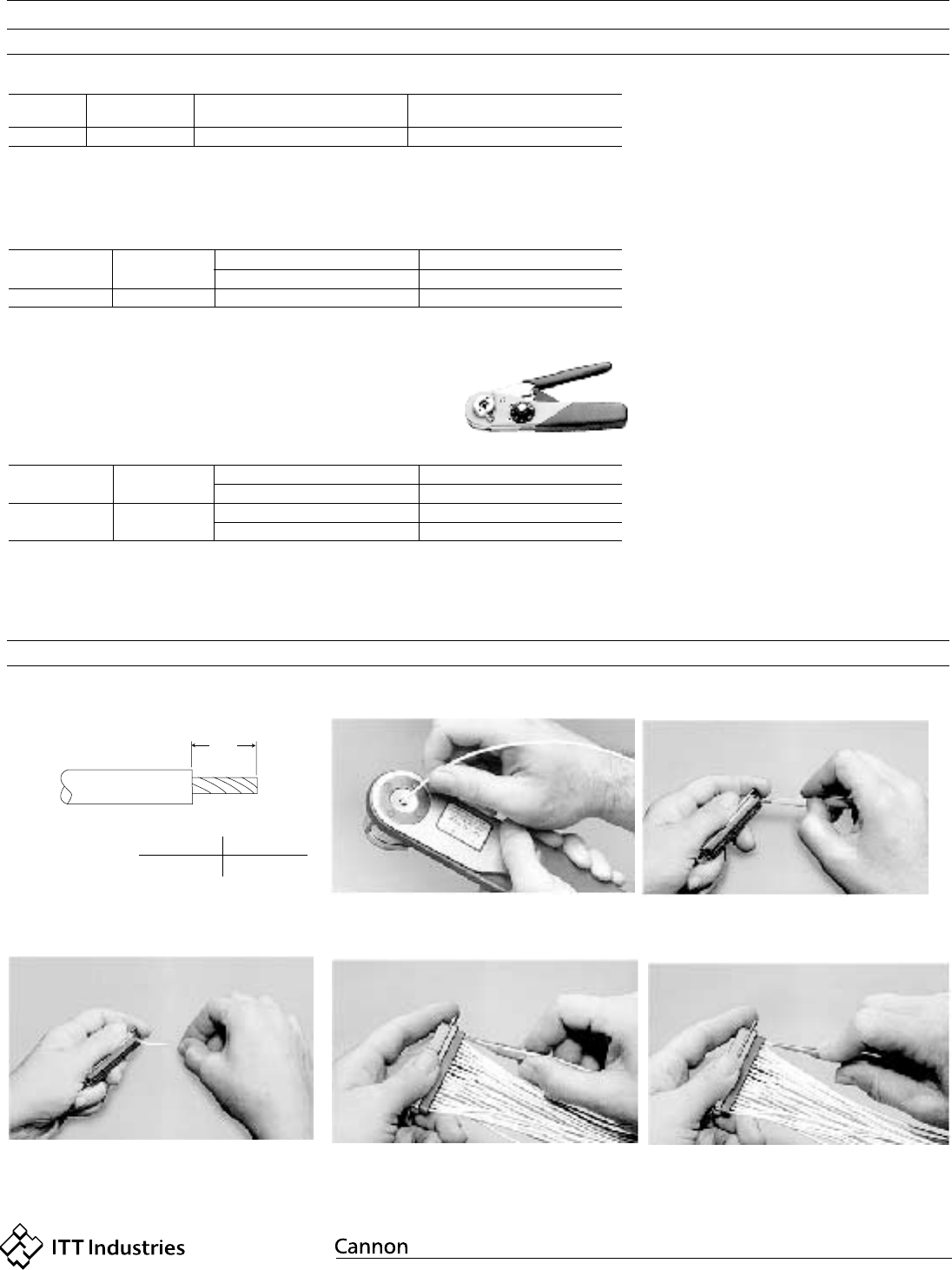

Contact Crimping Information

Assembly Instructions

Crimp Type Contacts

Contact

Size

Contact

Size AWG

Plastic Insertion/Extraction

Part No. Description

Plastic Extraction

Part No. Description

CBT-646

Machine Crimp Rage: 1300 + per hour

Power Requirements:

Products: Most ITT Cannon Commercial and Aero-

space closed-barrel contacts, wire sizes 30 thru 12

AWG. See connector line for part numbers.

Electrical = 115 Vac, 60 Hz, 5A

Pneumatic = 85 psi, 2 cu. ft. per min.

CIET-20HD

Contact

Size AWG

Crimp Tool

Part No. Description

Locator

M22520/1-01

Hand Crimp Tools

Wire Stripping-

Machined Contacts

Contact Crimping

Contact Extraction

Contact Insertion

Insertion/Extraction Tools

Semi-Automatic Crimp Machines

M22520/2-01

Part No. Description

Wire Size

Accom.

Standard Finish

20 20, 22, 24

Min. Max.

.188 (4.78) .208 (5.28)

20, 22, 24

995-0001-584

995-0001-585

M22520/2-01

M22520/1-01

995-0001-604

995-0001-244

M22520/2-08

TH25

980-2000-426 CIET-20HD CET-20-11323-7010-000

330-5291-015 031-1007-000 330-5291-079 031-1007-042

Socket

Military Finish

Pin Socket

The CBT-646, Vibra-Bowl Crimper is a pneumat-

ically powered, electoronically controlled machine. It

is designed to semi-automatically crimp closed

barrel, machined contacts, as used in the aerospace

and commercial industries. The machine will ac-

commodate wire sizes 30 thru 12 AWG. The

CBT-646 is actuated automatically upon insertion

of a pre-stripped stranded or single conductor wire.

The CBT-646 meets all Mil. Spec. requirements for

crimping closed barrel contacts.

1. Cut wires to length. Strip insulation per above illustration. Check

for broken or frayed wires.

4. To be sure contact is locked securely, pull back lightly on wire.

Repeat for balance of contacts working row by row across the

insulator.

5. Place wire into extraction tool tip. 6. Insert tool tip into contact cavity until tip bottoms against contact

shoulder, releasing tines. Hold wires against tool with finger and

remove tool and contact. Repeat for balance of contacts.

2. Insert contact and wires into poper crimp tool (and locator, if

required). Crimp contact to wires. Inspect crimp.

3. Center wired contact in groove of insertion tool with tool tip

butting contact shoulder. Insert contact into cavity until a positive

stop is felt. Inspection insertion.

www.ittcannon.com 364

Dimensions are shown in inches (millimeters).

Dimensions subject to change.

Grommet D GD*

Performance and Material Specifications

How to Order

Environmental Protection

MIL-C-24308 Compatibility

Reliability and Versatility

Shell

Wire Accommondation - Contact: #20, #22, #24 AWG.

Contact Retention - 9 lbs. minimum (40n) after 10 insertions.

Test Voltage AC RMS 60 Hz

Average Flashover

Test

Maximum Current Carrying Capacity of Contacts - #20 Contacts: 5 Amps

Temperature Range - -65˚C to +150˚C (-53.9˚F to +302˚F)

1,000

Sea Level

SERIES PREFIX

GD B 25 P * *-

SHELL SIZE

SERIES PREFIX

GD - Grommet D No Designator - .120 (3.05) Diameter Mounting

Holes

Y - Float Mount for Rear and Front Panel

Mounting

P - Pin, crimp termination

S - Socket, crimp termination

PB - Pin, Printed circuit termination with no-

removable straight tails for .125 (3.18)

maximum P.C. Board thickness

F0 - Connectors supplied Less Contacts

A156 - Connectors supplied with contacts plat-

ed per MIL-G-45204 Type II Class 1

over coper per MIL-C-14550 (M24308

Finish)

9, 15, 25, and 50

E, A, B, D

SHELL SIZE

MOUNTING TYPE

CONTACT ARRANGEMENT

MOUNTING TYPE

CONTACT ARRANGEMENT

CONTACT TYPE

MODIFICATION

CONTACT TYPE

MODIFICATIONS (Typical Modifiers)

20,000 Ft. 50,000 Ft. 70,000 Ft.

1,000

650

500

325

500

325

Wire O.D. .071 (1.80) maximum, .038 (0.97) minimum.

Materials Finishes

Insulator

Contacts

Float Mount Hardware

Grommets and Seals

Bonding Materials

Low carbon steel per ASTM-A-620

Diallyl phthalate per MIL-M-14

type SDF-F or GDI-30F

Copper alloy

Stainless steel

Silicone elastomer or Fluorosilicone

Epoxy

Yellow chromate over cadmium per QQ-P-416,

Type II, Class 2

Standard finish: Gold over nickel

Military Finish: Gold 50 microinches thickness

per MIL-G-45204, Type II, Grade C, Class 1,

over copper per MIL-C-14550

Passivated per QQ-P-35

MATERIALS AND FINISHES

MECHANICAL FEATURES

ELECTRICAL DATA

GD* connectors are ideal for aerospace, military,

telecommunications and other applications requir-

ing environmental protection and high reliability.

ITT Cannon developed GD* connectors to meet the

needs of the avionics industry. These connectors

provide high-density and moisture protection.

Environemental protection is accomplished by the

resilient grommet, interfacial seal, and bonded

connector components.
