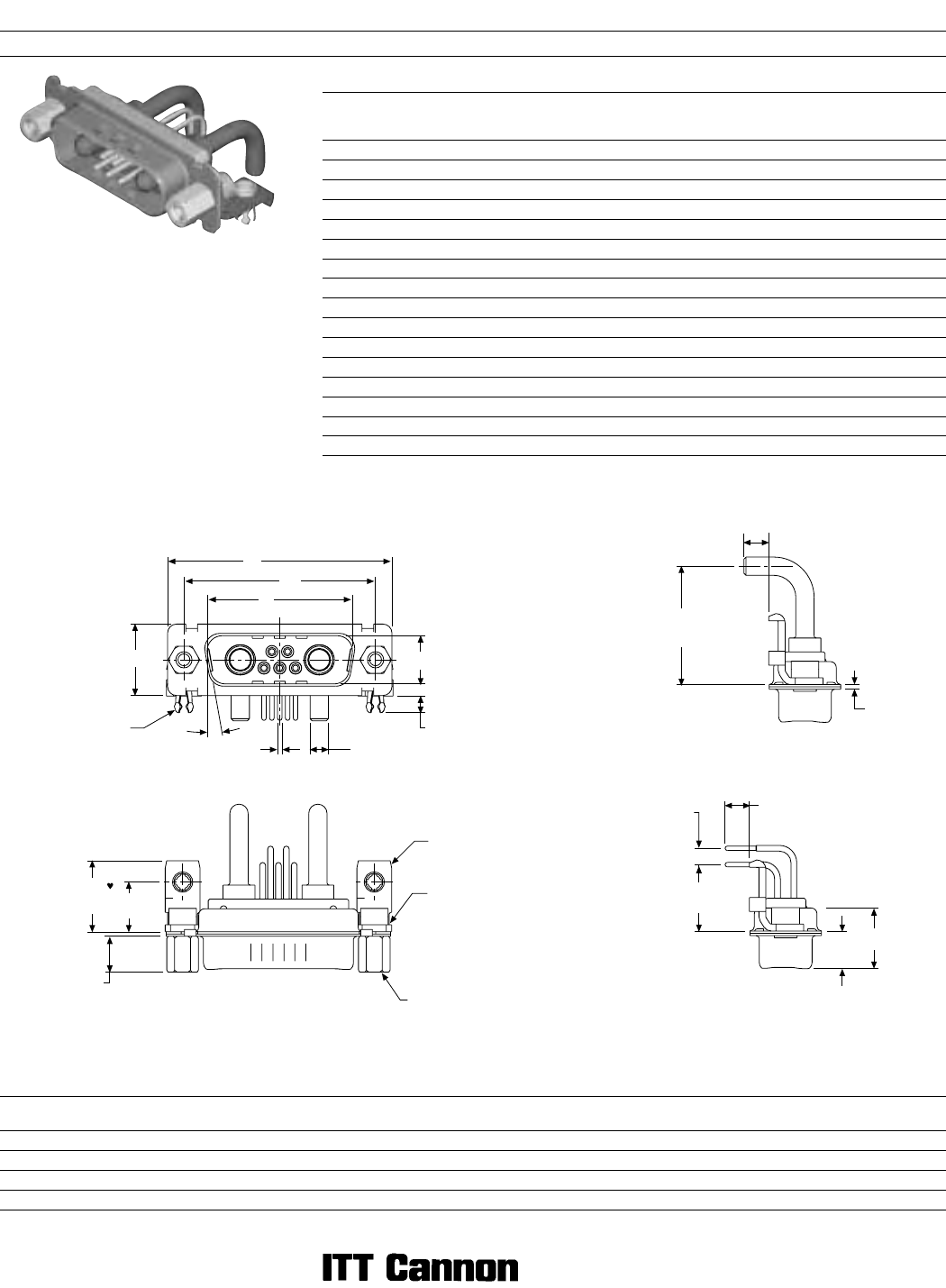

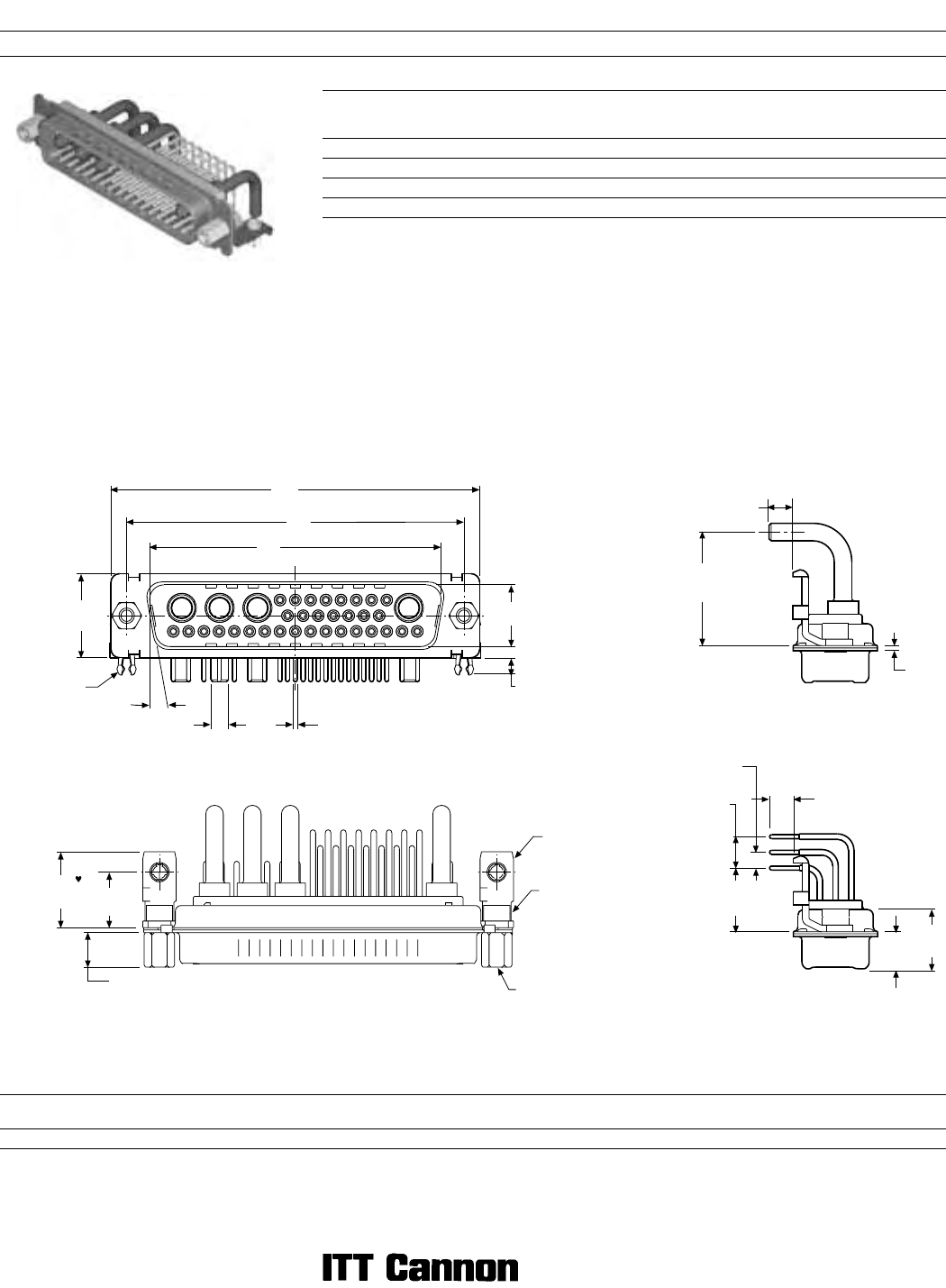

D Subminiature Combo D
40 A High Power 90° — Standard Footprint .489
ɍ
or .454 inch
ɍɍ
(Sizes DE-DC)
Part Numbers with Metal Bracket and Rivnut #4-40 UNC
Shell Size Layout
Part Number
Without Screw Locks
Without Boardlocks
Part Number
Without Screw Locks
With Boardlocks
Part Number
With Screw Locks
Without Boardlocks
Part Number
With Screw Locks
With Boardlocks
DE 5W1 DEMP5H1SJA197 DEMC5H1SJA197 DEMD5H1SJA197 DEMG5H1SJA197
DA 7W2 DAMP7H2SJA197 DAMC7H2SJA197 DAMD7H2SJA197 DAMG7H2SJA197
DA 11W1 DAMP11H1SJA197 DAMC11H1SJA197 DAMD11H1SJA197 DAMG11H1SJA197
DA 3W3 DAMP3H3SJA197 DAMC3H3SJA197 DAMD3H3SJA197 DAMG3H3SJA197
DA 3WK3ឮ DAMP3HK3SJA197TM DAMC3HK3SJA197TM DAMD3HK3SJA197TM DAMG3HK3SJA197TM
DB 5W5 DBMP5H5SJA197 DBMC5H5SJA197 DBMD5H5SJA197 DBMG5H5SJA197
DB 9W4 DBMP9H4SJA197 DBMC9H4SJA197 DBMD9H4SJA197 DBMG9H4SJA197
DB 13W3 DBMP13H3SJA197 DBMC13H3SJA197 DBMD13H3SJA197 DBMG13H3SJA197
DB 17W2 DBMP17H2SJA197 DBMC17H2SJA197 DBMD17H2SJA197 DBMG17H2SJA197
DB 21W1 DBMP21H1SJA197 DBMC21H1SJA197 DBMD21H1SJA197 DBMG21H1SJA197
DC 8W8 DCMP8H8SJA197 DCMC8H8SJA197 DCMD8H8SJA197 DCMG8H8SJA197
DC 13W6 DCMP13H6SJA197 DCMC13H6SJA197 DCMD13H6SJA197 DCMG13H6SJA197
DC 17W5 DCMP17H5SJA197 DCMC17H5SJA197 DCMD17H5SJA197 DCMG17H5SJA197
DC 21WA4 DCMP21HA4SJA197 DCMC21HA4SJA197 DCMD21HA4SJA197 DCMG21HA4SJA197
DC 25W3 DCMP25H3SJA197 DCMC25H3SJA197 DCMD25H3SJA197 DCMG25H3SJA197
DC 27W2 DCMP27H2SJA197 DCMC27H2SJA197 DCMD27H2SJA197 DCMG27H2SJA197
Note: For contacts with 30 microinches of gold substitute K126 for A197. Example: DEMP5H1SJK126
For DD shell sizes, see page 63.
ឮ Keyed.
Dimensions
Shell Size
A
±0,38 (.015)
B
±0,13 (.005)
C
±0,13 (.005)
D
±0,13 (.005)
E
±0,38 (.015)
F
±0,25 (.010)
W
±0,38 (.015)
L
±0,25 (.010)
DE 30,81 (1.213) 16,33 (.643) 24,99 (.984) 7,90 (.311) 12,55 (.494) 10,90 (.429) 6,94 (.273) 0,76 (.030)
DA 39,14 (1.541) 24,66 (.971) 33,32 (1.312) 7,90 (.311) 12,55 (.494) 10,90 (.429) 6,94 (.273) 0,76 (.030)
DB 53,04 (2.088) 38,38 (1.511) 47,04 (1.852) 7,90 (.311) 12,55 (.494) 10,90 (.429) 6,94 (.273) 0,76 (.030)
DC 69,32 (2.729) 54,84 (2.159) 63,50 (2.500) 7,90 (.311) 12,55 (.494) 10,90 (.429) 6,94 (.273) 0,76 (.030)
ɍ Connector footprint measured from the front shell.
ɍɍ Connector footprint measured from the rear shell.
2,92
(.115)
Ø 0,76
(.030)
L
20,57 ± 0,38
(.810 ± .015)
3,89 (.153)
MIN.
4,33 ± 0,38
(.170 ± .015)
2,84
(.112)
11,53 ± 0,25
(.454 ± .010)
W
F
Screw lock, boardlock, and signal contacts
removed for clarity
Screw lock, boardlock, and high power contact
removed for clarity
Receptacle
Engaging Face
Reader’s Resource
ɀ For contact cavity arrangements,
see page 223.
ɀ For P.C. hole patterns, see pages 247-248.
ɀ For panel cutouts, see page 221.
ɀ For alternate bracket configuration (when
connectors are supplied without boardlocks),
see page 226.
Note: ɋ Dimension varies with alternate bracket configuration, see Reader’s Resource page 226.
SCREW LOCK
#4-40 UNC
BRACKET,
METAL
RIVNUT
#4-40 UNC
12,34
(.486)
8,64
(.340)
6,50 ± 0,25
(.256 ± .010)
