Part Number:
0876675001
Status:
Active
Overview: extreme_powerplus_ssi
Description: 6.35mm (.250") Pitch Power, 2.54mm (.100") Pitch Signal, EXTreme PowerPlus™ S-Pb
Header, Through Hole, Right Angle, with Beveled Metal Pins, Short Blade, 38 Circuits,
Signal 24, Power Beta 14, No Recessed Signal Pin, Lead-free
Documents:
3D Model Product Specification PS-87631-006 (PDF)

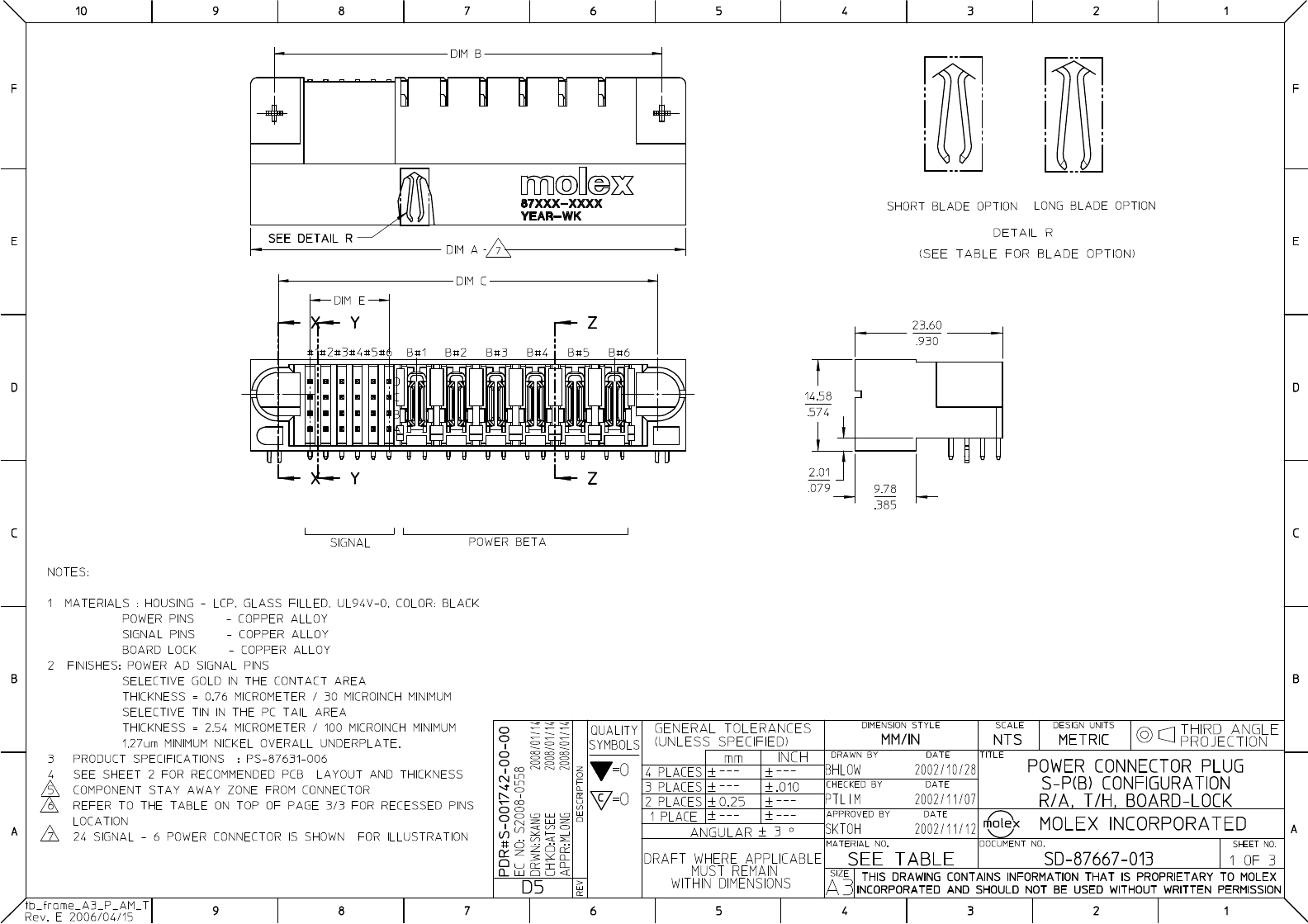

Drawing (PDF) RoHS Certificate of Compliance (PDF)
General
Product Family PCB Headers
Series 87667
Application Board-to-Board
Comments <LI>Short Blade|<LI>No Recessed Signal Pin
Overview extreme_powerplus_ssi
Product Literature Order No 987650-3002
Product Name EXTreme PowerPlus™
Physical
Breakaway No
Circuits (Loaded) 38
Circuits Detail Signal 24, Power Beta 14
Color - Resin Black
Durability (mating cycles max) 100
First Mate / Last Break No
Glow-Wire Compliant No
Guide to Mating Part Yes
Keying to Mating Part Yes
Lock to Mating Part Yes
Material - Metal Copper Alloy
Material - Plating Mating Gold
Material - Plating Termination Tin
Material - Resin High Temperature Thermoplastic
Number of Rows 4
Orientation Right Angle
PC Tail Length (in) 0.135 In
PC Tail Length (mm) 3.43 mm
PCB Locator No
PCB Retention Yes
PCB Thickness Recommended (in) 0.062 In
PCB Thickness Recommended (mm) 1.57 mm
Packaging Type Tray
Pitch - Mating Interface (in) 0.100 In, 0.250 In
Pitch - Mating Interface (mm) 2.54 mm, 6.35 mm
Pitch - Term. Interface (in) 0.100 In, 0.125 In, 0.150 In, 0.250 In
Pitch - Term. Interface (mm) 2.54 mm, 3.18 mm, 3.81 mm, 6.35 mm
Plating min: Mating (µin) 30
Plating min: Mating (µm) 0.76
Plating min: Termination (µin) 100
Plating min: Termination (µm) 2.54
Polarized to Mating Part Yes
Polarized to PCB Yes
Shrouded Fully
Stackable No
Series
image - Reference only
EU RoHS China RoHS
ELV and RoHS
Compliant
REACH SVHC
Not Reviewed
Halogen-Free
Status
Halogen-Free
Need more information on product
environmental compliance?
Email productcompliance@molex.com
For a multiple part number RoHS Certificate of
Compliance, click here
Please visit the Contact Us section for any
non-product compliance questions.
Search Parts in this Series
87667Series
Mates With
87668 EXTreme PowerPlus™ S-Pb
Receptacles with Beveled Metal Pins. 87710
EXTreme PowerPlus™ S-Pb Receptacles
with Press-fit PC Tail
