Part Number:
0430251200
Status:
Active
Overview: microfit_30
Description: 3.00mm (.118") Pitch Micro-Fit 3.0™ Receptacle Housing, Dual Row, 12 Circuits
Documents:
3D Model Product Specification PS-43045 (PDF)
Drawing (PDF) RoHS Certificate of Compliance (PDF)
Agency Certification
CSA LR19980
TUV R72081037
UL E29179
General
Product Family Crimp Housings
Series 43025
Comments Glow Wire Equivalent Part Number 430251208.
Polarized to Mating Part
Overview microfit_30
Product Literature Order No USA-106
Product Name Micro-Fit 3.0™
Physical
Circuits (maximum) 12
Circuits Detail 12
Color - Resin Black
Flammability 94V-0
Gender Female
Glow-Wire Compliant No
Keying to Mating Part None
Lock to Mating Part Yes
Material - Resin Polyester
Number of Rows 2
Packaging Type Bag
Panel Mount No
Pitch - Mating Interface (in) 0.118 In
Pitch - Mating Interface (mm) 3.00 mm
Polarized to Mating Part Yes
Stackable No
Temperature Range - Operating -40°C to +105°C
Electrical
Current - Maximum per Contact 5A
Material Info
Reference - Drawing Numbers
Packaging Specification PK-43025-001
Product Specification PS-43045, RPS-43045-003, RPS-43045-004

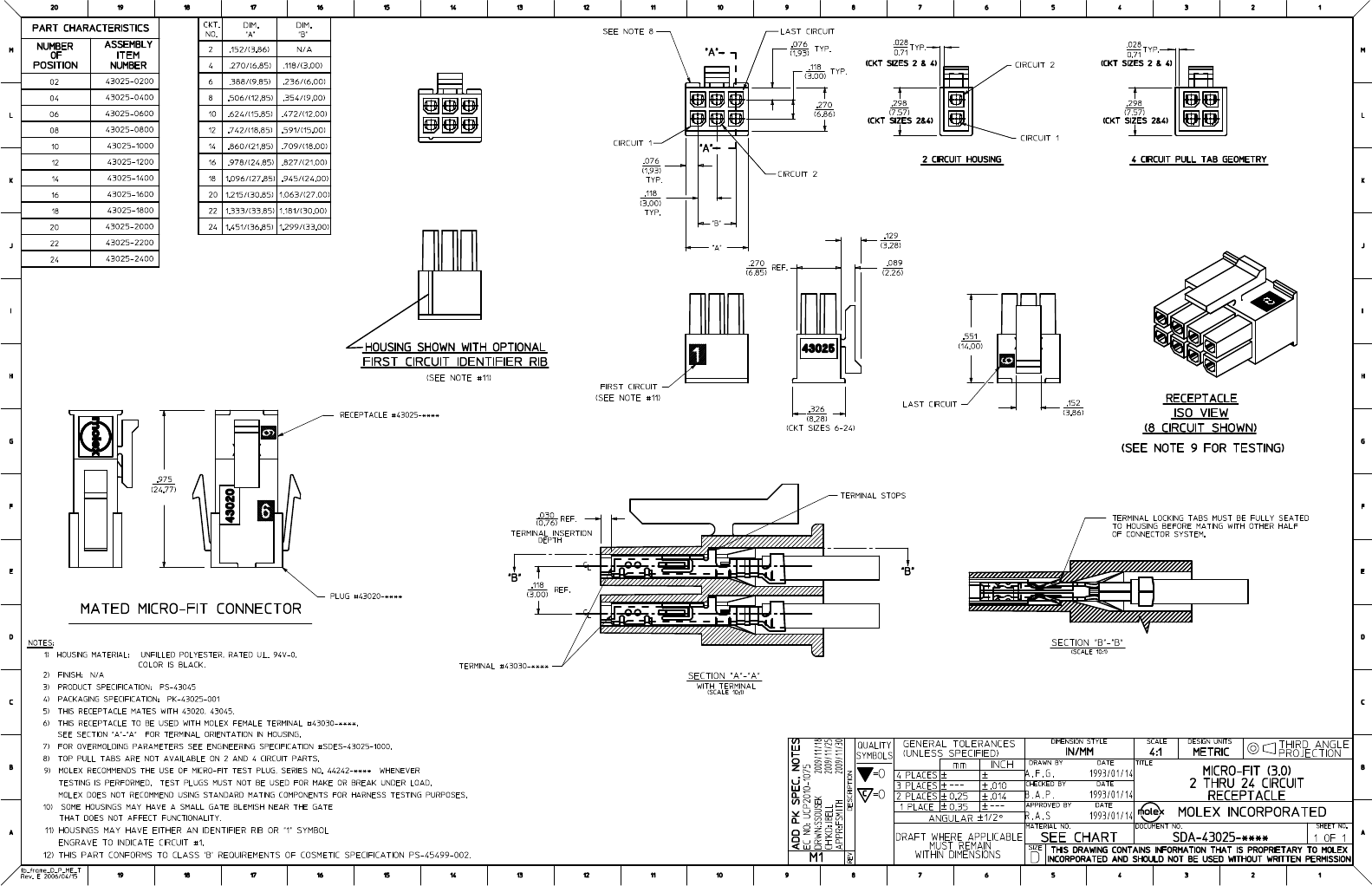

Sales Drawing SDA-43025-****
Test Summary TS-43045-001
Series
image - Reference only
EU RoHS China RoHS
ELV and RoHS
Compliant
REACH SVHC
Contains SVHC: No
Halogen-Free
Status
Not Halogen-Free
Need more information on product
environmental compliance?
Email productcompliance@molex.com
For a multiple part number RoHS Certificate of
Compliance, click here
Please visit the Contact Us section for any
non-product compliance questions.
Search Parts in this Series
43025Series
Mates With
Micro-Fit 3.0™ Plug Housing 43020. Micro-
Fit 3.0™ Header 43045. Micro-Fit 3.0™ Test
Plug 44242
Use With
Micro-Fit 3.0™ Crimp Terminal 43030
