A
DATEREV
REVISIONS
CHANGE
B
CHNG CHCK
C
D
6
54
DIMENSIONS ARE IN MILLIMETERS
ALL DIMENSIONS FOR REFERENCE ONLY
Phone: 973 560-0019 Whippany, New Jersey Fax: 973 560-0076
DRAWN
CHECK
APPR
BY
BY
BY
DATE:
DATE:
DATE:
NTS
SCALE:
SIZE:
PART #:
A
PART:
REV:
3 2
1
TOLERANCE
UNLESS OTHERWISE SPECIFIED
X ± 1
X.X ± 0.4
X.XX ± 0.20
APPR
1 of 1
SHEET

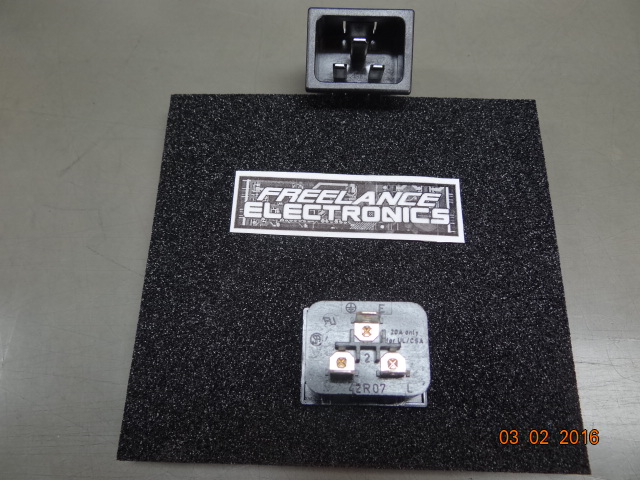

16/20A IEC 60320 APPL. INLET; QC
TERMINALS; SNAP-IN, PANEL MOUNT
42R07-3X2X-XXX
C
GQ
08/24/01
TD
08/29/01
PB
08/29/01
MATERIAL AND FINISH:
Insulator: Polycarbonate, UL-94V-0 rated
Contacts: Brass, Nickel plated
ELECTRICAL SPECIFICATIONS:
Current rating: 16 A
Voltage rating: 250 VAC
Current rating: 20 A
Voltage rating: 250 VAC
Insulation resistance: 100 Mohm min. at
500 VDC
Dielectric withstanding voltage: 2000 VAC
for one minute
D E
V
36.0±0.2
E
32.4
L
42R07N
28.0±0.2
33.0
+0.2
RECOMMENDED
PANEL CUTOUT
25.0
+0.2
A
+0.2
3.0
REPLACE WITH
CORRESPONDING
PANEL THICKNESS
21
X.X
3X 2.00±0.05
6.0±0.1
29.0
+0.5
21.0
+0.5
8.0±0.2
5.0±0.1
13.0±0.2
AVAILABLE ON REQUEST
ADDITIONAL PANEL THICKNESS
P/N
42R07-3X2X-250
42R07-3X2X-200
42R07-3X2X-150
2.5
2.0
1.5
A
MAX. PANEL THICKNESS
2.5
2.0
1.5
ORDERING CODE:
42R07-3 __ 2 __ - __ __ __
1 2 3
1) COLOR
1 = BLACK
2 = GRAY
2) ELECTRICAL CIRCUIT
CONFIGURATION
1 = 20A 250V 70°C
2+GROUND
2 = 20A 250V 155°C
2+GROUND
3 = 20A 250V 70°C
2 POLE
3) PANEL THICKNESS
R4.5
+0.2
TYP.
0.80
24.4
Ø1.65
6.3
10.0±0.5
13
10
14
5
A
11/24/04
ADD 13.0, 9.7, 13.6, 5.0 DIM TD
PB
PB
B
12/2/04
CHG REF DIM TO DIM TD
PB
PB
C
8/3/07
2 POLE ORDERING CODE WAS 4
PB
