Part Number:
0003061032
Status:
Active
Overview: standard_062

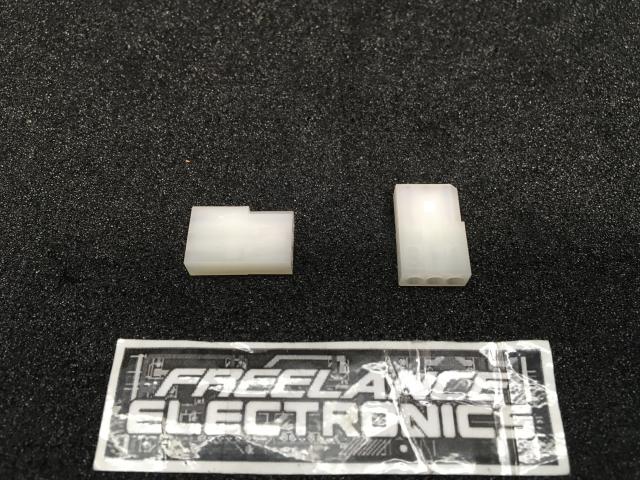

Description: 1.57mm (.062") Diameter Standard .062 Pin and Socket Receptacle Housing, 3
Circuits, Without Mounting
Documents:
3D Model Product Specification PS-02-06 (PDF)
Drawing (PDF) RoHS Certificate of Compliance (PDF)
Packaging Specification (PDF)
Agency Certification
CSA LR19980
TUV R72081037
UL E29179
General
Product Family Crimp Housings
Series 1625
Comments Polarized to Mating Part
Overview standard_062
Product Name Standard .062"
Physical
Breakaway No
Circuits (maximum) 3
Circuits Detail 1x3
Color - Resin Natural
Flammability 94V-2
Gender Receptacle
Glow-Wire Compliant No
Keying to Mating Part None
Lock to Mating Part Yes
Material - Resin Nylon
Number of Rows 1
Packaging Type Bag
Panel Mount No
Pitch - Mating Interface (in) 0.145 In
Pitch - Mating Interface (mm) 3.68 mm
Pitch - Term. Interface (in) 0.145 In
Pitch - Term. Interface (mm) 3.96 mm
Polarized to Mating Part Yes
Stackable No
Temperature Range - Operating -40°C to +105°C
Electrical
Current - Maximum per Contact 5A
Material Info
Old Part Number 1625-3R1
Reference - Drawing Numbers
Packaging Specification PK-1625-001
Product Specification PS-02-06
Sales Drawing SD-1625-3*
Series
image - Reference only
EU RoHS China RoHS
ELV and RoHS
Compliant
REACH SVHC
Contains SVHC: No
Halogen-Free
Status
Halogen-Free
Need more information on product
environmental compliance?
Email productcompliance@molex.com
For a multiple part number RoHS Certificate of
Compliance, click here
Please visit the Contact Us section for any
non-product compliance questions.
Search Parts in this Series
1625Series
Mates With
1625 Plug
Use With
Female Crimp Terminals 1561Link:4559
, 4529 , 2190 , 2189 , 1787 , 1855 . Male
Crimp Terminals 1560 , 1786 , 1854. 1778
Male PC Tail Terminals. 1779 Female PC
Tail Terminals
