3.13.2 Programming with AVR JTAG ICE
The AT90USB1287 can be programmed using specific the JTAG link. This sub-section will explain
how to connect and use the AVR JTAG ICE.
Note: When the JTAGEN fuse is disabled, the four TAP pins are normal port pins, and the TAP
controller is in reset. When the JTAGEN fuse is enabled, the input TAP signals are
internally pulled high. This enables the JTAG for Boundary-scan and programming. The
AT90USB1287 device is shipped with this fuse programmed.

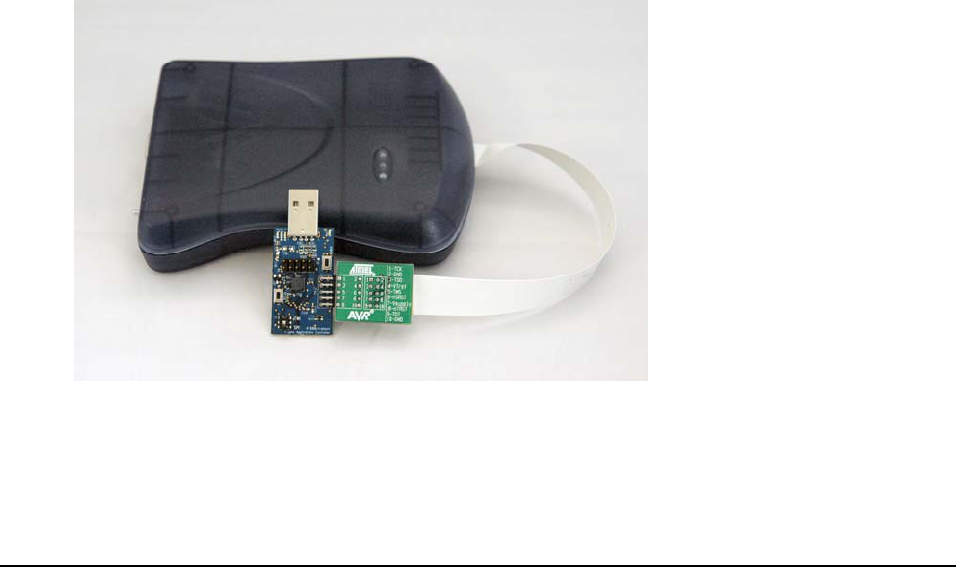

Figure 20. Connecting AVR JTAGICE mkII to the AT88Microbase
The Flash, EEPROM and all Fuse and Lock Bit options ISP-programmable, can be programmed
individually or with the sequential automatic programming option.
Note: See AVR Studio® on-line Help for information.
3.14 Debugging
3.14.1 Debugging with AVR JTAG ICE mkII
Every AT88CK109STK3 can be used for debugging with JTAG ICE MK II.
Connect the JTAG ICE mkII as shown in Figure 20, for debugging help; please refer to AVR
Studio® Help information.
AT88SCK109STK3
3-18 AT88CK109STK3 User Guide
8699A—CRYPTO—10/09
When using JTAG ICE MK II for debugging, and as AT90USB1287 parts are factory configured
with the higher security level set, a chip erase operation will be performed on the part before
debugging. Thus the on-chip flash bootloader will be erased. It can be restored after the debug
session using the bootloader hex file available from ATMEL website.
3.15 Test Points
There are 4 test points implemented, these test points are referenced in the full schematics section.
VCC, AT88CK109BK3
GND AT88CK109BK3
HOST signal pin AT88CK109BK3 INTERCONNECT Header
CLIENT signal pin AT88CK109BK3 INTERCONNECT Header
AT88CK109STK User Guide 4-1
8699A—CRYPTO—10/09
Section 4
Troubleshooting Guide
Table 4. Troubleshooting Guide
Problem Reason Solution
The blue Power LED is not on. USB Port of AT88Microbase is not
connected to PC.
Connect AT88Microbase USB port
to PC's USB port.
The JTAG header is not connected
to JTAG programmer.
Connect the JTAG header to the
JTAG programmer.
The memory lock bits are
programmed.
Erase the memory before
programmed.
Reset disable fuse is set. Check reset disable fuse.
Programming too fast with ISP SPI Check oscillator settings and make
sure it is not set higher than SPI
clock
USB Port of AT88Microbase is not
connected to PC (programmed
through USB).
Connect AT88Microbase USB port
to PC's USB port.
AT88Microbase is not in DFU mode.
Press and hold the “HWB” push
button.
Press the “RESET” push button.
Release the “RESET” push
button.
Release the “HWB” push button.
The AVR device cannot be
programmed.
The communication medium in FLIP
hasn't been selected
From the FLIP menu, select
“Settings > Communication > USB”.
AVR Studio does not detect
JTAG or ISP programmer.
JTAG or ISP programmer is not
connected or power is off.
Connect JTAG programmer to
JTAG header or ISP programmer to
ISP header and check power
connections.
FLIP program not working. AT88Microbase is not in DFU mode. JTAG to load the bootloader and set
(check) the HWBE fuse.
Correct fuse settings:
Reading fuses address 0 to 2..
0xDE, 0x99, 0xF3
