PBC02DAAN

Part # PBC02DAAN
Description CONN HEADER .100 DUAL STR 4POS
Category CONNECTOR
Availability Out of Stock
Qty 0
Qty Price
1 + $0.36050



Technical Document


DISCLAIMER: The information provided herein is solely for informational purposes. Customers must be aware of the suitability of this product for their application, and consider that variable factors such as Manufacturer, Product Category, Date Codes, Pictures and Descriptions may differ from available inventory.

AT88SCK109STK3
3-8 AT88CK109STK3 User Guide
8699A—CRYPTO—10/09
3.4 AT90USB1287 AVR Microcontroller
To use the USB interface of the AT90USB1287, the clock source should always be a crystal or an
external clock oscillator (the internal 8MHz RC oscillator cannot be used to operate the USB
interface). Only the following crystal frequencies allow proper USB operations: 2MHz, 4MHz,
6MHz, 8MHz, 12MHz, and 16MHz. The AT88Microbase comes with a default 16MHz crystal
oscillator, which is required to obtain the 230.4K USART baud rate needed for
CryptoAuthentication communication.
3.5 Serial Links
3.5.1 USB
The AT88Microbase is supplied with a standard USB Type-A receptacle. The AT88Microbase only
operates as an “USB device”.
Figure 6. USB Type-A Receptacle
3.5.2 USART
The AT90USB1287 AVR comes with an on-chip USART peripheral (USART1). Only the
asynchronous mode is supported. See section 3.6.3 for pinout details.
3.5.3 SPI / TWI Selector Switch
The SPI – TWI selector switch (K1) allows either the SPI pins (MOSI and SCLK) or the TWI pins
(SDA and SCL) to be routed to the 10 pin Interface header, J1. See section 3.6.3 for pinout details.
Figure 7. TWI – SPI Selector Switch
3.6 On-board Resources
3.6.1 Description of LED Bank
The AT88Microbase includes 3 general purpose red LEDs, which are connected to PD6, PD5 and
PD4. To light an LED, the corresponding port pin must be driven high. To turn off an LED, the
corresponding port pin must be driven low.
Figure 8. LEDs Implementation Schematic
Note: AVR can source or sink enough current to drive an LED directly.
3.6.2 Buzzer
The small onboard buzzer adds audio capability to the AT88Microbase board. The buzzer requires
that PD7 be driven with a square wave at
4.0 0.5
KHz to achieve a maximum decibel of 78dB.
SPI
TWI
SPI
TWI
K1
TWI Position
K1
SPI Position
AT88SCK109STK3
3-10 AT88CK109STK3 User Guide
8699A—CRYPTO—10/09

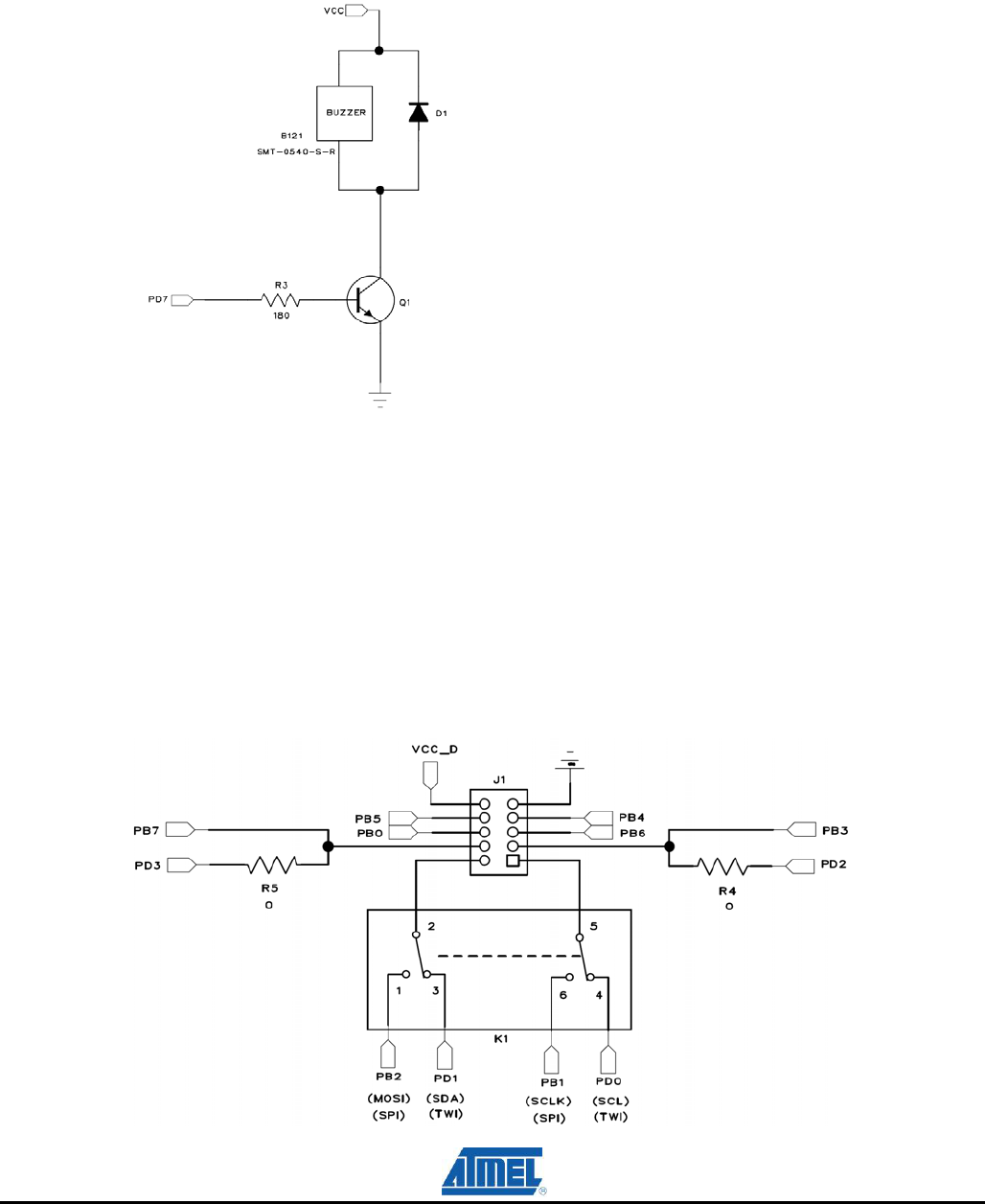

Figure 9. Buzzer Implementation Schematic
Brief Spec:
Input Signal: Square Wave
Resonant frequency:
4.0 0.5
KHz
Sound Pressure Level: 78dB
3.6.3 Description of the Interface Header
The 10-Pin header (J1) of the AT88Microbase provides interfacing for daughter boards.
Figure 10. 10-Pin Interface Header
