AMPLIMITE Subminiature D Connectors
Note: All part numbers are RoHS compliant.
Cable Connectors
HDP-22 Crimp Snap-In Contact Connectors (Continued)
Basic Shielding
Hardware Kits
Each kit contains:
■ Connector
■ Inner shield
■ Outer shield
Contacts and ferrules must be purchased
separately.
Material and Finish:
Connector Shell—Steel, tin plated
Connector Insert—94V-0 rated ther-
moplastic, black
Shields—Steel, tin plated
Related Product Data:
Contact Arrangements—page 40
Performance Characteristics—
page 41
Contacts—page 109
Ferrules—page 108
Application Tooling—pages 108 &
109
Mateable Connectors—
pages 105 & 107
Mating Hardware—pages 146-150,
153, 155
Mating/Panel Mounting—page 42
Technical Documents:
Application Specifications—
114-10001
Product Specification—108-1268
Instruction Sheet—408-9381,
408-9010
Note:
Instruction Sheets for TE Tooling are
packaged with the tooling. For additional
information call the Tooling Assistance Center:
1-800-722-1111
.
Plug
Receptacle
Notes: 1. Plugs accept size 22 DF pin contacts and receptacles accept size 22 DF socket contacts.
2. Components of the kits are shipped unassembled and bulk-packaged in quantities of 100 pieces.
†Maximum cable diameter after jacket and braid removed.

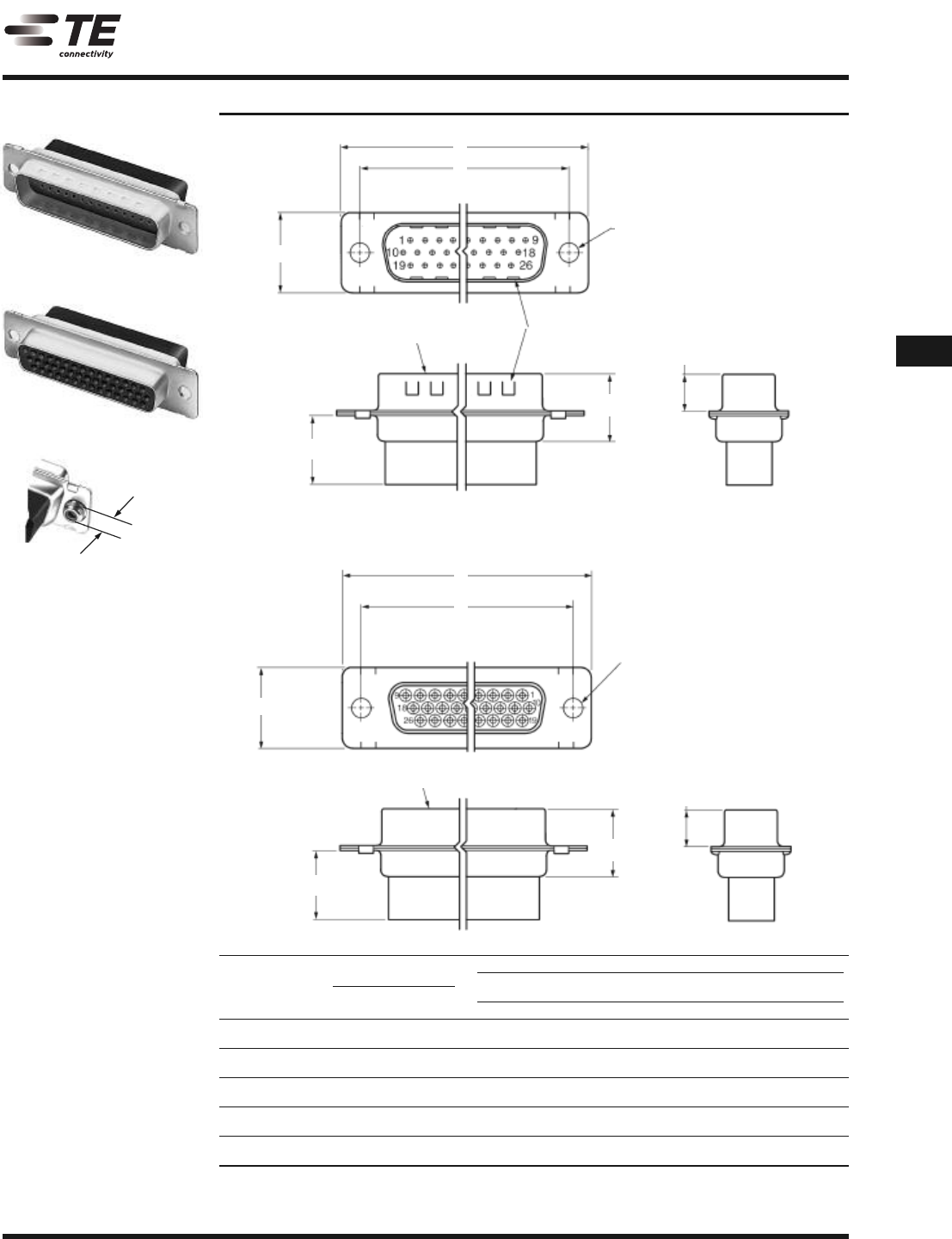

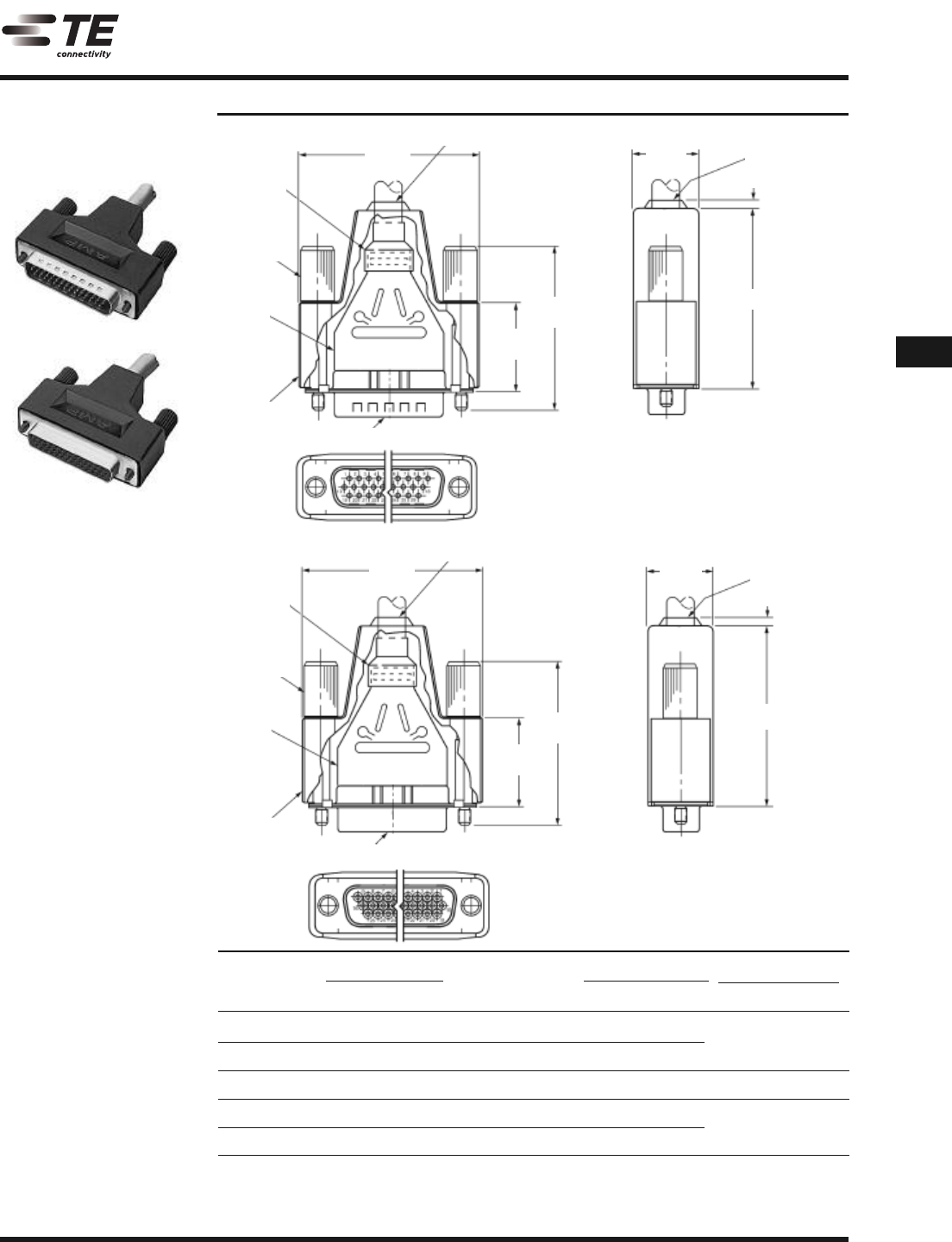

.120
[3.05]
2 Holes
D
.
230
[
5.84]
T
yp.
C
Dia.
.
120
[
3.05]
2
Plc.
D
ia.
.195
[4.95]
Max. Typ.
R
cpt. Connector
P
lug Connector
Ferrule (Must
Be Purchased
Separately)
Receptacle
P
lug
.243
[6.17]
.195
[4.95]
Max. Typ.
D
C
Recommended Max. Inner
Shell
No. of
Dimensions
Cable Cable
Kit Numbers
Size
Contact
CD
Outer Dia. Bundle
Positions
Range Dia.†
Plug Receptacle
1.535 .700 .165-.455 .350
1 15
38.99 17.78 4.19-11.56 8.89
1658675-1 5748634-1
1.535 1.024 .165-.455 .350
2 26
38.99 26.01 4.19-11.56 8.89
1658676-1 1658687-1
1.535 1.576 .165-.455 .350
3 44
38.99 40.03 4.19-11.56 8.89
1658677-1 5748636-1
1.892 2.215 .338-.562 .450
4 62
48.06 56.26 8.59-14.28 11.43
5748471-1 —
1.876 2.120 .338-.490 .450
5 78
47.65 53.85 8.59-12.45 11.43
5748472-1 —
