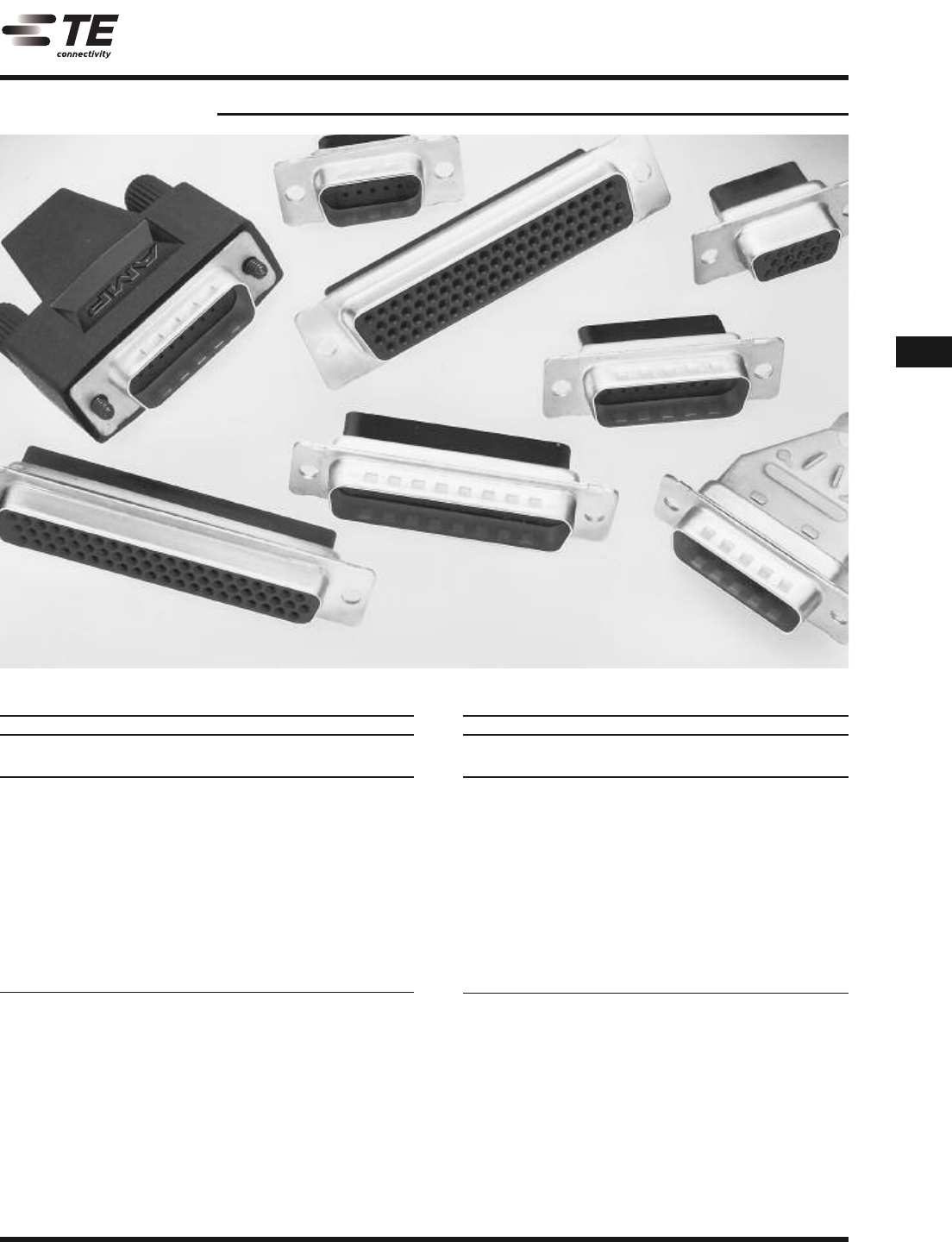

AMPLIMITE Subminiature D Connectors
Note: All part numbers are RoHS compliant.
Cable Connectors
HDP-20 Application Tooling
HDP-20 contacts may be
applied by a variety of hand
tools and machines. For
l
ow production runs, repairs
and prototype work, we
offer either our premium
CERTI-CRIMP Hand Tool
or our commercial
PRO-CRIMPER II Hand Tool.
For medium-volume
production, you have the
choice of our AMP-O-LECTRIC
Model “G” Terminating
Machine, our new Model
“M” Terminating Machine, or
our AMP-O-MATIC Model II
Stripper-Crimper Machine.
The Stripper-Crimper is typi-
cally used for terminating
the wires of jacketed cable.
All three machines can be
bench mounted.
For production requirements
ranging from non-stop high
volumes to countless series
of short runs, our popular
AMPOMATOR CLS IV+ fully-
automated lead-making
machine is an ideal choice.
For further information
about these or other TE
hand tools and machines,
call the TE Tooling
Assistance Center at
1-800-722-1111.
This versatile machine
now incorporates two
AMP-O-LECTRIC Model “G”
Terminating Units. Basically,
it produces single-wire
leads in lengths from 1.62
[41.2] to 1000 [25 400]. It
measures, cuts, strips and
terminates wire sizes from
26 to 10 AWG [0.12 to 6 mm
2
]
stranded and 26 to
16 AWG [0.12 to 1.4 mm
2
]
solid. Production rates
range up to 4800 leads per
hour for 3 [76.2] lengths.
The machine is micropro-
cessor controlled, and pro -
grammed and operated with
an easy-to-follow, menu-
driven touchscreen. It can
retain data for up to 200
lead assemblies. Off-line
programming is also pos-
sible with optional software
OffLine-Plus for Windows
95, Part No. 189263-2.
Air requirement is 90 psi
[6.21] bar minimum at
15 scfm [0.0071 m
3
/s]. Power
requirement is single-phase
220 VAC, 50 or 60 Hz, 25 A.
For further information
request Catalog 124324.
AMPOMATOR CLS IV+ Lead-Making Machine
