AMPLIMITE Subminiature D Connectors
Cable Connectors
Unshielded Cable Clamps (Continued)

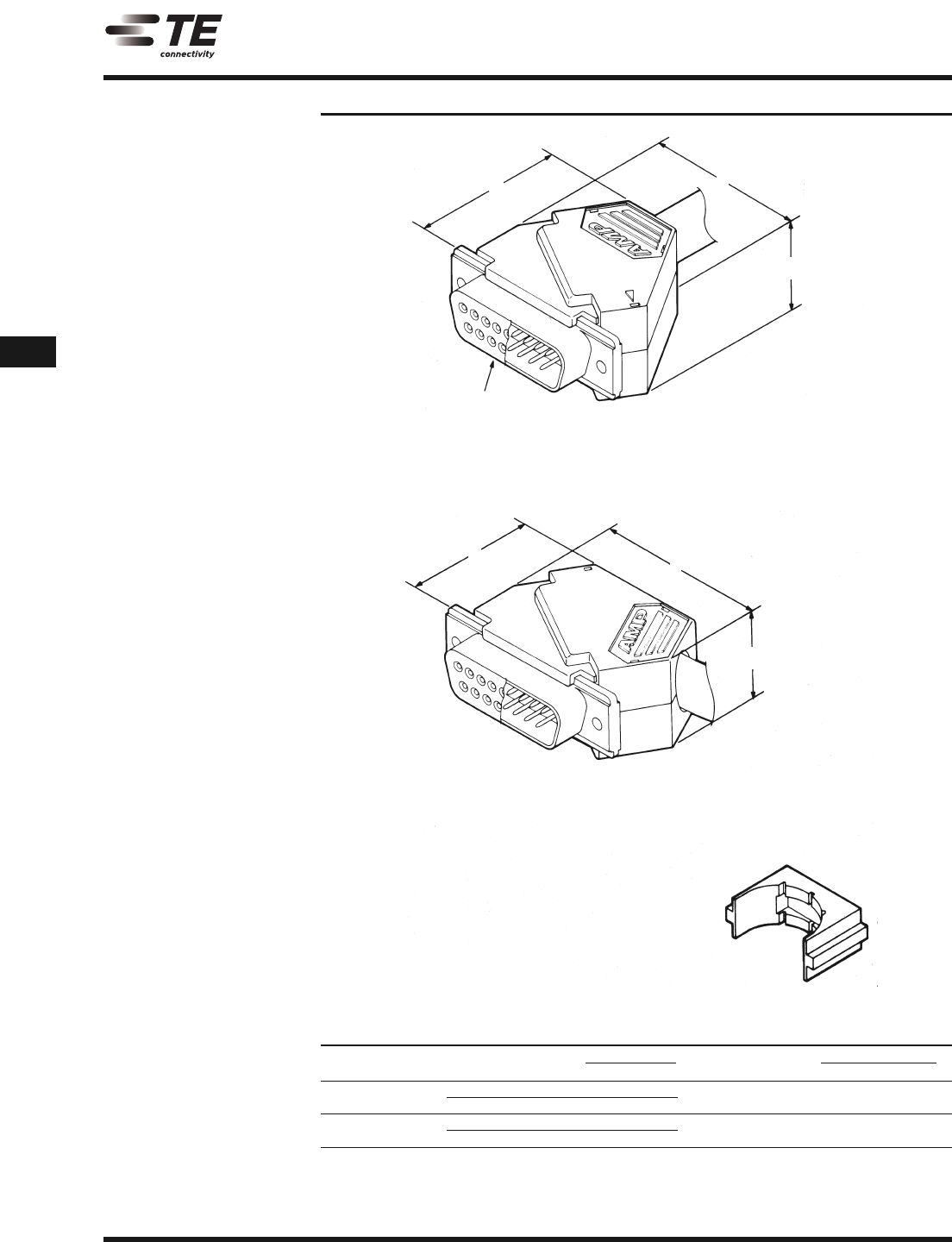

Clam Shell
Straight/45° Exit
Straight/45° Exit Cable Clamps
can be used on either a plug
or receptacle and will not
interfere with commonly used
hardware, such as Male
Screw Retainers, Female
Screw-locks or Spring Latches
a
nd Latching Blocks. Their
hinged construction allows
easy assembly to a harness.
Also, the straight or 45° angle
of the cable exit is achieved
by merely positioning the
Cable Support Gate for
the desired angle prior to
installing the assembly
o
nto the plug or receptacle.
Adjustable screws are used to
tighten cable strain reliefs.
Cable Clamp assemblies
are available in kits with
appropriate hardware for
convenient plug/receptacle
mating.
Material and Finish:
Cable Clamp Housing—
Thermoplastic, black with textured finish
Gates—Thermoplastic, black
Pan Head Screws, 6-32 Set Screw
and 6-32 Square Nut—Steel, zinc
plated (sizes 1 and 2 include self-tapping
screws only)
Related Product Data:
Connectors used with:
HDP Metal-Shell—pages 90-102
Other accessory capabilities:
Male Screw Retainers—
pages 146 & 147
Female Screwlocks—page 148
Locking Posts and Slide Latches—
pages 149-151
Spring Latches (Two Piece)—
page 152
Latching Blocks—pages 153 & 154
Technical Documents:
Instruction Sheet—408-7555
Material and Finish:
Cable Clamp Housing—
Thermoplastic, black with textured finish
Gates—Thermoplastic, black
Pan Head Screws, 6-32 Set Screw
and 6-32 Square Nut—Steel, zinc
plated (sizes 1 and 2 include self-tapping
screws only)
Male Screw—Steel, zinc plated yellow
chromate
Retaining Clip—Stainless steel
Related Product Data:
Connectors used with:
HDP Metal-Shell—pages 90-102
Technical Documents:
Instruction Sheets—
408-7555
408-7837
Note: All part numbers are RoHS
compliant.
C
able strain relief
adjustment screw
this side
Cable
S
hort Cable Clamp Standard Cable Clamp
S
hell
D
imensions
Dia.
P
art No. Part No.
Size
ABCD
(Max.)
Individual Bulk Packed* Individual Bulk Packed*
1
.625 .750 .640 .640 .256
1
4
1.28 19.05 16.26 16.26 6.30
—
— 5205729-1 5205729-3
1.250 1.073 .600 .640 .320
31.75 27.25 15.24 16.26 8.13
5206393-1 —— —
1
.625 1.073 .640 .640 .320
2
4
1.28 27.25 16.26 16.26 8.13
—
— 5205730-1 5205730-3
1.250 1.615 .600 .640 .420
31.75 41.02 15.24 16.26 10.67
5206390-1 5206390-3 ——
1.625 1.615 .640 .640 .420
3
41.28 41.02 16.26 16.26 10.67
——5205718-1 5205718-4
1.625 2.263 .640 .640 .490
4
41.28 57.48 16.26 16.26 12.45
——5205731-1 —
*Each part is individually bulk packed for multiple assembly orders.
Notes: 1. All parts are packed unassembled.
2. Quantity of pan head screws supplied with cable clamp assembly varies with shell size.
3. Cable clamps are available in kits with male screw retainers, see below.
4. All pan head screws have combination cross-recessed and slotted heads.

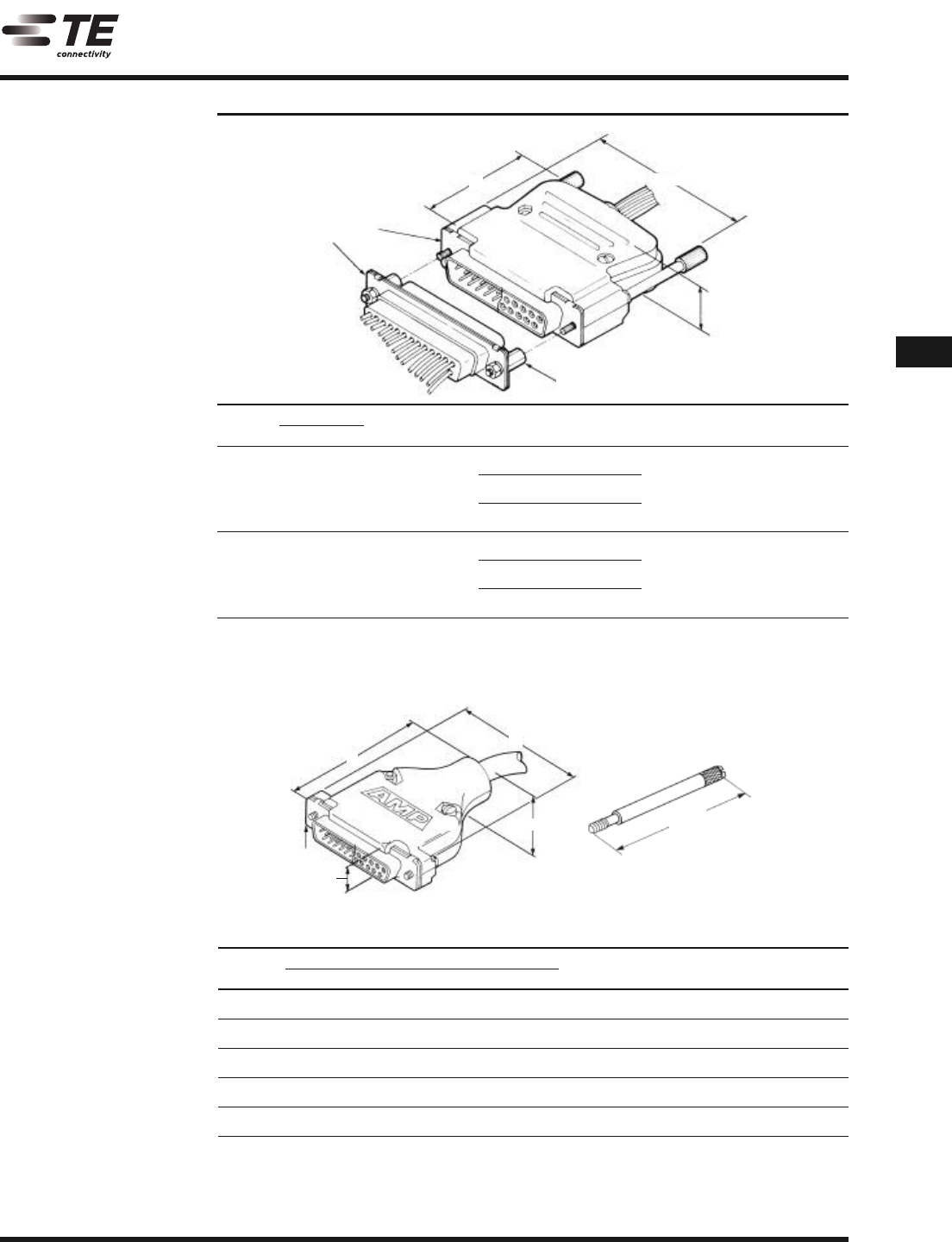

Clam Shell Straight/45° Exit
Cable Clamp Kits
with Male Screw Retainers
H
DP Plug or Receptacle
(
Shown for Ref. only)
B
C
Max.
D
HDP Plug or Receptacle
(Shown for Ref. only)
Male Screws mate with
Female Screwlocks
(See page 144.)
Cable Clamp
(See Note 3.)
Male Screw
(See Note 2.)
Retaining Clip
(See Note 2.)
Short Cable Clamp Standard Cable Clamp
Shell Size KIt No. Kit No.
Individual Bulk Packed* Individual Bulk Packed*
1——5206478-1 —
2——5206478-2 —
3 1-5206478-2 2-5206478-6 5206478-3 2-5206478-2
4——5206478-4 —
5——5206478-5 —
*Each part is individually bulk packed for multiple assembly orders.
Notes: 1. All parts are packaged unassembled.
2. Each kit is comprised of a cable clamp and male screw retainer hardware (2 each). Male screw retainers
are also available in kit form, see page 146.
3. For ordering cable clamps separately, see above.
