AMPLIMITE Subminiature D Connectors
Note: All part numbers are RoHS compliant.
Cable Connectors
Unshielded Cable Clamps (Continued)
S
hell
Dimensions Cable Dia. Max. (Ref.) Cable Clamp Kit No.
Size
A
B Straight Cable Exit 90° Cable Exit Individual Bulk Packed*
.755 .630 .160 .160
1
19.18 16.00 4.06 4.06
207467-1 207467-2
1
.078 .630 .320 .320
2
2
7.38 16.00 8.13 8.13
2
07470-1 —
1.620 .770 .390 .390
3
41.15 19.56 9.91 9.91
207345-1 207345-2
2.268 .770 .640 .405
4
57.61 19.56 16.26 10.29
207473-1 207473-2
2.178 .880 .490 .490
5
55.32 22.35 12.45 12.45
207476-1 —
*Each part is individually bulk packed for multiple kit orders.
Notes: 1. All parts are packaged unassembled.
2. Cable diameter is adjustable by changing cable support gates. Use the flat side of cable support gates for
discrete wire, and the semicircle side for jacketed cable.
Notes: 3. Cable clamp assemblies are available in kits with male screw retainers, see below.
Shell
Cable Clamp Kit No.
Size
1 5207908-1
2 5207908-4
3 5207908-7
4 1-5207908-0
5 1-5207908-3
Notes: 1. All parts are packaged unassembled.
2. Each kit is comprised of a cable clamp and male screw retainer
hardware(2 each). Male screw retainers are also available in kit
form, see page 146.
3. For ordering cable clamps separately, see above.

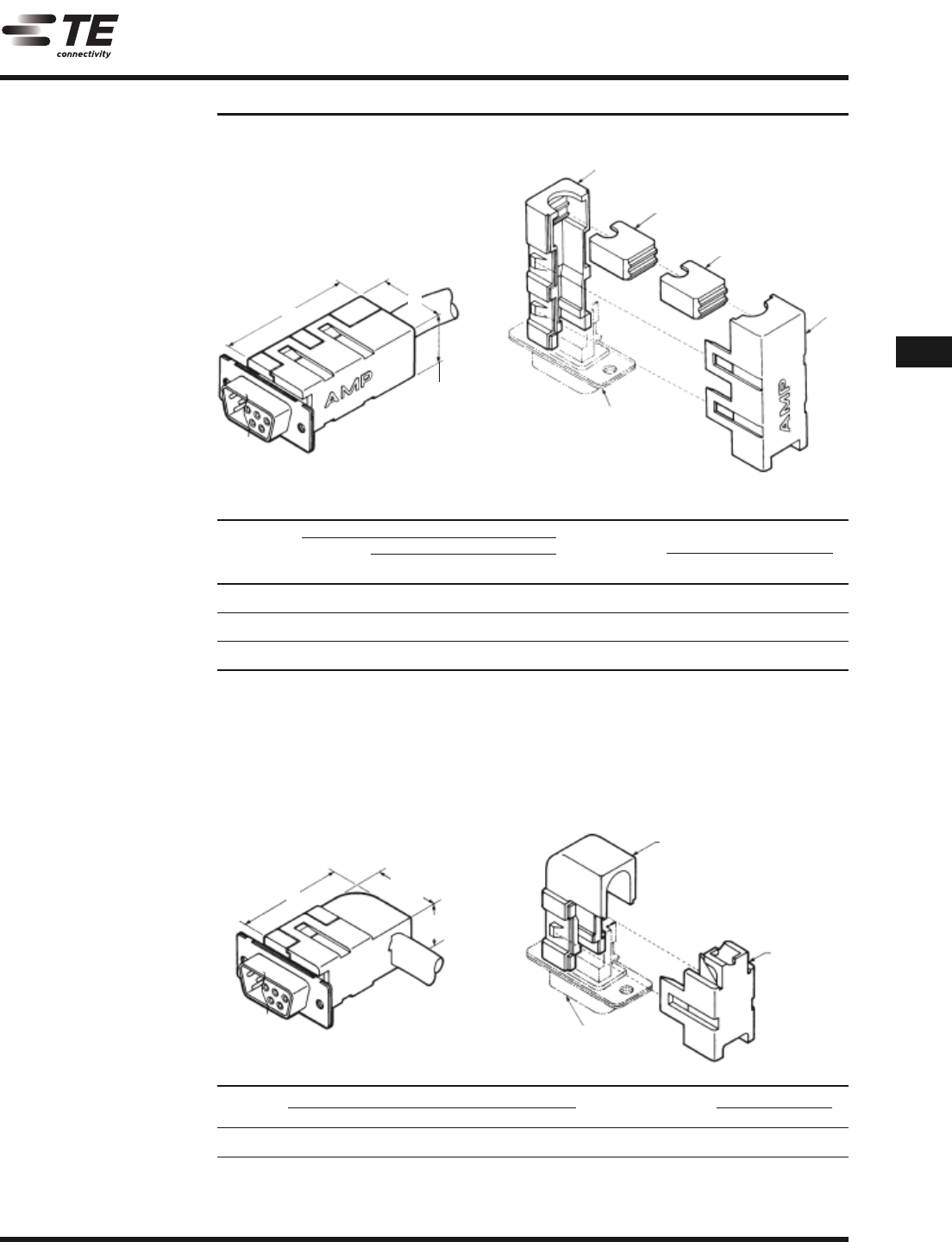

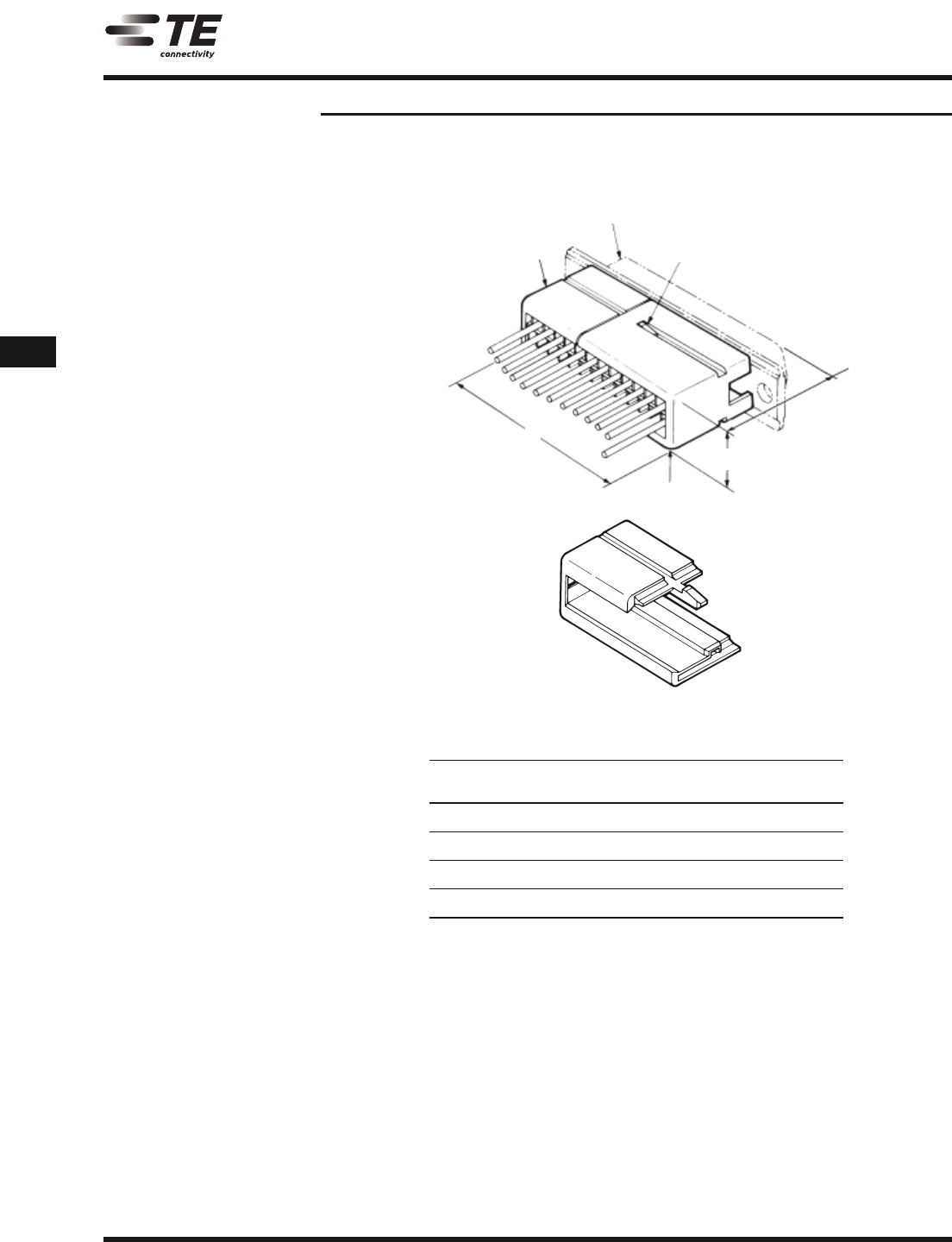

Box and Lid Straight/90° Exit Cable Clamp Kits
with Male Screw Retainers
HDP Plug or Receptacle
(Shown for Ref. only)
Self-Tapping
Screw
T
extured
F
inish
Typical Cable Support
Gate (Supplied with
Cable Clamp Kit)
C
able Gates are inter-
c
hangeable allowing
9
0° and 180° cable
e
xit. Blank gate shown
i
n 90° exit.
1
.70
[
43.18]
A Max.
B Max.
Retaining Clip
(See Note 2.)
Retaining Clip
(See Note 2.)
Male Screws mate
with Female
Screwlocks
(See page 144.)
Male Screws mate
with Female
Screwlocks
(See page 144.)
Male Screw
(See Note 2.)
Male Screw
(See Note 2.)
B
Max.
A Max.
1.70
[43.18]
Cable Clamp
(See Note 3.)
HDP Plug or
Receptacle
(Shown for
Ref. only)
Textured
Finish
HDP Plug or
Receptacle
(Shown for
Ref. only)
Self-Tapping
Screw
S
hell Size 1 & 2 Shell Size 3 & 4 & 5
Shell Size 1 & 2
Shell Size 3 & 4 & 5
Box and Lid
Straight/90° Exit
Box and Lid Cable Clamps
can be used on either plugs
or receptacles and will not
interfere with commonly
used hardware. Their
hinged construction allows
easy assembly to a
harness. A wide range
o
f cable diameters are
accommodated through
the use of cable support
gates, supplied with each
cable clamp.
Cable clamps are available
in kits with appropriate
hardware for convenient
plug/receptacle mating.
See below for kits with
Male Screw Retainers.
Material and Finish:
Cable Clamp Housing—
Thermoplastic, black with textured finish
Gates—Thermoplastic, black
Flat Head Screws—Steel, black, zinc
plated
Related Product Data:
Connectors used with:
HDP Metal-Shell—pages 90-102
Other accessory capabilities:
Male Screw Retainers—
pages 146 & 147
Female Screwlocks—page 148
Locking Posts and Slide Latches—
pages 149-151
Spring Latches (Two Piece)—
page 152
Latching Blocks—pages 153 & 154
Technical Documents:
Instruction Sheet—408-7555
Material and Finish:
Cable Clamp Housing—
Thermoplastic, black with textured finish
Gates—Thermoplastic, black
Flat Head Screws—Steel, black, zinc
plated
Male Screw—Steel, zinc plated yellow
chromate
Retaining Clip—Stainless steel
Related Product Data:
Connectors used with:
HDP Metal-Shell—pages 90-102
Technical Documents::
Instruction Sheets—
408-7555
408-7837
H
DP Plug or Receptacle
(
Shown for Ref. only)
