AMPLIMITE Subminiature D Connectors
Note: All part numbers are RoHS compliant.
Cable Connectors
Unshielded Cable Connector and Clamp Kits
O
ne-Piece, All-Plastic Cable Clamp for
Jacketed Cable, 180°/120° Exit and
HDP-20 and HDE-20 Connector
The AMPLIMITE Quik-Snap
Backshell and Connector
kit presents a complete
p
ackage for your unshielded
subminiature D connector
needs. Kits are available for
Shell Sizes 1, 2 and 3, and
are packaged 25 and 100
kits per unit.
Each kit contains:
1-Hinged Plastic Clamp
2-Retention Screws
2-Retention Clips
1-Cable Gate Plug
1-Strain Relief Clip
2-Self Tapping Screws
1-Connector and Contacts
Material and Finish:
Cover—Polypropylene, black
Retention Screws—Steel, zinc plated
Retention Clips—Stainless steel
Cable Gate Plug—Polypropylene,
Black
Strain Relief Clip—Stainless steel
Self Tapping Screws—Steel, zinc
plated
Contacts—Brass (HDP Pins),
Phosphor Bronze (All Others), plated
gold flash on the mating end, .000100
[0.00254] min. tin or tin on the
terminating end, all over .000030
[0.00076] min. nickel underplating
Housing—Polyester or nylon, glass-
filled, UL rated 94V-0, black
Shell—Steel, plated .000200 [0.00508]
min. tin over .000050 [0.00127] min.
copper
Technical Documents:
HDE Connectors:
Instruction Sheets—
408-6621
Application Specifications—
114-40002
114-40003
HDP Connectors:
Application Specifications—
114-10000
114-40030
Cable Clamps:
Instruction Sheet—408-9544
Retainer Clips:
Instruction Sheet—408-7837
Shell Cable Dia. Dimension Plug Kit Receptacle Kit
Size Range (Ref.) A Part No. Part No.
Packaging
.075-.250 .785
749808-8 100/pack
1
1.91-6.35 19.94
749812-7
.170-.380 1.110
749808-9 100/pack
2
4.32-9.65 28.19
—
.180-.460 1.650
749808-7 1-749812-1 100/pack
3
4.58-11.68 41.91
Unshielded Cable Clamp Kits with HDP-20 Connectors
Shell Cable Dia. Dimension Plug Kit Receptacle Kit
Size Range (Ref.) A Part No. Part No.
Packaging
.180-.460 1.650
3
4.58-11.68 41.91
749809-9 749813-8 100/pack
Unshielded Cable Clamp Kits with HDE-20 All-Plastic Connectors
.494
±
.015
[12.55
±0.38
]
A
2.079
[52.81]
M
ax.
.
700
±.015
[17.78
±0.38
]

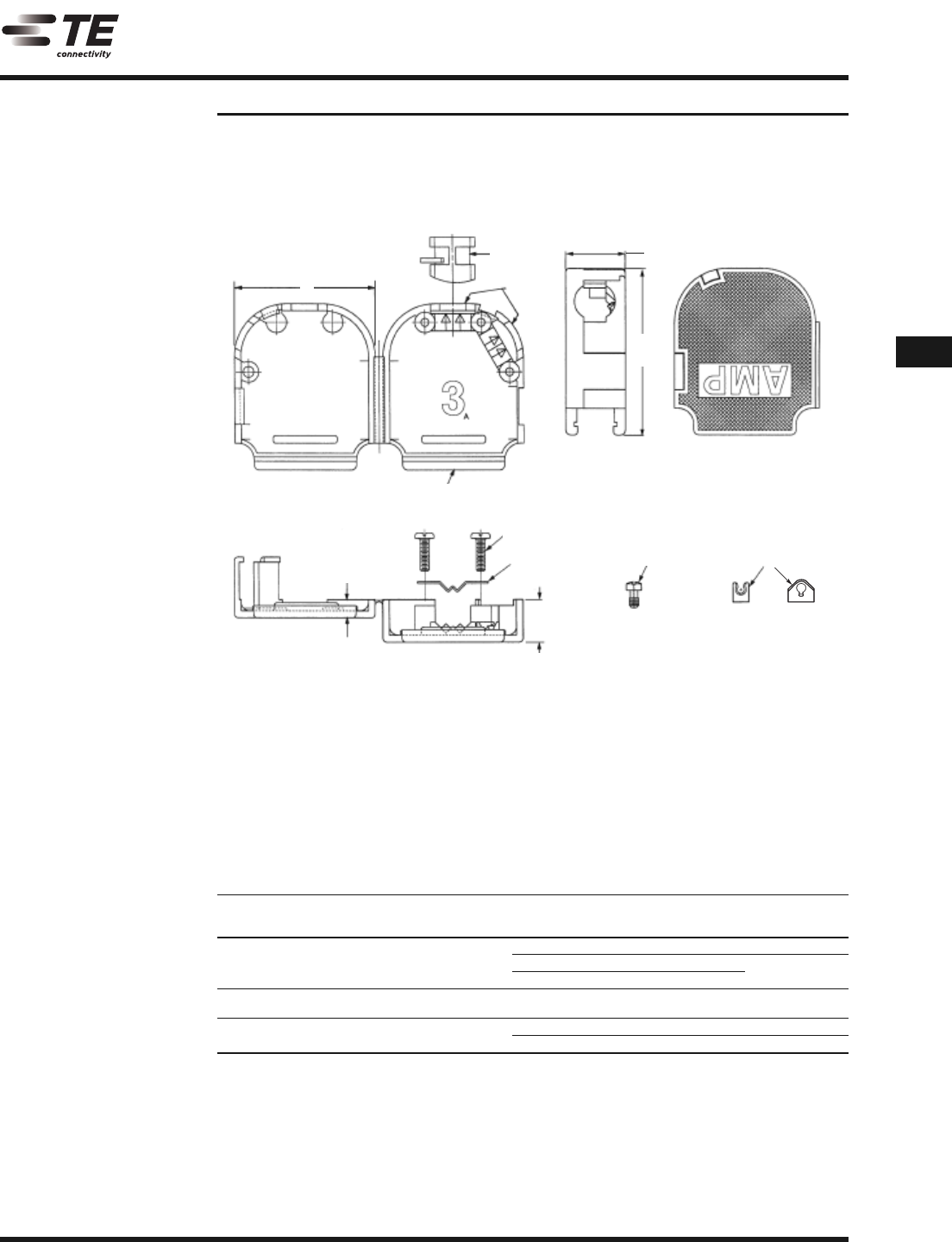

Retainer Clip
Strain Relief Clip
Self Tapping Screw
Cable Gate Plug
Retainer Clip
Retainer Screw
R
etainer Screw
P
in Contact
P
in Contact
Shell
Mating Face
Mating Face
H
ousing
Housing
Shell
H

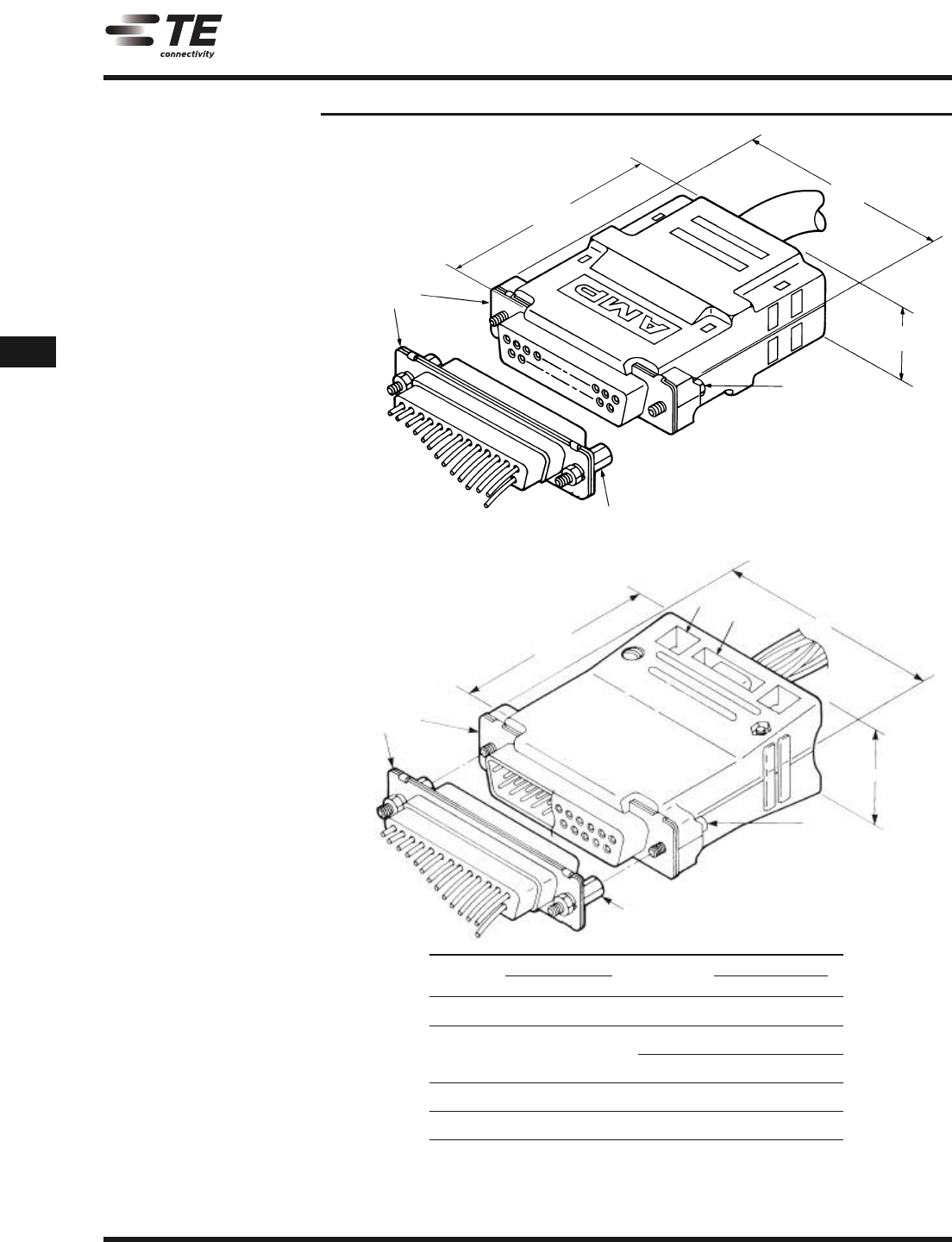

DE-20 Connector
HDP-20 Connector
Assembled Cable
C
lamp and Connector
Cable Clamp Kit
