AMPLIMITE Subminiature D Connectors
Note: All part numbers are RoHS compliant.

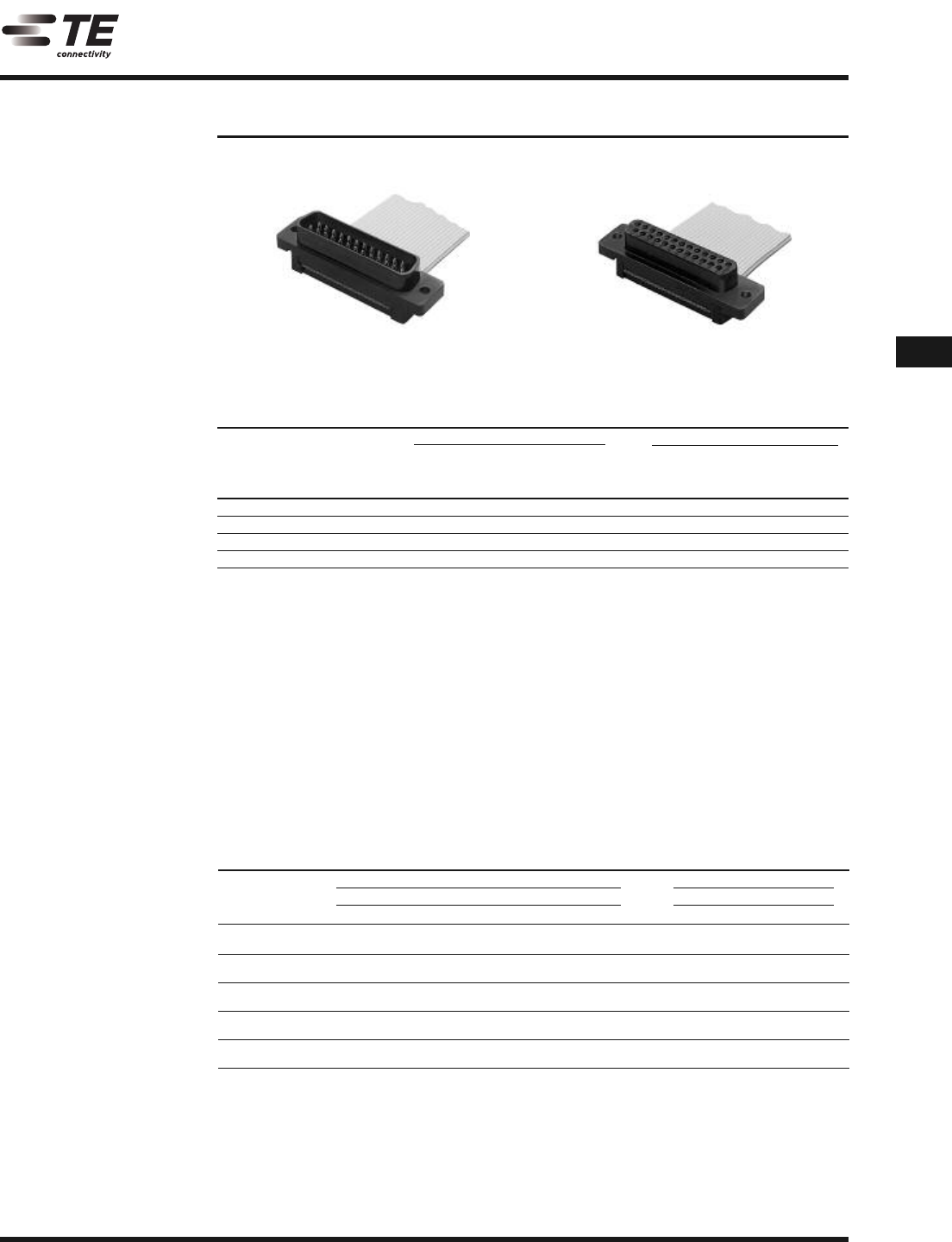

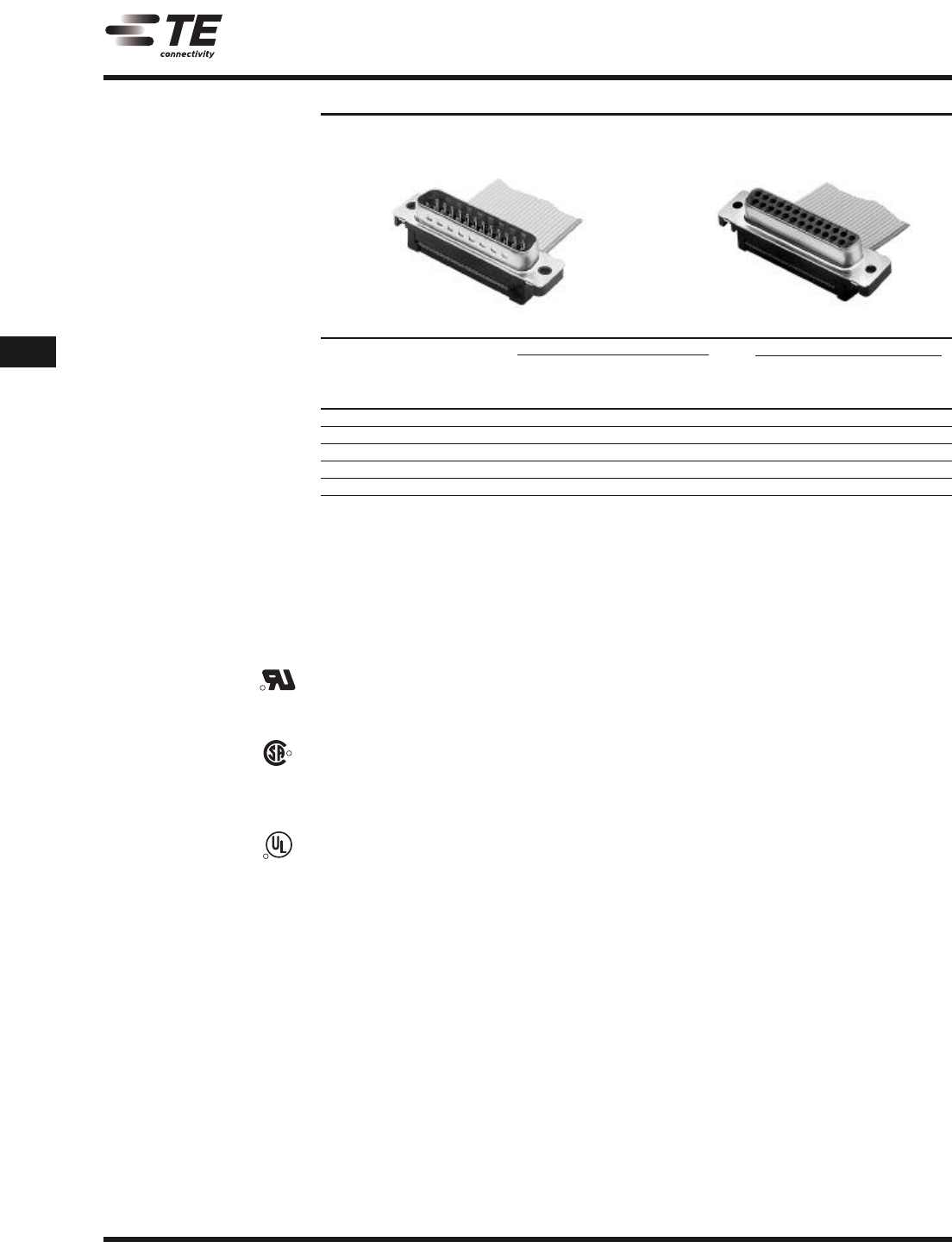

Cable Connectors
HDE-20 Application Tooling (Continued)
CHAMPOMATOR 3A
Terminating Machine
This machine is the
high-productivity way to
terminate multiconductor,
jacketed cable with a variety
of TE connectors having
insulation displacement
contacts. It automatically sorts
the wires, and terminates
them in a programmed
sequence. The sequence
may use all or some of the
c
onnector contacts, such
as for various RS-232 wiring
patterns.
All cable assemblies are tested
for continuity and shorts.
The machine is micro-
processor controlled, and
programmed by a touch input
screen. The easy programming
simplifies the process and
reduces training require ments.
The machine’s internal storage
capability can retain up to 50
cable assemblies, which can
be easily retrieved by number
or name. Produc tion monitoring
and diag nostics can also be
accessed through the touch
screen.
Contact TE for the tooling
required for your specific
applications.
CHAMPOMATOR 2.5
Terminating Machine
This is a compact, semi-
automatic bench machine. It
is microprocessor controlled,
and programmed using a
membrane switch keyboard.
The potential machine rate is
one pair of wires per second.
Contact TE for the tooling
required for your specific
applications.
The CHAMPOMATOR Model
2.5 Bench Terminating
Machine—Part No. 354786-4
is used in conjunction with
Control Module—Part No.
852423-1.
Contact TE for application
specific requirements.
Manual Arbor Tool
The arbor tool with applicator
is used to terminate jacketed
cable. Wires are neatly routed
and trimmed to length with
the cable jacket close to the
connector. 400 to 800 termi -
nated wires per hour are
typical.
Manual
Arbor Tool
Arbor Tool No. 91085-2
Applicators:
Wire O.D. .041-.060 [1.04-1.52]—No. 543157-1 (tool mount),
543426-1 (termination tool)
Wire O.D. .040 [1.02] and smaller—No. 543157-1 (tool mount),
543426-2 (termination tool)
Control Module
No. 852423-1
CHAMPOMATOR
2.5 Machine
No. 354786-4
Product Facts
■ Low applied costs
■ A
utomatic termination
of jacketed cable
■ Automatic continuity check
and shorts test
■ Single- or double-ended
assemblies
■ M
icroprocessor controlled
with touch input screen
■ Stored program capability
■ Selective termination of
connector positions
■ Rapid tooling changeover
for different connector types
■ Handles a variety of TE
insulation-displacement
connectors
■ Terminates both multicolor
and single-color wires
■ Remote programming capa-
bility
■ Straight or right-angle wire
dress
■ Control Module
852423-1 120 VAC
Technical Documents:
Instruction Sheets
408-7777 Manual Arbor Tool
Note: Instruction Sheets for TE Tooling
are packaged with the tooling. For
additional information call the Tooling
Assistance Center: 1-800-722-1111.
