ELCO CORP. 00-8016-090-000-601

Cross Number:

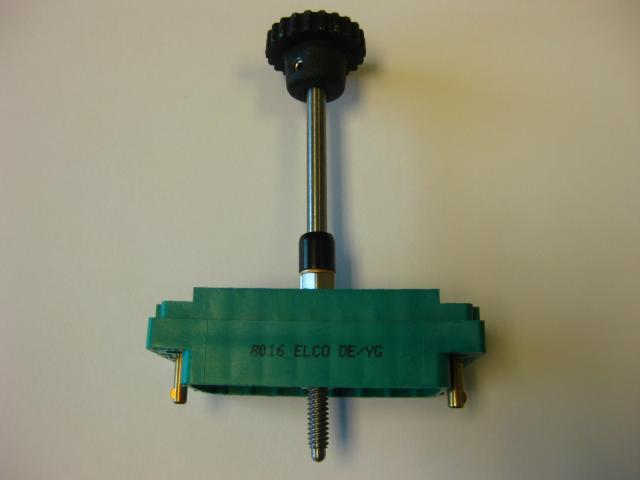

Item Description: Rack & Panel Connectors VARICON

Qty Price
1 - 2 $17.62200
3 + $13.75050



Other Cross Reference

Manufacturer Date Code Qty Available Qty
ELCO CORP.
  • Freelance Stock: 3
    Ships Immediately





Technical Document


DISCLAIMER: The information provided herein is solely for informational purposes. Customers must be aware of the suitability of this product for their application, and consider that variable factors such as Manufacturer, Product Category, Date Codes, Pictures and Descriptions may differ from available inventory.

14
FEATURES
Available in five sizes: 20, 38, 56, 90 and 120 contacts
Insertable / removable Varilok contacts
Crimp, solder, solderless wrap, and taper tab terminations
Exceptional versatility: all hardware can be mounted on
plug or receptacle (see ordering code)
Actuating screw facilitates mating and unmating, locks
mated connectors together
Polarizing hardware can be set to any of six positions at
factory; can also be reset by user (see polarizing code)
Optional cover with top or side cable entry and clamp
Optional cable strain relief clamp with adjustable strap
for large or small cable bundles (fits on sizes 38 and 56)
Plug and receptacle contacts are protected from
mishandling
Guide pins and sockets ensure correct alignment when
mating
Aluminum covers
CSA acceptable polyester material
Varicon
®
Series 8016 – .075" x .130" x .150" Grid Pattern
Current Rating:
8 amperes, maximum
Contact Resistance:
6 milliohms, maximum
Contact Material:
Phosphor bronze
Contact Plating:
Gold, 10 microinches min.,
over Nickel,
50-100 microinches
Insulator Material:
Thermoplastic 94V-O glass
filled polyester
Insulation Resistance:
5,000 megohms, min.
(polyester)
Sea Level: 1250 volts RMS
3.4" Hg: 625 volts RMS
Cover and Clamp Material and Finish:
Aluminum with clear chromate under grey
enamel finish
TECHNICAL SPECIFICATIONS
15
Varicon
®
Series 8016 – Basic Components
CONECTORS:
COVERS:
CONTACTS:
Crimp Solder Tab Wire Wrap
14.4mm
Wire Wrap
19.3mm
Wire Wrap
.567
Solder
217 Style 218 Style 750 Style 296 Style 504 Style
Male, Jackscrew Male, Fixed Nut Female, Fixed Nut Female, Jackscrew
Male Female
(Exposed Contacts) (Recessed Contacts)
001/601 Style 002/602 Style 007/607 Style 008/608 Style
Top Opening Side Opening Top/side Opening
(Removable Side Plate)
16
Contact Termination
*000 = Contacts not fitted and ordered separately,
see page 25 for full list of options
217 = Solder 0.098" x 2.49mm
218 = Wire Wrap –
0.025 x 0.050 x 0.567" / 0.64 x 1.27 x 14.4mm
296 = Wire Wrap –
0.025 x 0.026 x 0.579" / 0.64 x 0.66 x 14.7mm
504 = Solder Tail –
750 = Wire Wrap –
0.025 x 0.050 x 0.760" / 0.64 x 1.27 x 19.3mm
Varicon
®
Series 8016 – Rectangular Connector – 20 Contact
ORDERING CODE
PLUG
Actuating
Screw
SOCKET
Actuating
Screw
SOCKET
Fixed
Nut
00
Prefix
8016
Series
Number
020
Number of
Contacts
217 601
See table
below
*Crimp contacts always ordered separately.
See page 25 for details.
*Select the column desired and replace the XXX with the numbers from column.
**United Course Thread
See page 26 for assembly tools.
PIN LAYOUT
20
Way
16.26
6.35
3.81
Ø2.44
Ø3.50
4.77
32.39
24.38
10 AT 1.90
= 19.00
28.58 ±0.13
10.41 ±0.13
RECOMMENDED LAYOUT
FOR FRONT CHASSIS
MOUNTING & PCB LAYOUT
20 CONTACTS COVER
Insulator
Basic P/N* Color
Hardware
No Cover
Top Std Side Std Actuating Fixed
Body Type **Thread Clamp Clamp Screw Nut
Male 00 8016 020 000 XXX Green UNC 601 603 604 Y N
Male 00 8016 020 000 XXX Green UNC 602 605 606 N Y
Male 00 8016 020 000 XXX Gray UNC 001 903 904 Y N
Male 00 8016 020 000 XXX Gray UNC 002 905 906 N Y
Female 00 8016 020 000 XXX Green UNC 608 609 610 Y N
Female 00 8016 020 000 XXX Green UNC 607 611 612 N Y
Female 00 8016 020 000 XXX Gray UNC 008 909 910 Y N
Female 00 8016 020 000 XXX Gray UNC 007 911 912 N Y
PLUG
Fixed
Nut
