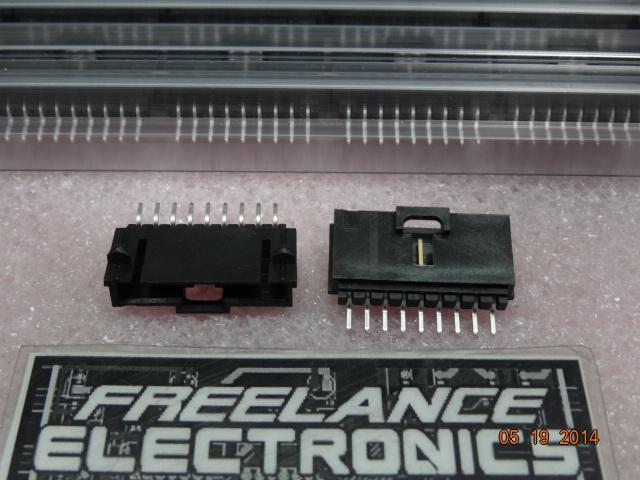

Part # 15-91-2095
Description WIRE-BOARD CONNECTOR HEADER 9POSITION, 2.54MM, Product Ra
Category CONNECTOR
Availability In Stock
Qty 600
Qty Price
1 - 52 $2.87918
53 - 130 $2.29026
131 - 254 $2.15939
255 - 386 $2.00670
387 + $1.78858
Manufacturer Available Qty
MOLEX
  • Shipping Freelance Stock: 600
    Ships Immediately



Technical Document


DISCLAIMER: The information provided herein is solely for informational purposes. Customers must be aware of the suitability of this product for their application, and consider that variable factors such as Manufacturer, Product Category, Date Codes, Pictures and Descriptions may differ from available inventory.

This document was generated on 04/05/2010
PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION
Part Number:
0015912095
Status:
Active
Description: 2.54mm (.100") Pitch SL™ Wire-to-Board Header, Low Profile, Surface Mount, Single
Row, Right Angle, .120" Pocket, Shrouded, with Press-fit Plastic Peg, 9 Circuits,
0.38µm (15µ") Gold (Au) Selective Plating, Tin (Sn) PC Tail Plating
Documents:
3D Model Product Specification PS-70400 (PDF)
Packaging Specification (PDF) Product Specification PS-70541 (PDF)
Drawing (PDF) RoHS Certificate of Compliance (PDF)
Agency Certification
CSA LR19980
UL E29179
General
Product Family PCB Headers
Series 70634
Application Wire-to-Board
Product Name SL™
Physical
Breakaway No
Circuits (Loaded) 9
Circuits (maximum) 9
Color - Resin Black
Durability (mating cycles max) 50
Flammability 94V-0
Glow-Wire Compliant No
Lock to Mating Part Yes
Material - Metal Brass, Phosphor Bronze
Material - Plating Mating Gold
Material - Plating Termination Tin
Material - Resin High Temperature Thermoplastic
Number of Rows 1
Orientation Right Angle
PCB Locator Yes
PCB Retention Yes
PCB Thickness Recommended (in) 0.062 In
PCB Thickness Recommended (mm) 1.60 mm
Packaging Type Tube
Pitch - Mating Interface (in) 0.100 In
Pitch - Mating Interface (mm) 2.54 mm
Plating min: Mating (µin) 15
Plating min: Mating (µm) 0.375
Plating min: Termination (µin) 75
Plating min: Termination (µm) 1.875
Polarized to Mating Part Yes
Polarized to PCB Yes
Shrouded Fully
Stackable No
Temperature Range - Operating -40°C to +105°C
Termination Interface: Style Surface Mount
Electrical
Current - Maximum per Contact 3A
Series

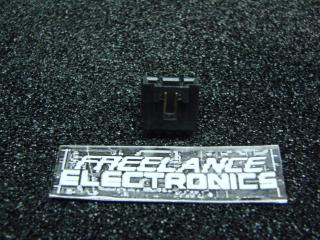

image - Reference only
EU RoHS China RoHS
ELV and RoHS
Compliant
REACH SVHC
Not Reviewed
Halogen-Free
Status
Not Reviewed
Need more information on product
environmental compliance?
Email productcompliance@molex.com
For a multiple part number RoHS Certificate of
Compliance, click here
Please visit the Contact Us section for any
non-product compliance questions.
Search Parts in this Series
70634Series
Mates With
70066n , 70066g , 70430g , 70400g Housing
Voltage - Maximum 250V
Solder Process Data
Lead-free Process Capability Reflow Capable (SMT only)
Process Temperature max. C 260
Material Info
Old Part Number 70634-0043
Reference - Drawing Numbers
Product Specification PS-70400, PS-70541
Sales Drawing SDA-70634-****
