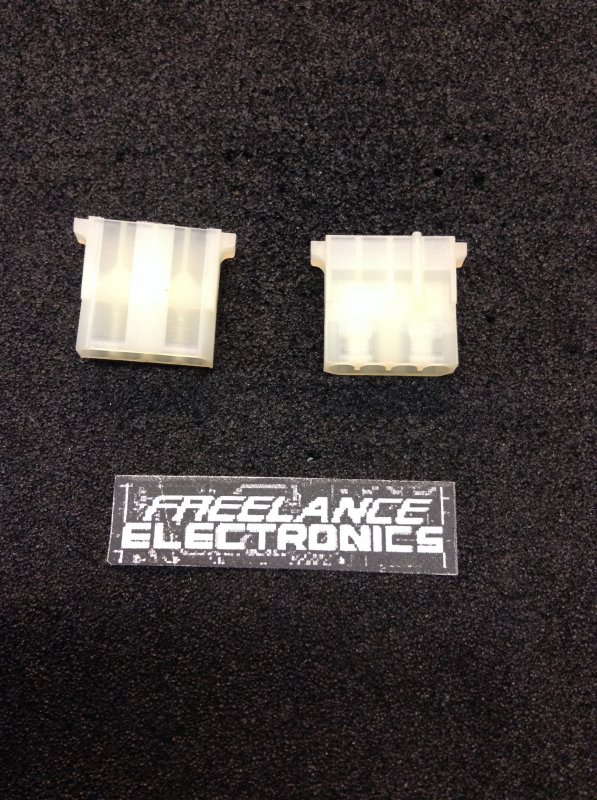

MOLEX 15-24-4048

Cross Number:

Item Description: PLUG AND SOCKET CONNECTOR HOUSING, Series:8981, No. of

Qty Price
1 + $0.08880



Other Cross Reference

Manufacturer Date Code Qty Available Qty
MOLEX
  • Freelance Stock: 20
    Ships Immediately





Technical Document


DISCLAIMER: The information provided herein is solely for informational purposes. Customers must be aware of the suitability of this product for their application, and consider that variable factors such as Manufacturer, Product Category, Date Codes, Pictures and Descriptions may differ from available inventory.

1801 Morgan Street
Rockford, Illinois 61102
800-435-2931
www.molexkits.co
m
Datasheet for 76650-0176
4
20-14 AWGWire Size:
Kit assembled in U.S.A.
(6 to 10) Amps - Dependant on Wire gauge
Connector Type: Receptacles and Headers
5.08mm (.200")
Current Rating:
Vertical
Mounting
Orientation:
Pitch:
• Varying profile heights
• Wire connectors have end grips for easy
unmating
• Detents provide firm positive fit
• Crimp equivalent of 70156 IDT connector
• Wire range from 20 to 14 AWG
• 2.096mm (.0825") diameter socket
terminals
• Computers
• Medium to High Power equipment
Product Highlights
This series of power connectors are used mainly in the hard and floppy disk drive
industries. It is used to carry voltages from the power supply unit to the disk drive
board. It is used to carry voltages from the power supply unit to the disk drive
board. An attempt was made by a group of ESDI (extended data interface)
committee to standardize the power connector in the drive industries. As there was
no standard as yet, Molex came up with a variation of power connectors falling
under our this 8981 series to accommodate the need of our valuable customers.
General Information
Wire-to-Board
Part Number: 76650-0176
Description:
Product Family:
Specifications
(Molex Parts within this kit) - EU RoHS Compliant, UL and CSA
Design
Configuration:
PCB Vertical Header and Receptacle
Molex / WaldomManufacturer:
Country of Origin:
Certificates:
Disk Drive Power
Title: Disk Drive Power Connector Kit
Circuit Sizes:
Voltage Rating: 250 Volts AC
Features and Benefits Applications
For additional Molex / Waldom Design and Solution Kits please go to www.molexkits.com
Page 1 of 2
1801 Morgan Street
Rockford, Illinois 61102
800-435-2931
www.molexkits.co
m
Datasheet for 76650-0176
Molex Part No.
Quantity in
Kit
02-08-1202 100
15-24-4048 12
15-24-4449 5
15-24-4557 5
15-24-4745 5
Molex Part No.
63811-7000 *
11-03-0037 *
*Tool(s) not included in kit. Tool(s) ordered separately.
Mexico Extraction Tool (HT60624)
Country
of Origin Description
Germany Hand Crimp Tool
.0825 Female Crimp Socket Terminals (20-14) AWG
Recommended Molex Tool
(
s
)
for Part No. 76650-0176
China
4 Circuit 5.08mm (.200") Pitch Receptacle Housing
4 Circuit 5.08mm (.200") Pitch Vertical PCB Header, .140"
Tail
4 Circuit 5.08mm (.200") Pitch Vertical PCB Header, .083"
Tail
4 Circuit 5.08mm (.200") Pitch Vertical PCB Header, .141"
Tail
Description
Bill of Materials for Part No. 76650-0176
Singapore
Singapore
Singapore
Singapore
Country
of Origin
For additional Molex / Waldom Design and Solution Kits please go to www.molexkits.com
Page 2 of 2
