MOLEX 15-04-5384

Cross Number:

Item Description: SL ItmCp DR W/Ribs 38Ckt

Qty Price
1 - 83 $3.24812
84 - 160 $2.53452
161 - 240 $2.21463
241 - 330 $2.06699
331 + $1.91935



Other Cross Reference

Manufacturer Date Code Qty Available Qty
MOLEX 0520
  • Freelance Stock: 396
    Ships Immediately





Technical Document


DISCLAIMER: The information provided herein is solely for informational purposes. Customers must be aware of the suitability of this product for their application, and consider that variable factors such as Manufacturer, Product Category, Date Codes, Pictures and Descriptions may differ from available inventory.

This document was generated on 06/01/2010
PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION
Part Number:
0015045384
Status:
Active
Overview: cgrid__sl_products
Description: 2.54mm (.100") SL™ Interim Clip, 38 Circuits, Polarized
Documents:
3D Model Drawing (PDF)
Packaging Specification (PDF) RoHS Certificate of Compliance (PDF)
Agency Certification
CSA LR19980
UL E29179
General
Product Family Accessories
Series 70013
Component Type Clip
Overview cgrid__sl_products
Product Name SL™
Physical
Circuits (Loaded) 38
Color - Resin Black
Flammability 94V-0
Lock to Mating Part Yes
Material - Resin Polyester
Number of Rows 2
Packaging Type Bag
Polarized to Mating Part Yes
Material Info
Old Part Number 70013-1038
Reference - Drawing Numbers

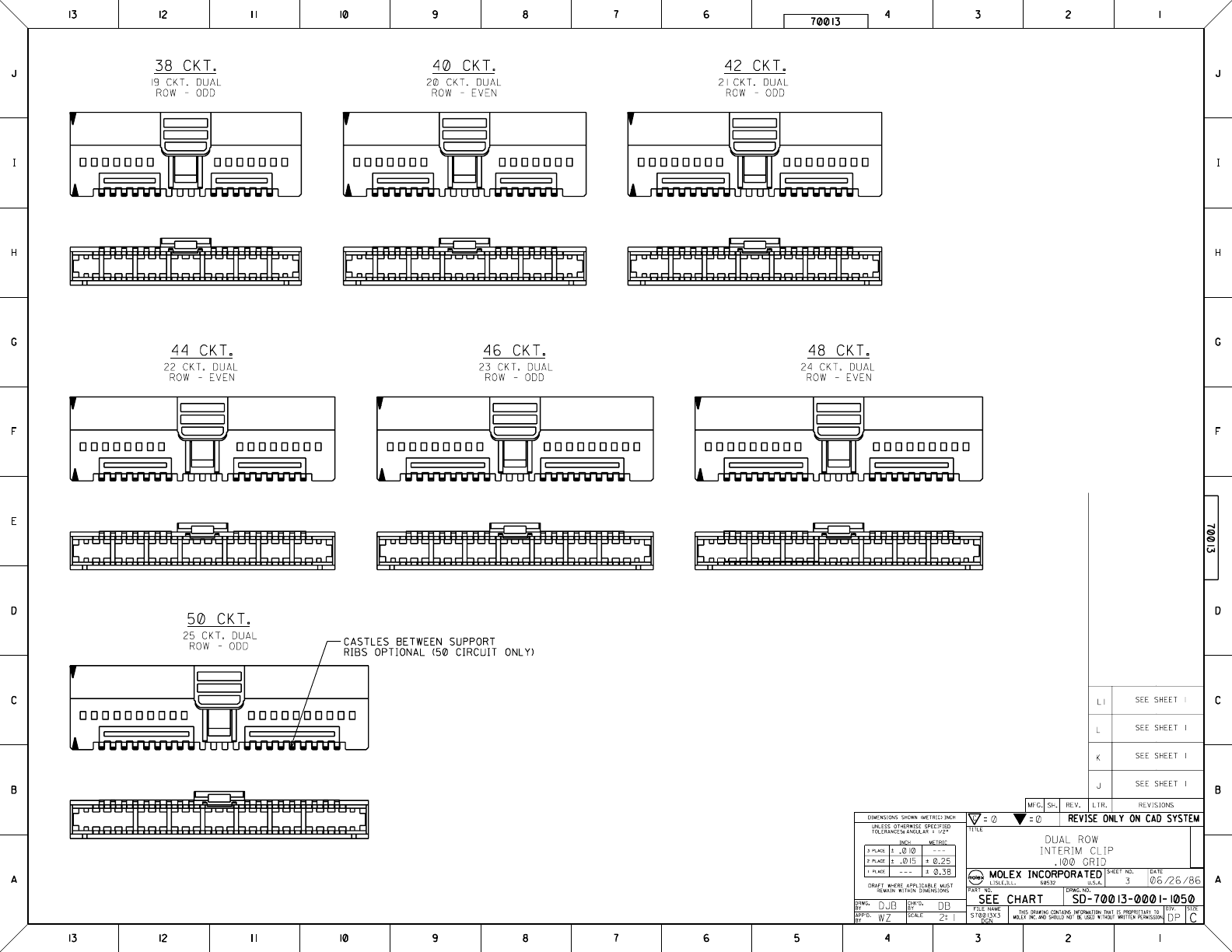

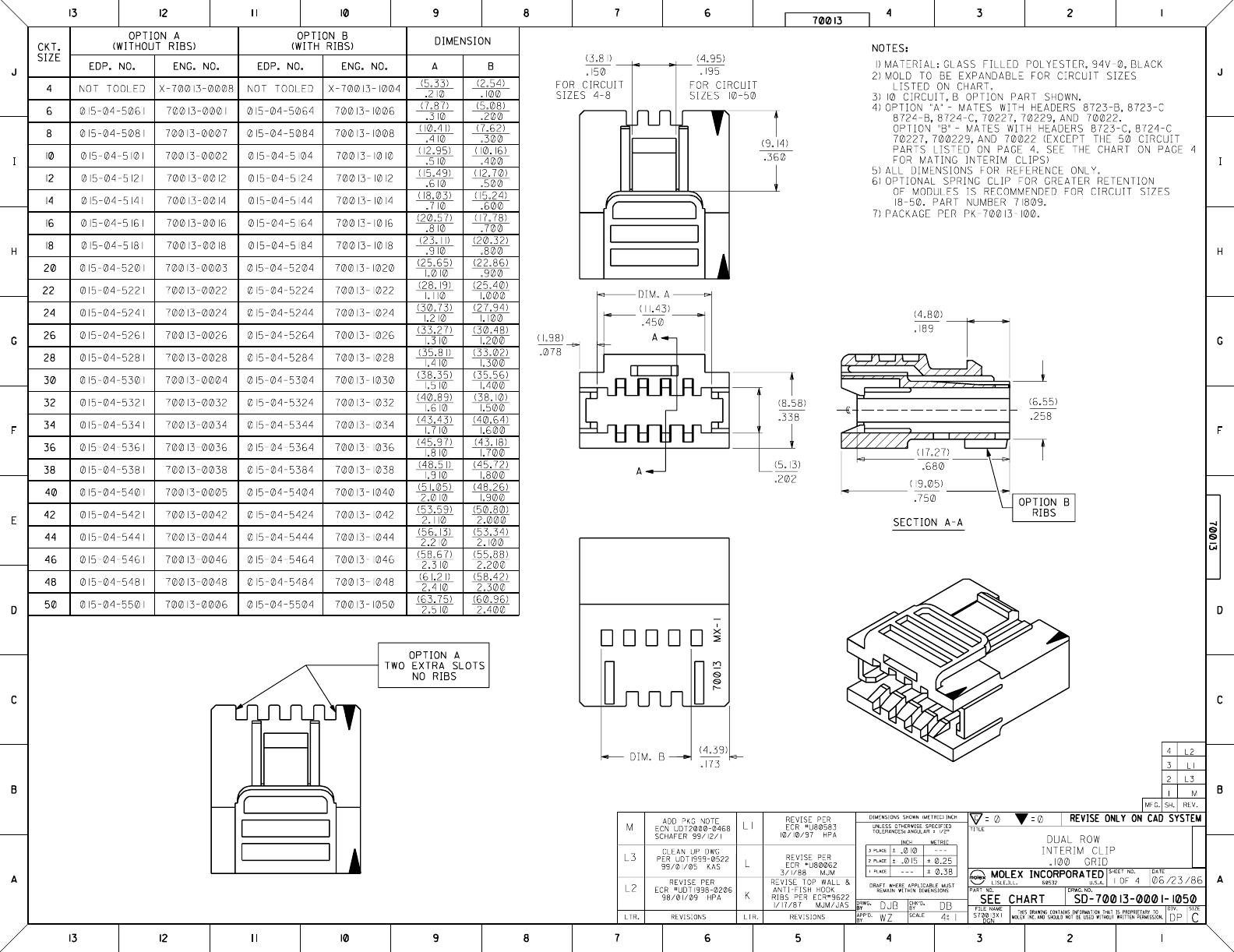

Sales Drawing SD-70013-0001-1050
Series
image - Reference only
EU RoHS China RoHS
ELV and RoHS
Compliant
REACH SVHC
Contains SVHC: No
Halogen-Free
Status
Not Reviewed
Need more information on product
environmental compliance?
Email productcompliance@molex.com
For a multiple part number RoHS Certificate of
Compliance, click here
Please visit the Contact Us section for any
non-product compliance questions.
Search Parts in this Series
70013Series
Use With
70066 SL™ Crimp Housing. 70058 SL™
Crimp Terminal. 70400 C-Grid SL ™ IDT
Connector Assembly. 70430 C-Grid SL™.
70450 SL™ Crimp Housing
This document was generated on 06/01/2010
PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION
